Digital MG Mid Size servo 12Kg@0.55 HV

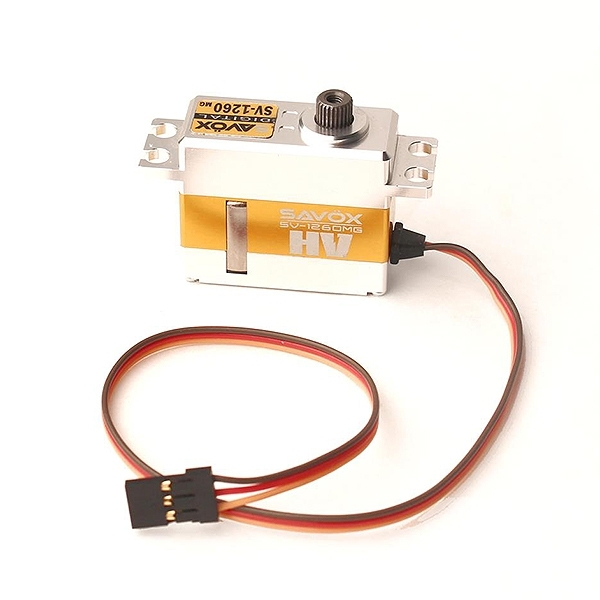

The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminum case and metal gearset, making it one of the strongest and fastest mini servos available.

Features

• Metal gear train provide durability against heavy use.
• Capable of HV operation.
• All aluminum case provides strength and cooler operating temperatures.

Specifications

• Torque @6v - 8.0kg/111.1oz-in
• Torque @7.4v - 12.0kg/166.6oz-in
• Speed @6v - 0.065 sec/60 deg
• Speed @7.4v - 0.055 sec/60 deg

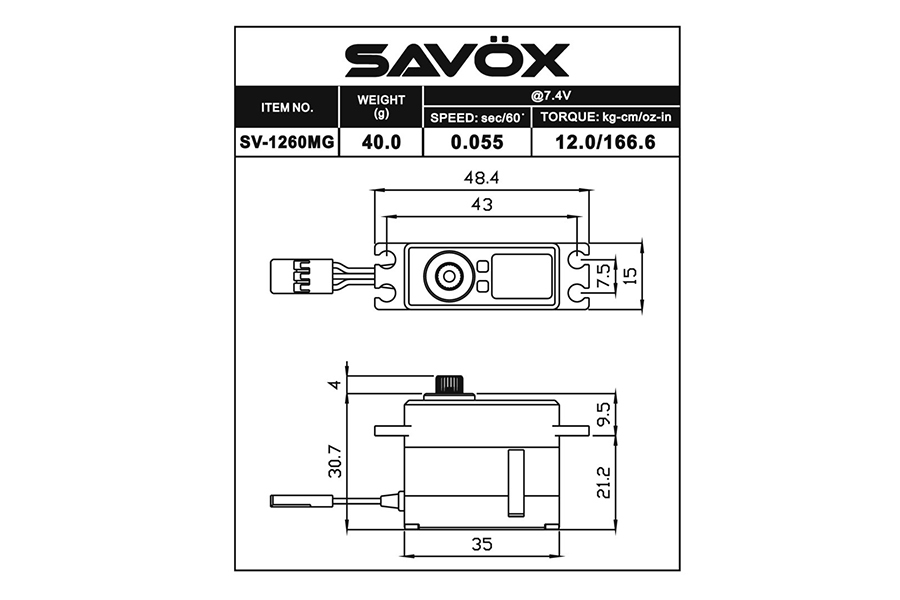

• Dimensions L x W x H (mm): 35.0 x 15.0 x 30.7
• Weight: 40.0g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 165° (800 → 2200 µ second)
Refresh Rate: 333 Hz
