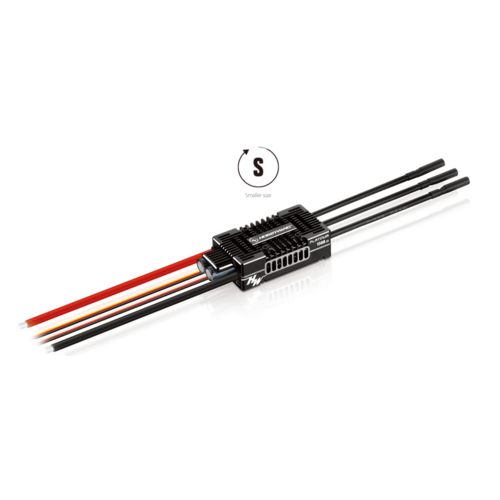

PLATINUM-150A-V5

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS)
Free pick-up from store - $0.00
Warehouse pick available

30203500

Type Brushed/Brushless BL

High Voltage/Regular Regular

Specifications

Cont./Peak Current

150A/180A

Input Voltage

3-8S LiPo

BEC Output

Switch Mode:5-8V,10A

Wires & Connectors

Input Wires

Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires

Black-12AWG-120mm*3

Input Connectors

No

Output Connecotors

4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

83x37x21mm

Weight

140g



(HW30203500)

SKU HW30203500
Barcode # 6938994402880
Brand HOBBYWING
