The Platinium Series are professional ESC for airplane and helicopter with best performance and advanced functions like governor mode for helicopter. The Firmware is updatable and the ESC are suitable for senior pilots as well.
Exquisite Design & Quality Components
The elegant cases are made by Aluminum.

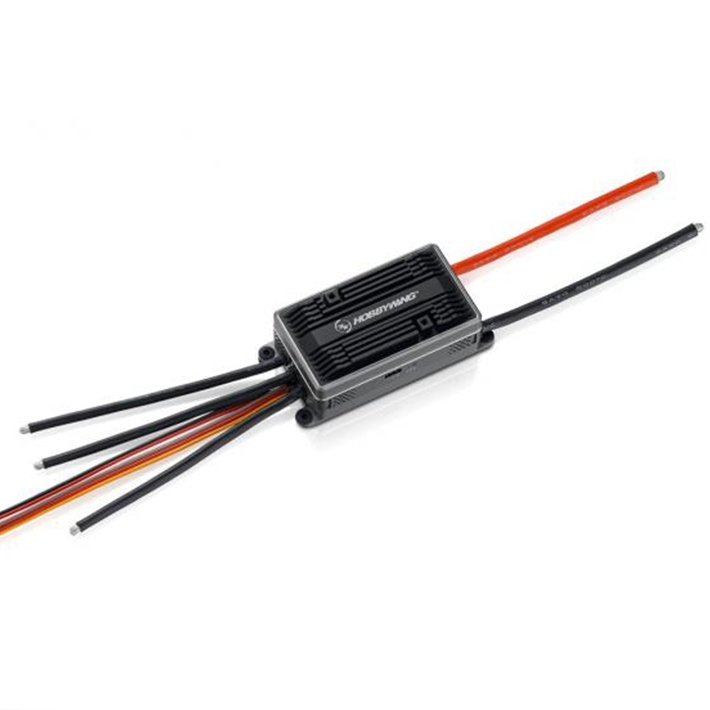

Top level components combined with the exquisite industrial design guarantee the Platinum HV 200A SBEC V4.1 ESC the unmatchable quality & look.
Integrated Heat-dissipation Structure
The improved structure solves the heat-dissipation problem of the “Sandwich” stacking circuit board. The appropriate circuit distribution allows all components on both sides of circuit boards to quickly
conduct heat to the Aluminum cases. The way of heat dissipation maximizes the cooling and guarantees the Platinum HV 200A SBEC V4.1 ESC always operates in cool & stable condition.
Platinum HV 200A SBEC V4.1 (New) Way of Heat Dissipation
The power board dissipates heat via the Aluminum upper & medial case
The control board dissipates heat via those holes on the medial case
The BEC circuit board (at the bottom) dissipates heat via the Aluminum lower case.
Excellent Speed-governing
High-performance 32-bit processor combined with advanced algorithm makes the speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find
the most suitable settings for his helicopter.
Intelligent and Variable Frequency Soft-start Technology
Based on the original super soft-start technology,the intelligent and variable frequency soft-start technology combined with the adjustable throttle response time guarantees motors ultra-soft and smooth
start and ZERO blade-drift issues of helicopter, this definitely creates a perfect starting for every flight.
Built-in Spark-proof Circuit
The built-in spark-proof circuit effectively eliminates the sparks produced when the ESC is powered on and extends the service life of connectors.
Technical Data
- Connection Wires: 2x 8AWG for Battery
- Connection Wires: 3x 10AWG for Motor
- Cont./Peak Current: 200A / 300A
- Motor Type: Sensorless Brushless Motor
- Applications: 700-800 class Helis
- LiPo/NiMH Cells: 6-14S LiPo
- BEC Output: 5V - 8V (Switchable in 0,1V Steps)
- BEC Current (Cont. / Peak): 10A / 30A
- Throttle Signal / RPM Signal Transmission: via optical coupler
- Size (LxWxH): 105 x 50 x 36 mm
- Weight: 325g (with wires)
- Programming Port: FAN/PRG Port
- ESC Programming Via: LCD Program Box
