###Xrotor micro F4 flight controller w/OSD

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS)
Free pick-up from store - $0.00
Warehouse pick available

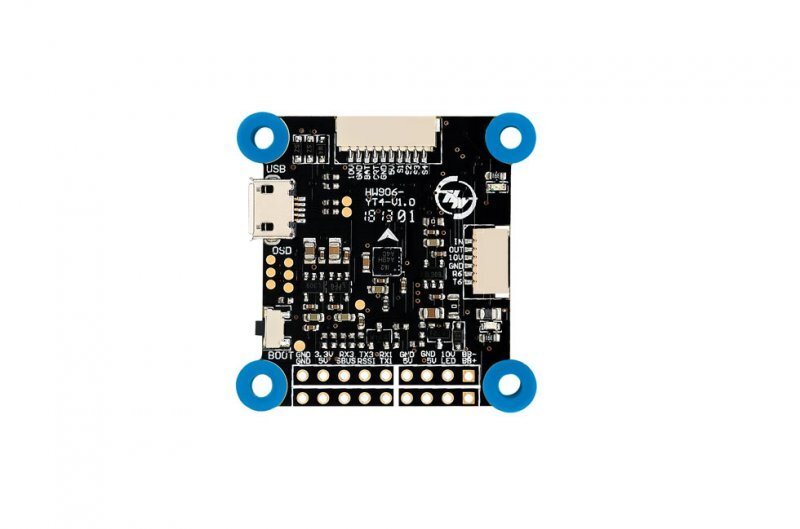

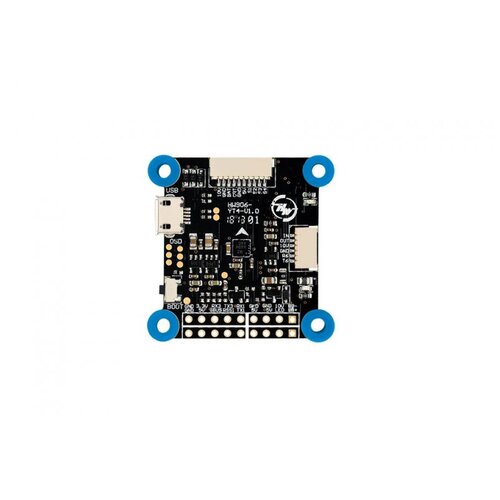

Hobbywing made XRotor Micro Flight Controller F4 G2 31003000 (HW-31003000) Drone System

Powerful Hardware for Super Fast Operating Speed
The STM32F405 MCU, which features powerful computing capacity & super operating speed,
combined with the high-sensitivity ICM20602 6-axis motion sensor supports 32KHz PID controller &
gyro. The built-in OSD chip allows users to adjust or set OSD parameters via the
Betaflight/Cleanflight/Butterflight/invaflight software or transmitter easily. The internal TF-card
expansion slot allows users to insert a SD card to record more flight data.


Innovative Shock-absorbing Structure
The Innovative connecting method via a soft cable (*it works better
when pairing with the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
combined with the shock-absorbing design of mounting holes
effectively reduces the impact on high-sensitivity FC components
from outside shock to make every flight more stable and precise.


On-board Filter Circuit
The XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it only functions when pairing with the 10V BEC of the
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to make images more clear and stable.


Multiple Throttle Signal
Modes Supported
Besides the latest DShot 150/300/600/1200
high-speed digital throttle signal modes and the
Proshot1000 mixed throttle signal mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle signal modes are also supported.


Multiple FPV Firmware Supported
The XRotor Micro-F4-G2 not only supports multiple mainstream FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, but also allows users to adjust or set parameters via the corresponding
software. All this makes the unit more applicable to various FPV flights & racing.


Compatible(with the Hobbywing 4IN1 ESC&VTX)
It’s easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (Video Transmitter).





Product Specification
Basic Features
Compatible with (Multirotors) : Quadcopter
Firmware : OMNIBUSF4SD
FC Programming : Supported
Programming via : Betaflight/Cleanflight-configurator or Others
Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc.
Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD : Built-in
Voltage Monitoring : Supported
Current Monitoring : Supported
External Buzzer : Supported
LED Control : Supported
BEC : No
USB Port : MicroUSB

Size & Weight
Size : 36*36mm
Weight : 6g

(HW31003000)

SKU HW31003000
Brand HOBBYWING
