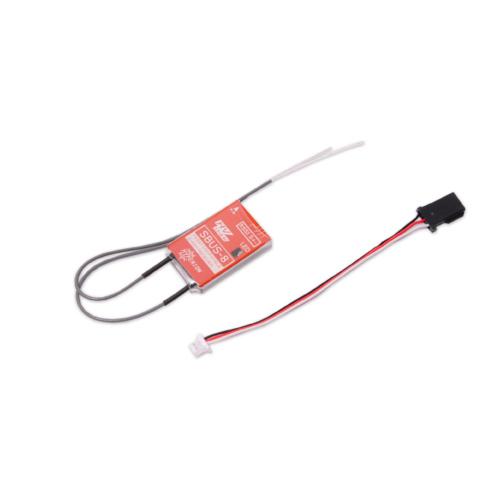

SBUS-8 2.4Ghz 8 Fut compatible receiver

This receiver is compatible with Futaba FASST systems only

The Hyperion SBUS-8 2.4Ghz 8/16Ch FASST Compatible Receiver offers easy and reliable connectivity with Futaba FASST COMPATIBLE transmitters and modules (FASST is a registered trademarks of Futaba Co) This receiver utilizes dual antennae providing diversity signal reception for the best RF Link possible. Furthermore, our programmable failsafe on binding feature, ultra fast brown-out recovery, and a wide voltage input range gives you the best option. If you are looking for a quality FASST Spread Spectrum compatible, 8-Channel, Full-range S.BUS Receiver! the Hyperion 8ch 2.4Ghz S.BUS Receiver FASST Compatible (with RSSI & SB ports) is the best solution.

The Hyperion S.BUS receivers best suits the multirotor application where a single wire interface makes the setup neat and clean. Takes away the extra wire mess when using standard PWM receivers.

Features:

• Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode)
• SB port is compatible with Futaba S.BUS servos and FrSky servo D12MB
• No receiver channel limits (except by those on your transmitter) and prevents mismatched servo channel connections
• RSSI output
• Two selectable failsafe setting options (use native failsafe on transmitter or set failsafe on RXSBUS-8 directly
• High sensitivity and stability
• Wide operating temperature range, suitable for all kinds of models
• Firmware upgradeable

Compatible with:

• FASST 2.4G Air Systems (7CH Mode/Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, etc.

Specifications:

• Number of Channels: 8
• Operating Voltage Range: 3.5V~10V
• Operating Temperature Range: -10~80 degree Celsius
• Servo Frame Rate: 14ms (FS-Normal Speed Mode), 7ms (HS-High Speed Mode)
• Dimension: 44.5x27.5x17mm
• Weight: 11.5g

*This is not a genuine Futaba FASST receiver. FASST is a registered trademark of Futaba CO.
