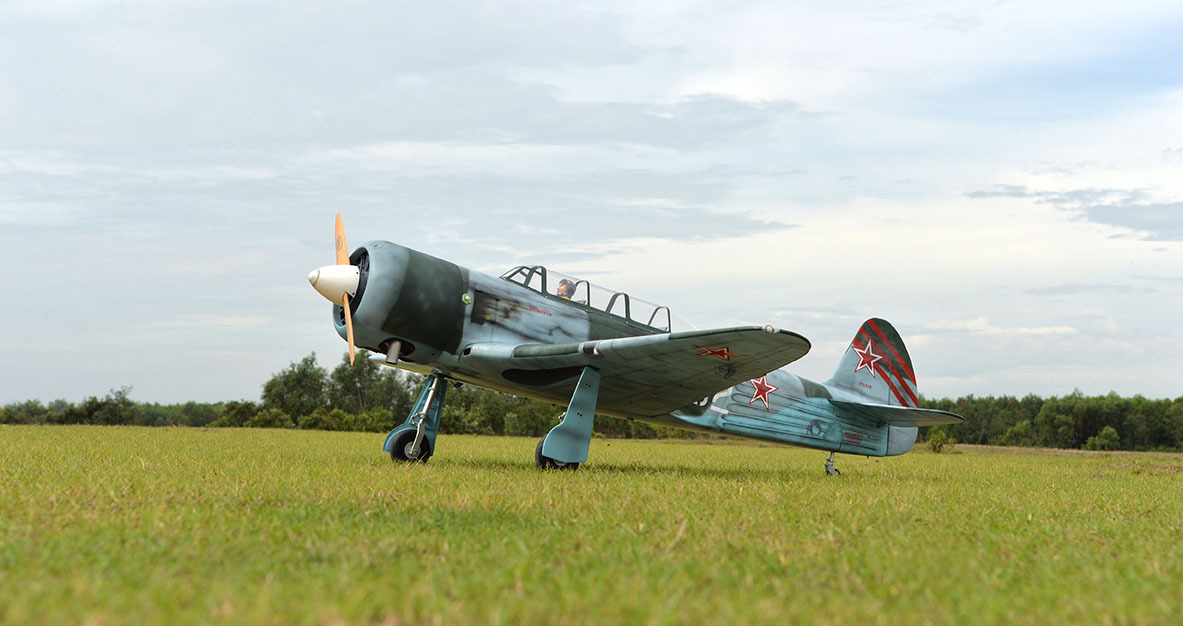

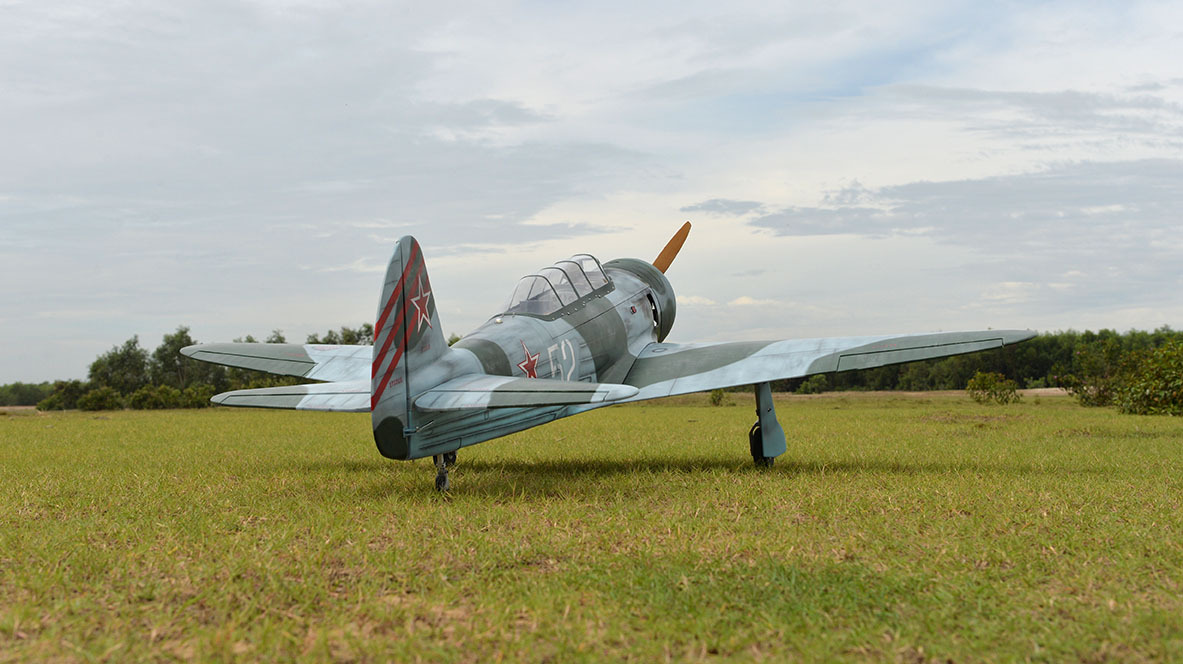

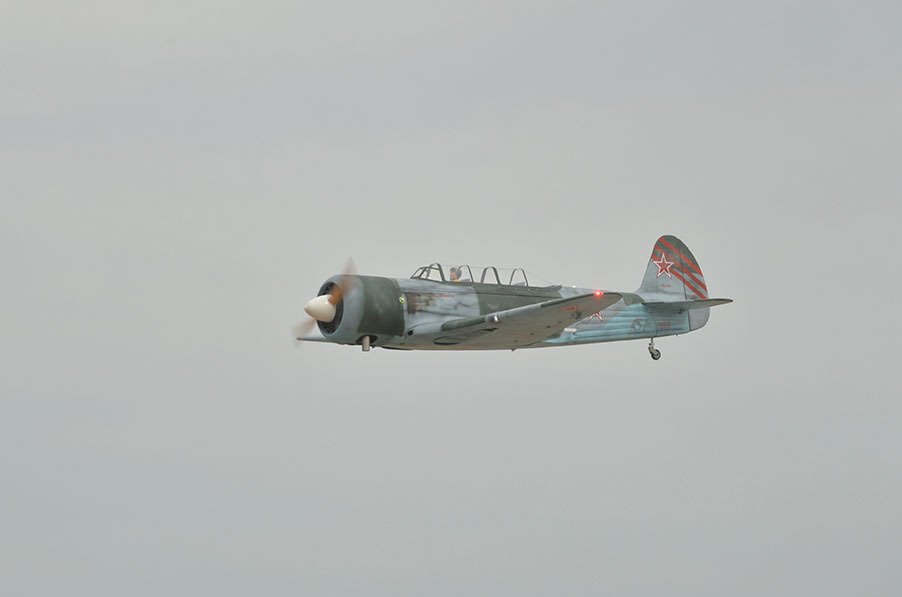

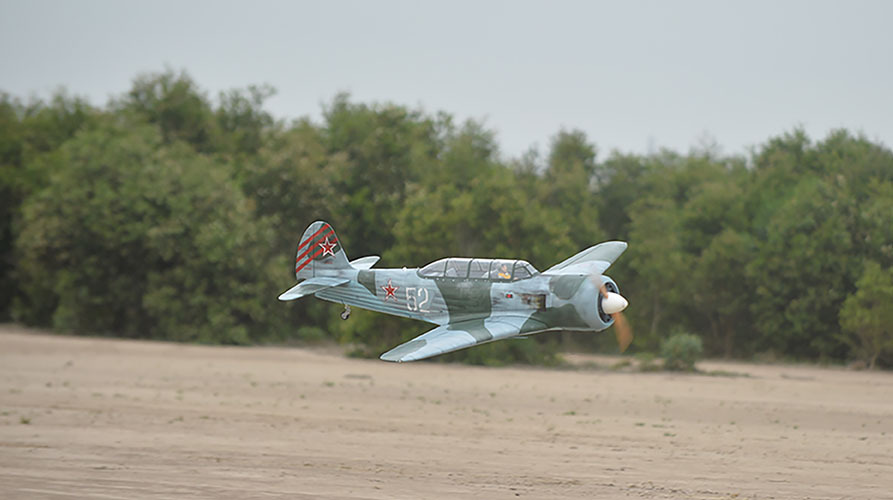

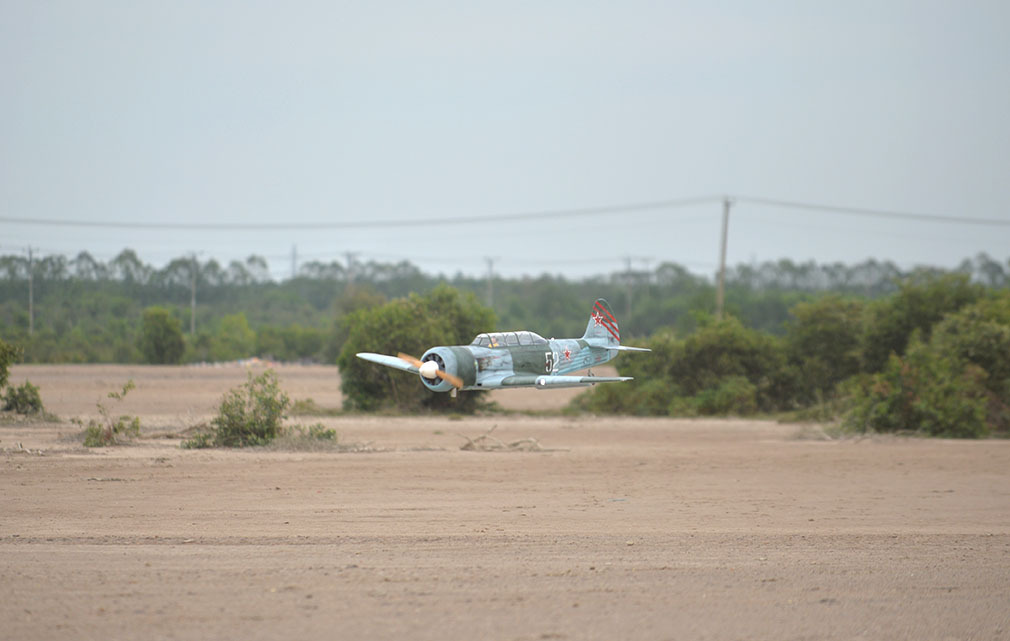

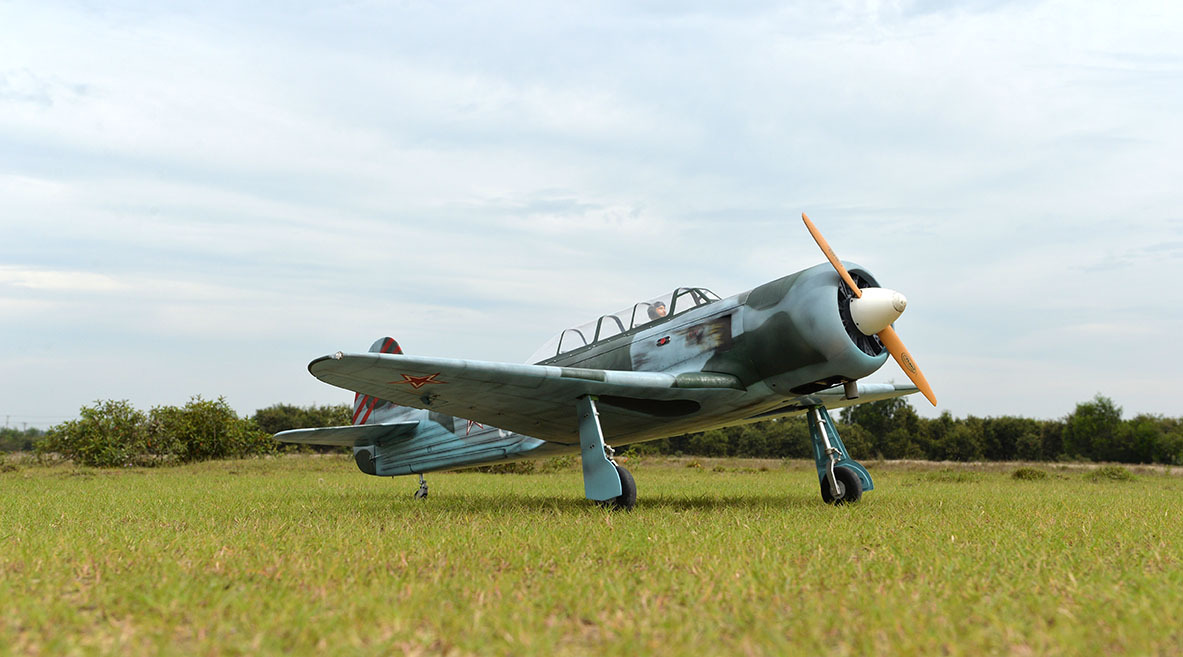

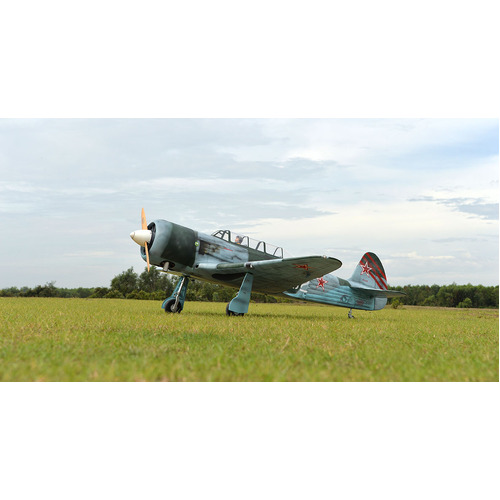

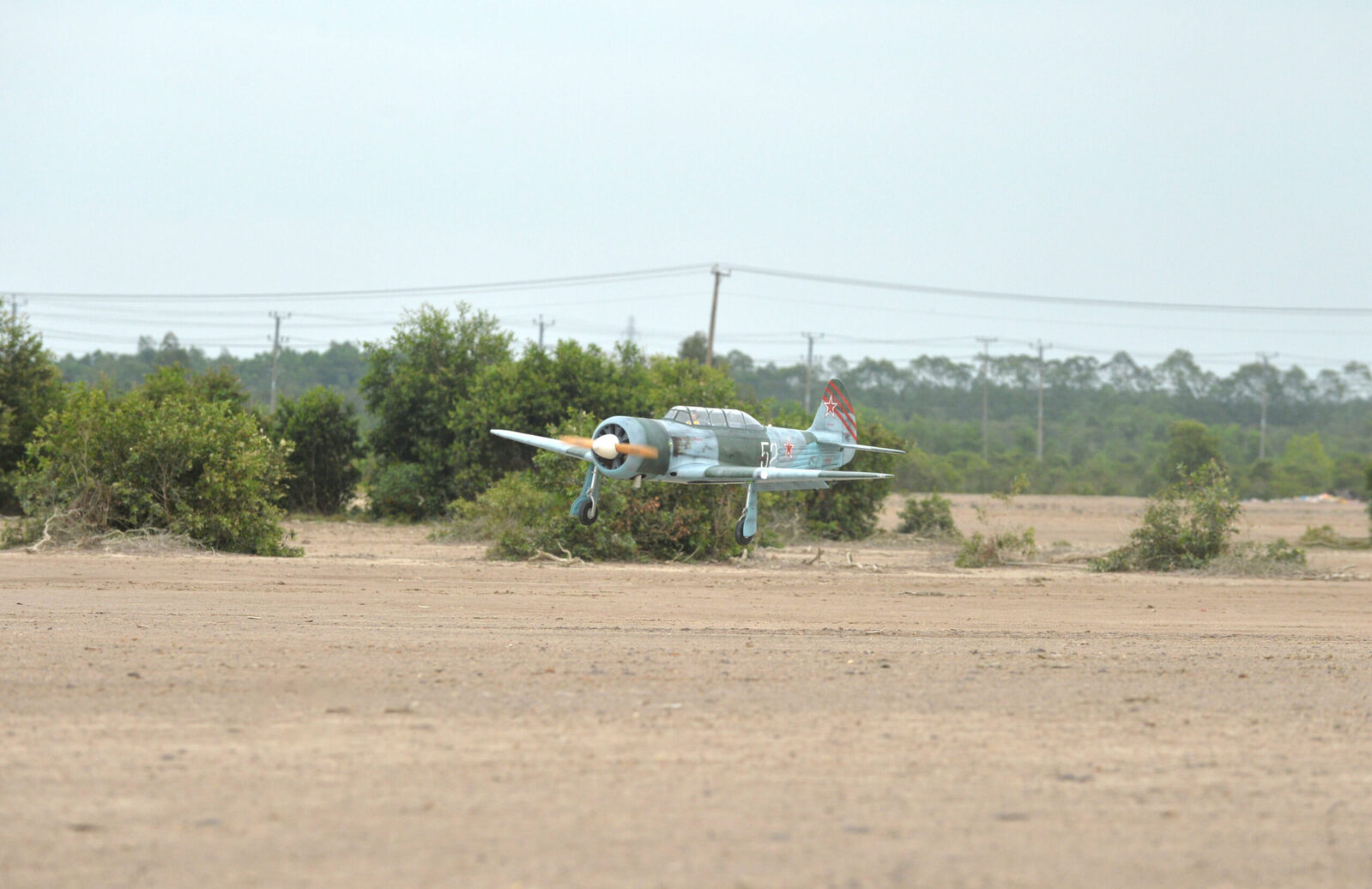

Yak 11 60CC gas, including Electric retract for main gear

YAK 11
Item code: BH187
Glow and EP

SPECIFICATION:
– Wingspan : 2,350 mm (92.50 in).

– Length: 2,095 mm (82.50 in).

– Weight:   11.5kg (25.03 lbs).

– Wing area: 99.5 dm2.

– Wing loading:   115.60 g/dm2.

– Servo mount: 42mm x 21mm

– Wing type: Naca Airfoil.

– Spinner: 115mm (included).

–  Main gear type: Electric retract gear with oleo struts for main gear(included).

–  Tail gear type: Oleo struts for tail gear (included).

Parts listing required (not included):

– Radio: 07 channels minimum.

– Servo: 8 standard hight torque servos (size 39.9 x 20.12 x 37.1)mm

– Engine: 60 – 76cc gas

–  Motor: Brushless outrunner 5000 –  6500W, 230KV.

–  Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):

–  Motor:  RIMFIRE. 60cc.

–  Lipo cell: 12 cells 5500 – 6000mAh.

–  Receiver battery: 6.0V- 7.4V 2600-3200mAh (3 Packs).

–  ESC: 120A.



ALL BALSA – PLY WOOD CONSTRUCTION.

COVERED IN A HEAT-SHRINK FILM WITH PRINTED.

INCLUDING ELECTRIC RETRACT GEAR WITH OLEO STRUTS FOR MAIN GEAR.
