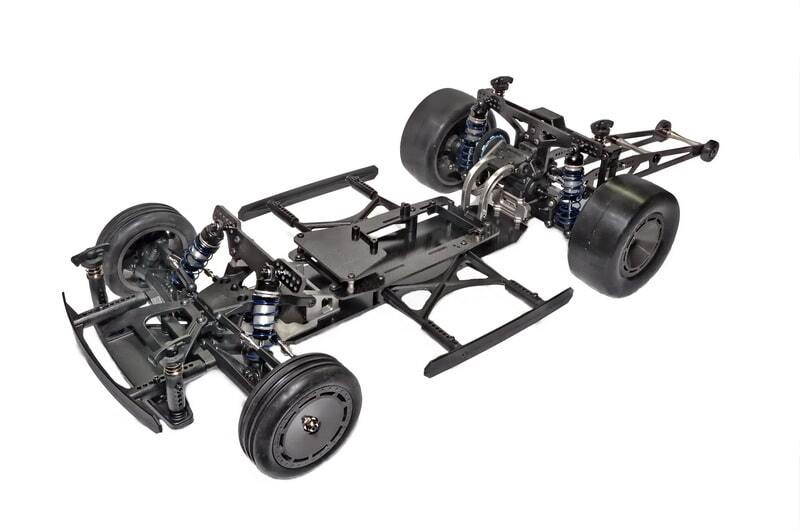

1/10 EX10 2WD DRAG CAR ARR

[FEATURES]

• Mid-motor 3 gears design
• Lightweight and rigid design, made up of lots of carbon fiber and hardened anodized aluminum alloy parts in overall structure.
  – 3mm carbon fiber chassis
  – 4mm carbon fiber front and rear tower
  – Carbon fiber wheelie bar set

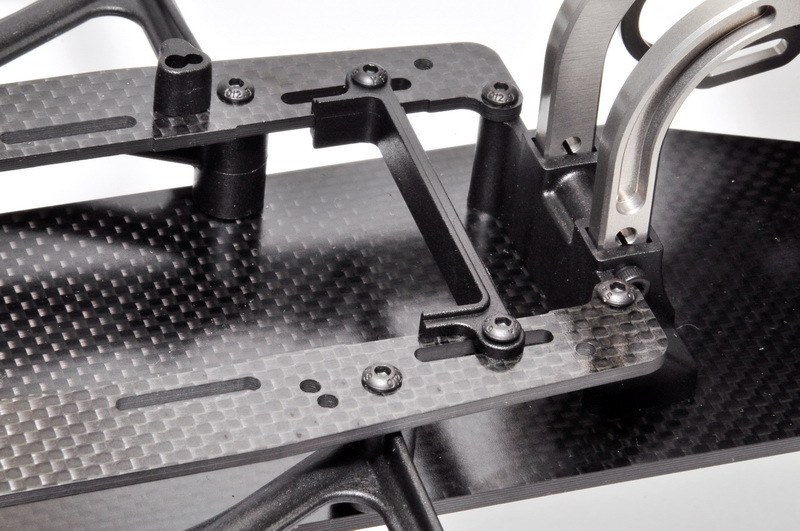

  – Carbon fiber battery mount set
  – Carbon fiber ESC mount with battery platen plate.
• All metal gear transmission with hardened steel shaft
  – Heavy duty metal sealed gear differential with 500K silicon oil
  – High strength steel 3 gear transmission design, 27T Idler gear / 51T Diff housing gear/ 21T lay-shaft gear

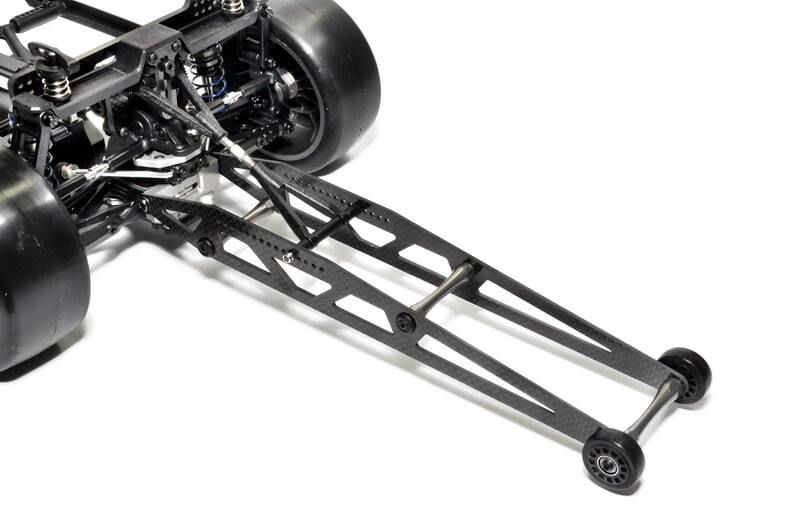

• 280mm long wheelie bar set
  – Carbon fiber arm ,CNC Aluminum standoffs, Ball bearing
  – Height adjustable and fine-tuned, Tension arms with turnbuckle (Allows shock mounting,  #40059 or #40125)
  – Pair wheels with 26mm rubber tires
• Rear floating body mount set
• 3mm rear sway bar
• 12mm big bore aluminum shock with silicon oil (soft front springs / hard rear springs)
• Soft belted rear tire, 2.2”/3.0” ( material : natural rubber- IIR)
• 10.5mm thick rear wheel hex
• New front and rear rim
• Adjustable battery mount set allows to fine-tune the battery position
• 3.5mm hardened steel rear CVA shaft
• Fully adjustable turnbuckle
• Spur gear 84T, Optional 94T-48P (Optional part #OP1-0059)

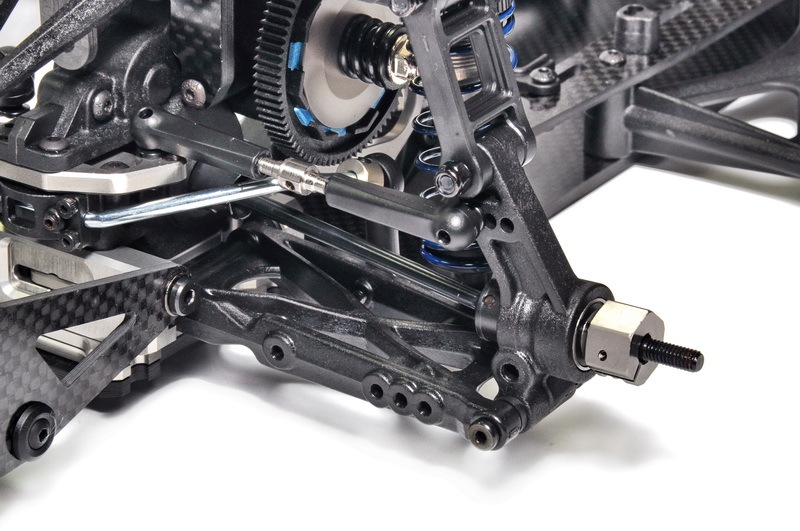

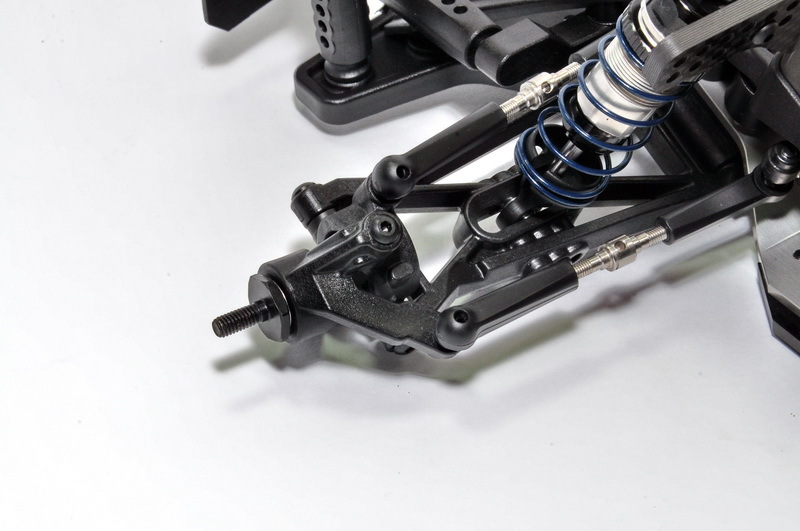

• New CNC aluminum suspension holder RF and RR
• Adjustable body support for front and side
• New design quick release body post
• New front bumper with weight adjustment (Optional part #OP1-0060)

[REQUIREMENTS]

• 2-Channel Radio/Transmitter Set
• ESC & Motor
• Pinion Gear for Motor
• Glue for tire
• Body and Paint for body
• High-torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter
