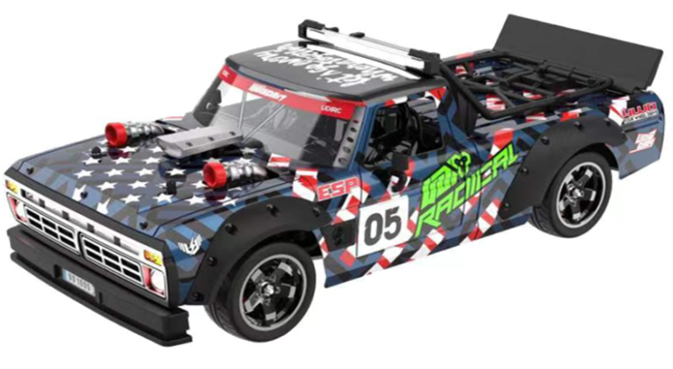

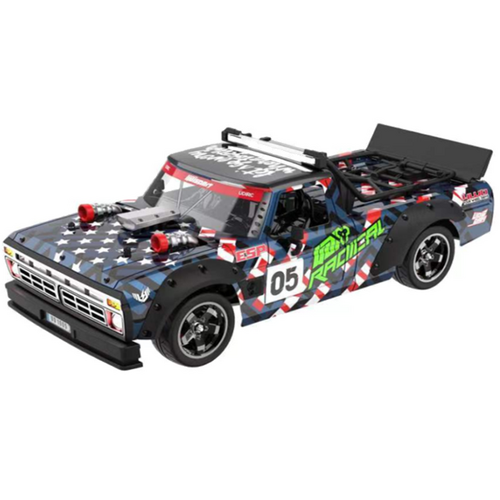

****1:10 Muscle car with Hobbywing Motor & ESC , 6 Channel Radio with Gyro (Includes 7.4v lipo & charger)

Model No: 1005

---

Model Scale: 1/10

---

Vehicle type: Road racing car

---

Assembly time: Installing the battery

---

Completion level: RTR

---

Length: 478mm

---

Width: 209mm

---

Height: 158mm

---

Weight: 1.92KG

---

Front wheel track: 168mm

---

Rear wheel track: 168mm

---

wheelbase: 275mm

---

Ground clearance: 20mm

---

Transmission distance:

---

Travel time: 2S/10 minutes, 3S/10 minutes at full speed

---

Power type: Electric

---

Motor type: Brushless motor

---

Ball bearings: All vehicles

---

Differential: Two oil sealed gears

---

Drive system: 2/4 wheel drive

---

Drive Type: Forward/Brake/Reverse

---

Overall Drive Ratio:

---

Transmitters: Including

---

Receiver: Includes

---

Servo: Included

---

Speed Control: Included

---

Suspension: Independent

---

Car lights: Including

Type: HOBBYWING brushless motor

---

Weight: About 258.7g

---

Length: 52mm

---

Diameter: 36mm

---

Output shaft: 3.175mm

---

KV value: 4500

---

Connector Type: 3.5mm bullet connectors

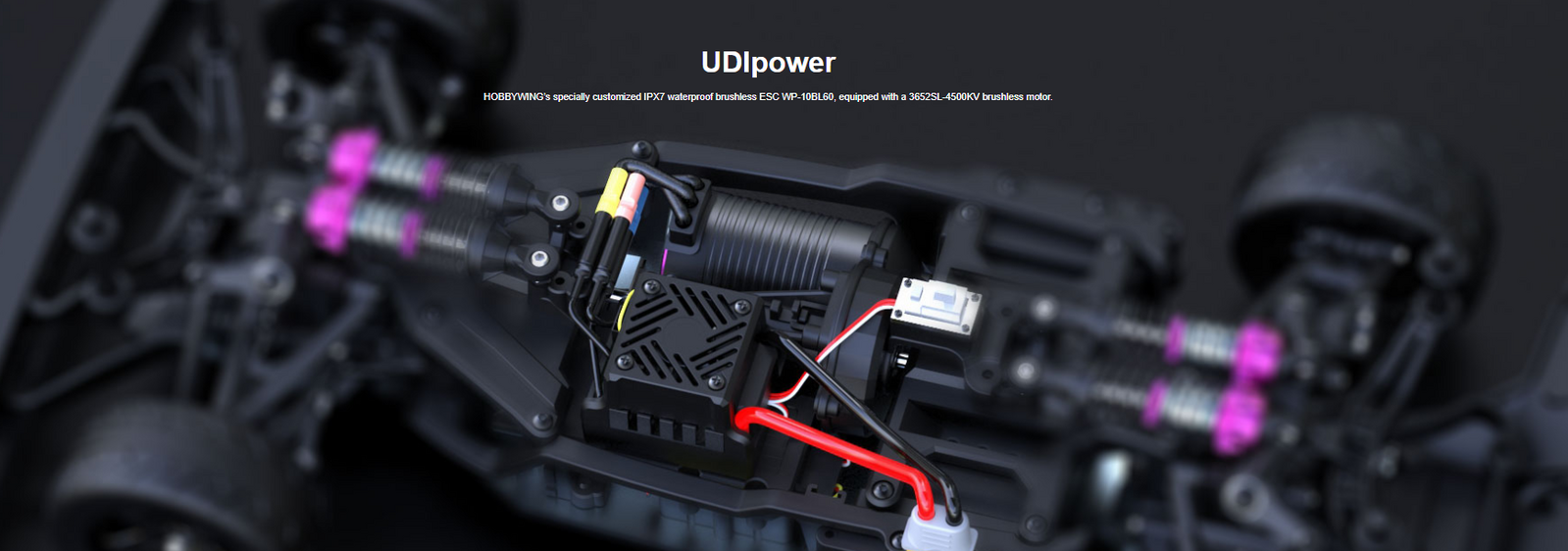

HOBBYWING 60A Brushless ESC WP-10BL60

Input Voltage(cells): 6V-12.6V（2S-3S）

---

Continuous current: 60A

---

BEC Voltage: 6.0V

---

BEC persistent current: 3A

---

Waterproof grade: IPX7

---

Weight: About 96.5g

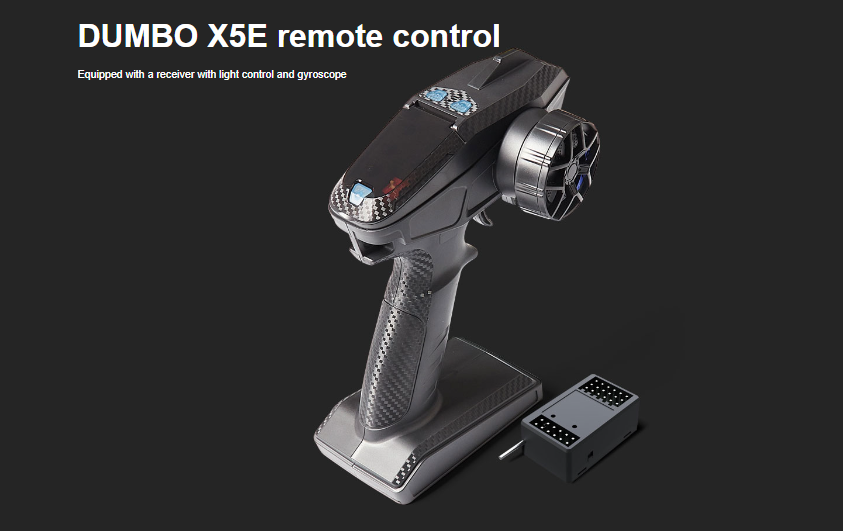

DUMBO X5E remote control and receiver

● 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping super anti-interference, full digital system ensures without loss of control and anti-jamming.
● Independent setting of servo direction and travel for channels 1 to 2.
● Receiver intefrated gyroscope, ensure that the model goes straight, prevents drifting, and overturning.
● The unique throttle speed limit adjustment function allows beginners to practice quickly at a safe speed.
● After accidentally entering the setting mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal.
● Transmitter voltage range: 4.8-12V, with automatic voltage identification alarm in 3 segments low voltage alarm 4.4V/7.4V/10.8V.
● Receiver voltage range: 4.8V-10V, operating current 30mA, support working with high voltage servo.
● With brakes and fail-safe protection function.
● There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes with no current.
● Ergonomically design with 30-degree beveled steering wheel and optional installation of one-handed accessories.

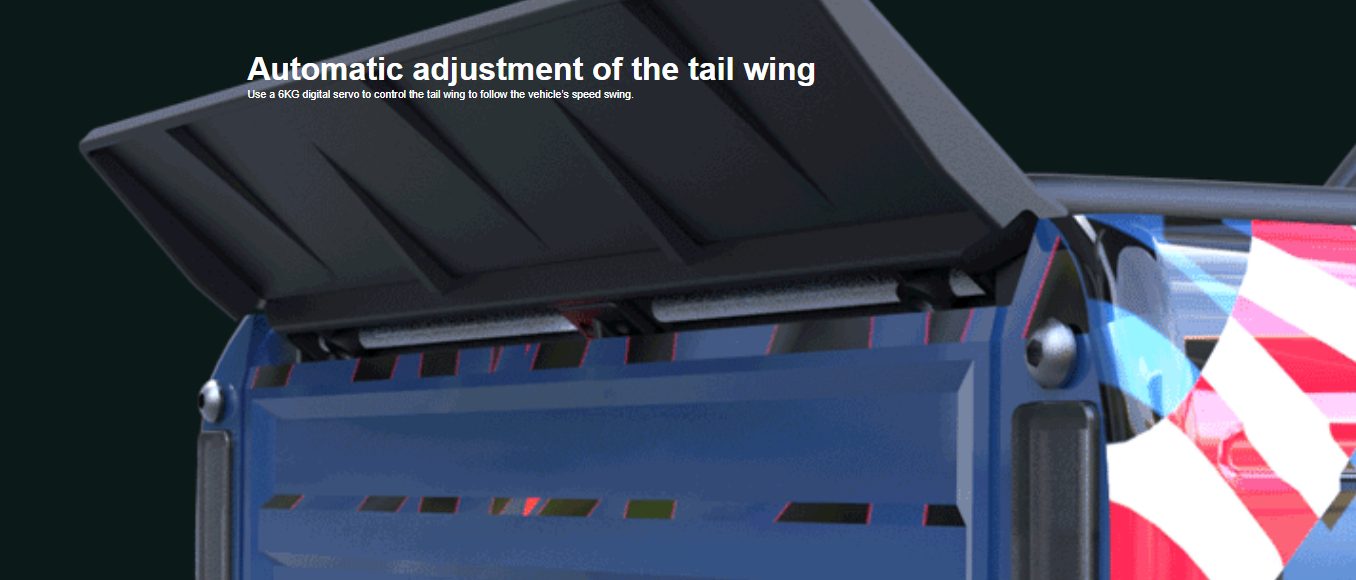

Tail-wing Servos

---

Case Size: 00×00×00mm

---

Weight: 9G digital servo

---

Steering Servo

---

Case Size: 00×00×00mm

---

Weight: 6KG digital servo

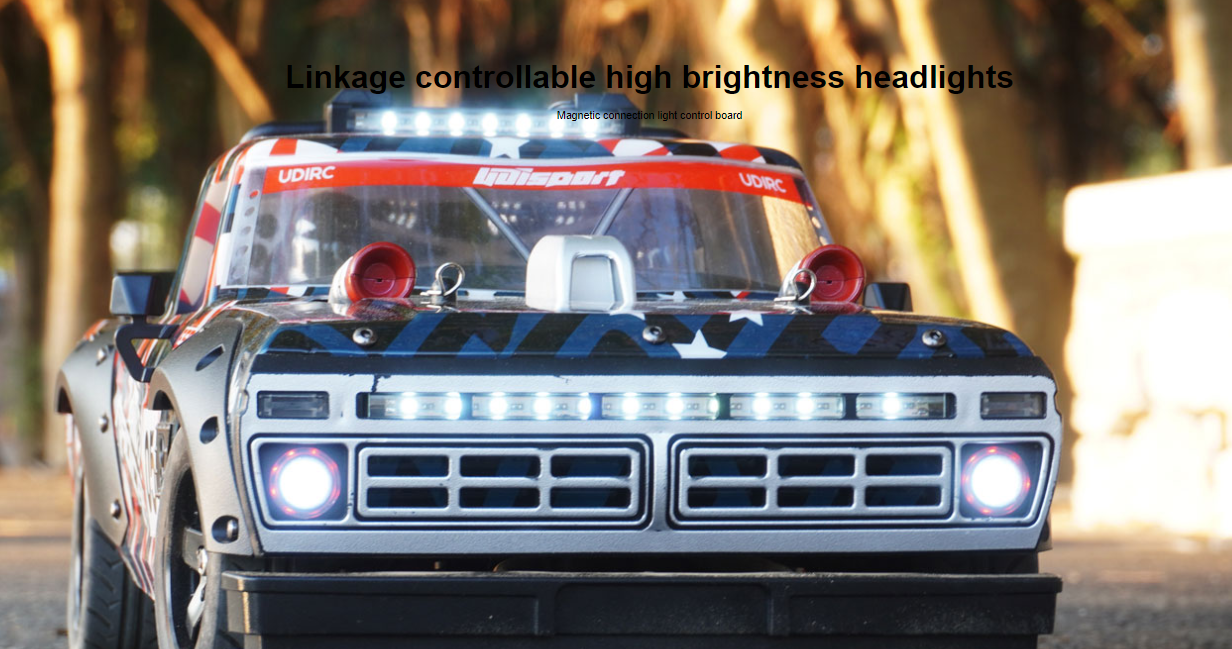

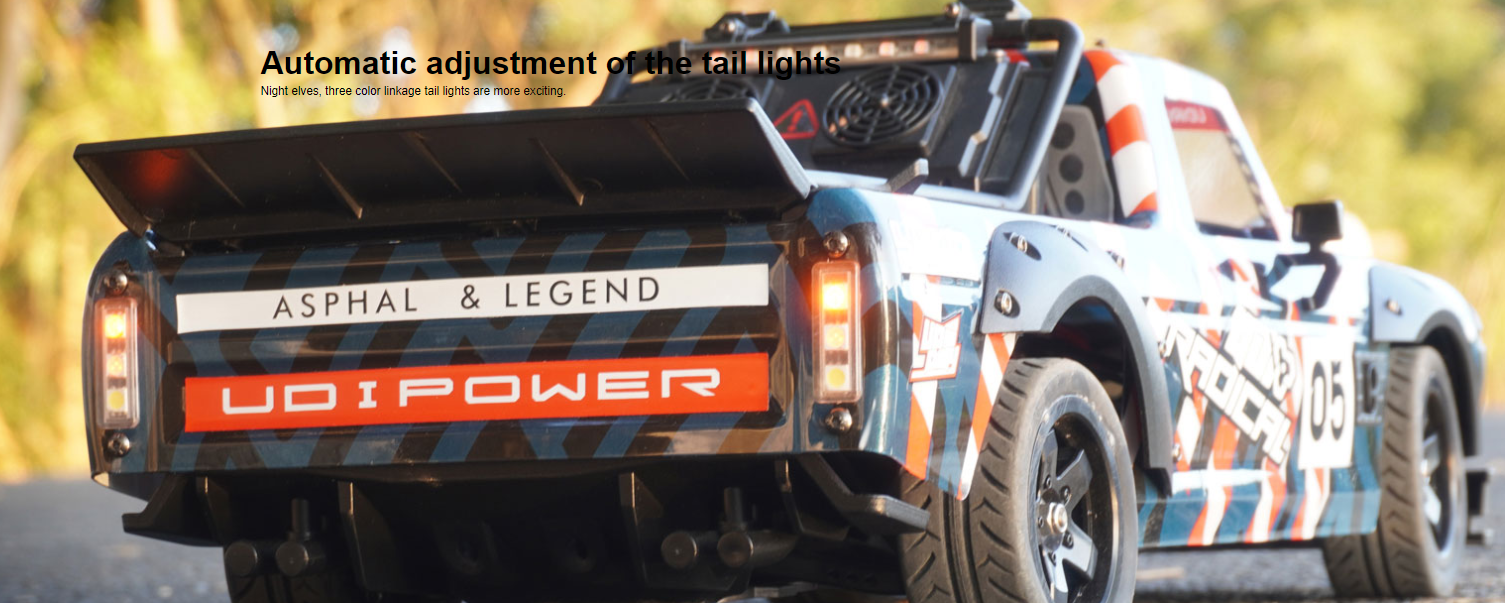

High Bright LED Lights
·Controllable headlights, Roof lights
·Linkage taillights
·Linkage turn signal

---

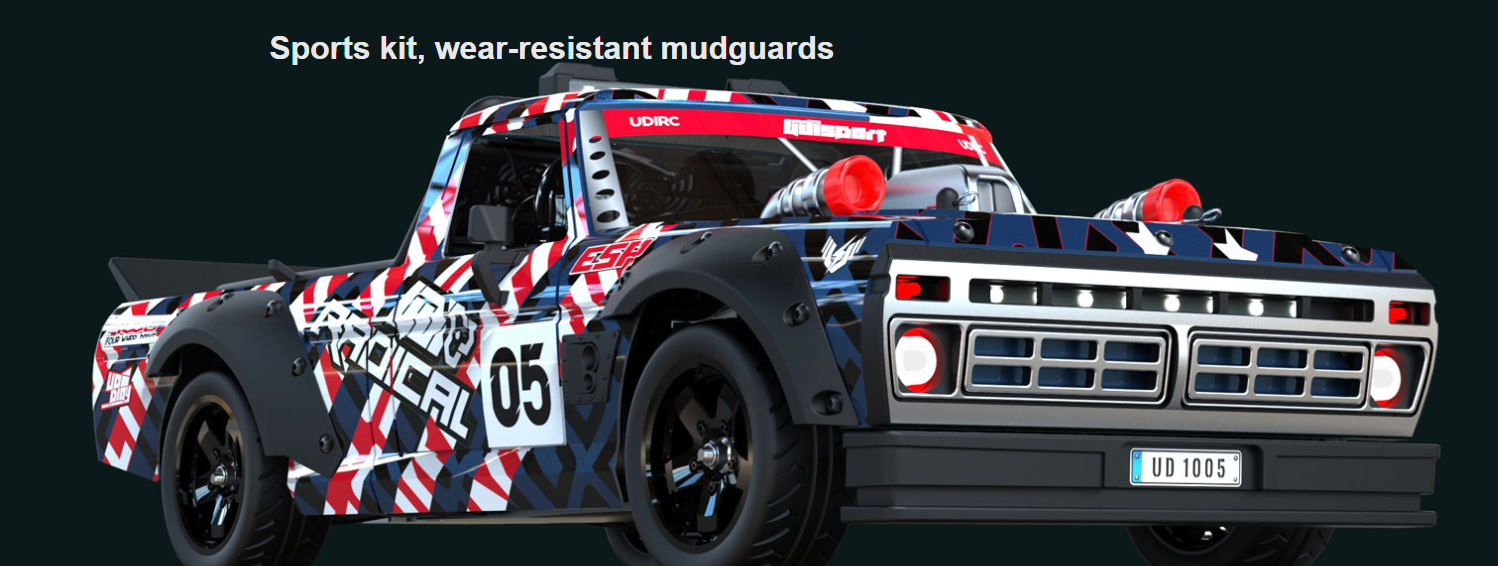

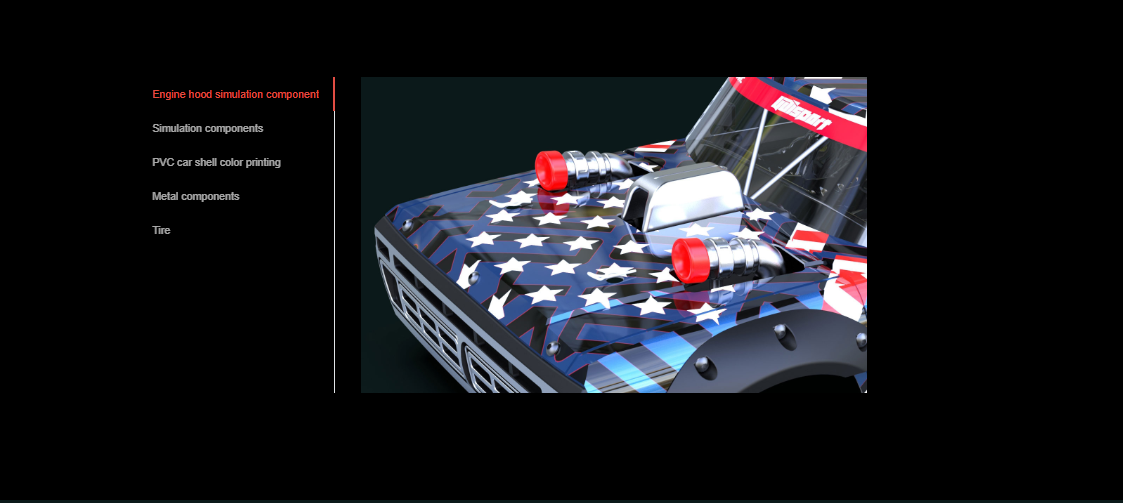

Decoration
·PVC material bodyshell
·Front and rear bumpers
·The wheels are equipped with brake disc type hexagonal adapters
·Simulated brake calipers
·Simulated suction device, fan

---

Wheels and Tires
·63mm highway tires

---

Equipped with high-speed sealed ball bearings throughout the vehicle

---

Hardware with rust-resistant native oxid coating

---

Suspension
·Provide proportional appearance and realistic drifting driving dynamics
·Front and rear independent suspension damping system
·Efficient metal drive shaft

---

Steering
·6KG digital Steering Servo
·Dual bellcrank design with bearings and integrated servo saver
·Adjustable steering linkage

---

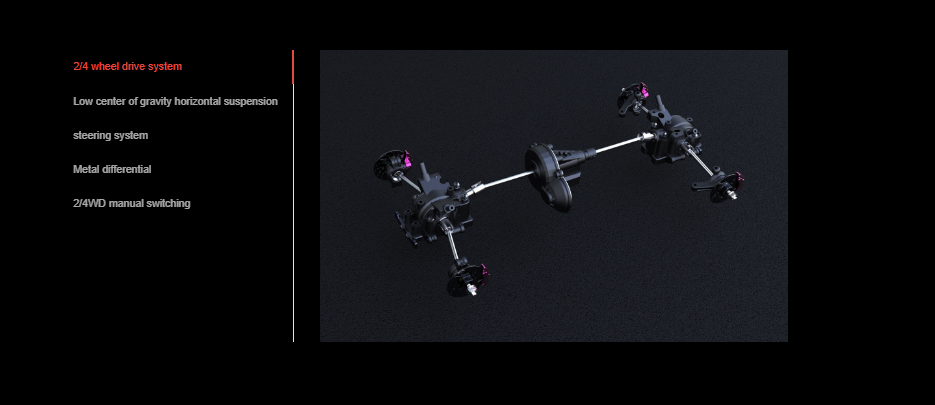

Drivetrain
·Adjustable center gear shifting
·Steel driveshafts
·Oil-immersed front/rear differential
·Heavy splined front drive shaft
·Fixed length metal rear drive shaft

What’s In The Box:
The vehicle with ESC and motor
2.4GHz radio system
Operation Guide
body stickers

---

What You’ll Need:
Battery for transmitter: 4 × 1.5V, AA lkaline battery
Vehicle battery: 2-3S, XT60, LIPO rechargeable battery
