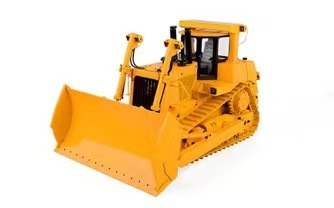

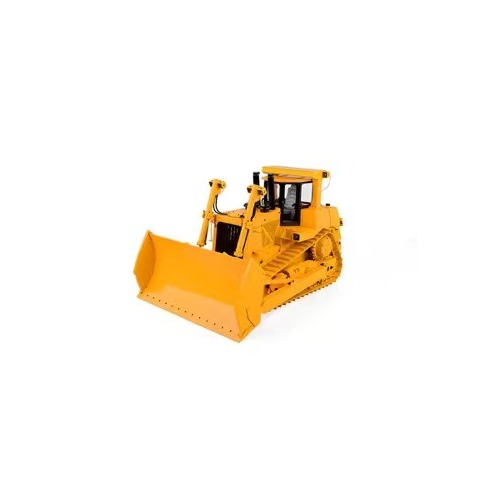

1/14 Scale DXR2 Hydraulic Earth Dozer

1/14 Scale DXR2 Hydraulic Earth Dozer




Notice: This product is for experienced RC hobbyists. This is not recommended for anyone under the age of 16.





Specifications:

• Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
• Weld Steel Bucket
• 9 Channel 2.4GHZ Radio
• Heavy Duty Hoses (OD 3.2mm Nylon, ID 2.2mm)
• Main Heavy Duty Hoses (OD 4mm Nylon, ID 2.5mm)
• Optimized Steel Hydraulic System
• Reliable Hydraulic Valve and Adjustable Pump
• Brushless Hydraulic System
• Lipo Cutoff
• Full Metal Scale
• All Terrain Metal Crawler
• 540 Brushed Monster Torque Motor
• Full Metal Transmission (1:256 Gear Ratio)
• Run Time is: 38 Minutes (5300mAh Battery)
• Chrome Steel Oil Pump (47.5mm x 35mm x 36mm)
• Bucket Capacity: 494949 mm³
• Maximum Bucket Force (Down): 76kg / 167pounds
• Maximum Bucket Force (Up): 50kg / 110pounds
• Maximum Bucket Force (Thrust): 50kg / 110pounds
• Driving Speed: 408 Meter Per hour
• Scale: 1:14
• Length: 27in / 685mm
• Width: 13.8in / 351mm
• Height: 12.7in / 323mm
• Bucket Height: 6.87in / 174.6mm
• Maximum Bucket Up and Down Angle: 29 degrees
• Maximum Bucket Tilt Angle (Left and Right): 9 degrees
• Maximum Ripper Depth of the Ground: 1.97in / 50mm
• Total Mass Load: 37kg / 82LBs
• Operating Oil Pressure: 25Bar, 362.5psi
• Dead Weight: 26kg / 57LBs





















What's Included:

• 1x 1/14 Scale DXR2 Hydraulic Earth Dozer

Required Parts:

• 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
• Compatible Battery Charger
• 8x AA Batteries for Radio (Z-S1718)
• AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Replacement Parts:

• Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
• DXR2 Dozer Tracks (VVV-S0166)

Optional Parts:

• Semi Truck Sound Unit (VVV-S0074)
• 1/14 Scale DXR2 Hydraulic Earth Dozer Light System (VVV-S0173)
• Universal Scale Functional Radiator for Hydraulic Equipment (VVV-S0246)
• HD Abrasion U Dozer Blade for DXR2 Hydraulic Earth Dozer (VVV-S0251)



Before operation, please check here for preparation procedure. Click Here

Instruction Manuals:

• For Detailed Setup. Click here.
• Radio instruction Manual. Click Here.

Notes:

• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• ESC Supports Bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Do not adjust the oil pressure switch.
• Each unit is professionally assembled, adjusted and tested.
• Oil pressure may drop as you operate over time.
• Battery Size should be within 140x40x44MM (LxWxH)
• Manufactured by JDCustoms 30 Days Limited Warranty




Warranty Information:

• This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses and electronic systems are not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.

Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
