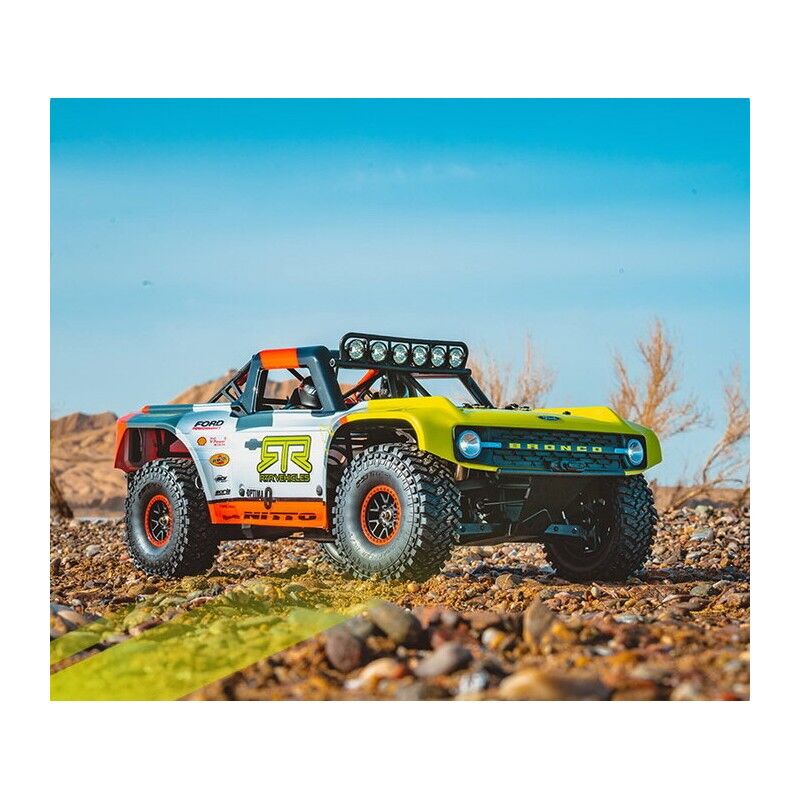

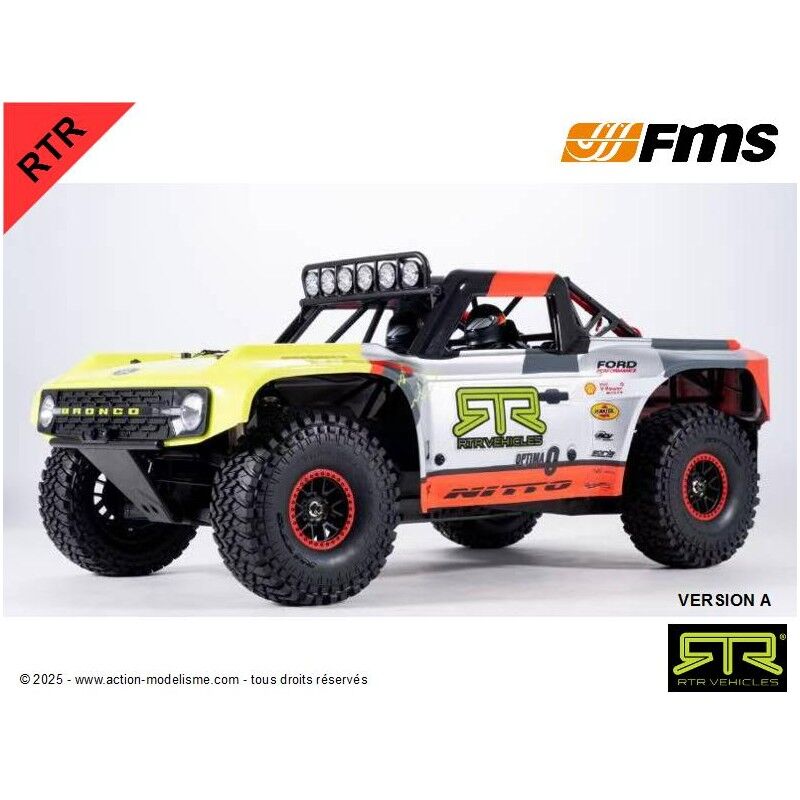

1:7  Ford Bronco U4 Funhaver 25

FMS FORD BRONCO Specifications and Equipment

• RTR car [ready to run]

• 4 adjustable shock absorbers

• 4 auxiliary shock absorbers

• progressive shock absorber springs

• machined shock absorber pistons

• shock absorber rod Ø3.5mm

• lower front aluminum shims

• adjustable aluminum motor mount for 42~50 motor

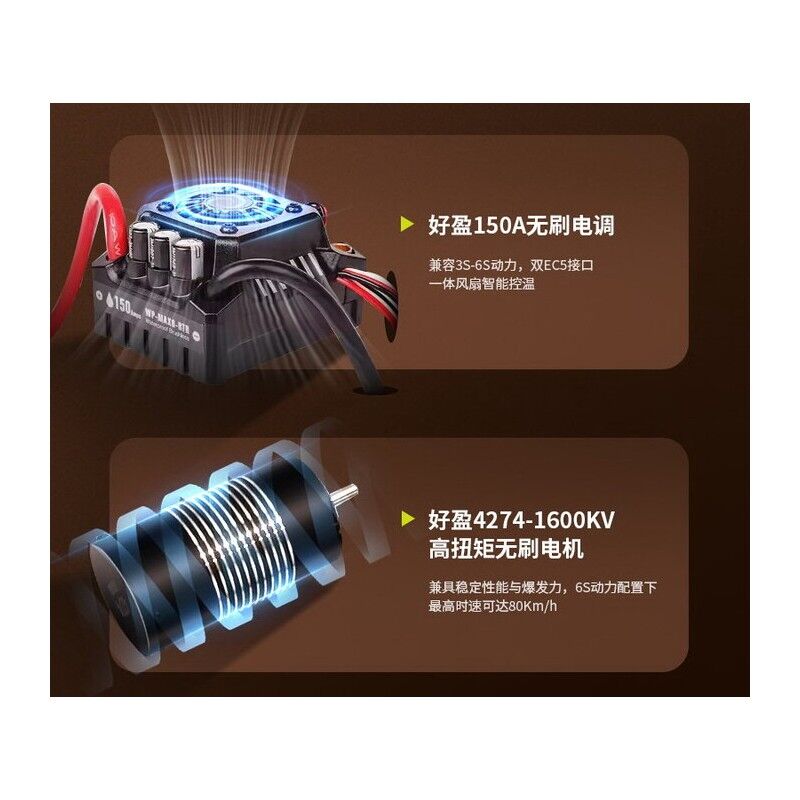

• Hobbywing 4274 1600KV brushless motor

• 11T M1 steel motor pinion

• Hobbywing MAX8 150A/950A 3~6S ESC

• 2x EC5 battery connectors

• Aluminum chassis

• upper central front aluminum reinforcement

• aluminum servo saver link bar

• rolling bearing transmission

• 3 differentials

• Front and rear bevel gears, CNC steel, helical teeth, 33/13T M1.25

• steel differential gears

• CNC aluminum center differential body

• 63T CNC steel central crown

• Dog Bone steel front/rear central cardan shaft

• steel front CVD universal joints

• rigid rear axle

• front/rear anti-roll bar

• 17mm wheel hex

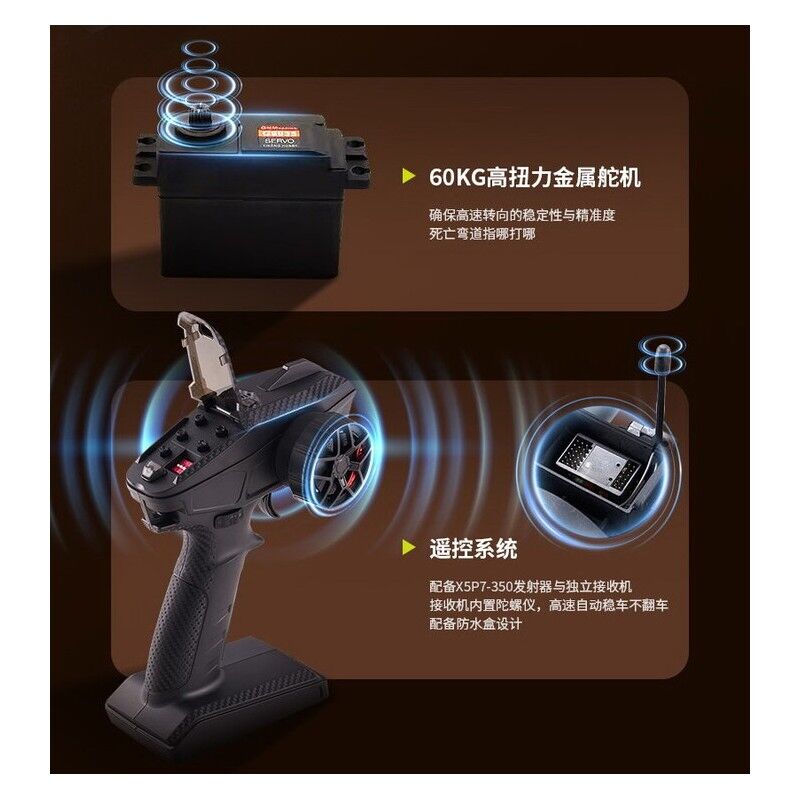

• 60kg servo with metal gear

• DUMBORC X5P7-350 2.4ghz 6 channel steering wheel radio with gyroscope

• DUMBORC P6DCG receiver

• waterproof radio box

• battery tray 2x3S / 6S 181x47.5mm

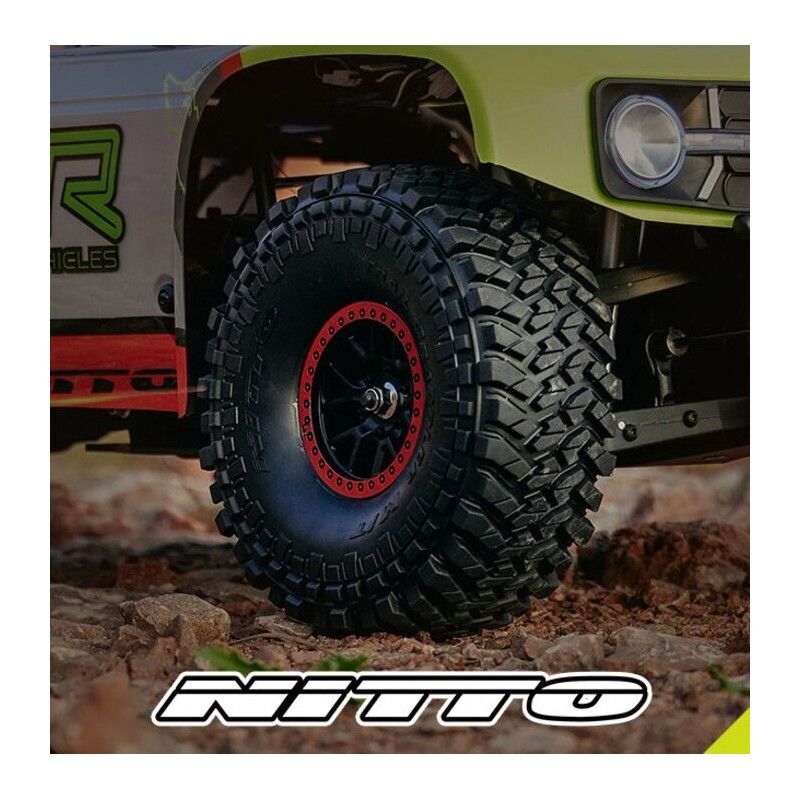

• Short Course wheels 146x55mm - red rims - 17mm hexagon

• Lexan FORD BRONCO "EL BANDITO" painted body + cage

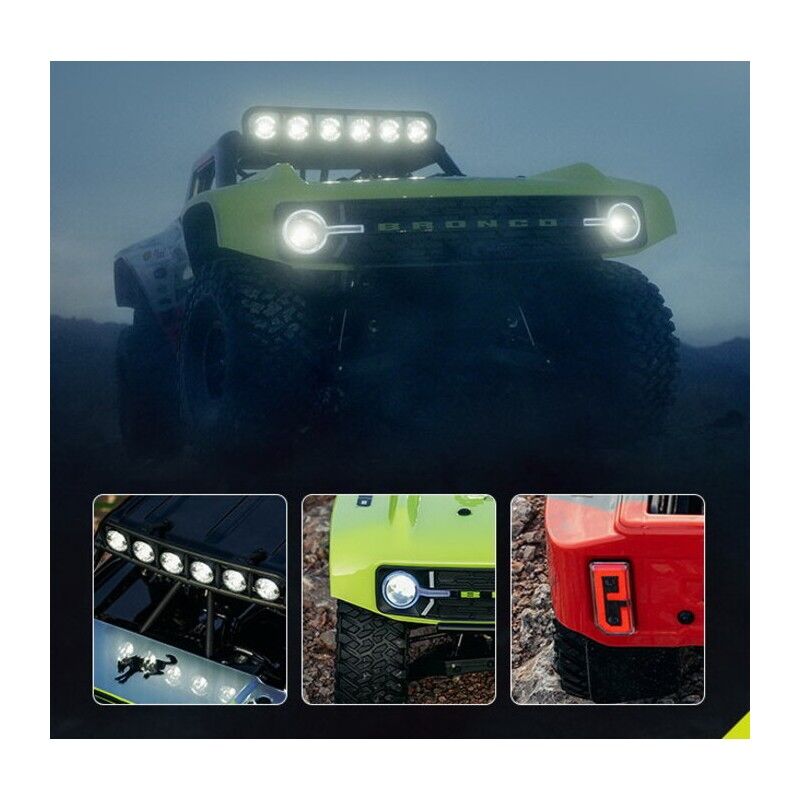

• LED front/rear lighting

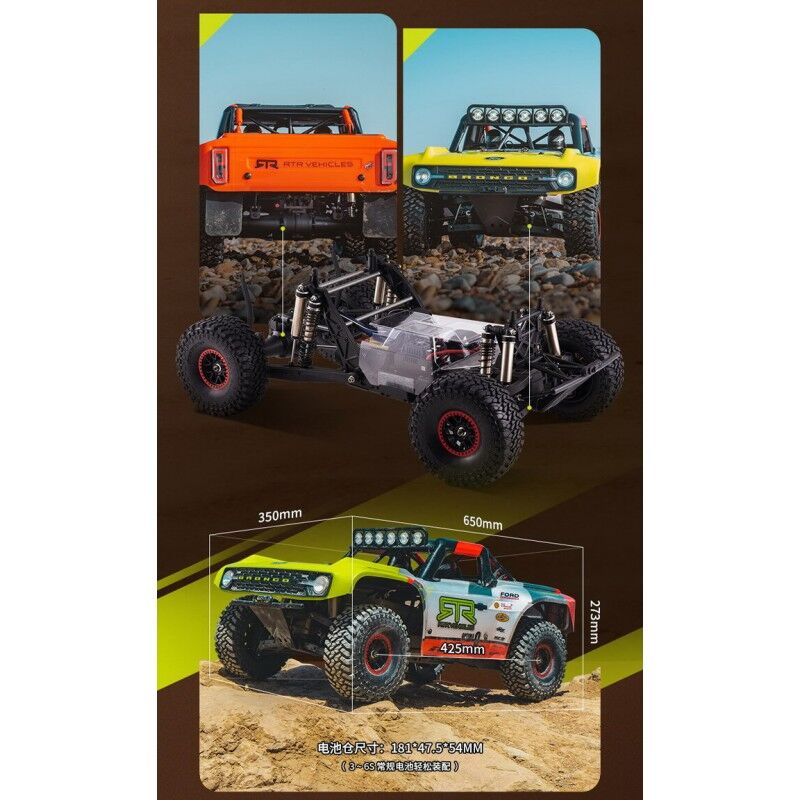

length 650mm / width 350mm / height 273mm / wheelbase 425mm / weight 5.9kg [without battery]
