FEATURES:

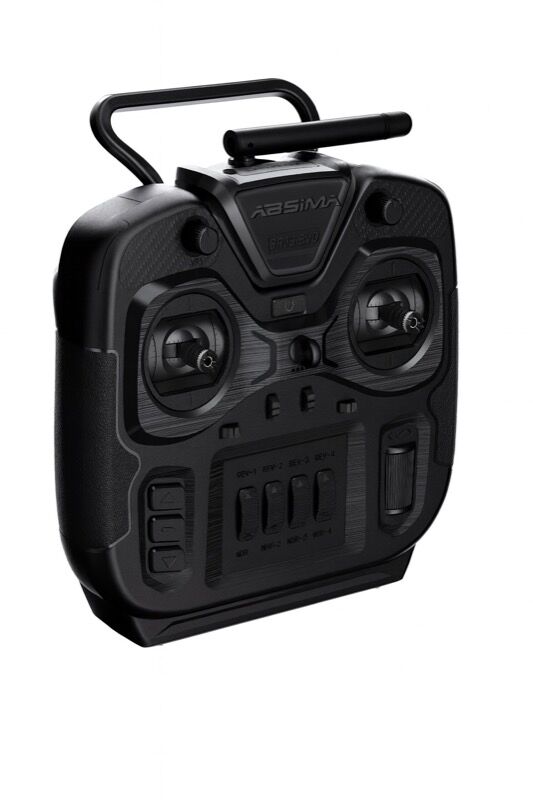

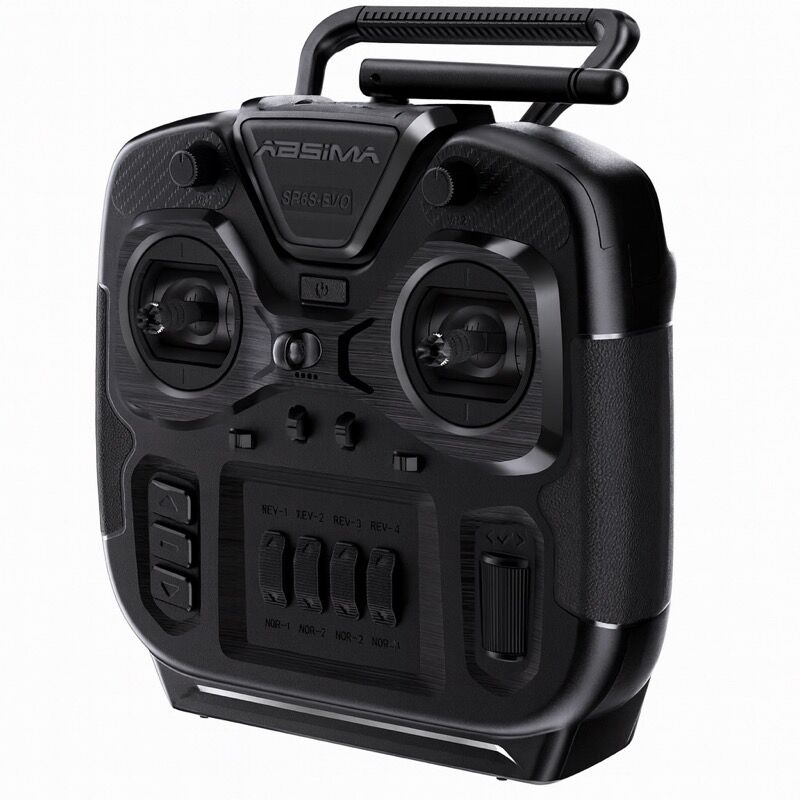

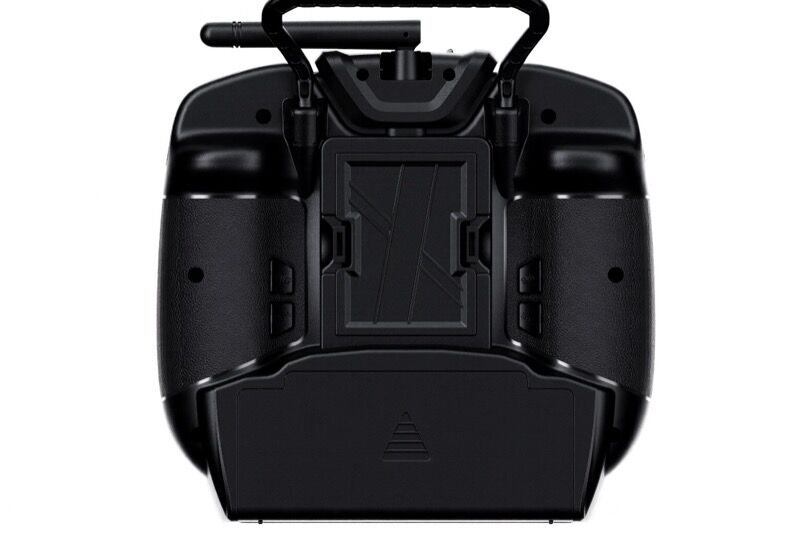

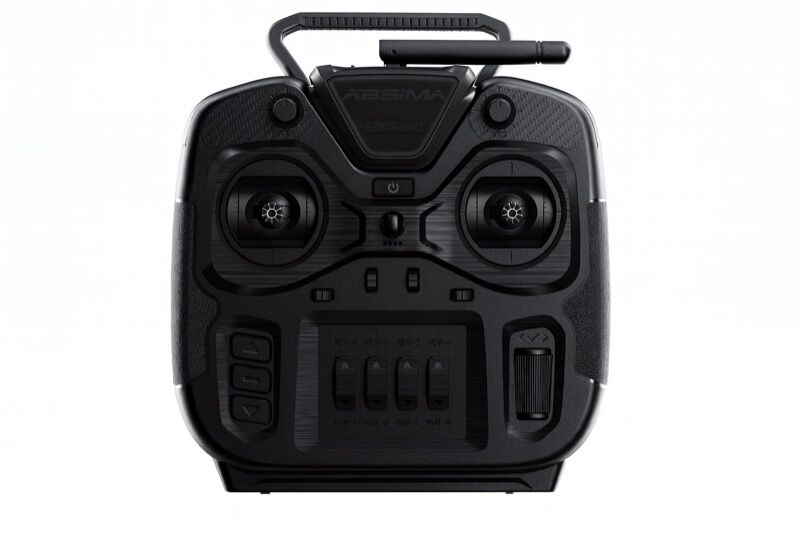

• 6-channel transmitter SR6S-EVO

• 6-channel receiver R6WP (waterproof)

• TRIM function

• D/R function

• Reverse function

• High-Voltage servo compatible

• Transmitter is LiPo compatible (JST/BEC and JR/FUT connector)

• Speed-Limiter function (D/R) for beginners

• Failsafe function

SCOPE OF DELIVERY:

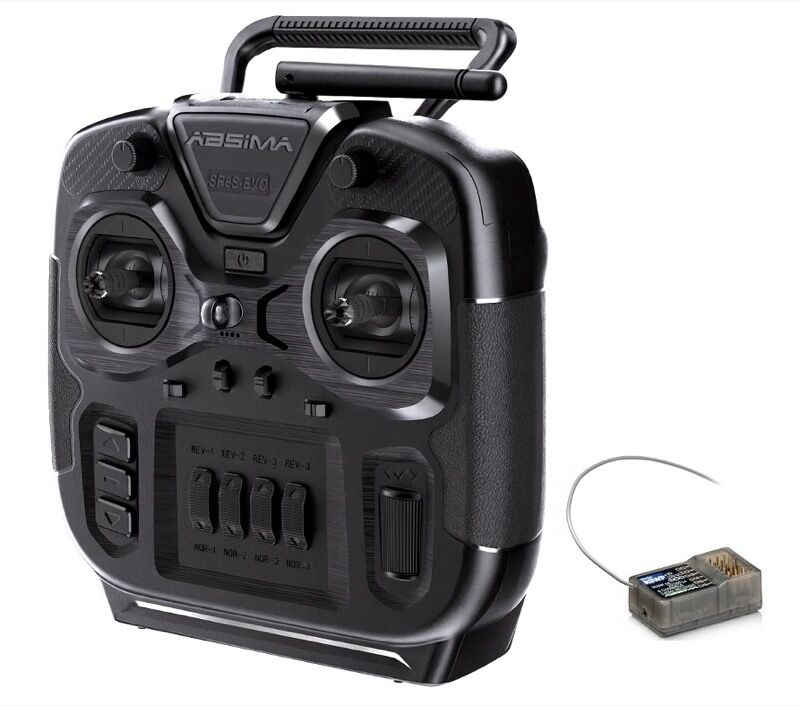

• SR6S-EVO 6-channel transmitter

• R6WP 6-channel receiver (waterproof)

• Manual (DE/EN/FR)

RECOMMENDED ACCESSORIES

• 4* AA batteries for transmitter (4120012) or

• LiPo battery for TX (NOTE: Remote control does not have a charging function)

• Additional receiver R6WP (2020014)

TECHNICAL DATA TRANSMITTER:

• 2.4GHz FHSS-Technology

• Response time: 5MS

• Battery: 4* AA batteries or LiPo pack (NOTE: Remote control does not have a charging function)

• V-Range transmitter: 4.8V - 12V (2-3S LiPo compatible)

• Operating current TX: 80-120mA@5V

• Radio distance: up to 250m

• Frequency range: 2402.0-2480.0MHz

• Output Power (Watt): 0.096W

• Temperature range: -10° - +60°

• 6 channels with different functions

TECHNICAL DATA RECEIVER (2020014):

• V-Range RX: 4.8V - 10V

• Operating current RX: 30mA (HV-Servos compatible; JR/FUT)

• Temperature range: -10° - +60°

• Receiver port 5 and 6 usable for continuous current

• RX dimmensions: 35x20x13 mm

• Weight: 7g
