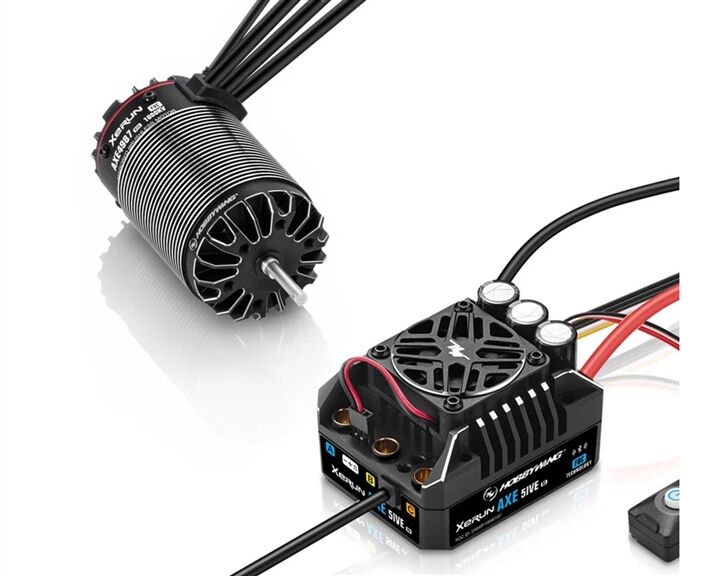

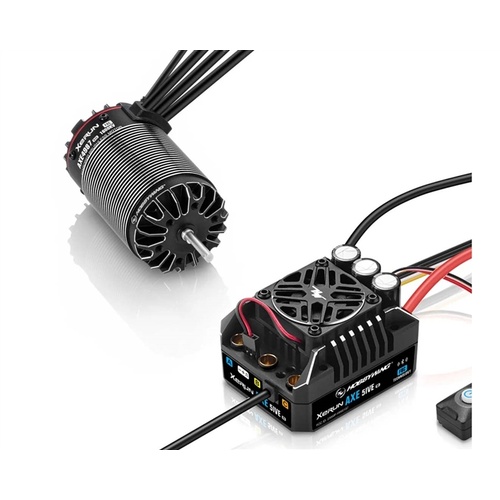

AXE 5IVE R3 ESC & AXE 4987SD 1600kV RS3 Motor Combo

Revolutionizing the Rock Crawling Experience for 1/5 & 1/6 Crawlers. Widely applicable 8S high-power.

Includes:

• 1x XeRun AXE 5iVE ESC
• 1x XeRun AXE 4900 series motor

ESC Features:

• FOC (Field Oriented Control) driving mode for the rock crawler power system delivers very strong low-speed torque. This improves on standard brushless setups and is often preferred over brushed systems for overall feel.
• The chip-type magnetic encoder inside the motor keeps the three phase signals consistent and always outputs clean, precise rotor-position data.
• Waterproof and dust-proof construction lets the AXE brushless power system run in all weather and track conditions without water or dust damaging the electronics. Still watch the vehicle itself closely in mud, water, or other harsh conditions. Intelligent torque output and closed-loop speed control make the system easy to drive and keep motor RPM consistent under changing loads.
• Adjustable drag brake and drag-brake rate, with drag brake up to 200% (nearly twice that of typical brushless systems), give unusually strong holding power on slopes.
• Built-in Bluetooth lets you set the ESC, read ESC data, or update firmware from a smartphone with the HW LINK app.
• Protections include low-voltage cutoff, thermal protection, fail-safe (throttle-signal loss), and motor lock-up.

Motor Features:

• High-Power Motor for Large Scale Crawlers - Purpose-built for 1/5 and 1/6 scale crawlers, delivering unmatched torque, ultra-smooth low-speed control, and zero cogging for confident drivability on tough terrain.
• More Power in a Compact Size - Compact 49.5mm diameter x 87mm length fits tighter builds while delivering more power and torque than other motors in its class.
• Perfectly Matched with the XeRun AXE Plus R3 ESC - Pairs seamlessly for incredibly smooth low-speed operation and tremendous low-end torque.
• IP66 Weatherproof Rating - Built to handle rain, snow, mud, sand, and water so your rig is ready for any trail condition.
• Built-in High-Precision Magnetic Encoder - Delivers 60x higher position accuracy than conventional Hall sensors, with clean, consistent three-phase signal feedback for superior control.
• Premium Construction - High-hardness CNC aluminum housing, top-tier bearings, 200deg C heat-resistant enameled wire, high-toughness alloy output shaft, and ultra-thin premium silicon steel laminations for lasting performance.

ESC Specifications:

• Cont./Peak Current: 220A-900A
• Motor Type: Only the XERUN AXE 4987 R3S and AXE 4274 R3 Series
• Applications: 1/6 & 1/5 Rock Crawler
• LiPo Cells: 3-8S LiPo
• BEC Output: 6-14V adjustable, Continuous Current of 15A
• Size: 70.2(L)x56.3(W)x45.5(H)mm (w/Capacitor)
• Weight: 308.2g (Included input wires)
• ESC Programming: iOS or Android smart phone (Installed with the HW Link app)

Motor Specifications:

• Scale: 1/5th, 1/6th
• KV Rating: 1600kV
• LiPo Compatibility: 3-8S
• No-Load Current: 12.1A
• Outer Diameter: 49.5mm
• Length: 87mm
• Shaft Diameter: 5mm
• Connectors: 6.5mm Male
• Wires: 10AWG x 300mmx 3
• Weight: 660g
• Compatible ESC: XeRun AXE Plus R3 (firmware V1.1.3+ required)
• Compatible Vehicles: CROSSRC 1/6 EMO XX2, CROSSRC 1/6 EMO XX, AXIAL 1/6 SCX6

Specifications:

Motor diagram (AXE 4900 FOC series)
