BigDog 1/14 Dual Axle Scale Heavy Equipment Trailer

Calculate Shipping

Fixed Rate By Invoice Total - $19.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )

Free pick-up from store - $0.00
Warehouse pick available

Description
Specifications

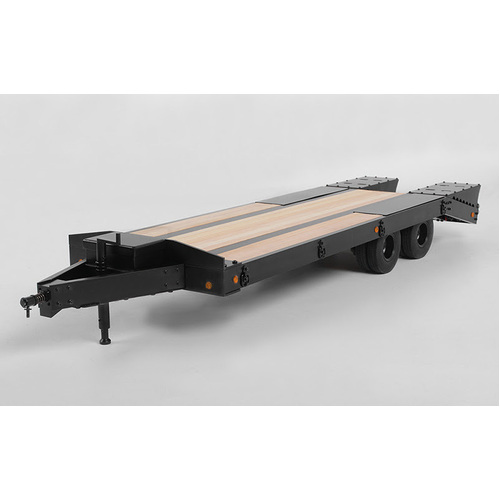

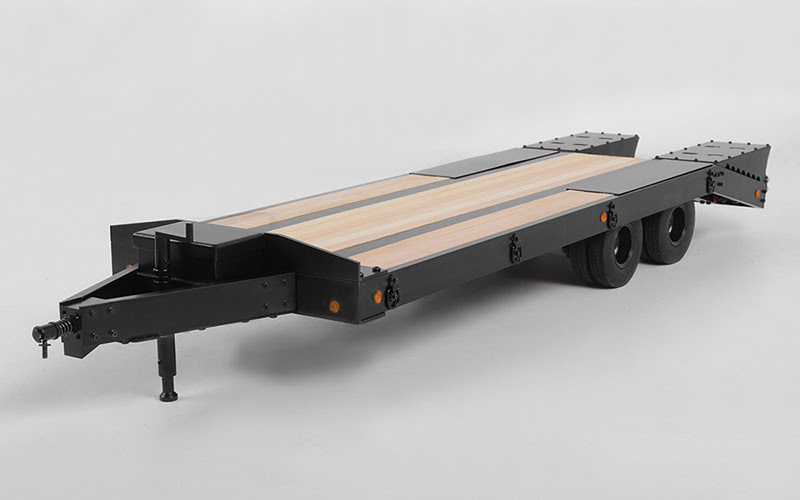

BigDog 1/10 Dual Axle Scale Car/Truck Trailer

This is a 1/10 Car or Truck Hauler. Perfect for towing around your rig to events or showing it off. Dual axles for extra towing capacity. Features full working leaf springs.

Specifications:

Hand made tube trailer chassis
Billet aluminum wheels
1.55 Dirt grabber tires
Steel leaf spring
Working lift jack
Steel tool box for battery and light switch
Working lights
Easy clip hitch mount
Two steel ramps
Ramp holders
Whitebone inspired design
Weight: 80.77oz (2290g)
Length: 22.63" (575mm)
Width: 12.28" (312mm)
Height: 5.31" (135mm)
Inside of the Deck Length: 15.9in / 404mm
Inside of the Deck Width: 8.5in / 216mm
Tail Plate Length: 6.1in / 155mm
Tail Plate Width: 2.55in / 65mm

https://www.beadlok.com/product/images/Auua01/Z-H0003-2.jpg

Shows where 9V battery installs for trailer lights. With on/off switch

Shown installed on RC4WD Adjustable Drop Hitch (Long) (Z-S0893), RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001) with Survivor Rear Bumper for Gelande (Z-S0698) for example (Not Included)

Shown installed with RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) and the rear bumper option (Z-S0579) Not Included

What's Included:

1x BigDog 1/10 Dual Axle Scale Car/Truck Trailer

Replacement Hardware:

Nylock Nuts M5 (Silver) (Z-S0842)
Ball Hitch M3 x 6mm (Black) (Z-S0992)

Replacement Parts:

Metal Shield Bearing 5 x 9 x 3mm (Z-S0841)
M4 E-clip (Black) (Z-S0919)
M4 E-clip (Silver) (Z-S0951)
Dirt Grabber 1.55" All Terrain Tires (Z-T0021)

Optional Parts:

RC4WD Standard Hitch with Hitch Mount (Z-S1781)
RC4WD Adjustable Drop Hitch for Traxxas TRX-4 (Z-S1846)

Instruction Manuals:

Click here to download.

Notes:

Tires require glue installation on wheel.
You need hitch for your truck (Click Here)

(Z-H0015)

SKU	Z-H0015
Barcode #	639303000000
Brand	RC 4WD
Shipping Weight	7.2000kg
Shipping Width	11.000m
Shipping Height	34.000m
Shipping Length	7.000m
