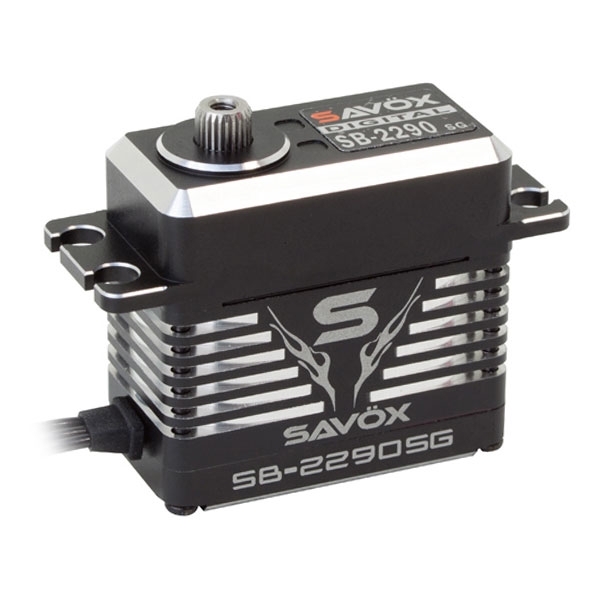

Digital Super Torque 50kg/t Servo

• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications

• Torque @ 6v - 40.0kg/555.5oz-in
• Torque @ 7.4v - 50.0kg/694.4oz-in
• Torque @ 8.4v - 65.0kg/902.7oz-in
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g

SAV-SB-2290SG Servo Specifications

• Total Height (A) = 38.7mm
• Body Width (B) = 40.3mm
• Below Mount (C) = 25.9mm
• Above Mount (D) = 11.7mm
• Total Length (E) = 54mm
• Total Width (F) = 20.2mm
