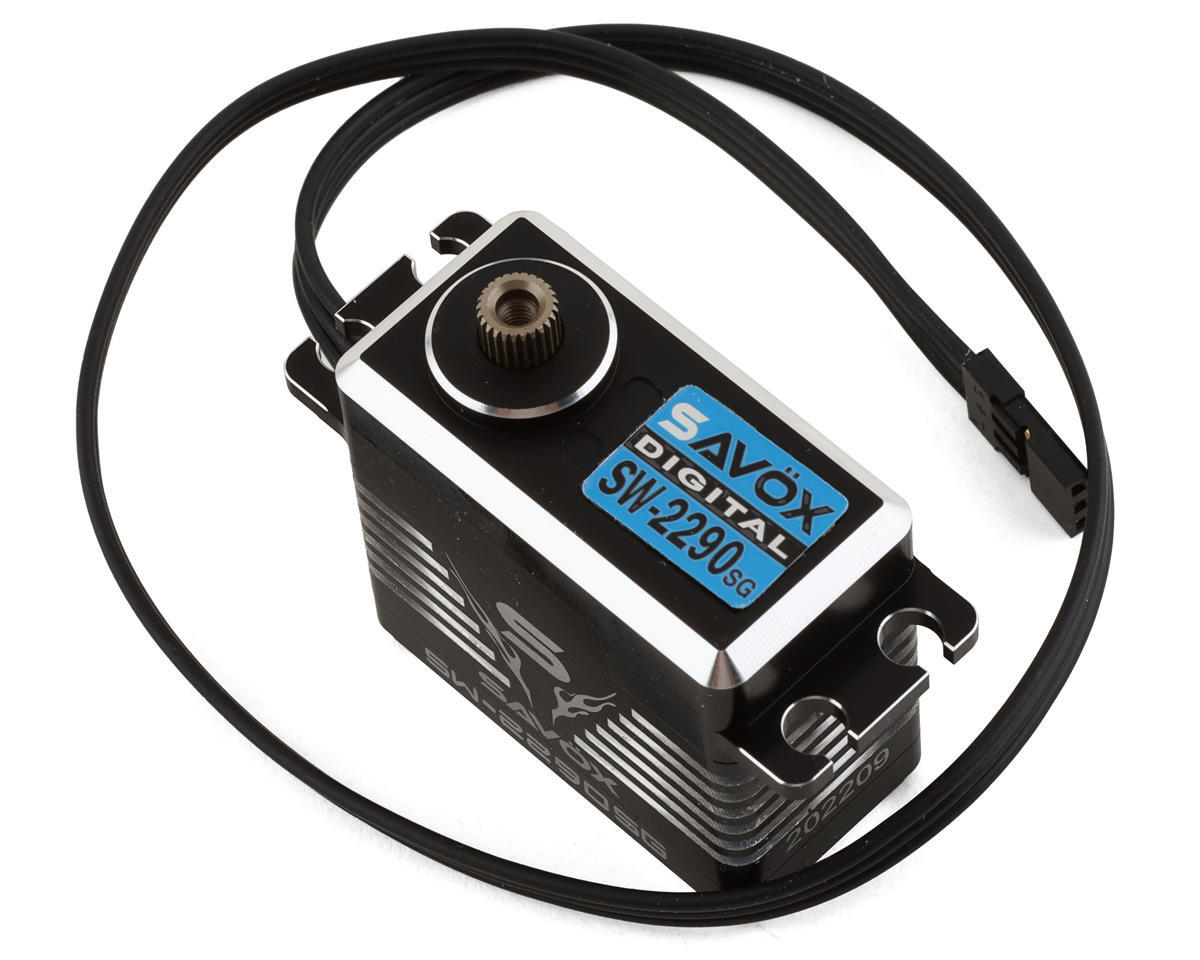

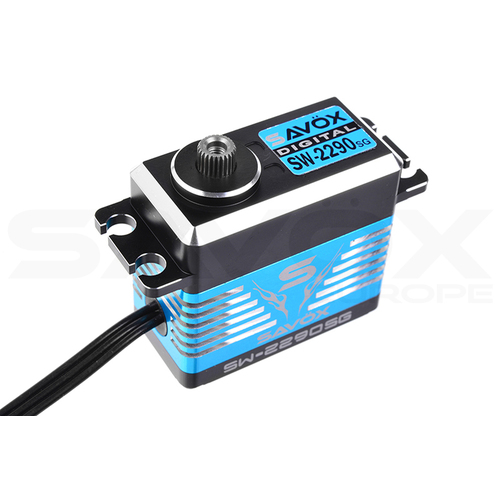

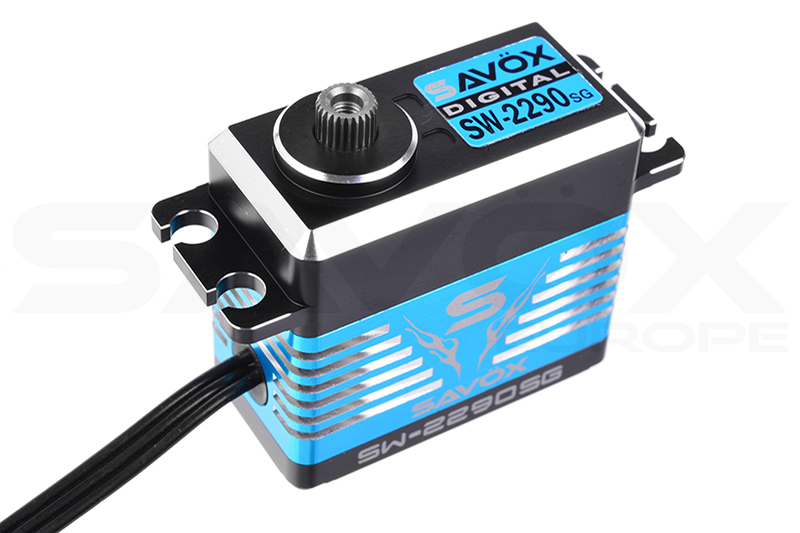

Digital Super Torque 55kg/t Servo
Register or login to view pricing
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
| Spline size: | 25T Spline |
| Servo Technology: | Digital High Voltage |
| Servo Case: | Aluminium |
| Input Voltage (V): | 6.0V - 8.4V |
| Water Protection: | Waterproof |
| Motor Type: | Brushless Motor |
| Gear Material: | Steel Gears |
| Ball Beared: | Ball Beared |

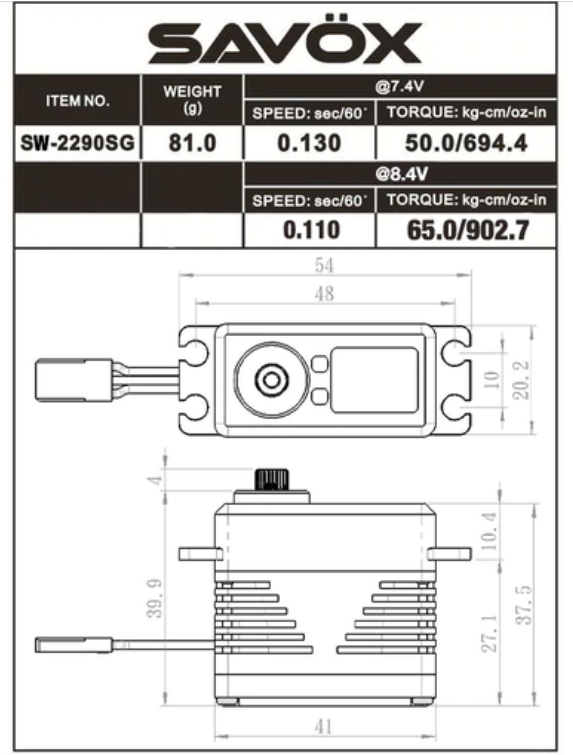

| Length (mm): | 40.3 mm |
| Width (mm): | 20.2 mm |
| Height (mm): | 38.7 mm |
| Weight (g): | 81.0 g |
| Speed 60°/Sec @ 6.0V: | 0.16/60° sec |
| Speed 60°/Sec @ 7.4V: | 0.13/60° sec |
| Speed 60°/Sec @ 8.4V: | 0.11/60° sec |
| Torque kg/cm @ 6.0V: | 45.0kg/624.9oz-in |
| Torque kg/cm @ 7.4V: | 55.0kg/763.8oz-in |
| Torque kg/cm @ 8.4V: | 70.0kg/972.1oz-in |
| Connector type: | JR |
(SAV-SW2290SG-BE)
| SKU | SAV-SW2290SG-BE |
| Brand | SAVOX |
