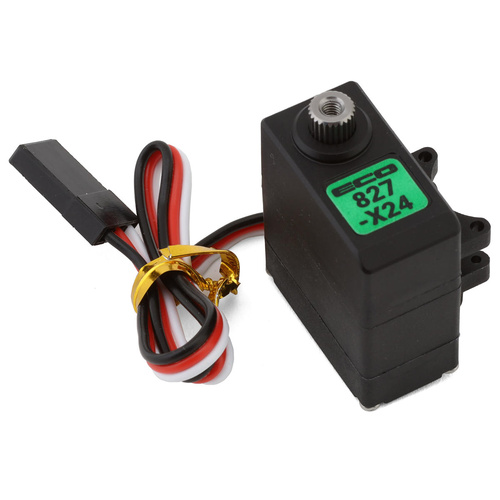

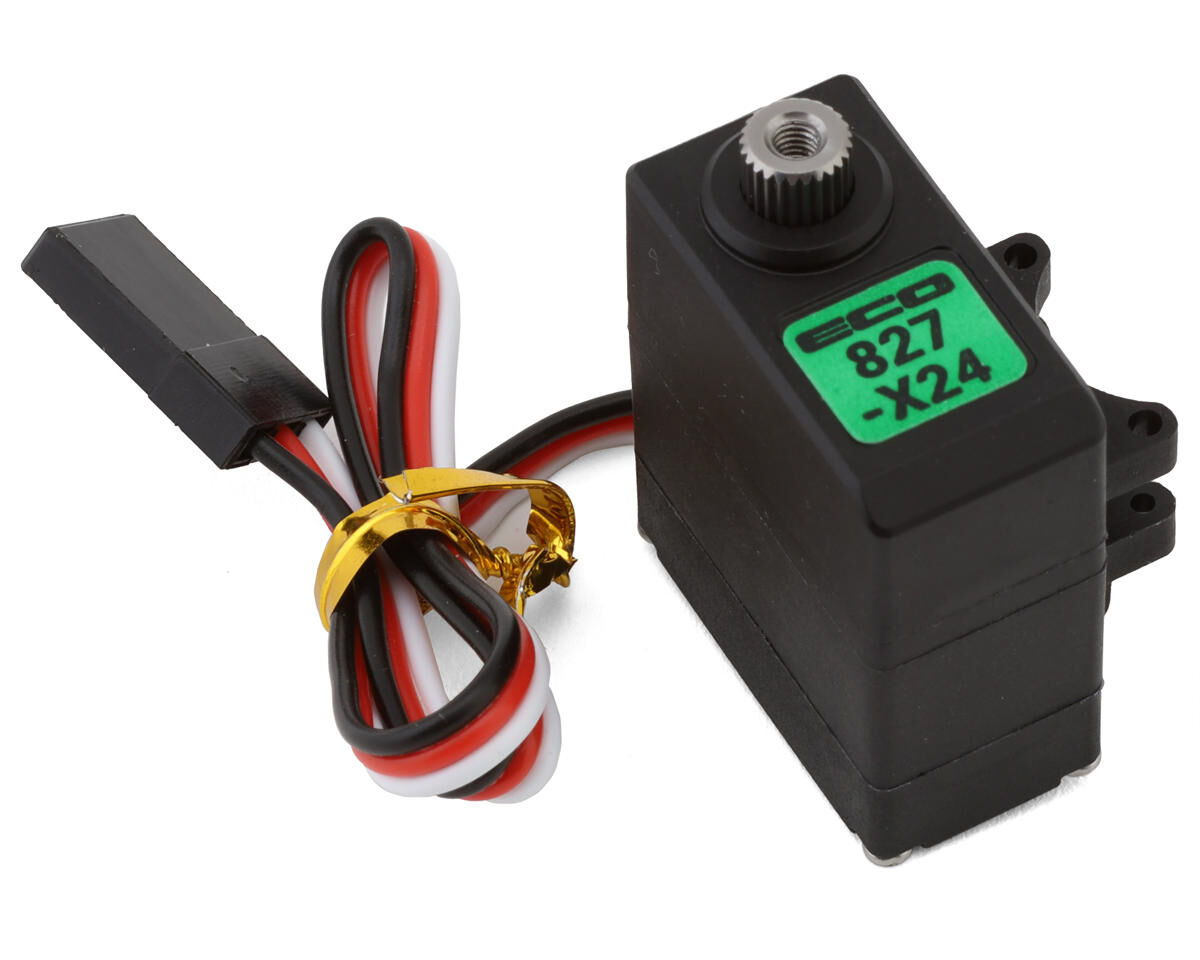

EcoPower WP827-X24 Metal Gear Micro Servo Direct Fit For Axial™ SCX24 (HV) (Waterproof)

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

About the WP827-X24 Servo

Design

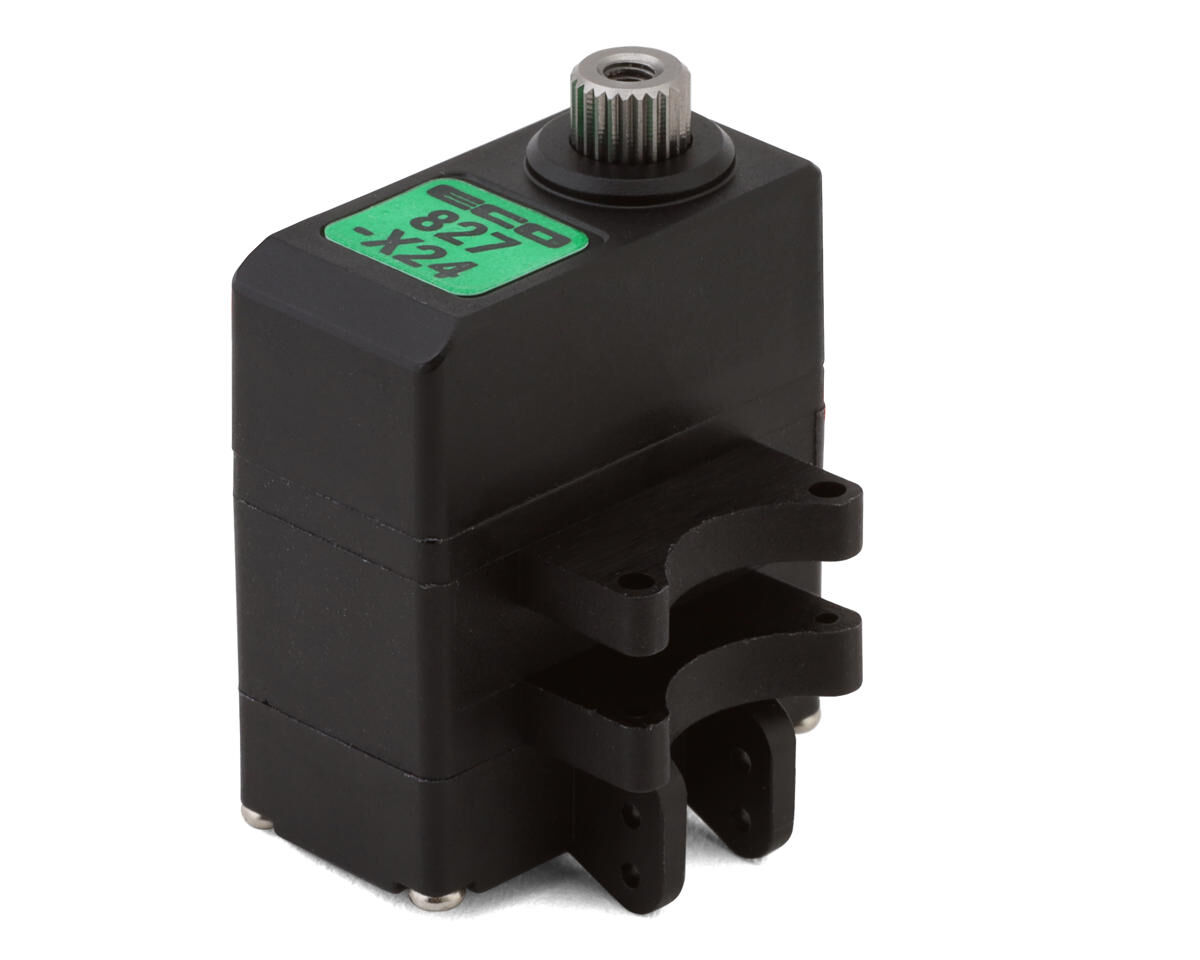

Unlike all other traditional servos on the market, the EcoPower WP827-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP827-X24 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

High Torque & Speed

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs equipped with heavier tuning weights and wheels! This EcoPower WP827-X24 micro servo is capable of outputting 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 of speed at 8.4 Volts that will help your SCX24 elevate steering performance and precision to take on harder lines and harsher trails!

Robust Construction & Drivetrain

When it comes to durability and reliability, the EcoPower WP827-X24 micro servo is fitted with all metal heavy-duty gears, output shaft spline and an aluminum mini 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP827-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

Features:

  • The ultimate budget upgrade for Axial™ SCX24
  • High torque and speed output
  • Innovative direct axle mount
  • Eliminates the need for separate servo mount
  • High voltage capable of operating on up to 8.4 Volts!
  • HD all metal gears and output shaft spline
  • Waterproof design
  • Powerful coreless motor
  • Includes a CNC-machined aluminum horn with multiple mounting holes
  • 1-year warranty
  • Includes:

  • (1) WP827-X24 Digital Micro Servo
  • (1) Aluminum Servo Horn
  • (2) Composite Servo Horns
  • Specifications:

    Application 1/24 & 1/18
    Input Voltage 6V-8.4V
    Speed
    @6.0V: 0.10 sec/60
    @8.4V: 0.08 sec/60
    Torque:
    @6.0V: 48.6oz.in (3.5Kg-CM)
    @8.4V: 62.5oz.in (4.5Kg-CM)
    Motor Digital Coreless
    Output Shaft Mini 25T
    Gear Material Metal
    Dimensions (LxWxH) 0.9x0.47x1.25in (23x12x31.75mm)
    Weight 16g

(ECP-827-X24)

SKU ECP-827-X24
Brand ECOPOWER
