****Electric Motor "Thrust B-Spec" 35T + 1:10 Brushed ESC 40A

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation.

FEATURES:
  • Water-proof and dust-proof for all weather races
  • Small size with built-in capacitor module
  • Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
  • Easily programmed with “jumpers”


SPECIFICATION:

  • Application: On-road/Off-road
  • Cont. / Burst Current - forward: 40A / 180A
  • Cont. / Burst Current - reverse: 20A / 90A
  • Input: 2-3S LiPo / 5-9 Cells NiMH
  • Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
  • Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
  • Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
  • Maximum Reverse Force: 50%
  • Overheat Protection: 100°
  • Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
  • Built-in BEC: 2A/6V (Linear Mode BEC)
  • Plug System: Tamiya
  • Plug & Drive System: yes
  • On/Off Switch: yes
  • Dimmension (L/W/H): 46.5*34.0*28*5 mm
  • Weight: 70g



  • Weight: 70g

SPECIFICATION MOTOR:

  • Turns: 35T
  • RPM: 10.900
  • Continuous Current: 7.5A
  • Operation V: 7.2
  • Motor size: 540
  • Shaft length: 8,6mm
  • Shaft Ø: 3,19mm
  • Motor length: 54mm
  • Motor Ø: 35,7mm

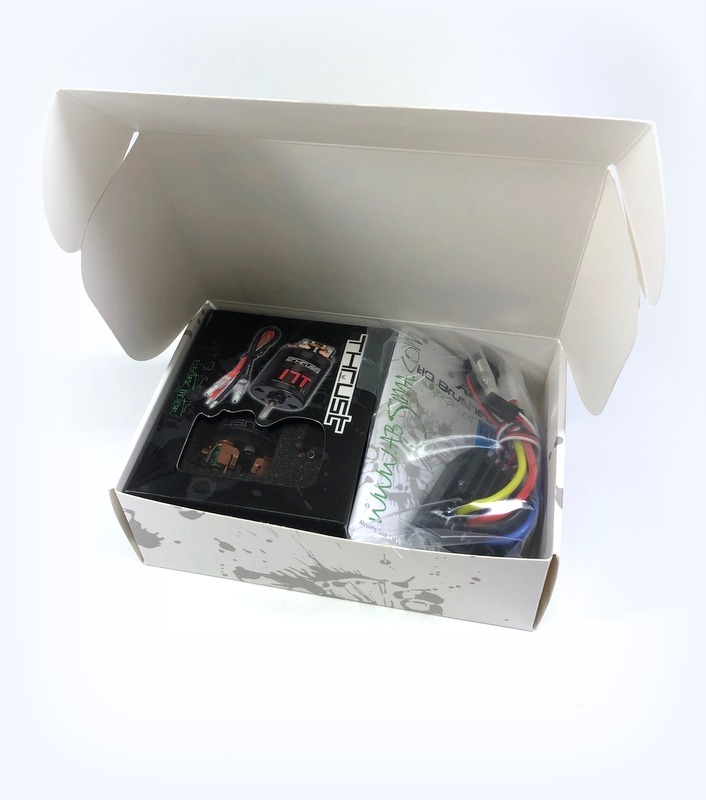

SCOPE OF DELIVERY:

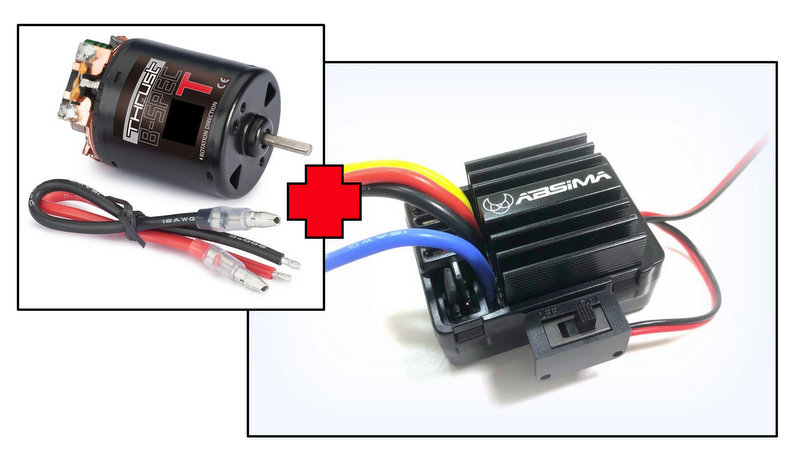

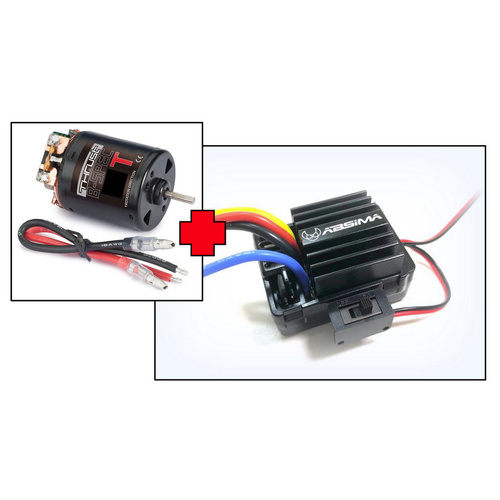

  • WP1040 Brushed Crawler & Boat ESC
  • 35T Electric Motor
  • Manual

(AB2100020)

SKU AB2100020
Barcode # 4250650938796
Brand ABSIMA
