FCX18II 1:18 FORD F-100 RTR BRUSHLESS BLACK

Top Highlights

• NEW! 1312 Brushless Motor
• NEW! Independent Brushless ESC
• NEW! Independent Receiver
• Officially Licensed Ford F-100 Body
• Officially Licensed BFGoodrich KO3 Tires
• Highly Detailed Scale Exterior & Interior
• All-New FCX18 II Low Center-Of-Gravity Chassis

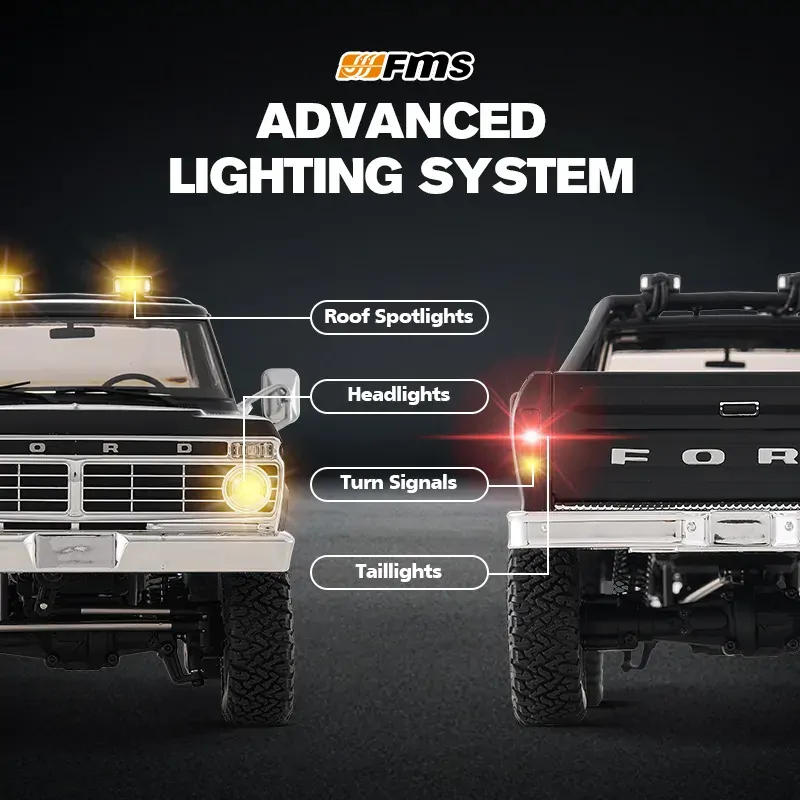

• Full Light System With Multiple Modes
• Two-Speed Transmission
• Magnetic Quick-Release Body System
• Metal Chassis Rails, Links, Bearings, Gears & Shocks
• Solid Axle
• Reverse Transmission Design
• Extensive Upgrade Parts Available

Introduction:

Authorized by Ford Motor Company, the FMS model is built on the all-new FCX18 second-generation low center of gravity (LCG) chassis and introduces the classic Ford F-100 in scale form. The Ford F-100 body features a durable hard-shell construction, with FMS meticulously replicating the original vehicle's proportions and design lines.

The vehicle features a fully molded scale interior, complete with mirrors and steering wheel, integrated with a synchronized lighting control system. Factory-installed headlights, taillights, turn signals, and roof-mounted spotlights are all individually controllable with linked lighting functions. An ESC system consisting of a separate electronic speed controller and a separate receiver with a selectable switching function allows easy replacement and future upgrades. Hidden wiring within the body and chassis simplifies installation, storage, and customization. Officially licensed BFGoodrich KO3 tires deliver an aggressive appearance while accurately replicating the driving posture and traction characteristics expected of a scale crawler.

In terms of power and handling, the Ford F-100 features a full-time 4WD drivetrain. A high-performance 1312 size brushless motor is mounted at the front of the chassis to provide strong, consistent power output. The LCG layout combined with the magnetic quick-release body system is a key feature of the second-generation FCX18 platform, improving climbing stability and vehicle posture while reducing rollover risk on technical terrain. Different Painted body shells can be swapped in approximately two seconds, and the magnetic interface automatically supplies power to the body-mounted lighting system, allowing full lighting activation directly from the transmitter.

What's in the box:

• 1 x 1:18 FCX18 II Ford F-100 Vehicle
• 1 x Transmitter & Receiver (installed)
• 1 x 7.4V 900mAh Battery
• 1 x USB Battery Charger
• 1 x Decal Sheet
• 1 x Product Manual

Need to Complete:

• 4 x AAA Batteries for Transmitter

Specification:


Product Size	330x145x147 mm
Wheelbase	199mm
Tire Size	Φ 58*19 mm
Ground Clearance	31mm
Approach Angle	59°
Departure Angle	53°
Gear Ratio	High Gear: 17.7 Low Gear: 94.2
Motor	1312 Brushless Motor
Receiver	FMS-R6B-BS-B
ESC	SO-ESC10ABL - 1312 (10A)
Battery	2S Lipo 7.4V 900mAh
Radio Range	Approx. 80m
Run Time	Approx. 40-60 mins
Radio System	FS-MG44 Transmitter

FAQ:

1. What is the FMS  FCX18 II F-100?

The FMS FCX18 II F-100 is a 1:18 scale RC crawler featuring an officially licensed Ford F-100 body, a 199mm wheelbase chassis, and a magnetic quick-release body system. Designed for enthusiasts who value both scale realism and crawling performance, it combines authentic truck details with capable off-road performance in a compact size.

With its realistic F-100 styling, portable design, and easy body removal system, the FCX18 II F-100 is built for collectors and drivers who want a detailed RC truck that is ready for both display and trail adventures.

2. Who is the FCX18 II F-100 for?

The FMS FCX18 II F-100 is made for RC enthusiasts who love scale realism, crawling performance, and compact-size adventure. It is ideal for fans of detailed RC trucks, small-scale crawlers, Ford vehicles, classic F-100 styling, and vintage-inspired builds. Whether you are a collector or a trail driver, the FCX18 II F-100 delivers the perfect balance of realistic appearance and enjoyable performance.

3. Is the FCX18 II F-100 a good RC crawler for beginners?

Yes. The FMS FCX18 II F-100 is an excellent choice for beginners thanks to its compact 1:18 scale design, which makes it easy to enjoy both indoor driving and outdoor adventures. Its small size is convenient for storage, transportation, and quick battery changes, making it a great entry point into the world of RC crawling.

Equipped with a 2-speed transmission, the FCX18 II F-100 offers versatile driving experiences — low gear provides strong torque and precise control for crawling obstacles, while high gear allows for faster cruising on open terrain. This makes it enjoyable for both new drivers and experienced RC enthusiasts.

4. What makes the FCX18 II F-100 different from other 1/18 RC crawlers?

The FMS FCX18 II F-100 stands out with its new FCX18 II chassis platform, combining proven performance upgrades with innovative new features. Building on the original FCX18 chassis, it retains premium components such as metal gears, metal bearings, oil-filled metal shocks, a 2-speed transmission, metal steering links, and a four-link suspension system, while adding further improvements for enhanced crawling performance.

The upgraded low center of gravity chassis layout, magnetic quick-release body and power contact system, multi-position shock mounting, reverse transmission design, solid axle setup, and independent light controller take the 1/18 crawling experience to a higher level. With a fully equipped platform and room for future customization, the FCX18 II F-100 delivers exceptional capability, realism, and upgrade potential in a compact RC crawler.

5. Why should I choose the FCX18 II F-100?

The FMS FCX18 II F-100 is designed for RC enthusiasts who want more than just a crawler — it delivers the ideal balance of scale realism, crawling performance, and everyday usability. With its officially licensed Ford F-100 body, authentic truck details, and upgraded FCX18 II chassis platform, it offers a highly detailed appearance without sacrificing trail capability.

Featuring a low center of gravity chassis, 2-speed transmission, solid axle design, metal drivetrain components, and advanced features like the magnetic quick-release body system, the FCX18 II F-100 provides stable crawling performance, easy maintenance, and a more immersive driving experience. Its compact 1:18 scale size also makes it easy to enjoy anywhere — from indoor spaces to outdoor trails — while leaving room for future customization and upgrades.

6. What are the key features of the FCX18 II F-100?

The FMS FCX18 II F-100 combines authentic scale styling with advanced crawling performance through a range of upgraded features. Key highlights include an officially licensed Ford F-100 body, a 199mm wheelbase low center of gravity chassis, and a magnetic quick-release body and power contact system for easy maintenance and enhanced convenience.

Its performance-focused chassis features metal gears, metal bearings, oil-filled metal shocks, a 2-speed transmission, metal steering links, four-link suspension, solid axles, reverse transmission design, and multi-position shock mounting for improved durability, stability, and crawling capability. Additional features such as an independent light controller and detailed scale accessories further enhance realism and driving enjoyment.

7. Is the FCX18 II F-100 RTR and ready to run?

Yes. The FMS FCX18 II F-100 comes in a complete RTR (Ready-to-Run) package, allowing you to start driving right out of the box. No additional assembly or major setup is required — simply charge the battery, install it, and enjoy your first RC crawling adventure.

8. What comes with the FCX18 II F-100?

The FMS FCX18 II F-100 RTR package includes everything needed to get started, including the transmitter, battery, charger, quick start guide, and decal sheet.



Features

Licensed Ford F-100 with Authentic Scale Details

Built for scale realism, the F-100 features a detailed hard body with authentic Ford badging, grille, bumpers, door handles, and roll bar. The molded interior, detailed steering wheel, and textured seats complete the realistic scale look.

Brushless Power System

Powered by a 1312 2600KV brushless motor and matched with a brushless 10A ESC, the F-100 delivers smooth power, quick throttle response, and efficient performance. From controlled technical crawling to faster trail driving, the brushless system provides consistent power across changing terrain.

Independent ESC & Receiver

Separate brushless ESC and receiver components make maintenance, replacement, and future upgrades easier. The modular design gives you more flexibility to customize the F-100 as your setup evolves.

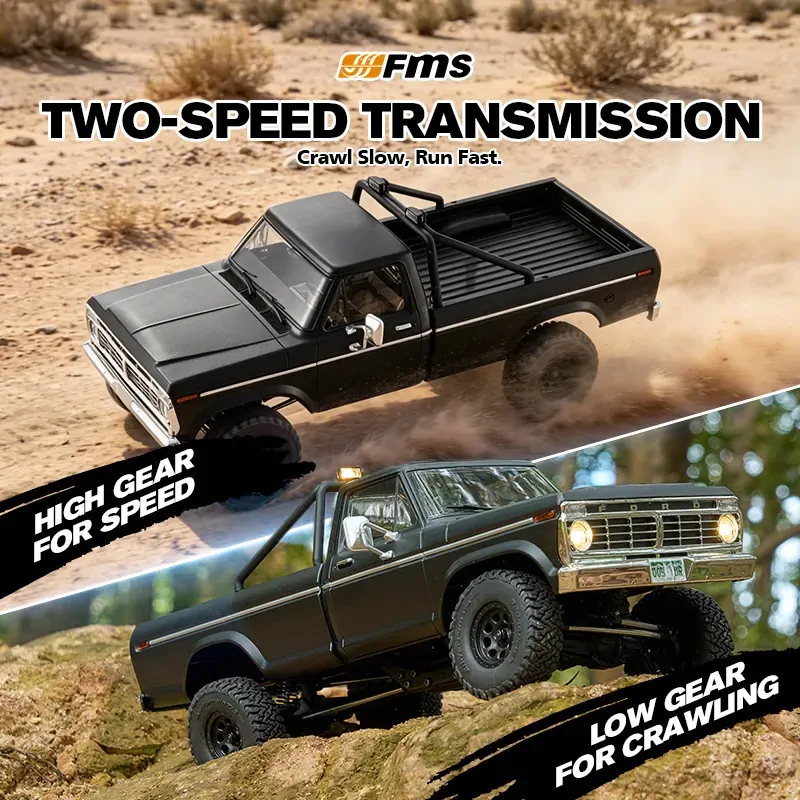

Two-Speed Transmission

Low gear delivers the torque and control needed for technical crawling and steep climbs. Shift into high gear for faster trail runs and open terrain, giving the F-100 the versatility to tackle different driving conditions.

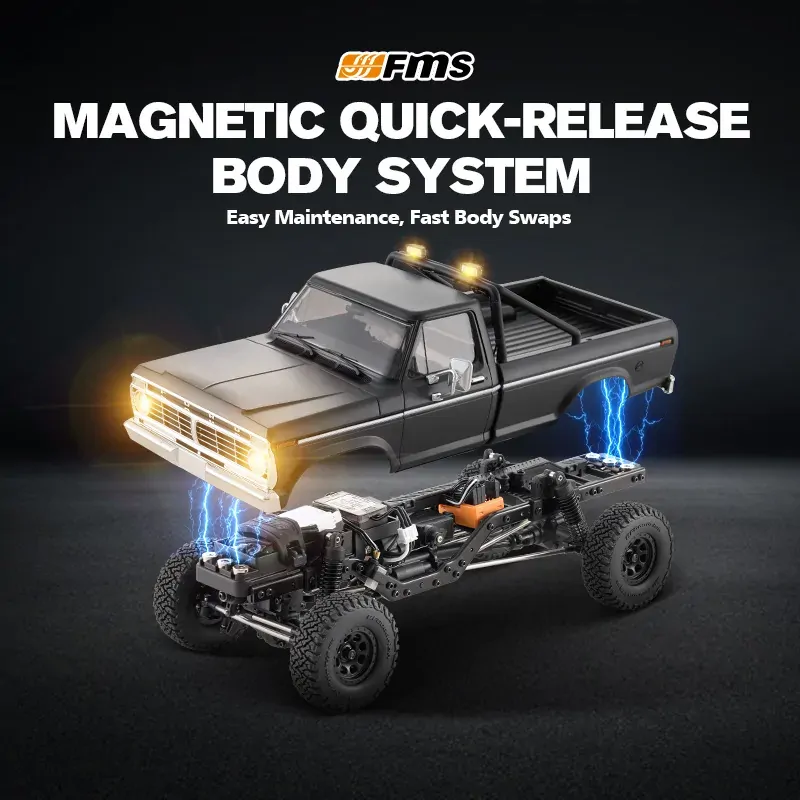

Magnetic Quick-Release Body System

Eleven high-strength magnets keep the body securely in place while allowing quick, tool-free removal in seconds. Integrated magnetic contacts power the lighting system automatically, so there are no wires to unplug during battery changes or maintenance.

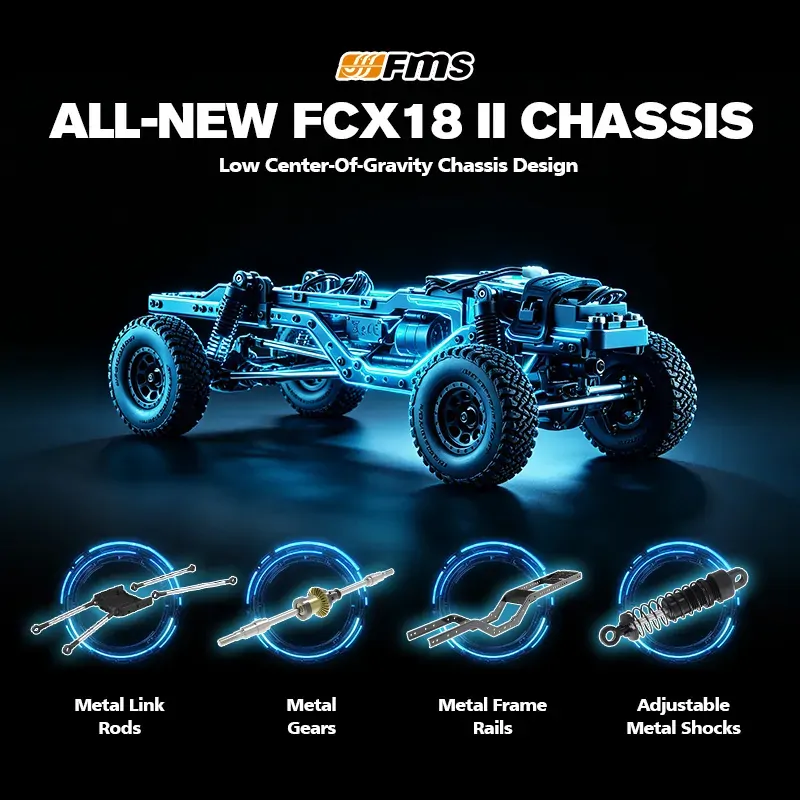

FCX18 II LCG Chassis

A low-mounted motor and transmission layout lowers the center of gravity for improved climbing stability and better control on challenging terrain. The LCG design also helps reduce body roll when navigating steep and uneven surfaces.

Metal Chassis Components

Key FCX18 II chassis components, including the frame rails, suspension links, steering rods, oil-filled shocks, geartrain, and servo gears, feature durable metal construction for enhanced strength and reliable performance.

Extensive Upgrade Options

The FCX18 II platform supports a wide range of upgrades, including optional portal axles, manually adjustable differentials, and BATRAZZI components. From performance-focused upgrades to scale-inspired details, you can customize the F-100 to match your driving style and build.
