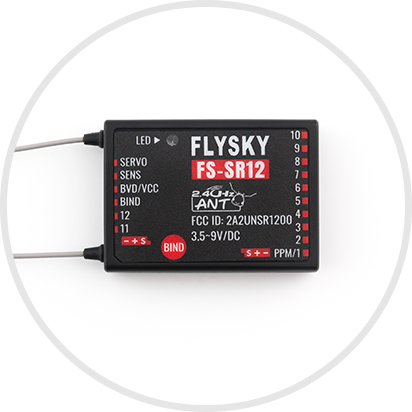

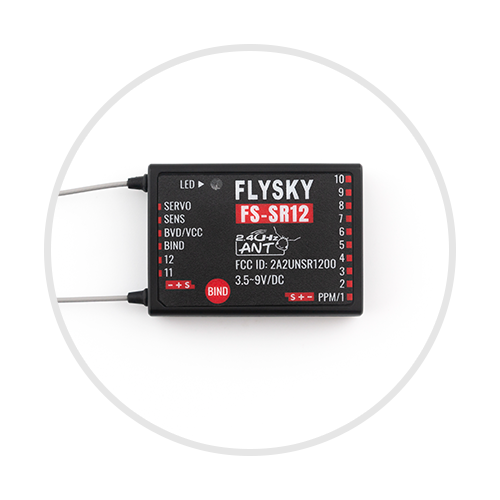

Flysky SR12 Receiver ANT Protocol 12 Channel

Product Name: FS-SR12

Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8

Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.

PWM Channels: 12

RF: 2.4GHz ISM

Maximum Power: < 20dBm (e.i.r.p.) （EU）

2.4G Protocol: ANT

Resolution: 4096

Antenna: Two antennas

Distance: > 1500m (Air distance without interference)

Input Power: 3.5~9V/DC

Working Current: 70mA/5V

Data Output: PWM/PPM/i-BUS/S.BUS

Online Update: Yes

Temperature Range: -10℃ ~ +60℃

Humidity Range: 20% ~ 95%

Dimensions: 44.8*32*11.3mm

Weight: 13g

Certifications: CE, FCC ID: 2A2UNSR1200
