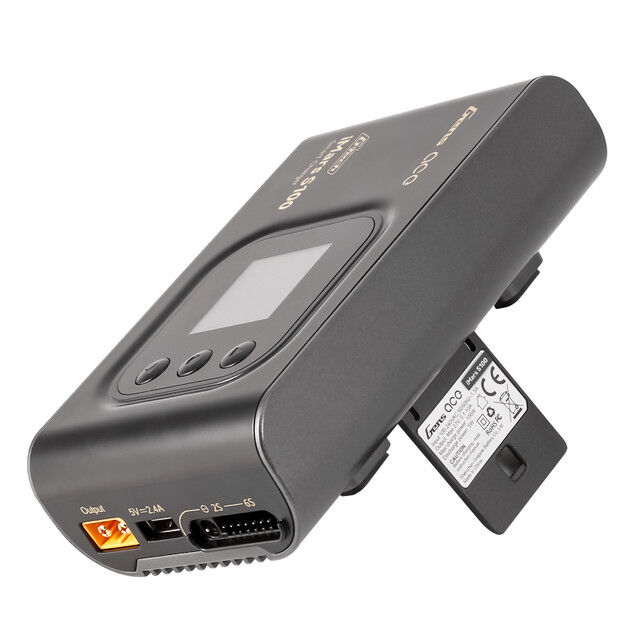

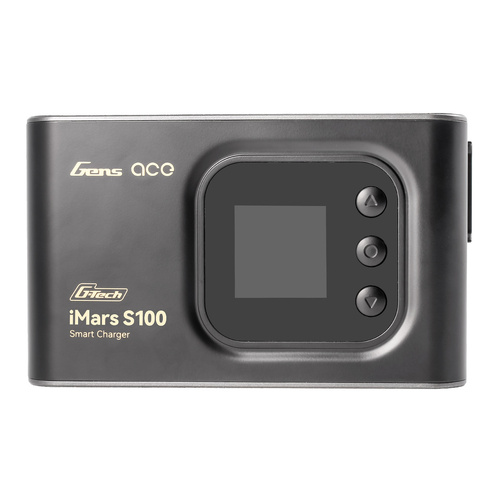

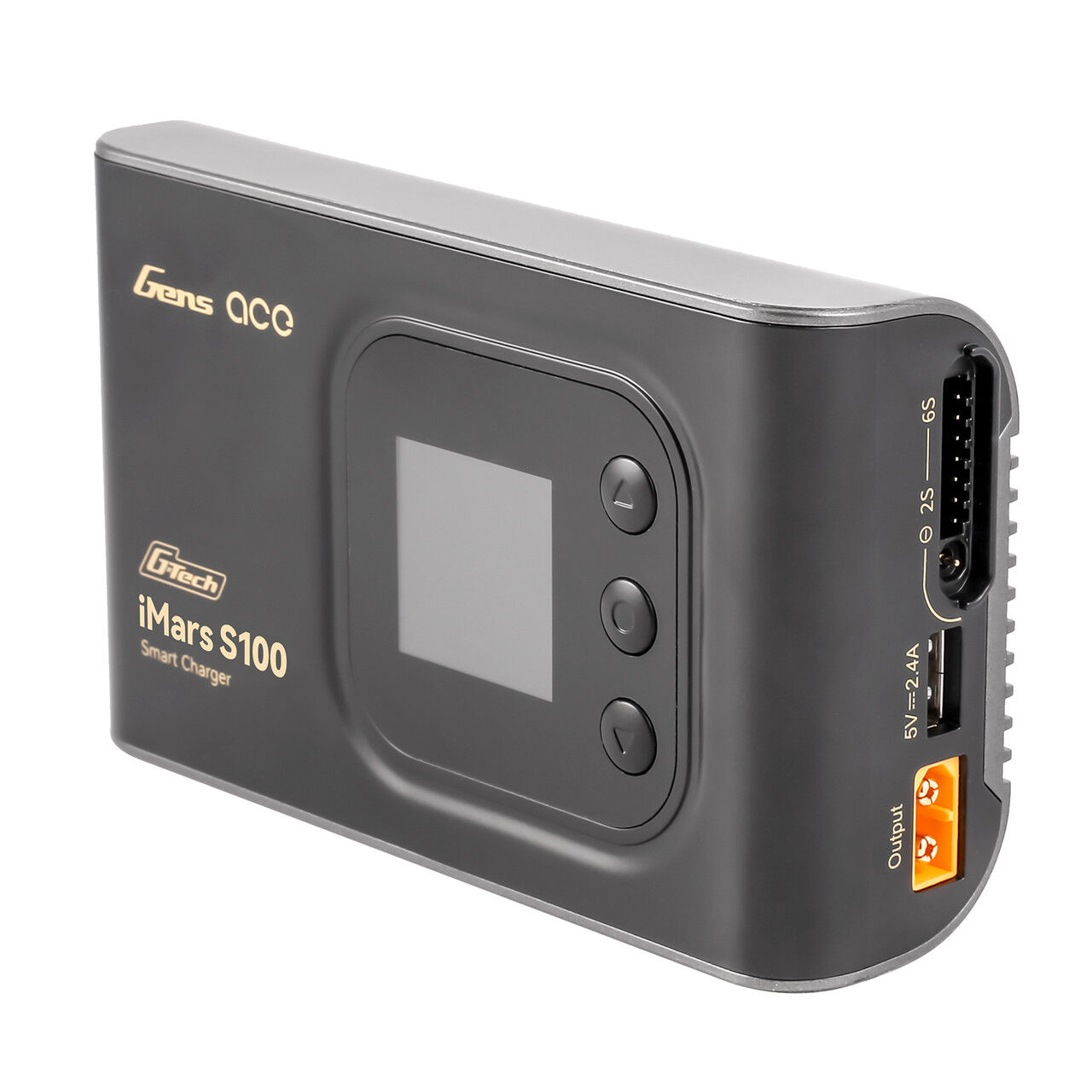

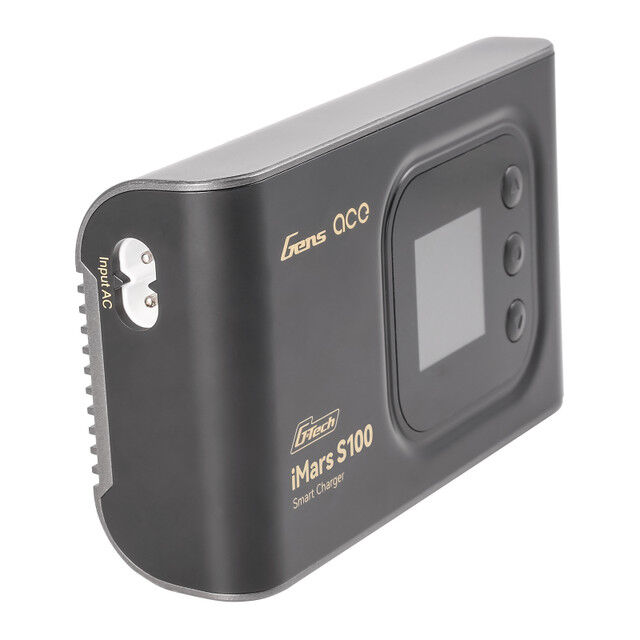

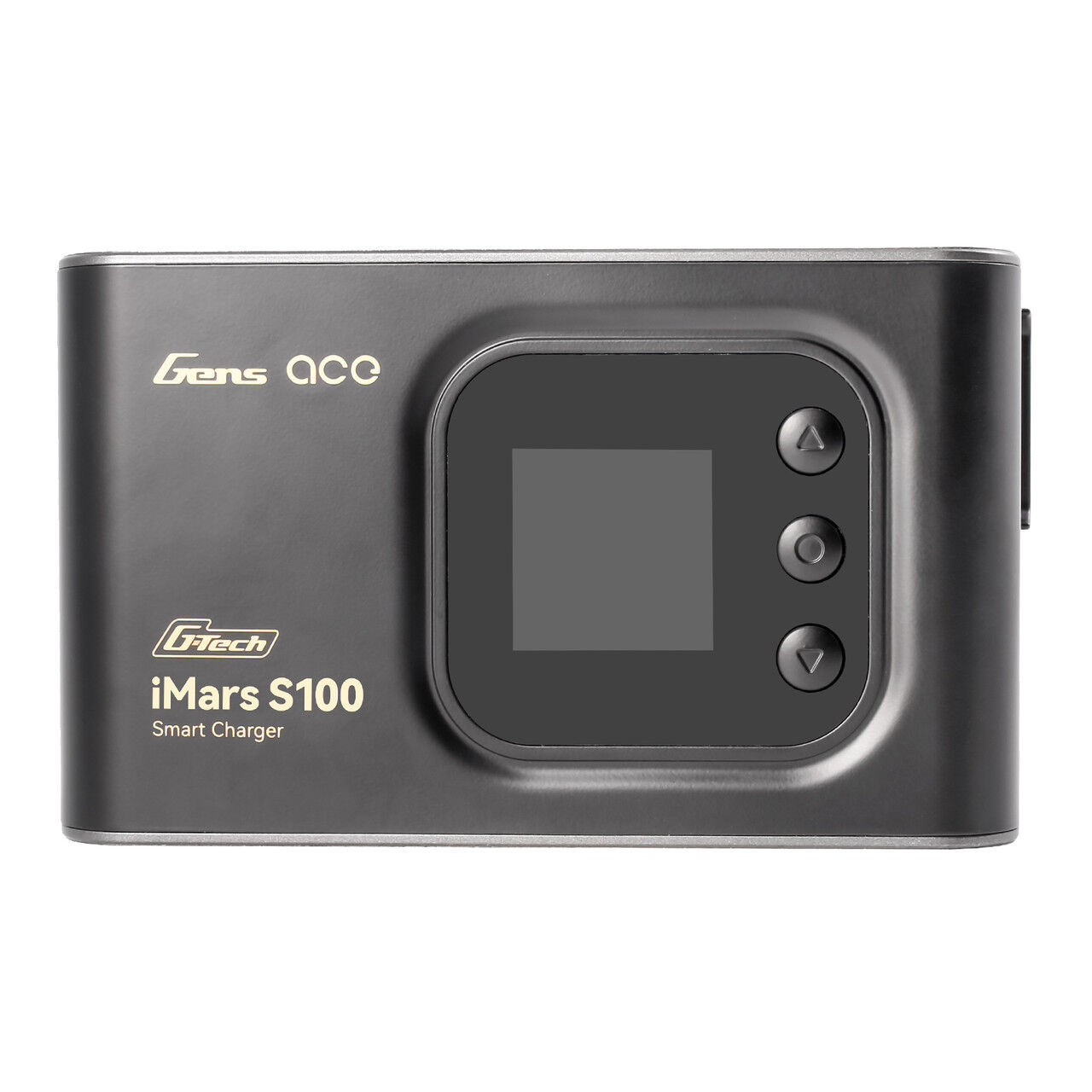

Gens Ace IMars S100 G-Tech Smart AC Balance Battery Charger (6S/10A/100W)

iMars S100 Overview:

The Gens ace iMars S100 G-Tech AC Balance Charger is a high-performance charging solution designed for a variety of RC batteries. This iMars S100 charger offers impressive versatility with its ability to handle charge rates up to 10 amps and operates across a worldwide voltage range of 100 to 240 volts! Equipped with a robust one hundred-watt power capacity, making it suitable for everything from small FPV drone batteries to larger 1:10/1:8 racing car batteries or even 700-series helicopters!

Upgraded from the iMars Pro III, the iMars S100 features physical buttons for a more tactile experience compared to the previous touchpad model. It integrates seamlessly with G-Tech smart batteries while maintaining compatibility with non-smart batteries. Additionally, the charger boasts a unified user interface language, enhancing ease of use and consistency across G-Tech products.

Features:

• Super lightweight and portable design
• Capable of charging up to 10 amps with a 100-watt power capacity!
• Multi-functional colored display
• Easy to navigate interface
• Worldwide voltage input compatibility (AC 100-240V)
• Reliable button keys instead of touchpad for improved user interaction
• Unified UI language for consistent user experience across G-Tech products
• Compatible with G-Tech smart batteries and non-smart batteries
• Controlled heat dissipation system
• Available in black and white

Specifications:

• Input Voltage: AC 100-240V
• Output Voltage: 27V (max)
• Discharging Power: 5W
• Charging Power: 100W
• Charge Current: 10A (max)
• Discharge Current: 4A (max)
• Cell Balancing: 2S-6S (Lipo/Li-ion/LiHV/LiFe), 4S-18S (NIMH)
• Function: Charger/Discharge/Storage/Balance
• Channel: Single
• Input Connector: AC
• Output Connector: XT60
• Dimensions: 139.8x83x40mm
• Product Net Weight: 260g

Includes:

• (1) iMars S100 G-Tech Smart AC Balance Battery Charger
• (1) AC Input Cable
• (1) XT60-T Adapter
• (1) XT60-EC5 Adapter
• (1) XT60-EC3 Adapter
• (1) USB Cable

• Brand:	Gens ace
  Max Charge Power:	100W
  Charge Current:	10A(max)
  Discharge Current:	0.4A(max)
  Input Voltage:	AC 100-240V
  Max. Input Current:	50~60Hz~1.5A
  Cell Balancing:	2S-6S(Lipo/Li-ion/LiHV/LiFe), 4S-18S(NIMH)
  Function:	Charger/Discharge/Storage/Balance, etc
  Channel:	Single
  Length(±5mm):	139.8
  Width(±2mm):	83
  Height(±2mm):	40
  Net Weight（±20g）:	260g
  Manuals:	ImarsS100V1.0.21.rar
