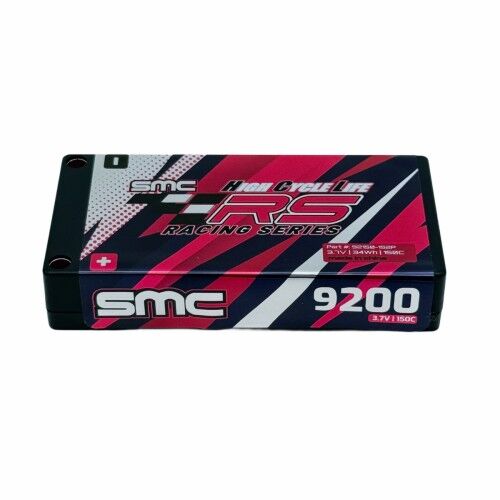

HCL-RS 3.7V-9200mAh 150C 5mm Inboard Hardcase

HCL-RS 3.7V-9200mAh-150C 5mm Inboard Hardcase.   ROAR approved

Introducing the HCL-RS line of race packs (High Cycle Life - Race Series). These formulations are not the generic cells/packs you can get with different color stickers on them. These are recipes developed for us by an independent factory. While we have recently pushed mAh and C rates for applications like flight packs and speed run packs, the demands of racing are different. These new formulations hold better voltage, sag less under loads seen in off and on road racing by optimizing the IR and mAh per cubic centimeter of the cells.  Scroll down the page to see a discharge graph.

True mAh +/- 5%:      9200mAh

Voltage:                     3.7V

C rate:                       150C

Power Factor:           TDB For more information click here

Size:                         18.5mm x 47mm x 93mm Hardcase

Weight:                     169gr

Wire size:                 5mm inboard tubes with 2mm balance tube

Charge rate:             1C to 5C please note that a higher charge rate will put less mAh into the pack and will reduce cycle life

The graph below shows our 8000-150C-1S at a 35 amp discharge versus a 7400-160C-1S and 8500-140C  sold under different brands/label.   As you can see you get better voltage under load througout the discharge curve and better capacity/mAh.
