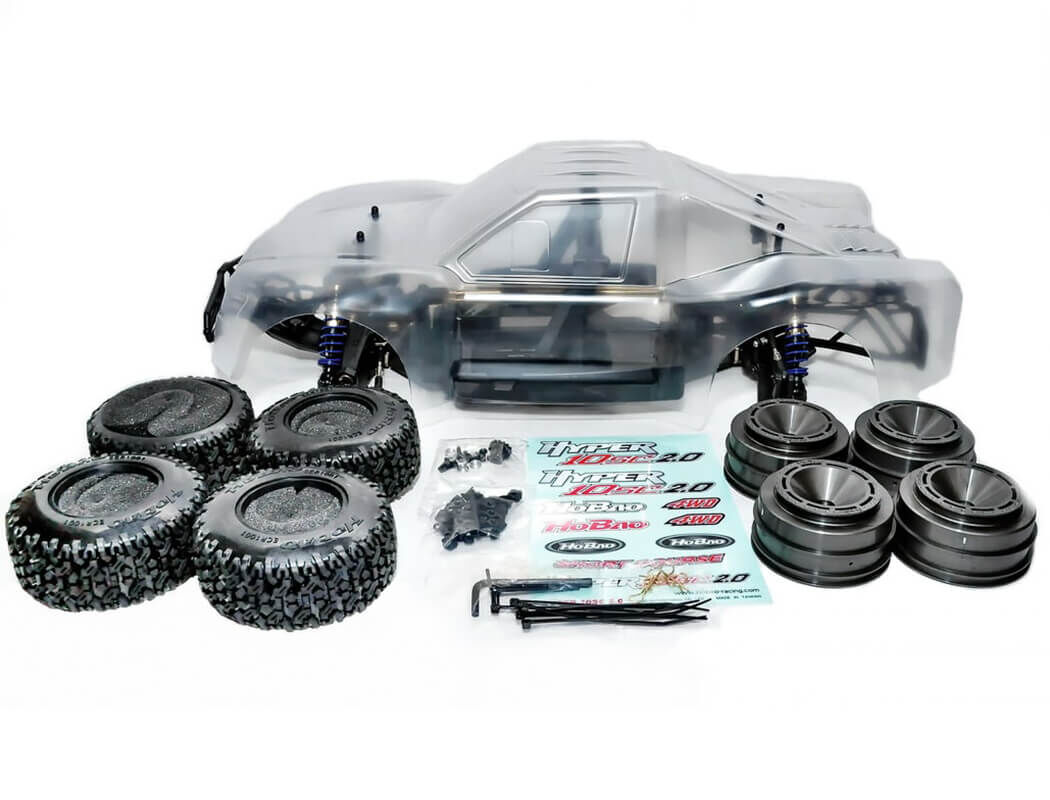

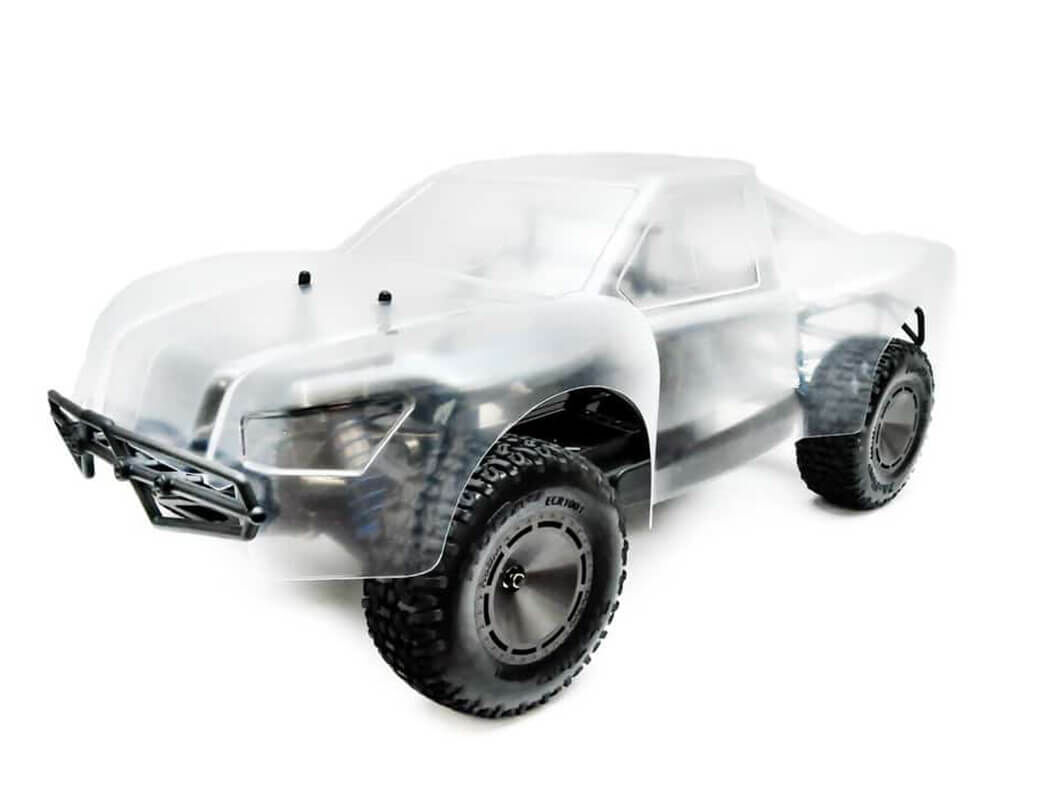

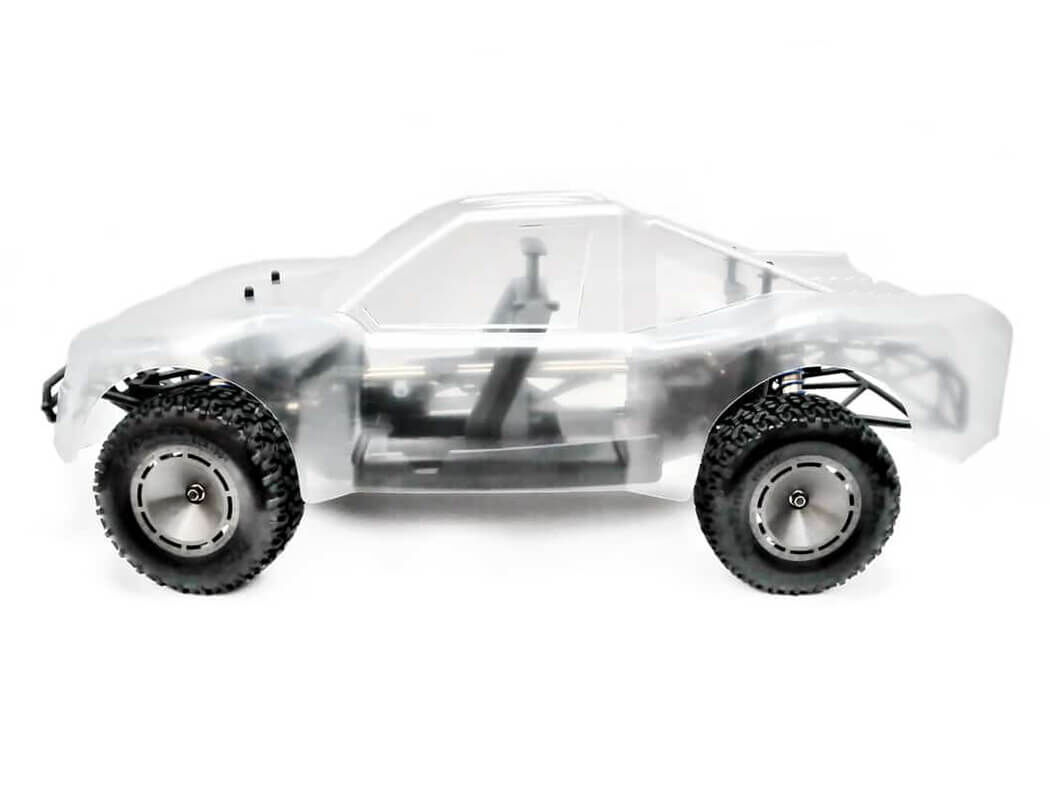

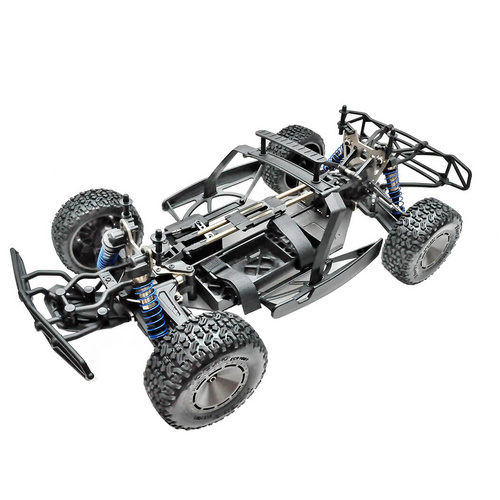

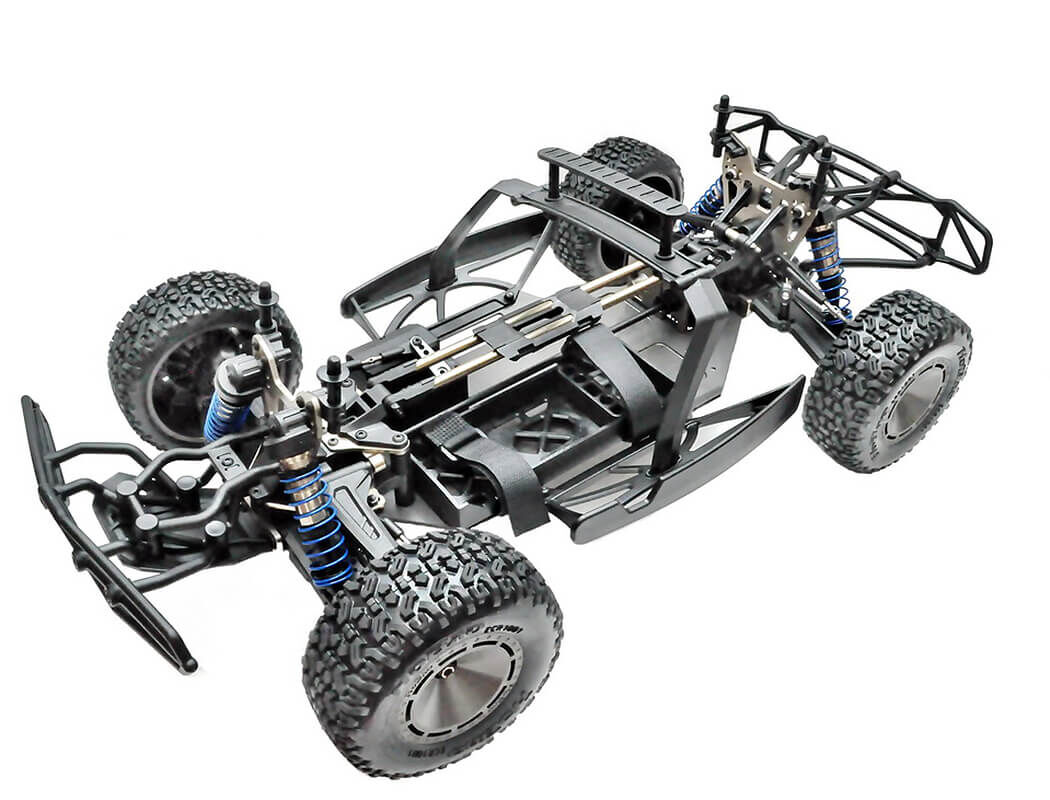

HOBAO HYPER 10SC 2.0 ELECTRIC TRUCK ARR WITH CLEAR BODY

HOBAO HYPER 10SC 2.0 ELECTRIC TRUCK ARR WITH CLEAR BODY

Features

• All Metal Parts CNC Machined.

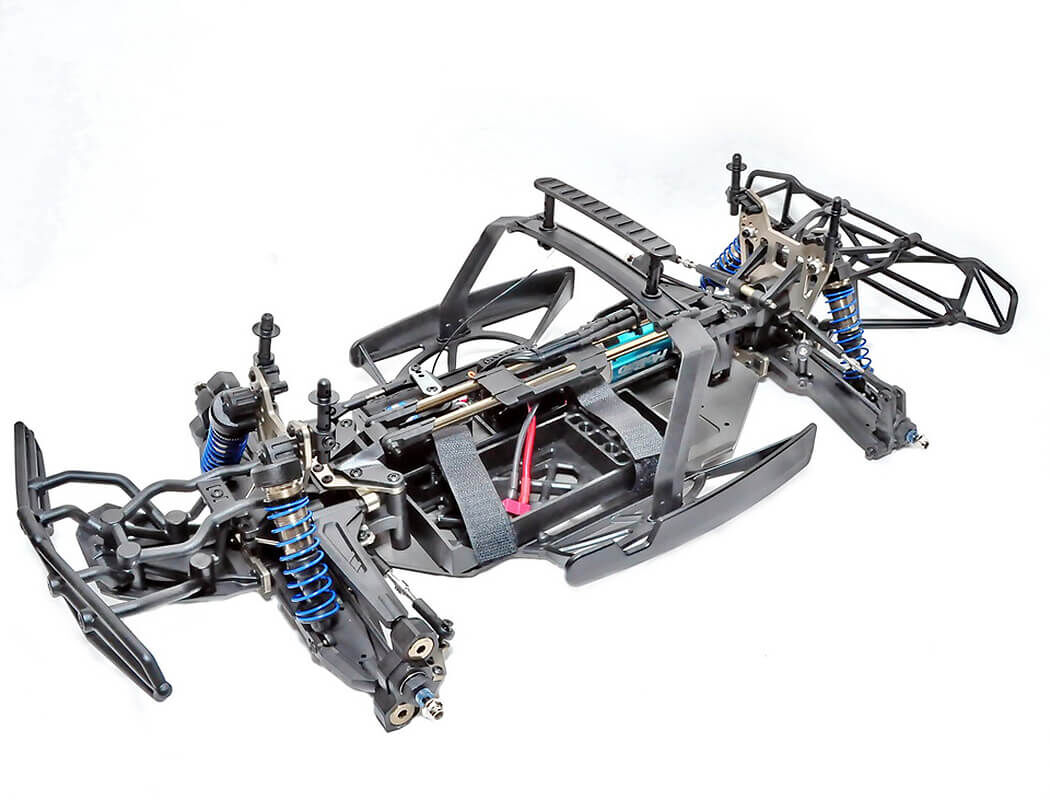

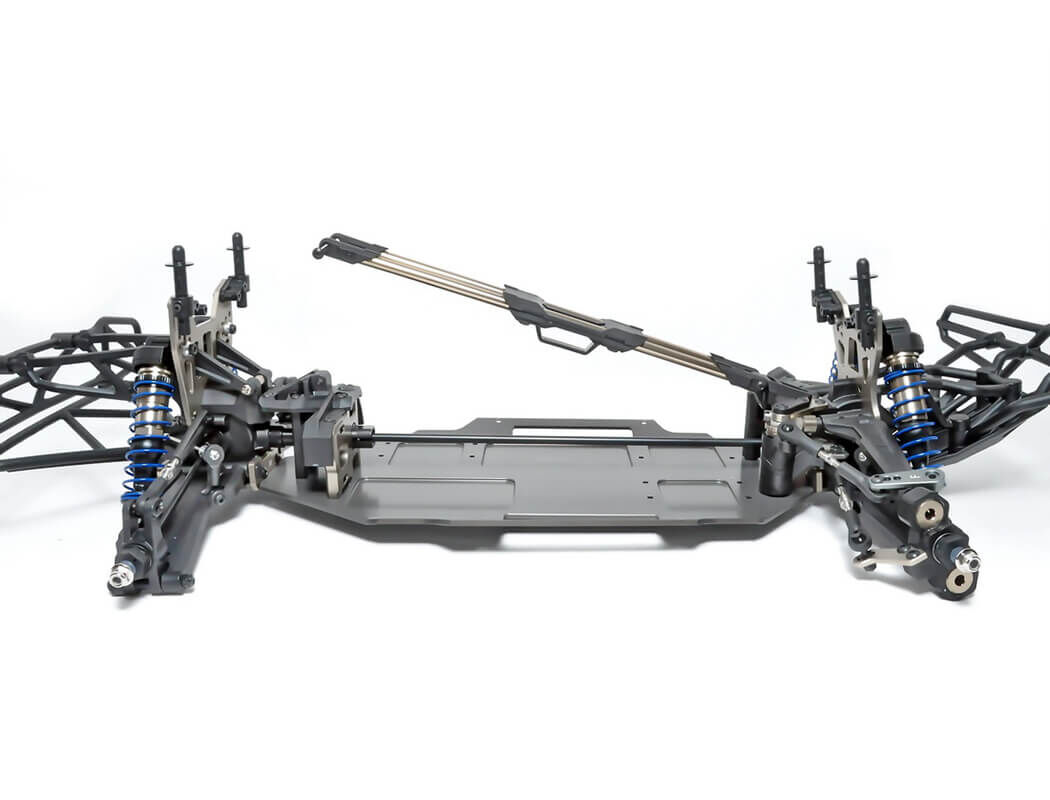

• Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.

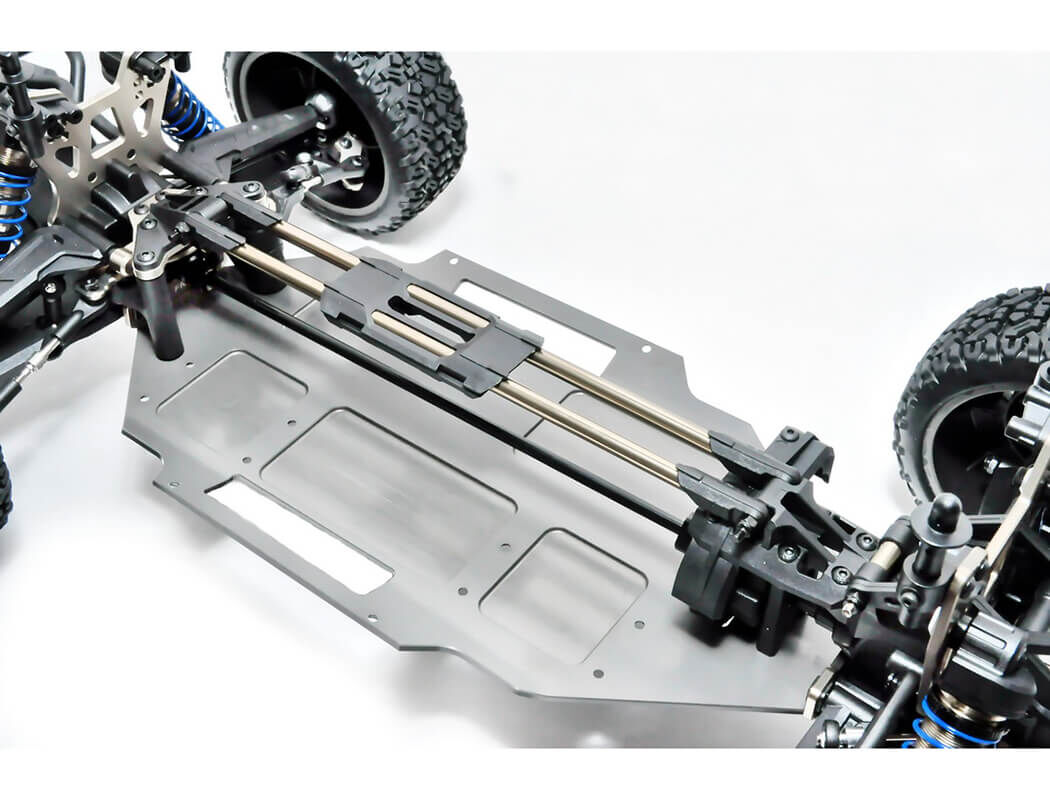

• Center Top Brace
  - Wire pass through.
  - Quick Release.
• Drive:
  - Central: Single Ø4mm Hardened steel center driveshaft.
  - Optional  Aluminum center driveshaft HOP1-0083.
  - Front wheel: CVA axles, Ø3.2mm Hardened steel.
  - Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
  - Optional rear wheel CVA axles HOP1-0082.
• Differentials:
  - Center differential is directly connected to rear differential.
  - Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
  - Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
  - Center Spur Gear: 40T (MOD 1).
  - Motor Gear:13T (MOD 1).
  - Front differential filled with 20K silicone oil.
  - Center differential filled with 9K silicone oil.
  - Rear differential filled with 5K silicone oil.
• Shocks:
  - Filled with front 700 silicone oil and rear 600 silicone oil.
  - Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
• Spring:
  - Front: 0.86kg/cm, L=50mm, Blue.
  - Rear: 064kg/cm, L=65mm, Blue.
  - Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
  - Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
  - Shock Tower: 3mm CNC aluminium.
  - Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071.
• Suspension:
  - Front PBS.
  - New design steering block with enlarged pivot ball and alum steering arms.
  - Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.
  - New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).
  - Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
  - Front & rear anti-roll bars.
  - New Alum front and rear arm holder.

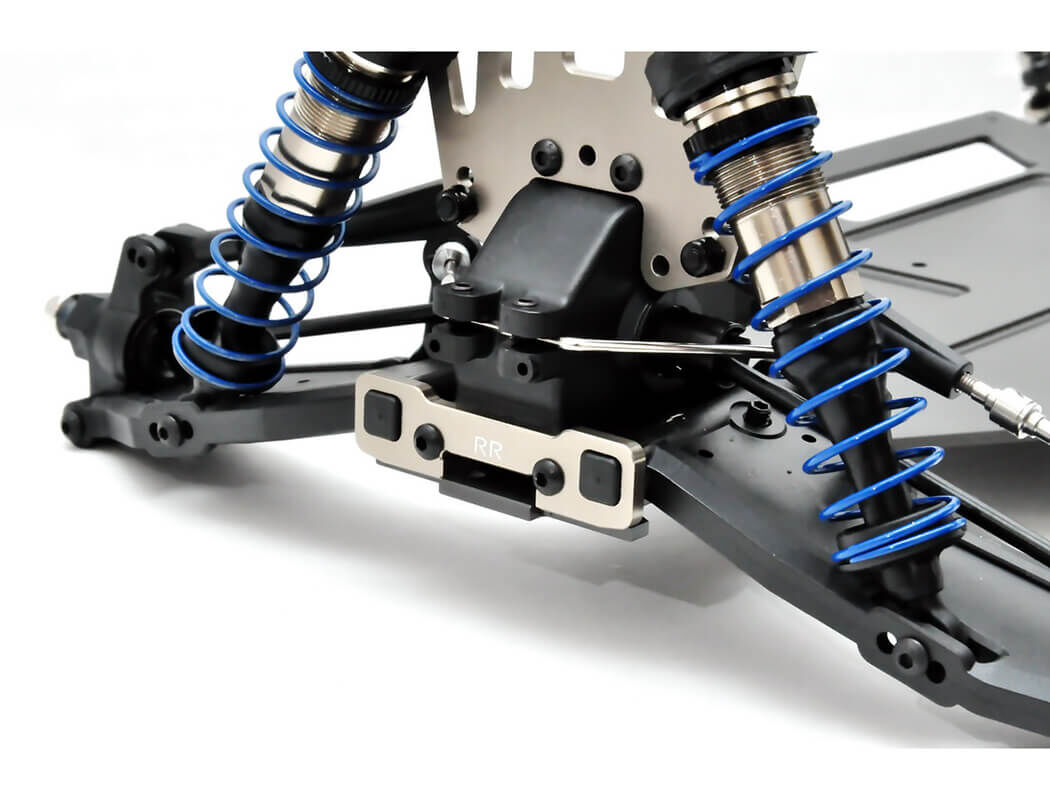

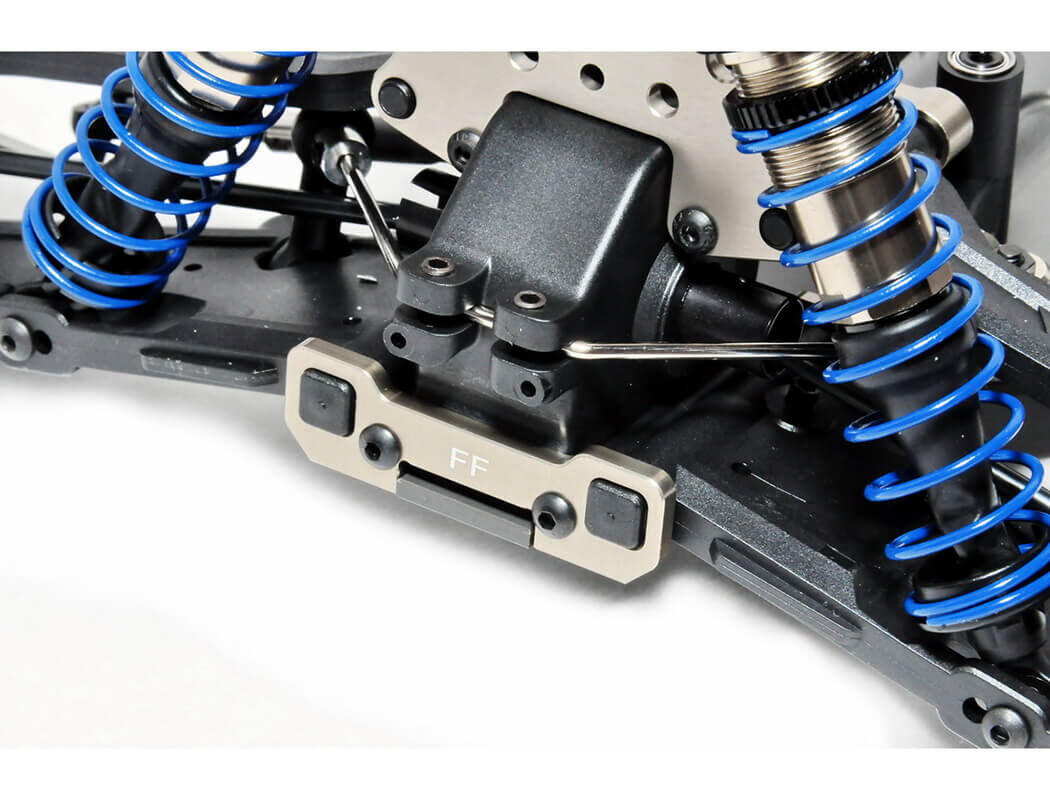

  - Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles.

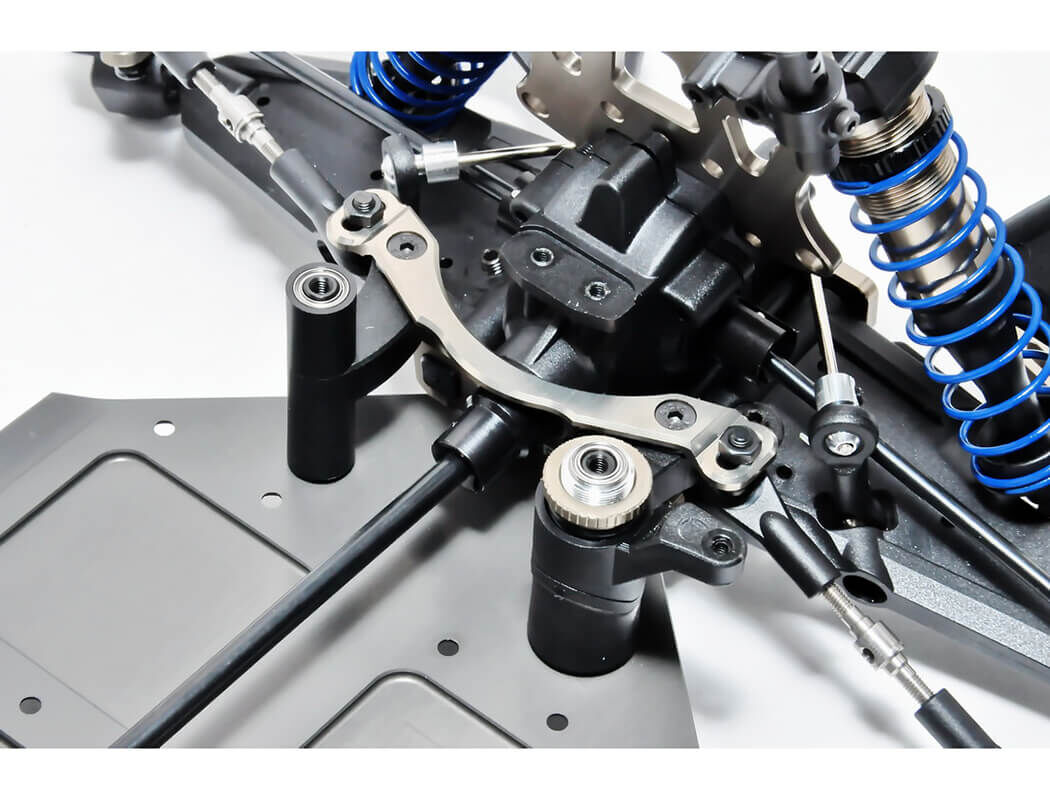

• Steering:
  - New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
  - Ball bearing equipped with servo saver.
• Strengthen center body shell frame.
• Motor Mount:
  - CNC aluminium laydown motor mount.
  - Fitting for motors with size below 38mm.
  - Spur gear cover.
• Tyres:
  - 2.2″/3.0″ Short Course Tyres.
• Wheel Hex Hub:
  - Front 12mm wheel hex hubs , Plastic.
  - Rear 12mm wheel hex hubs, +1mm , Plastic.
  - Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076.
• Wheels:
  - 2.2″/3.0, 12mm H40127.
  - Optional 5-Spoke Wheels. H11034.
• Ball Bearings:
  - Full set included.
• Caster:
  - Adjustable.
• Camber:
  - Adjustable.

Specifications

Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g

Required To Complete

• Radio 2 channel.
• ESC & Motor.
• High-torque steering servo.
• Glue for tyre.
• Paint for body.
