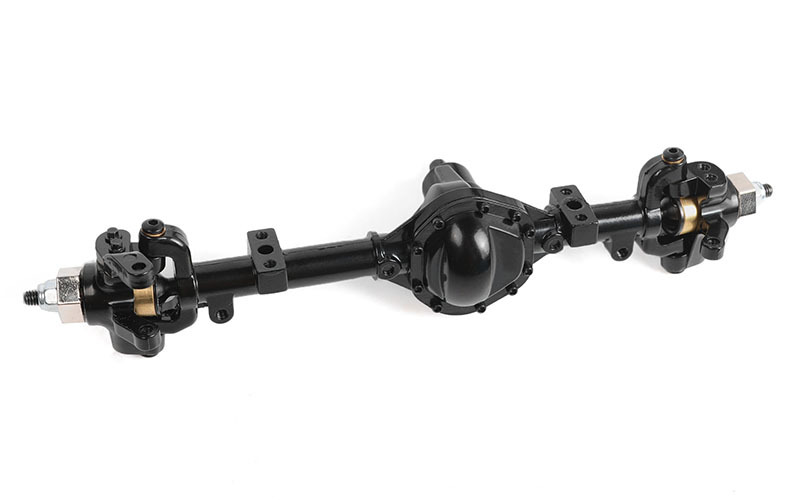

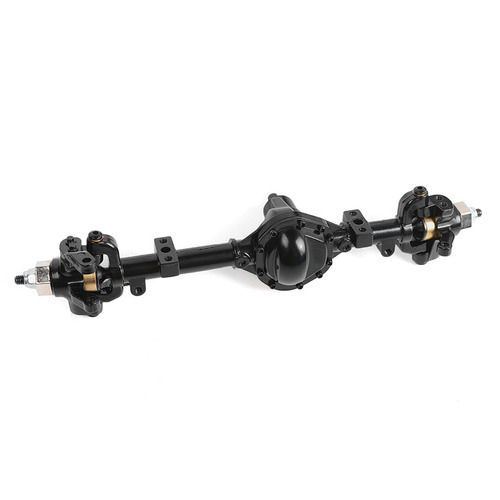

K44 Ultimate Scale Cast Front Axle (Left Pumpkin)

K44 Ultimate Scale Cast Front Axle (Left Pumpkin)





Specifications:

• Die Cast Zinc Alloy Housing
• Black Powder Coating
• Removable Diff Cover
• Hex Thickness: 6mm
• 12mm Wheel Hex
• 5mm Axle Output Shaft
• Gear Ratio: 2.67 : 1
• Designed and Manufactured by RC4WD
• Designed for 1/10 Trucks
• Hex to Hex Width: 6.97in / 177mm
• Pin to Pin Width: 6.46in / 164mm
• Pumpkin Height: 1.37in / 34.8mm
• Weight: 8.53oz / 242g

















Shown installed on RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)





What's Included:

• 1x K44 Ultimate Scale Cast Front Axle (Left Pumpkin)



Required Parts:

• K44 Cast Steering Link Set (Z-S1685)



Replacement Hardware:

• 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
• 4x M3 x 8mm BHCS (Black) (Z-S0652)
• 6x Metal Shield Bearing 5x11x4mm
• 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
• 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
• 2x Nylock Nuts M4 (Silver) (Z-S1265)
• 1x M4 E-clip (Black) (Z-S0919)



Optional Parts:

• Ultimate Axle 4 Link Mount (Z-S0133)
• RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
• Helical Gear Set for 1/10 Yota Axle (Z-G0059)
• Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
• RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
• RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
• XVD for Cast K44 Front Axle (Z-S1864)



Notes:

• Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler (Z-RTR0034)
• Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
• Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base (Z-K0059)
• Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
