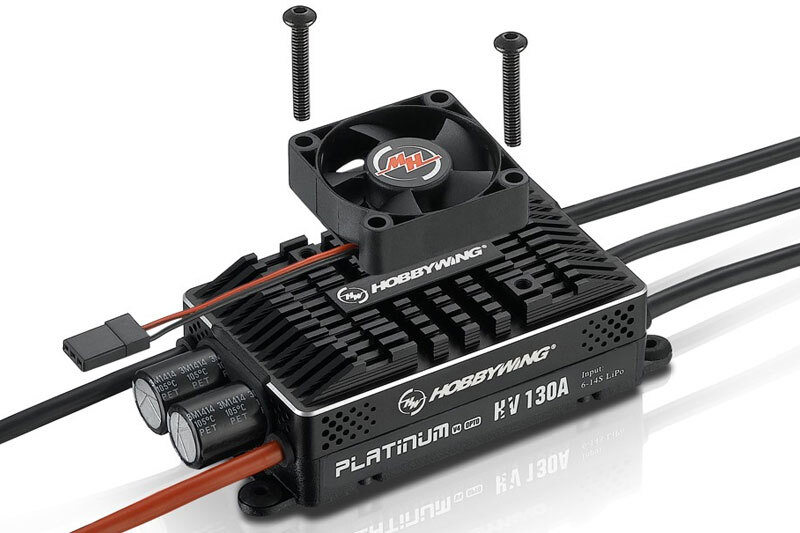

Platinum HV130A opt V4 esc 6-14s hel/air

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantee every pilot a precise control experience.

This Platinum V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allotted based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. The Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.

HobbyWing Platinum HV 130A OPTO V4 Features:

  • Super Soft Start-up
  • Excellent Motor Speed Governing
  • DEO Technology
  • Built-in Sparkproof Circuit
  • Four Brake Modes
  • Multiple Protections
  • Upgradeable ESC firmware

Spec Check:

  • Brushed/Brushless: Brushless
  • Cont./Peak Current: 130A/160A
  • Input Voltage: 6-14S LiPo
  • BEC Output: No
  • Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
  • Output Wires: Black-12AWG-100mm*3
  • Input Connectors: No
  • Output Connecotors: No
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Size: 101.0x45.5x27.0mm
  • Weight: 154g

(HW30209201)

SKU HW30209201
Barcode # 6938994402675
Brand HOBBYWING
