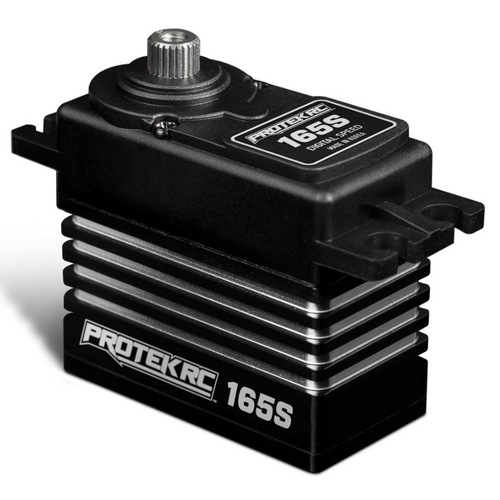

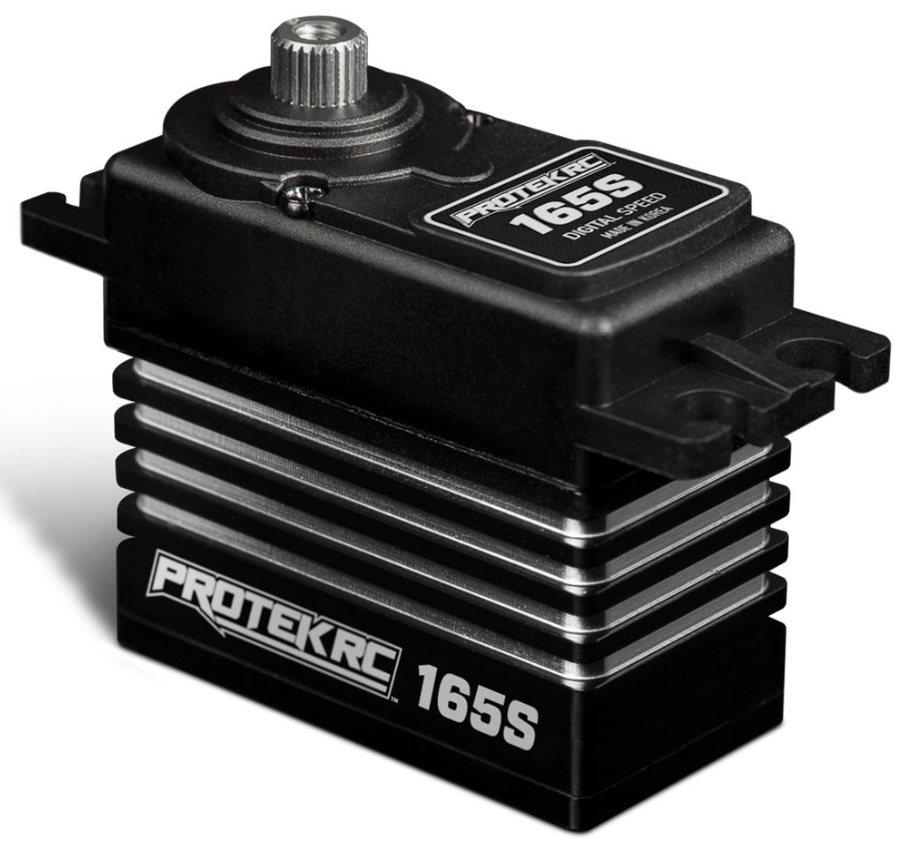

ProTek RC 165S Standard Digital "Super Speed" Metal Gear Servo

Calculate Shipping

Fixed Rate By Invoice Total - $19.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )

Free pick-up from store - $0.00
Warehouse pick available

Description
Specifications

ProTek RC 165S Standard Racing Servo

Need blazing-fast steering response in a dependable, budget-friendly package? The ProTek R/C 100SS Digital Super Speed Servo delivers quick, precise control, metal-gear durability, and proven ProTek performance for 1/10 scale on-road and off-road vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.

About the ProTek RC 165S Standard Servo

Lightning Speed Response

The ProTek R/C 100SS Digital Super Speed Metal Gear Servo delivers quick steering performance with a 0.09-second transit speed and 168 oz-in of torque at 6.0V. Designed for 1/10 scale on-road and off-road vehicles, it provides fast, precise control for racers and enthusiasts.

Refined Proven Performance

Building on the trusted ProTek R/C PTK-100SS Digital "High Torque" Servo, the 100SS is a refined upgrade focused on speed, durability, and value. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver smooth operation and dependable performance.

Affordable Speed Advantage

The 100SS combines ProTek quality with an accessible price point, making it an excellent choice for drivers seeking fast response without overspending. With gold-plated connectors, a 200mm 22awg wire, and Lifetime Gear Warranty backed by AMain Hobbies, it is built for reliable performance run after run.

Features:

Lifetime Gear Warranty Backed by Amain Hobbies
Ultra-fast 0.09-second transit speed for quick steering response
A refined version of the trusted and proven 100SS servo
168 oz-in of torque at 6.0V for reliable power
Designed for 1/10 scale on-road and off-road vehicles
Full metal gear train provides excellent durability
Dual ball bearings deliver smooth and precise operation
Aluminum middle case helps dissipate heat
Cored motor provides dependable performance and efficiency
Gold-plated connectors improve signal reliability

Includes:

(1) Lifetime Gear Warranty
(1) 165S Standard Metal Gear Servo
(1) Aluminum Clamping Servo Horn
Servo Hardware and Grommets

Specifications:

Application	1:10 On-Road & Off-Road
Operating Voltage	4.8V - 6.0V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 4.8V	0.11/60° sec
Operating Speed @ 6.0V	0.09/60° sec
Dynamic Torque @ 4.8V	134 oz-in (9.6 kg-cm)
Dynamic Torque @ 6.0V	168oz-in (12.1 kg-cm)
Motor Type	Cored DC
Output Shaft	25T
Gears	Metal w/Lifetime Gear Warranty
Weight	1.93oz (54.9g)
Pulse/Frequency	1520s / 333hz
Dimensions	1.55x1.51x0.78in (39.50x38.6x20mm)
Length (Bottom to Mount)	1.04in (26.6mm)

*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

(PTK-165S)
