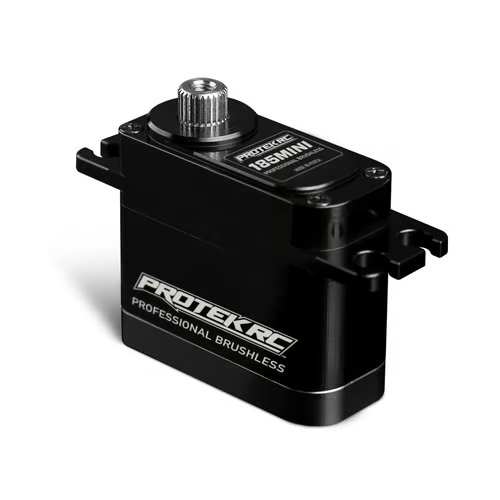

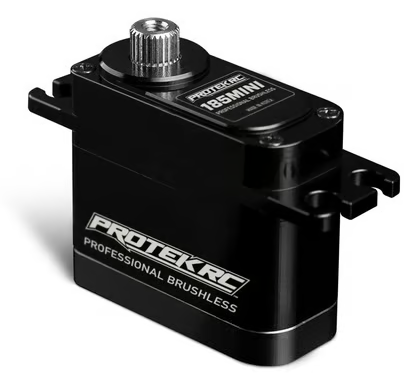

ProTek RC 185Mini 1/12 High Torque Brushless Mini Servo (HV/Metal Case)

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $19.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

ProTek RC 185Mini Mini Racing Servo

Built for racers who demand maximum performance in a compact package, the ProTek R/C 185Mini packs brushless speed, high-torque control, and premium durability into a compact mini servo built to perform in demanding 1/12 and 1/10 pan car racing. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.

About the ProTek RC 185Mini Mini Servo



Compact Brushless Power

The ProTek R/C 185Mini delivers impressive mini servo performance with 186 oz-in of torque and a fast 0.06-second transit speed at 7.4V. Designed for 1/12 and 1/10 pan cars and Pro Class drag racing chassis, it provides powerful, precise control where space is limited.

Refined Racing Performance

Built as a refined version of the proven and trusted ProTek R/C 500BL “Black Label” servo, the 185Mini combines advanced brushless technology with high-voltage capability for improved efficiency, longer lifespan, and consistent performance during demanding racing conditions.

Premium Race Ready Design

Featuring a full black anodized aluminum case, blue anodized bottom cover, and full metal gears, the 185Mini offers exceptional durability, precise gear alignment, and a sleek race-ready appearance. It is the ideal choice for racers needing maximum performance from a compact servo.

Features:

  • Lifetime Gear Warranty Backed by Amain Hobbies
  • Compact mini servo design fits most 1/12 & 1/10 pan cars
  • Delivers 186 oz-in of torque at 7.4V
  • Provides 0.06-second transit speed at 7.4V
  • High-voltage circuitry supports powerful performance
  • Full aluminum case improves durability and heat dissipation
  • Full metal gears provide long-lasting strength
  • Dual ball bearings deliver smooth operation
  • Brushless motor technology for efficiency and longevity
  • Aluminum servo ear guides provide a more rigid and secure installation

Includes:

Specifications:

Application 1:10 & 1:12 Pan Cars
Operating Voltage 6.0V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.08/60° sec
Operating Speed @ 7.4V 0.06/60° sec
Dynamic Torque @ 6.0V 161oz-in (11.59 kg-cm)
Dynamic Torque @ 7.4V 186oz-in (13.39 kg-cm)
Motor Type High Efficiency Coreless Motor
Output Shaft 25T
Gears Metal w/Lifetime Gear Warranty
Weight 1.48oz (42g)
Pulse/Frequency 1520s / 333hz
Dimensions 1.3x0.21x0.61in (34x30.80x15.50mm)
Length (Bottom to Mount) 0.83in (21.30mm)



*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.


*Tech Note: Modification may be required for drag applications.

(PTK-185MINI)

SKU PTK-185MINI
Barcode # 694485097695
Brand ProTek RC
