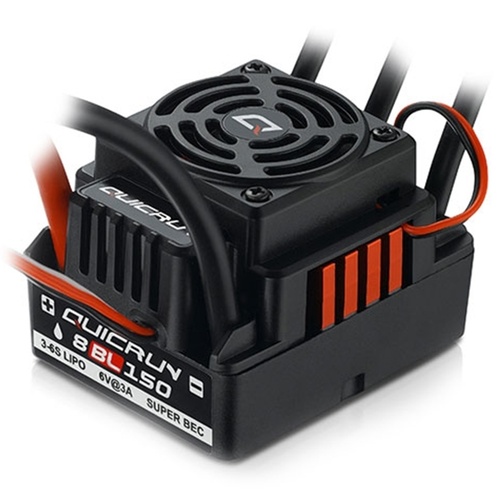

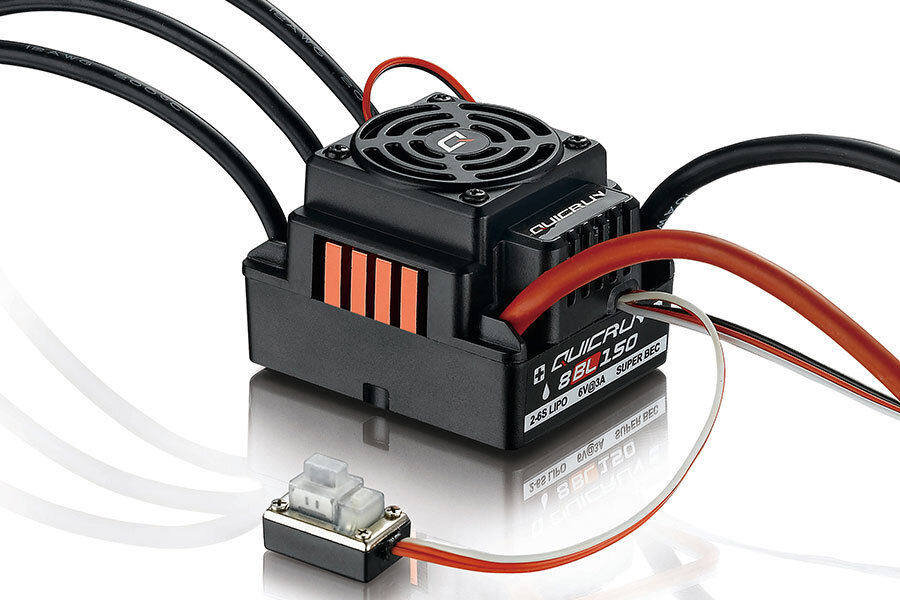

####QUICRUN-WP-8BL150 Brushless ESC (USE 30109003)

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation. This ESC is applicable to all-weather sport of 1/8th short course trucks, buggies, trucks, and monster trucks.

The waterproof and dust-proof design allows the QUICRUN WP-8BL50 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

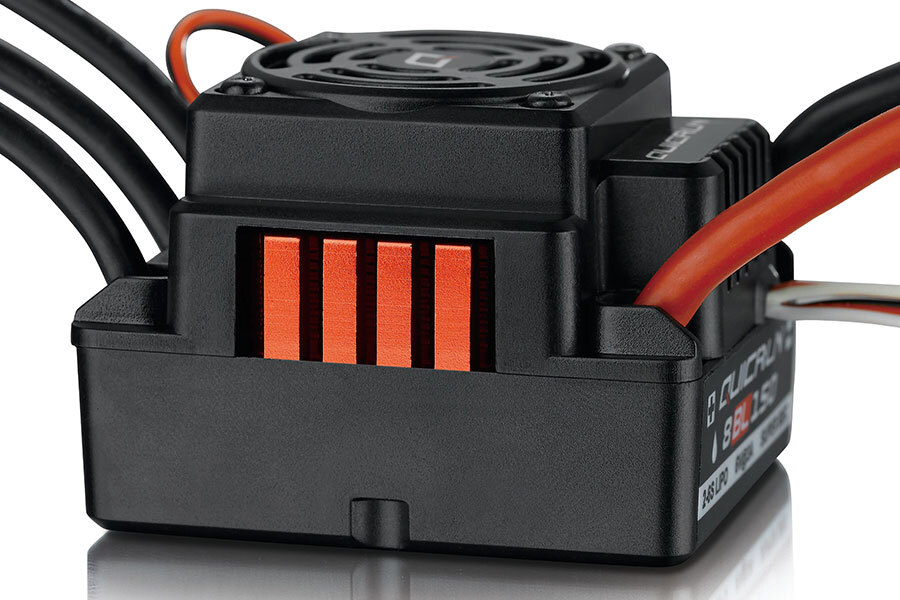

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-8BL50,which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.

Hobbywing QuicRun WP 8BL150 ESC Features:

• Easy Operation
• High Reliability & Durability
• Applicable to All Weather Conditions
• Efficient Cooling System
• Single-button Programming & Factory Reset
• Built-in BEC
• Wide Applicability

Spec Check:

• Scale: 1/8th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: WP
• Cont./Peak Current: 150A/950A
• Input: 3-6S LiPo/9-18 Cells NiMH
• BEC Output: Switch Mode:6V/3A
• Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output Wires: Black-12AWG-150mm*3
• Input Connectors: No
• Output Connecotors: No
• Fan Size: 35.0x35.0x10.0mm
• Voltage Range: 5-7.4V
• Powered by: BEC
• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported
• Program Port: FAN/Program Port
• Firmware Upgrade: Not Supported
• Size: 59.5x48.0x42.0mm
• Weight: 178g
• Motors: SL BL Motors/SD BL Motors(only in SL mode)
• Vehicles: 1/8th Touring Cars/Buggies/Trucks/Monster Trucks
• KV Rating/T Count: 4S LiPo:KV≤3000; 6S LiPo:KV≤2400 (40XX Series of Motors)
