RC10B74.2D CE Team Kit

The B74 platform is the current IFMAR World Champion, European Champion, Australian Champion, British Champion, and more! Successfully competing at the highest level world-wide has given us the insight needed to push the B74 platform a bit more. With the addition of Factory Team items and setups, the NEW B74.2 and B74.2D Champions Edition kits are ready to add to the list of accolades!

The Champions Edition retains key features from its predecessor. The RC10B74.2D molded gearboxes front and rear lower the center of gravity by removing weight from high points of the car. The modified differentials improve rolling speed through turns and increase stability on landings, allowing the buggy to corner faster on high-grip carpet and clay tracks. The latest 13mm big bore shock technology from Team Associated keeps the RC10B74.2D at the highest level in jump and bump handling performance. The gull wing front suspension arms and the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

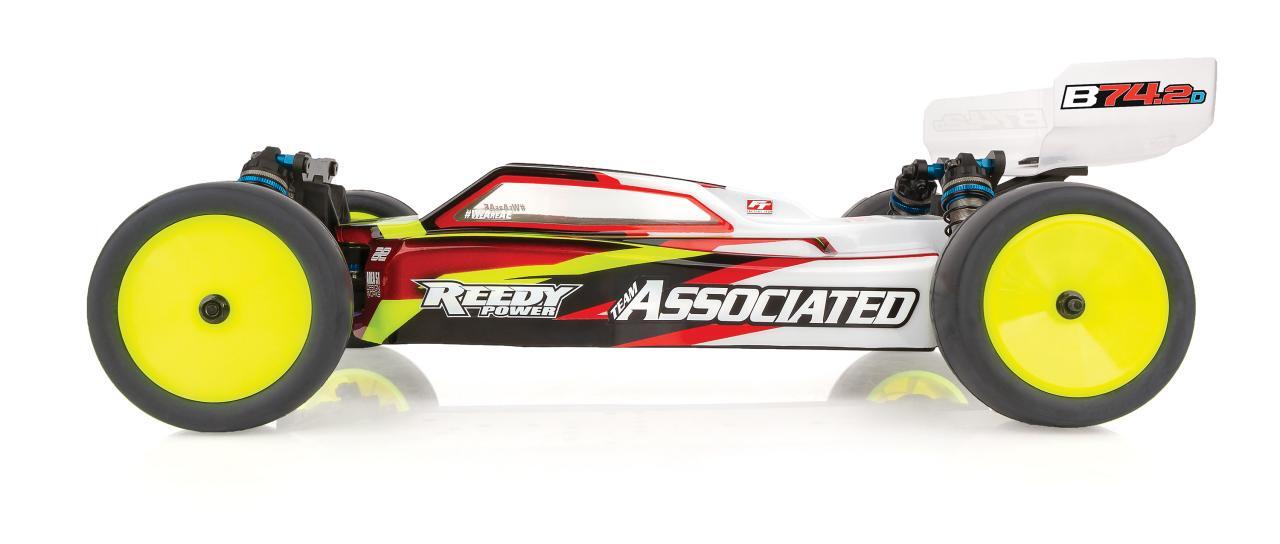

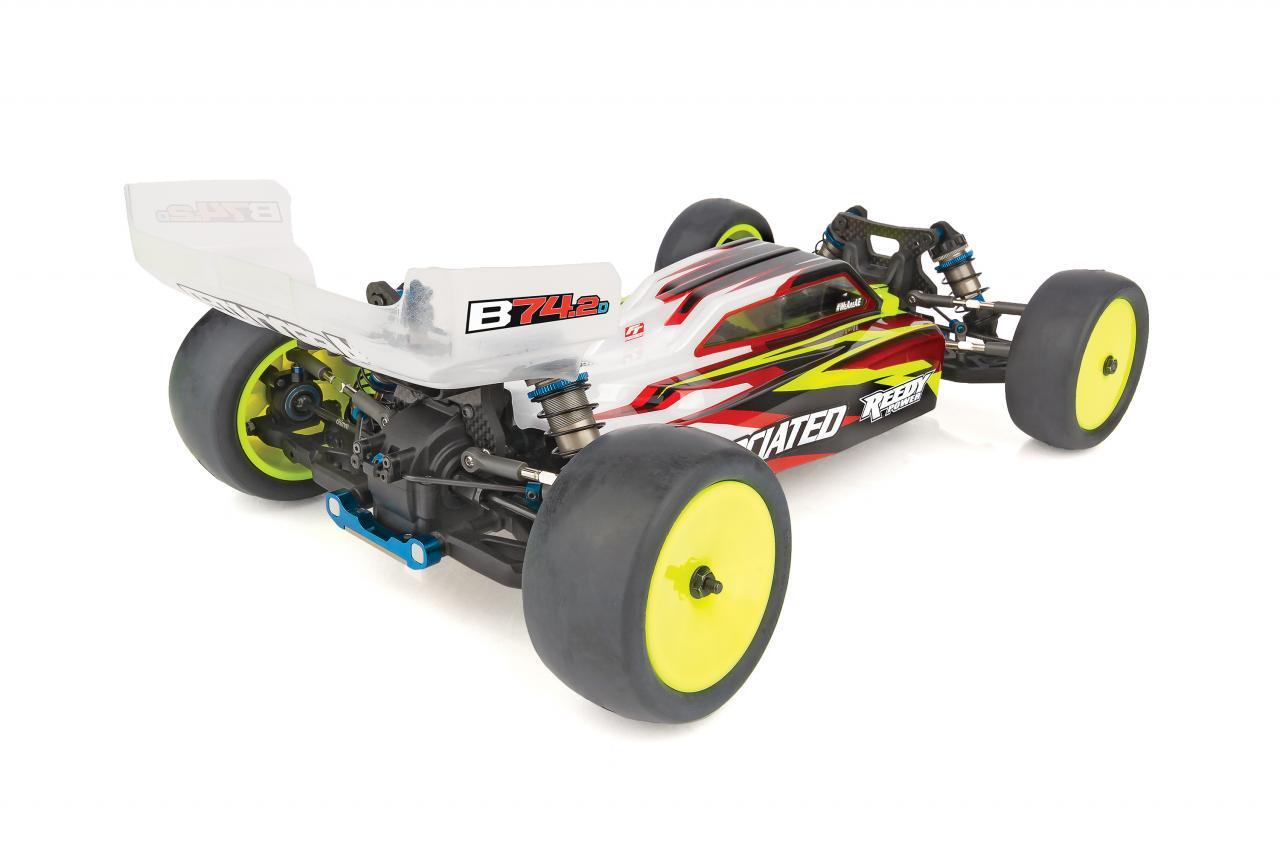

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, wheels, tires, body, and pinion gear. Assembly and painting required.

Features

• NEW Factory Team molded ring and pinion gear sets included
• NEW Factory Team molded LTC differential gear sets included

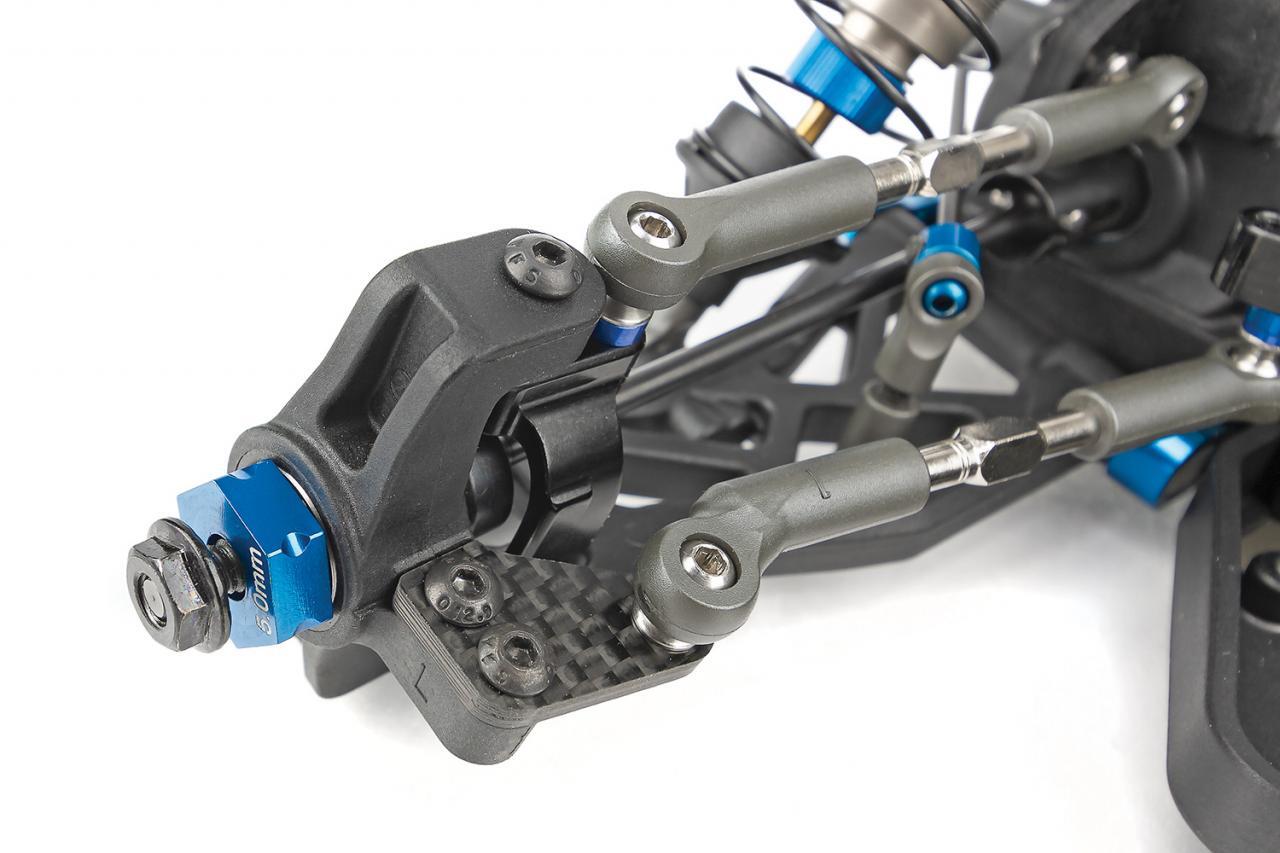

• NEW Factory Team +1 steering block arms included
• NEW Updated kit setup
• Lightweight molded gearboxes front and rear: Two fixed height front gearboxes allowing 0 and +2mm diff height options. One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options.
• 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
• Gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability
• LTC differential gear sets are included. They reduce binding under power, giving more predictable power delivery.

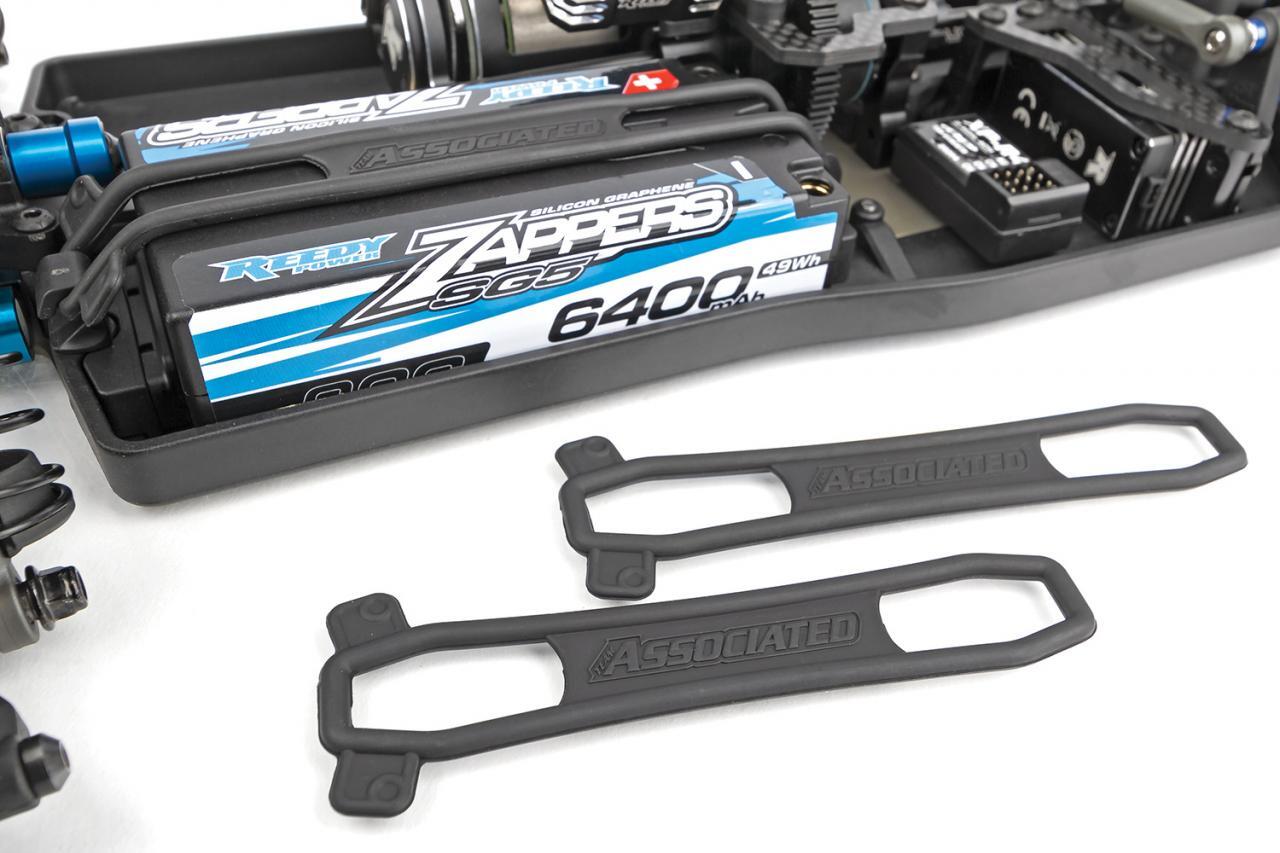

• Battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs.

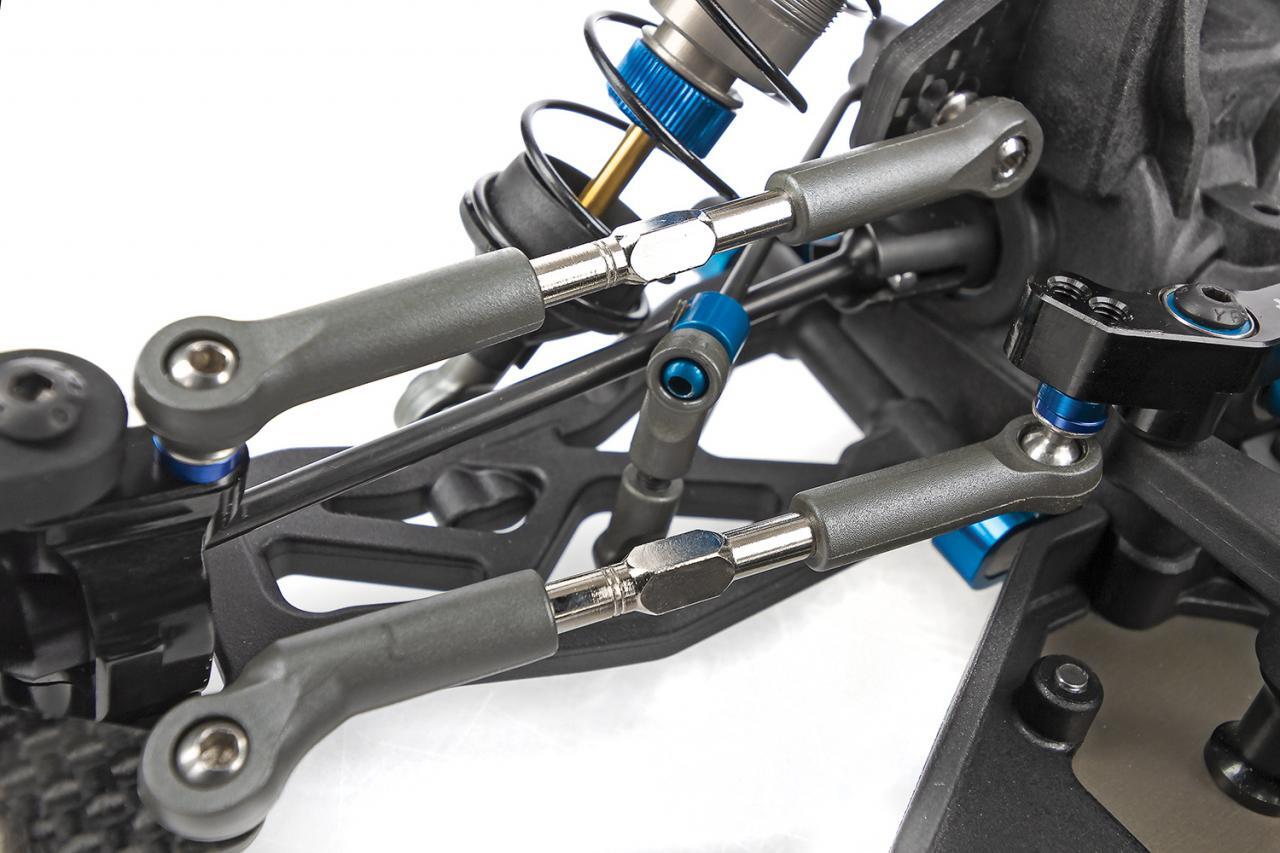

• Larger 3.5mm turnbuckles with updated rod end style ballcups to increase durability and reduce bind in the suspension
• Center bulkhead fan mount that mounts the fan above the motor for better cooling performance
• -2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity
• Center differential with 72T and 78T spur gear and 200,000 CST silicone diff fluid

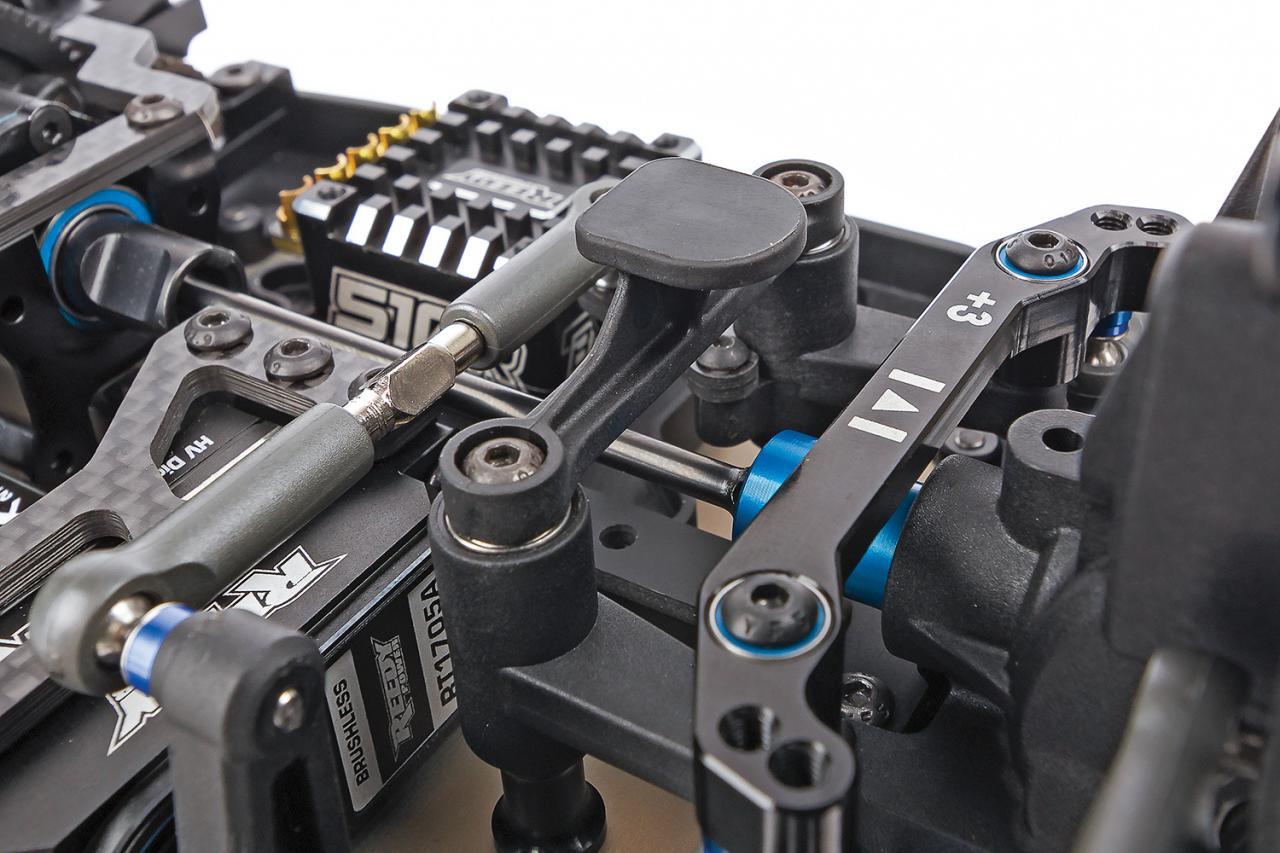

• +3mm aluminum steering rack for optimized bump steer at low ride heights
• 66mm Rear CVA drive shafts and axles for more on-power traction and more predictable driving feel

• Vehicle Specifications

  Power Source:	Electric
  Terrain:	Off-Road
  Body Style:	Buggy
  Scale Size:	1:10 Scale
  Assembly Level:	Kit*
  Length:	395mm (15.55in)
  Width:	varies
  Wheelbase:	varies
  Weight:	varies
  Internal Gear Ratio:	2.50:1
  Drive:	4WD

  * This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

  Required to Complete

• 1:10 scale electric motor (Reedy S-Plus 13.5T #27403)
• Electronic speed control (Reedy Blackbox 610R #27016)
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (Reedy Zappers SG5 #27383)
• Battery charger (for battery chosen above) (Reedy #27203 1416-C2L Dual AC/DC Competition Balance Charger)
• 2-channel surface transmitter
• 2-channel receiver
• Steering servo
• Lexan(TM)-specific spray paint for body
• 1:10 scale off-road buggy wheels and tires
• Batteries for transmitter
• Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer/Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or Precision Ruler
