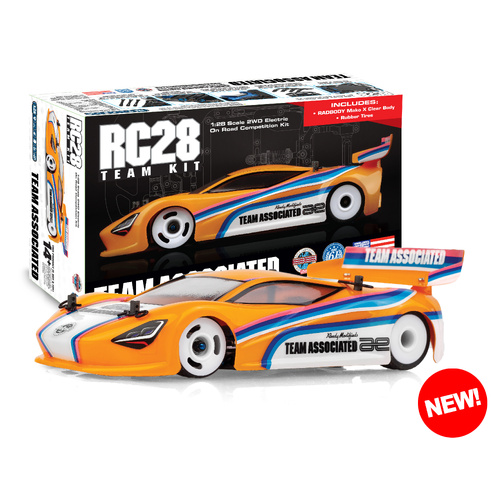

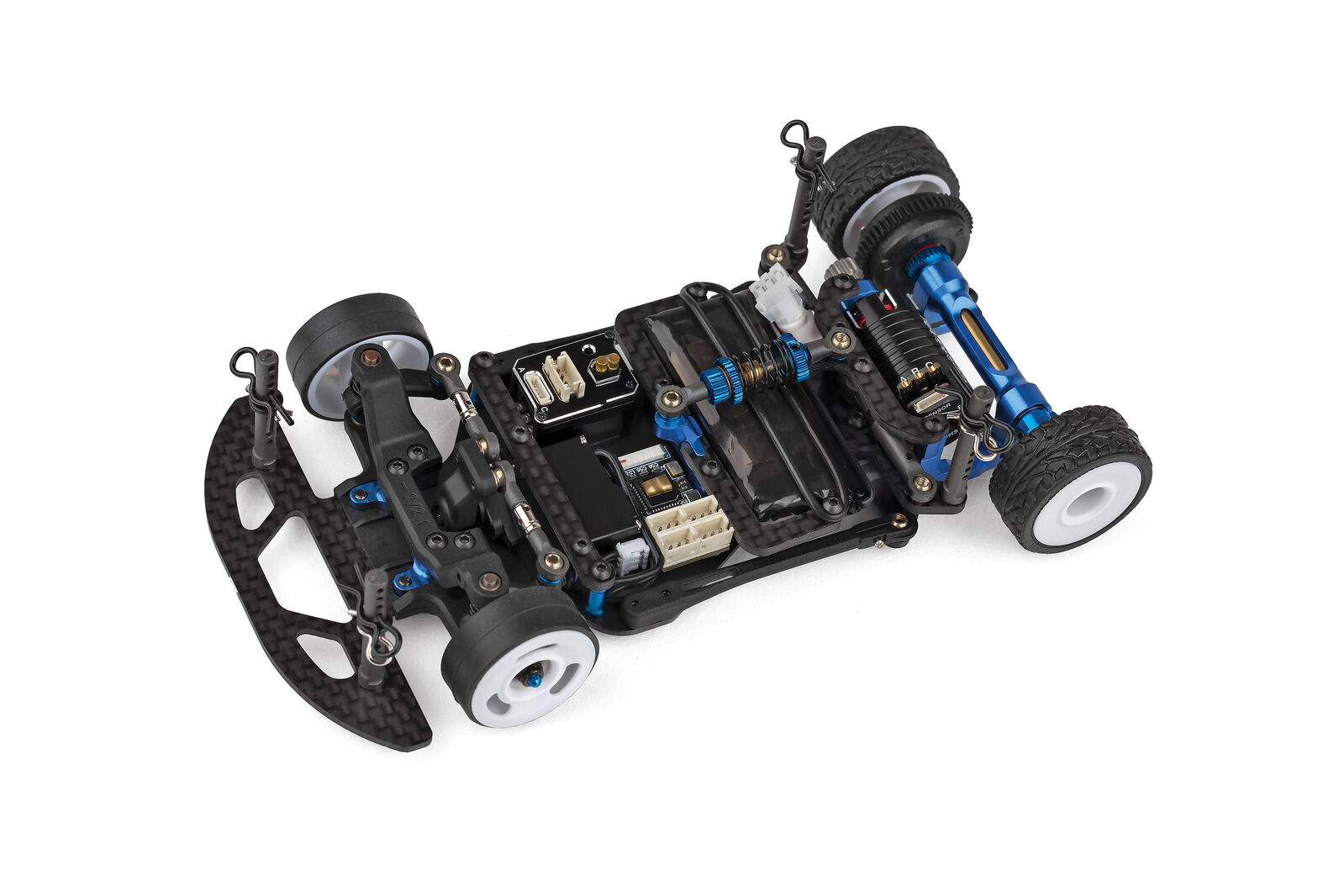

RC28R with Body and Tires Team Kit

1:28 Scale 2WD Electric On-Road Competition Kit

(#20165 + Body And Tires)

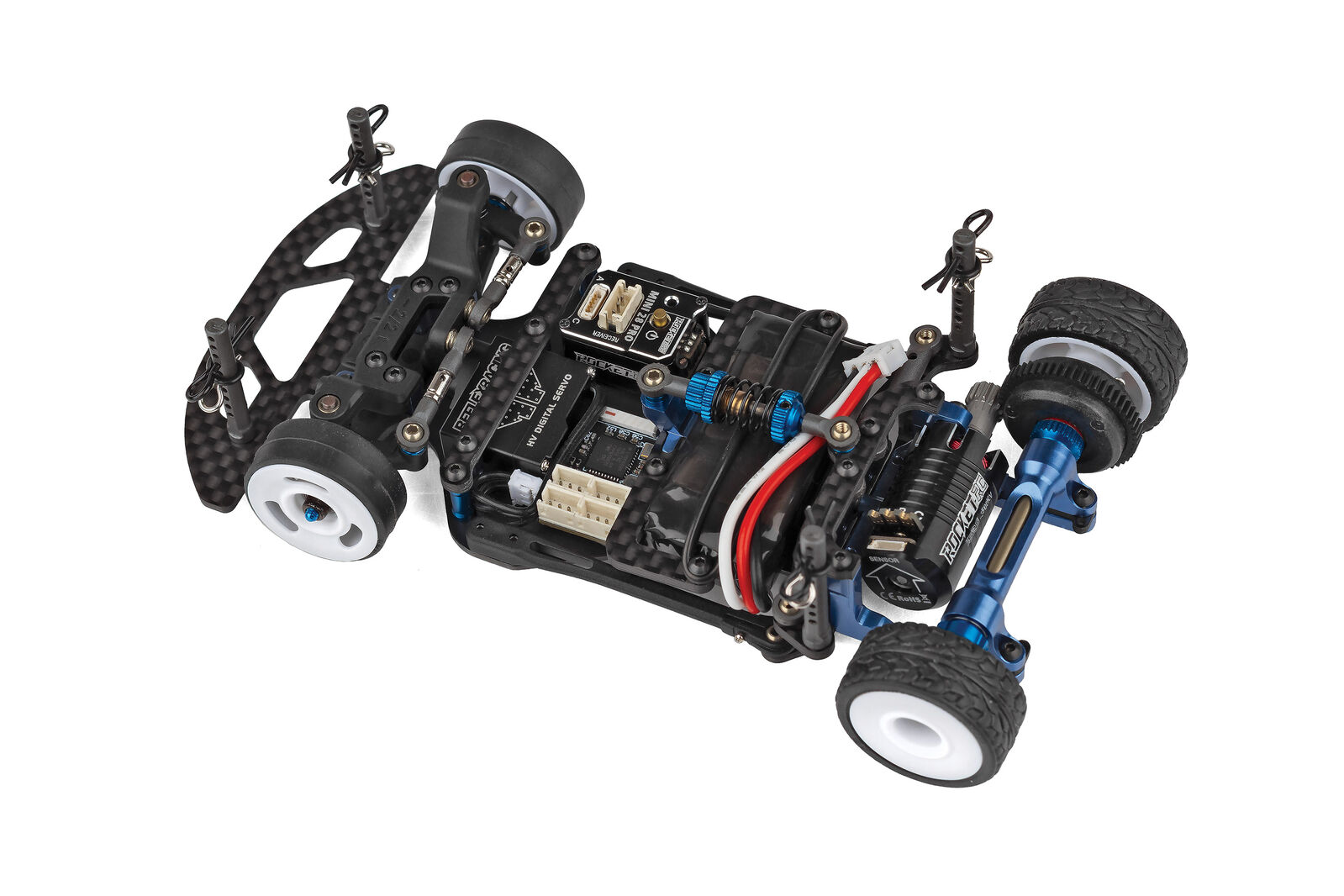

Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.

The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.

Features

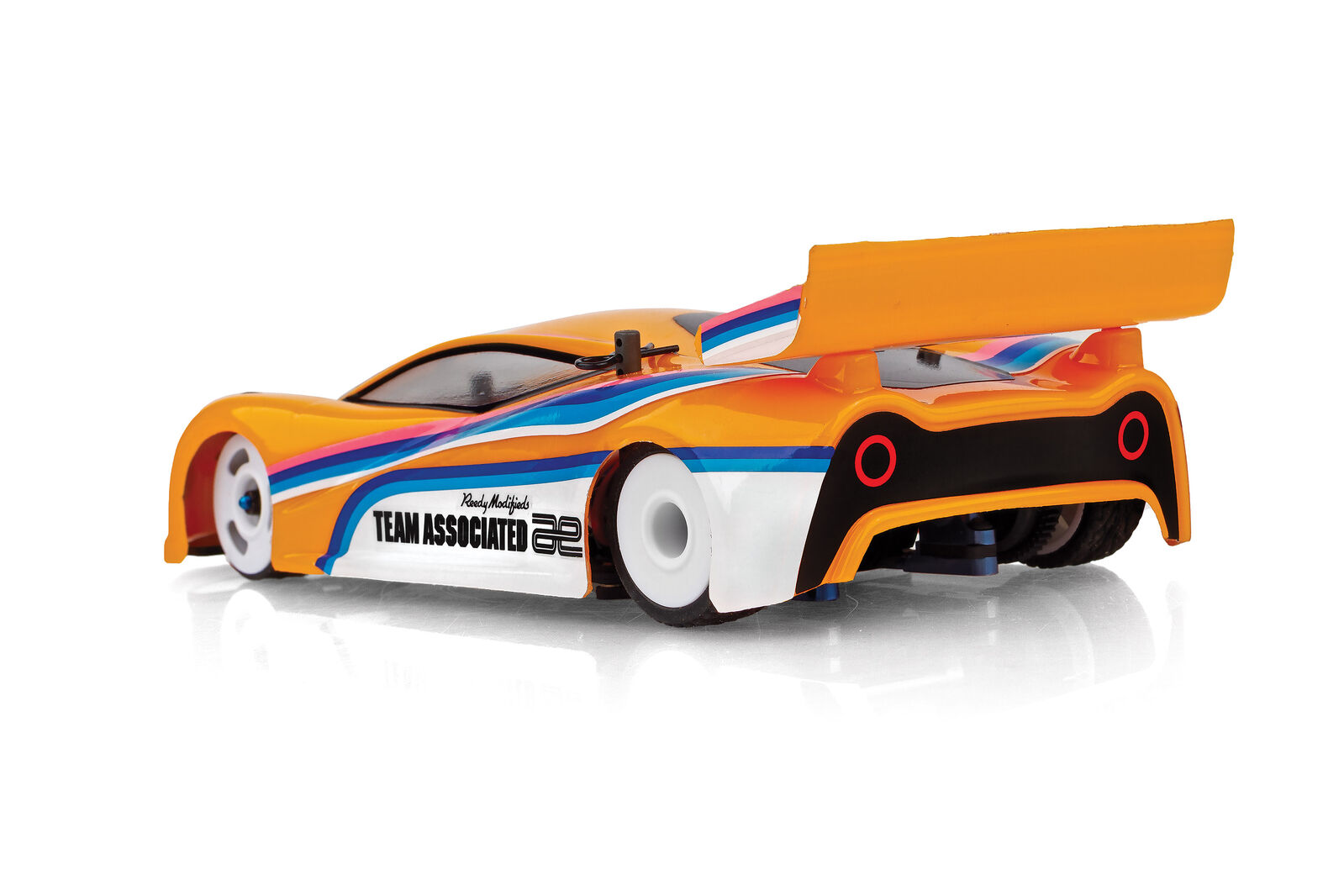

• RADBODY Mako X clear body and tires included

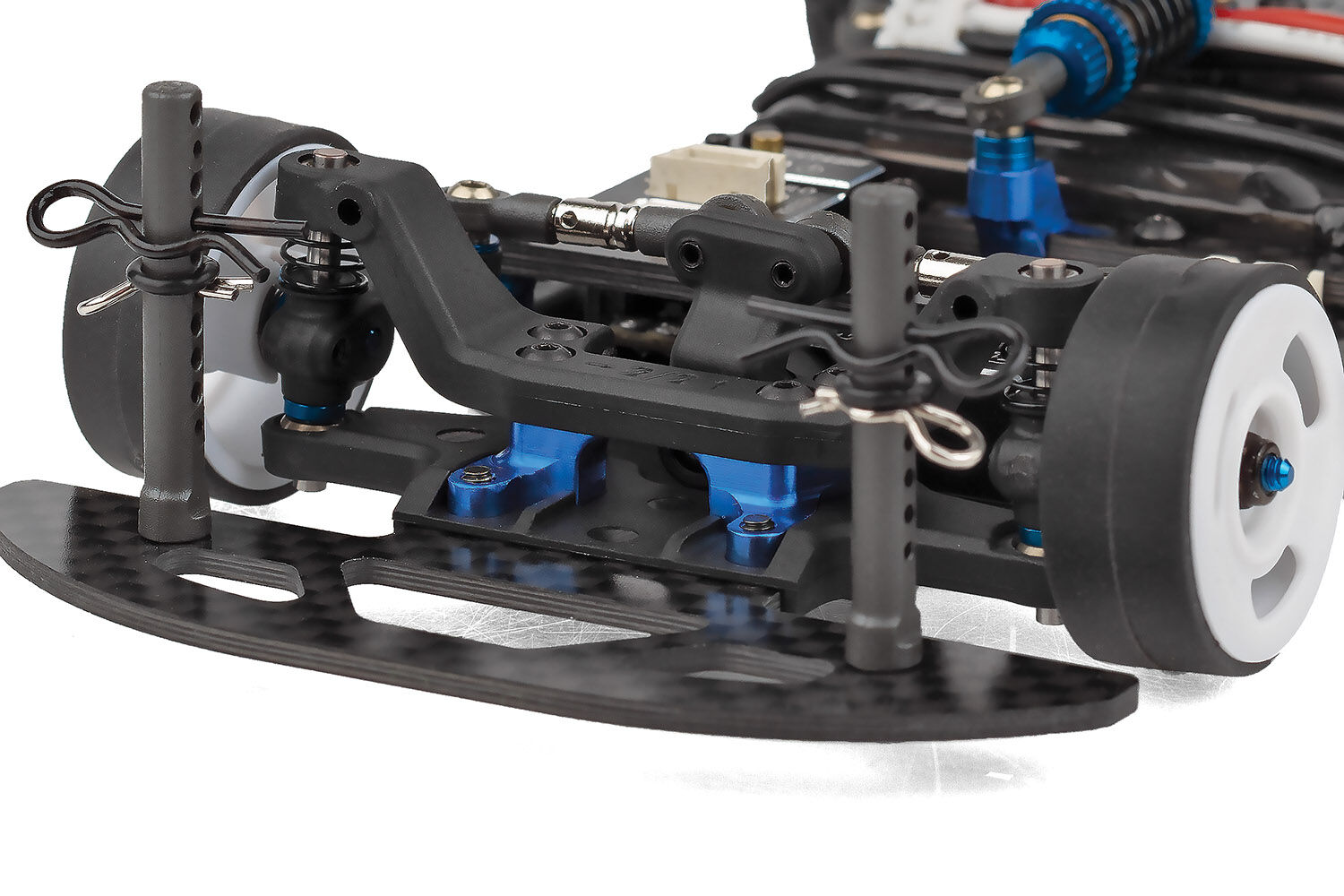

• Fixed arm style front end with optional molded upper arms to adjust caster and camber
• Front bulkhead design allows for quick upper arm changes with consistent fitment and position
• Optimized steering geometry with adjustable servo mount to tune ackerman on the fly

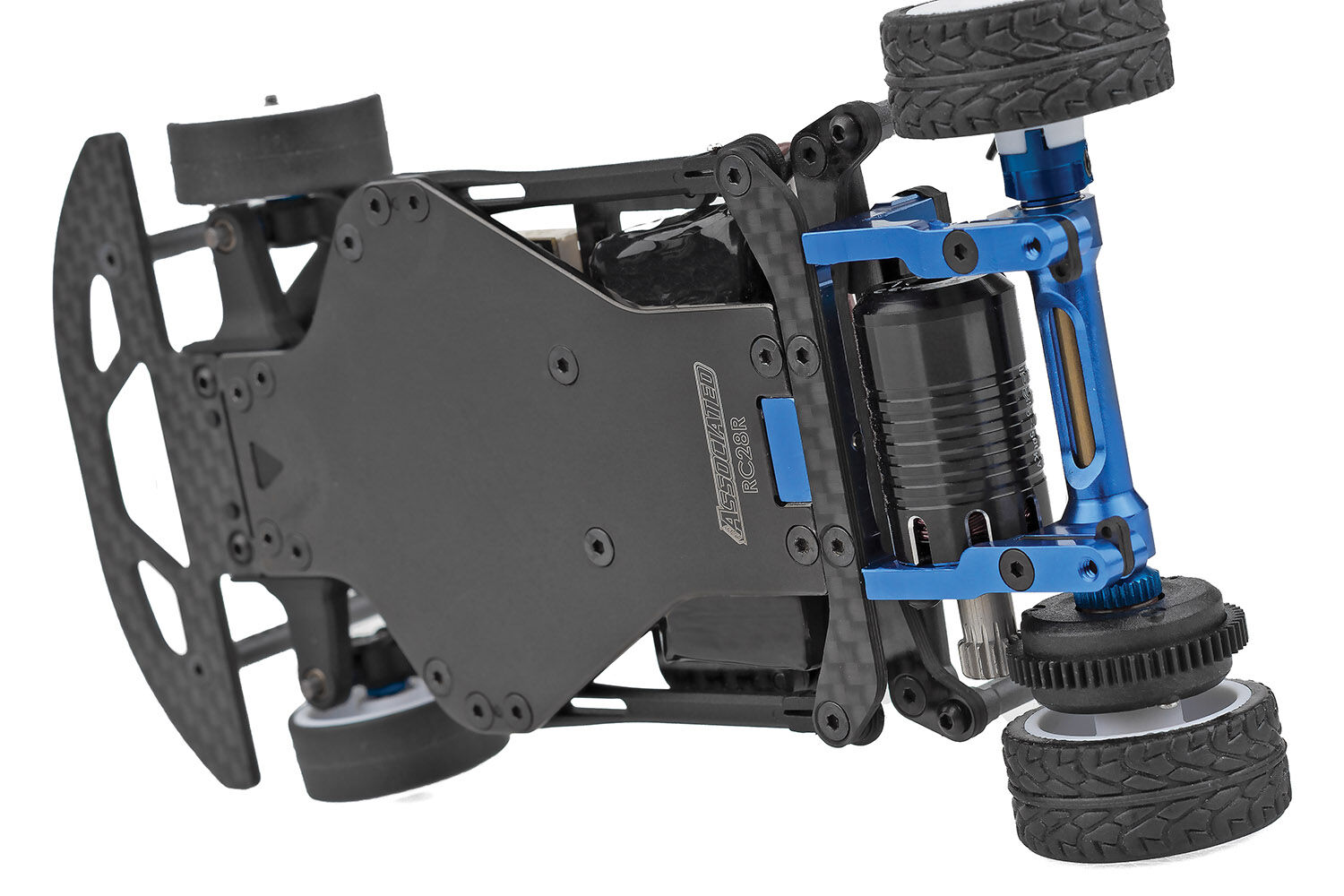

• Steel chassis plate for low center of gravity

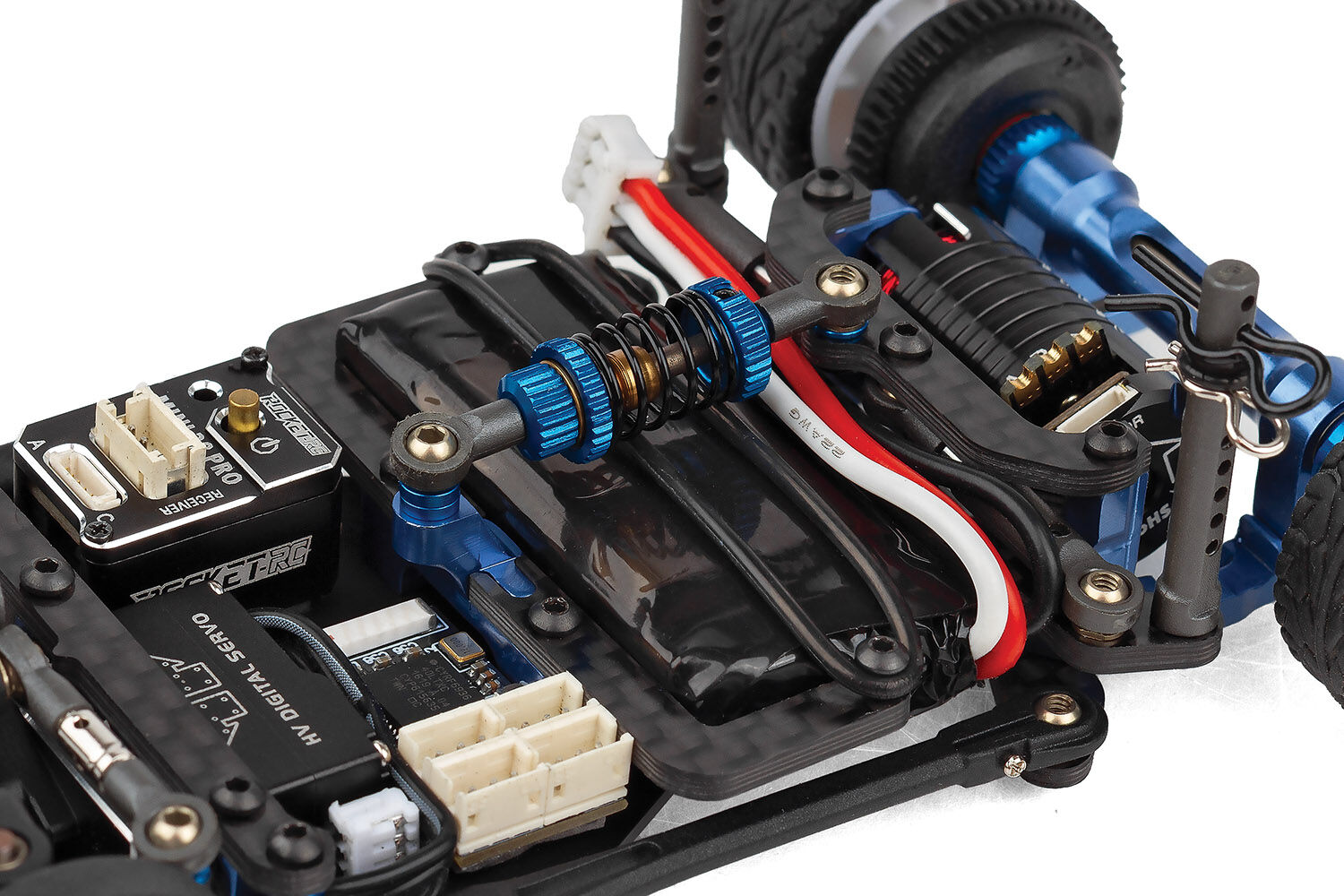

• Easily removable battery holder to access the battery without removing center shock
• Torsion style side links act as side spring with soft, medium, and hard options included
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level
• Optimized roll geometry with side damper tubes

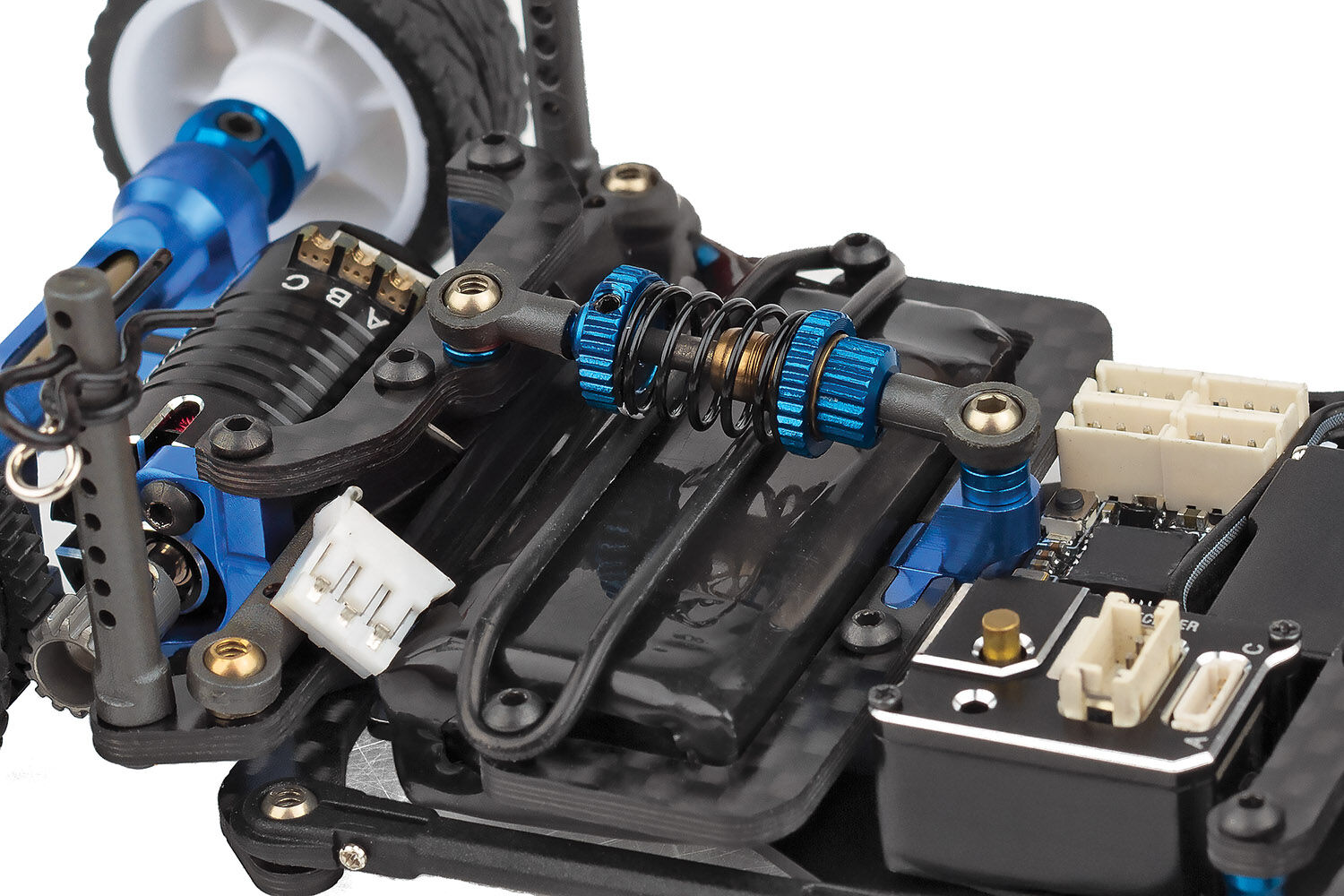

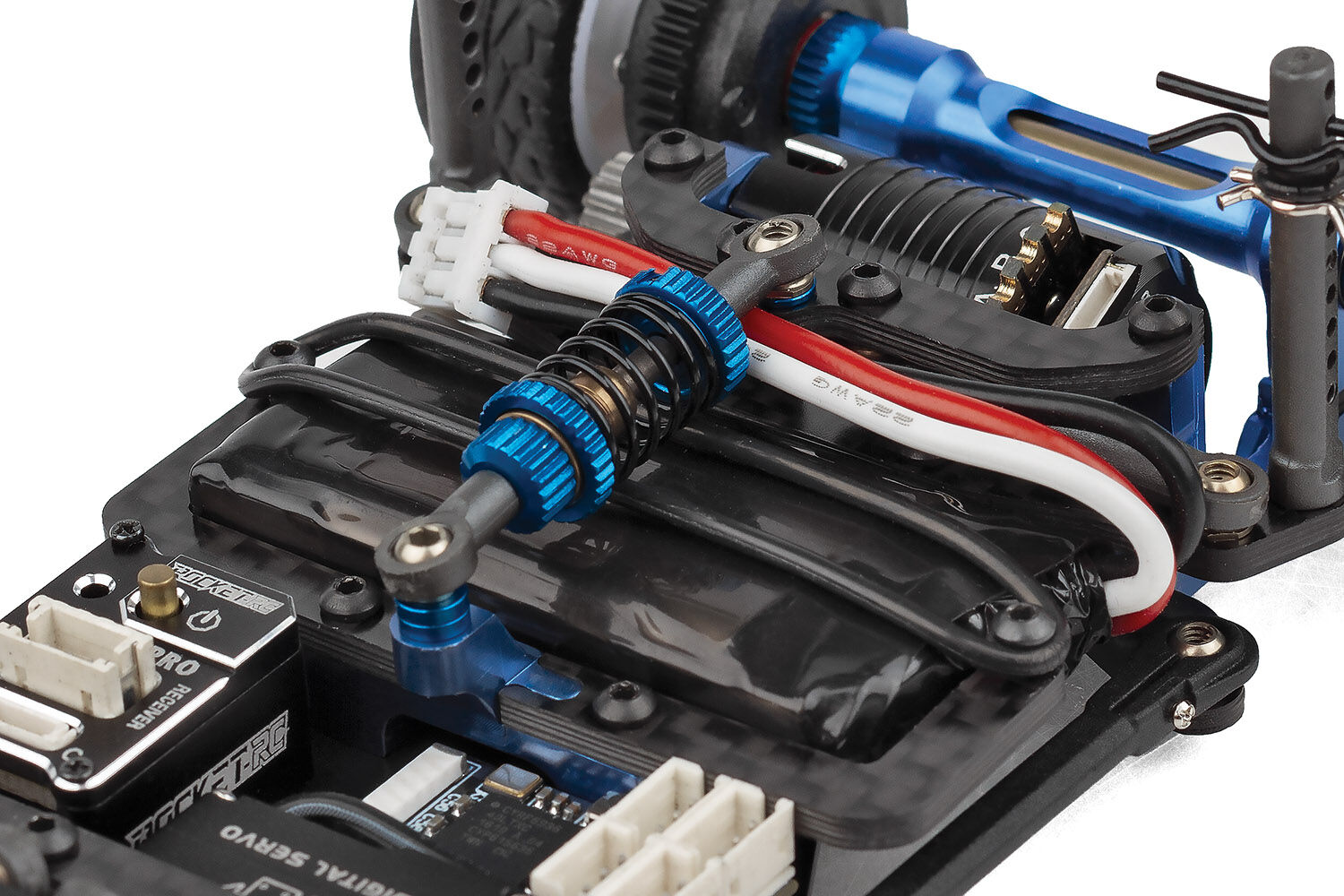

• Threaded aluminum center shock with adjustable droop and spring collar

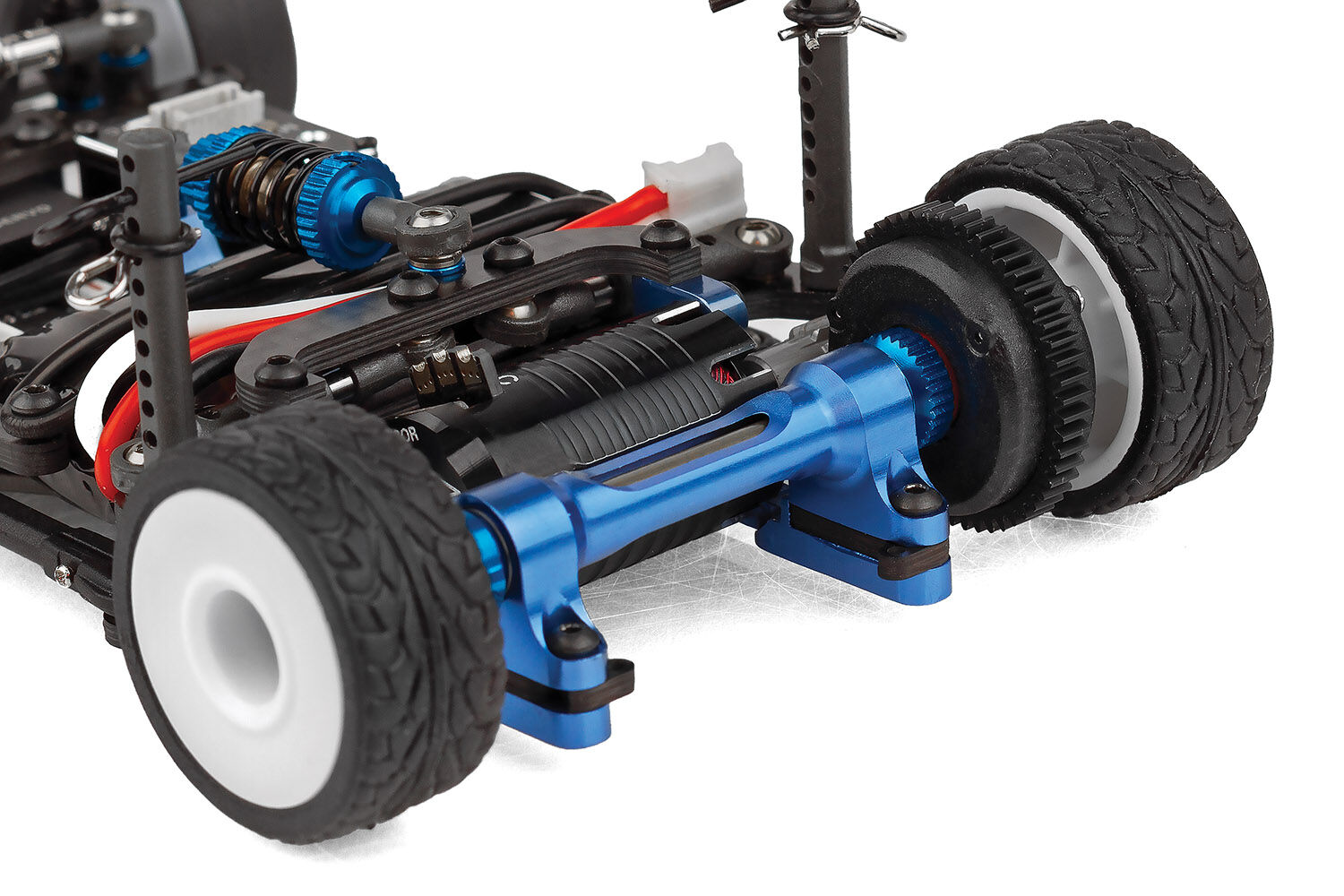

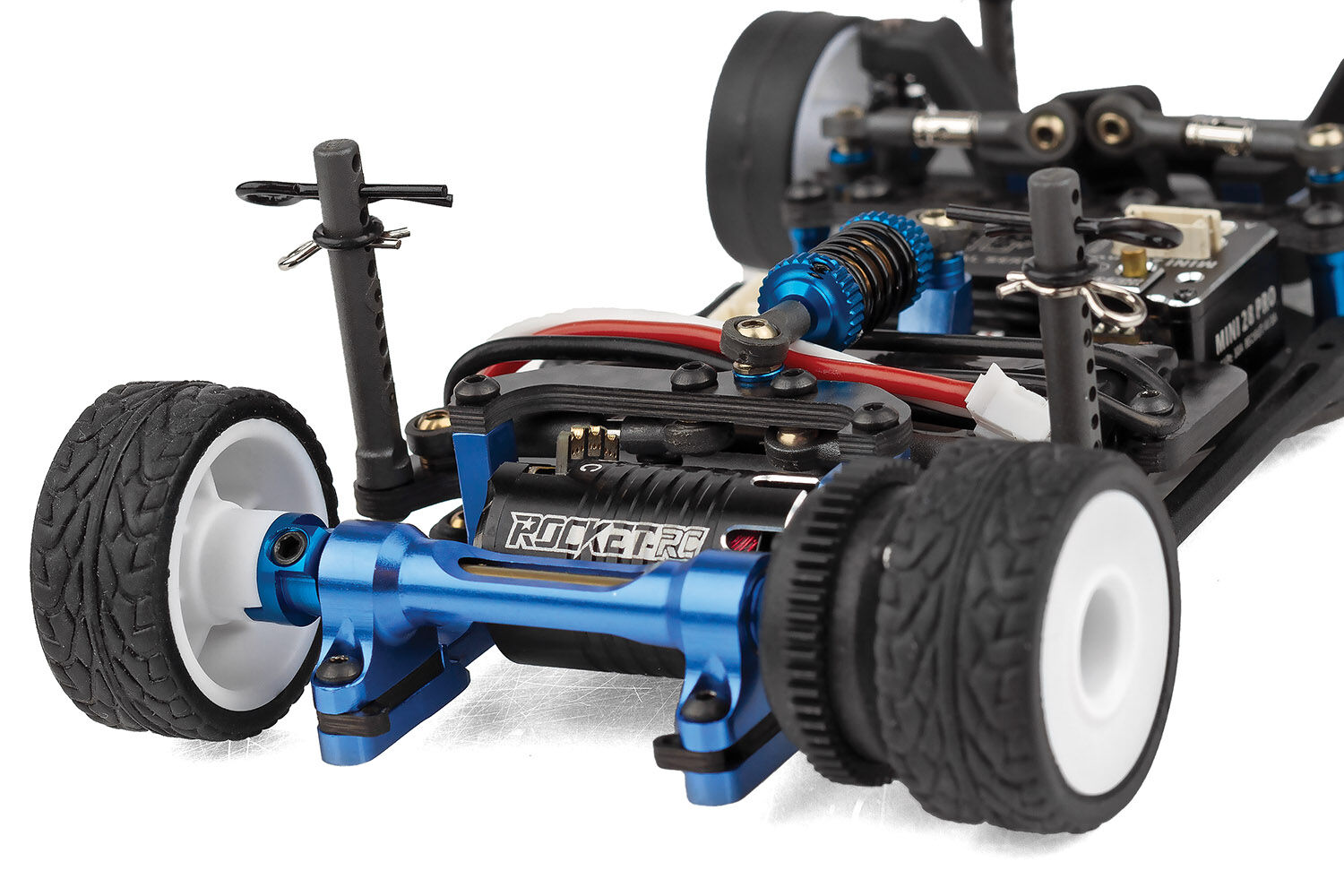

• Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
• Gear differential included and can fit other aftermarket options currently available
• Hard plastic and polycarbonate body mounting options included
• White wheels included that fit optional front wheel flanges to tune steering feel
• Universal front bumper included
• Team Associated’s quality, distribution, support, and customer service

Other Helpful Items

• Silicone Shock Fluid (Refer to catalog for complete listings)
• Silicone Diff Fluid (Refer to catalog for complete listings)
• Body Scissors (AE Part # 1737)
• Reamer / Hole Punch
• FT Wrench Set (AE Part #1519)
• Hobby Knife
• Needle Nose Pliers
• Wire Cutters
• Soldering Iron
• Calipers or a Precision Ruler
• 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers
