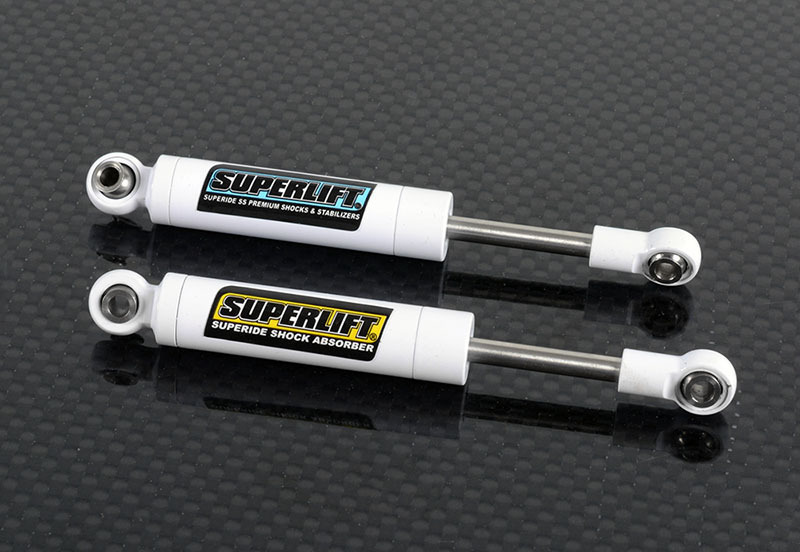

RC4WD Superlift Superide 80mm Scale Shock Absorbers

Specifications:

• CNC Machined
• Billet Aluminum
• Smooth White Painted Finish

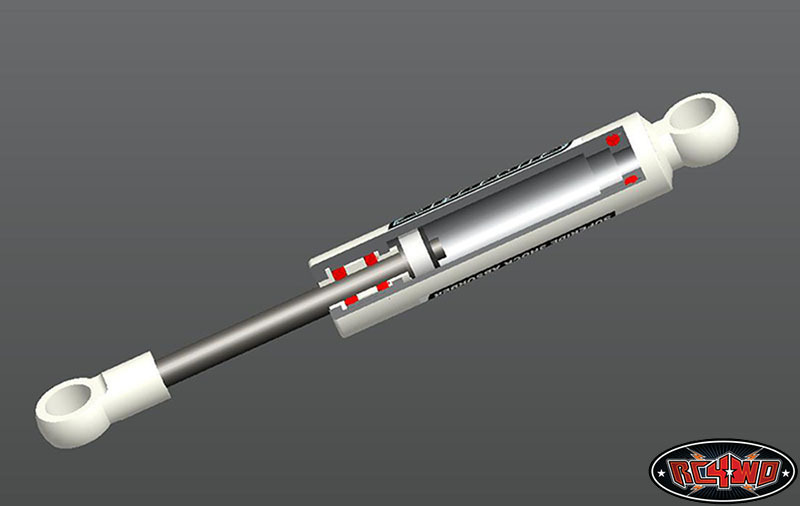

• Internal Spring Design
• New Internal Design
• Included Superlift Decal
• Uses Shock Boots (details below)

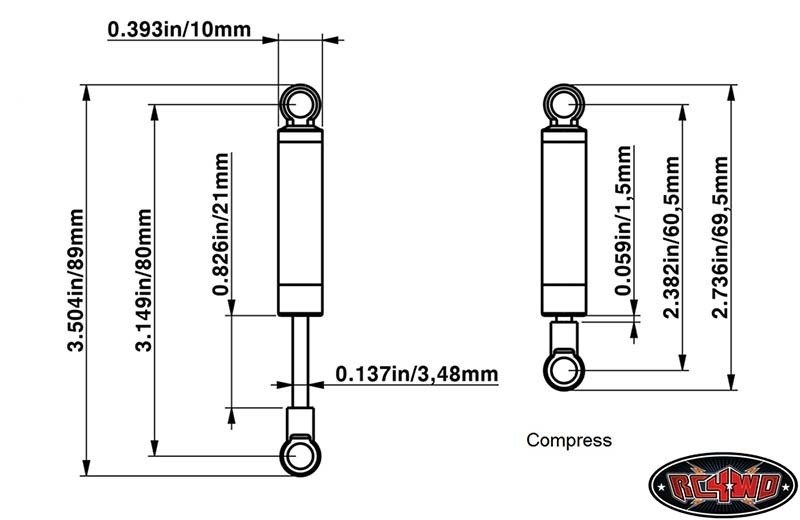

• Hole to hole (Compressed): 2.38in / 60.5mm
• Hole to hole (Uncompressed): 3.14in / 80mm
• Overall Length: 3.5in / 89mm
• Travel Length: 0.76in / 19.5mm
• Shock body: 0.39in / 10mm
• Shaft Diameter: 0.137in / 3.48mm
• Decal Size (Length): 0.98in / 25mm
• Decal Size (Width): 0.31in / 8mm
• Each Weight: 0.38oz / 11g

What's Included:

• 2x RC4WD Superlift Superide 80mm Scale Shock Absorbers
• 2x Superlift Superide SS Decal 8mm x 25mm (Blue)
• 2x Superlift Superide Decal 8mm x 25mm (Yellow)
• 1x Superlift Decal Sheet

Optional Parts:

• Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)

Replacement Parts:

• Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)

Notes:

• For Black Rubber Boot Z-S0891
• For Red Rubber Boot Z-S0948
• For Yellow Rubber Boot Z-S0962
• For Blue Rubber Boot Z-S0961
• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.

Other Sizes:

• RC4WD Superlift Superide 90mm Scale Shock Absorbers Z-D0015
• RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032

Superlift is a registered trademark of the Superlift Suspension Systems. The Superlift logo is property of Superlift Suspension Systems and used under license to RC4WD.
