RC4WD Superlift Superide 90mm Scale Shock Absorbers

Calculate Shipping

Fixed Rate By Invoice Total - $19.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )

Free pick-up from store - $0.00
Warehouse pick available

Description
Specifications

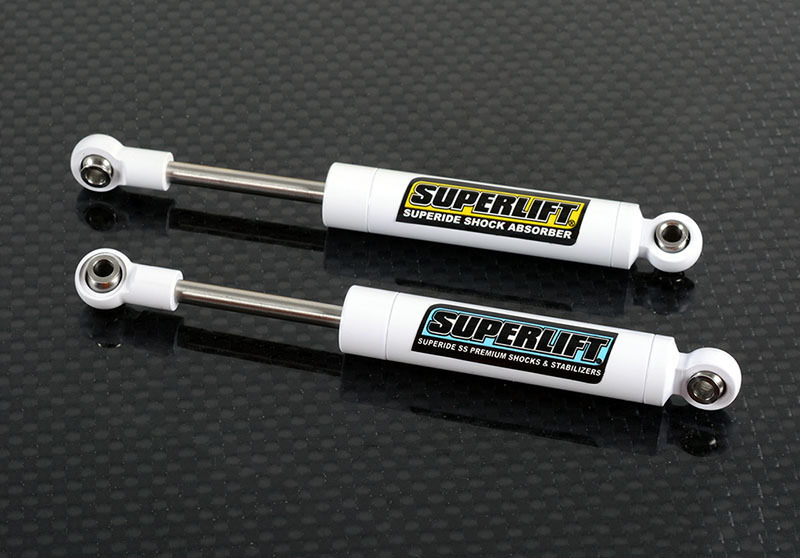

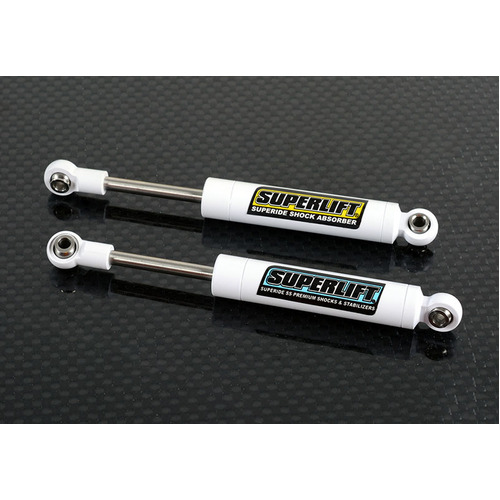

RC4WD Superlift Superide 90mm Scale Shock Absorbers

This is the all new Licensed Scale Shock to hit the market. Licensed from Superlift Suspension Systems. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.

Specifications:

CNC Machined
Billet Aluminum
Smooth White Painted Finish
Internal Spring Design
New Internal Design
Included Superlift Decal
Uses Shock Boots (details below)
Hole to Hole (Compressed): 2.63in / 67 mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.89in / 99mm
Travel Length: 1.02n / 26mm
Shock Body: 0.39in / 10mm
Shaft Diameter: 0.13in / 3.4mm
Decal Size (Length): 1.14in / 29mm
Decal Size (Width): 0.33in / 8.6mm
Each Weight: 0.45oz / 13g

Shown installed on the Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) for example (Not Included)

Different Shocks boots shown installed on 90mm Superlift shock for example (Not Included)

What's Included:

2x RC4WD Superlift Superide 90mm Scale Shock Absorbers
2x Superlift Superide SS Decal 8.6mm x 29mm (Blue)
2x Superlift Superide Decal 8.6mm x 29mm (Yellow)
1x Superlift Decal Sheet

Optional Parts:

Internal Springs for ARB and Superlift 90mm Shocks (Z-S1181)

Replacement Parts:

Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)

Notes:

Fits Gmade Sawback
For Black Rubber Boot Z-S0891
For Red Rubber Boot Z-S0948
For Yellow Rubber Boot Z-S0962
For Blue Rubber Boot Z-S0961

Other Sizes:

RC4WD Superlift Superide 80mm Scale Shock Absorbers Z-D0012
RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032

Superlift is a registered trademark of the Superlift Suspension Systems. The Superlift logo is property of Superlift Suspension Systems.

(Z-D0015)

SKU	Z-D0015
Barcode #	610374000000
Brand	RC 4WD
Shipping Weight	0.1600kg
Shipping Width	5.250m
Shipping Height	8.500m
Shipping Length	0.750m
