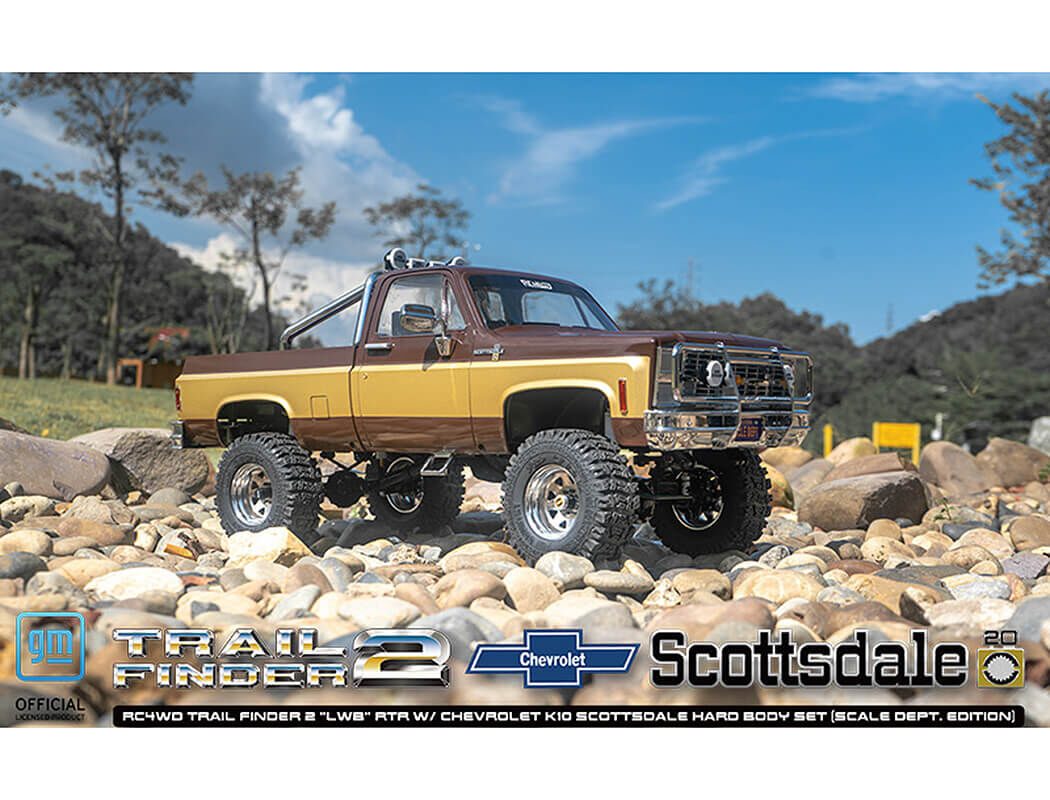

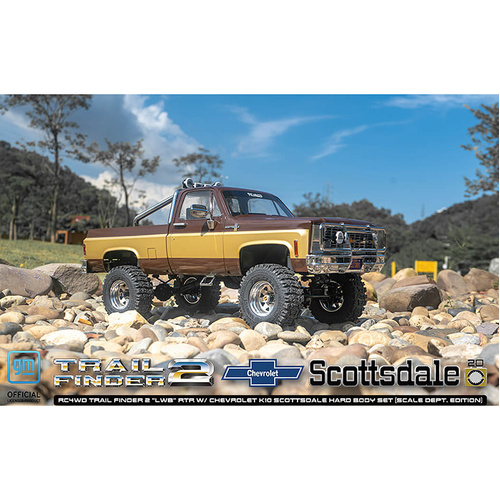

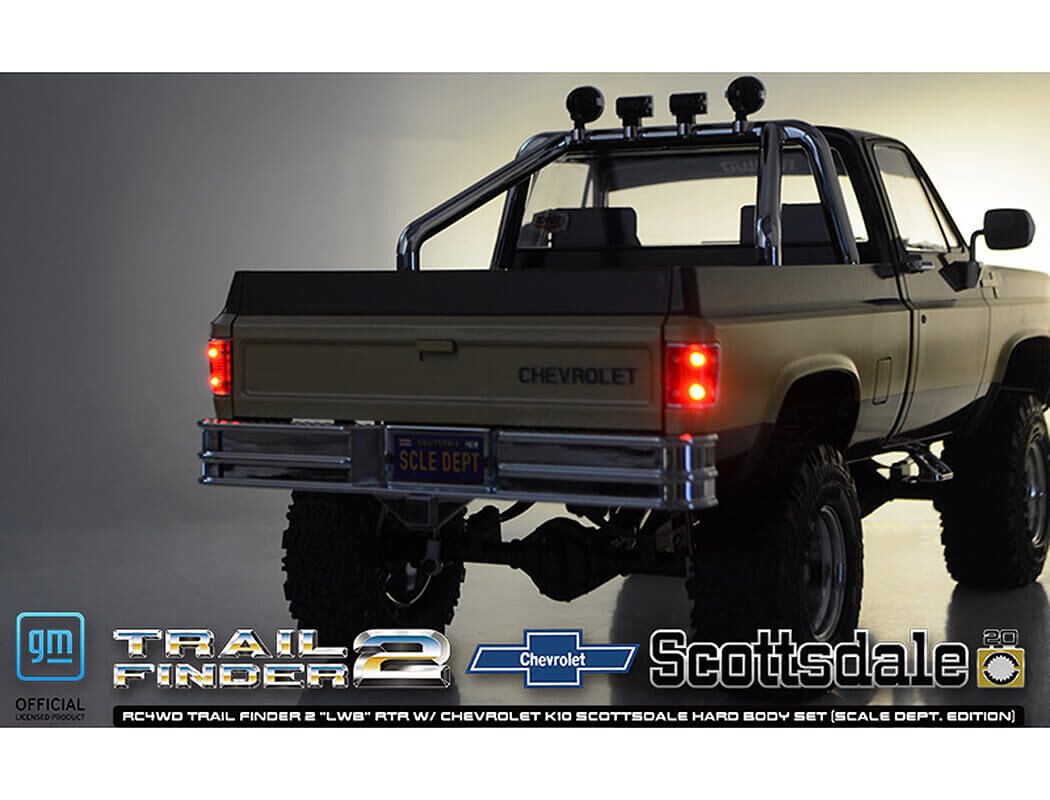

RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)

RC4WD TRAILFINDER 2 RTR LWB WITH CHEVROLET K10 SCOTTSDALE BODY



Features

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case, wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Trail Finder 2 includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.

The driveshafts on the Trail Finder 2 feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The Trail Finder 2 has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.

The Trail Finder 2 includes Scale 70mm and 80mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminium with internal springs and are customizable.

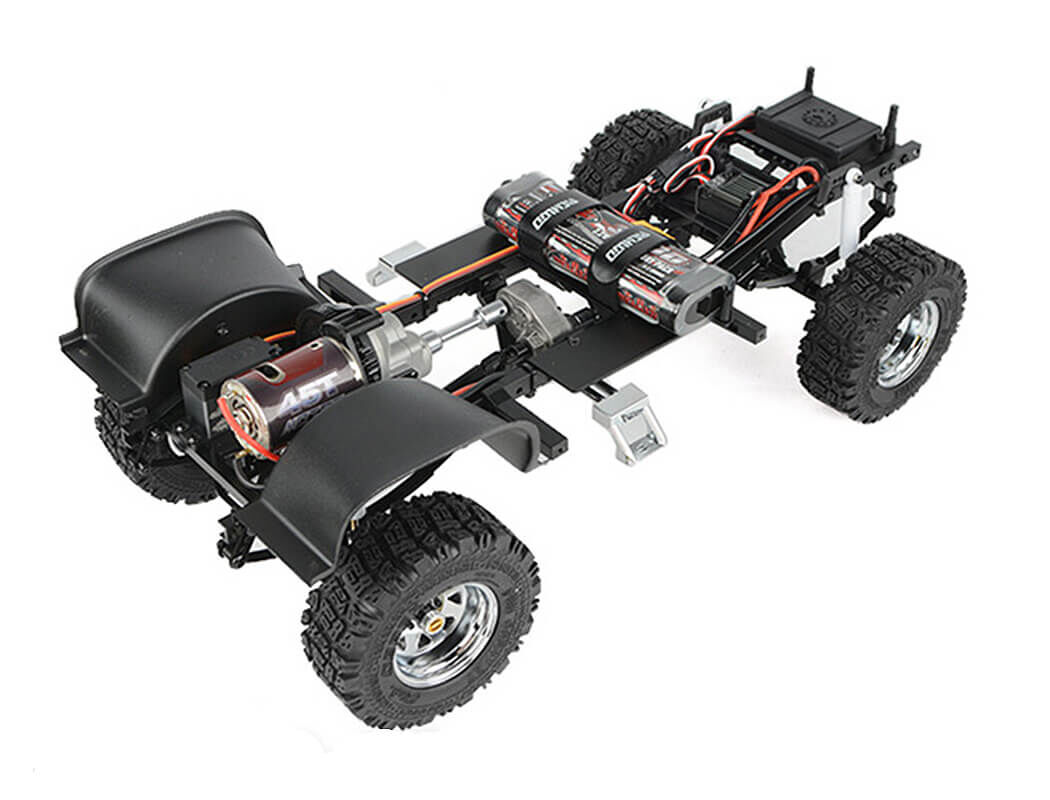

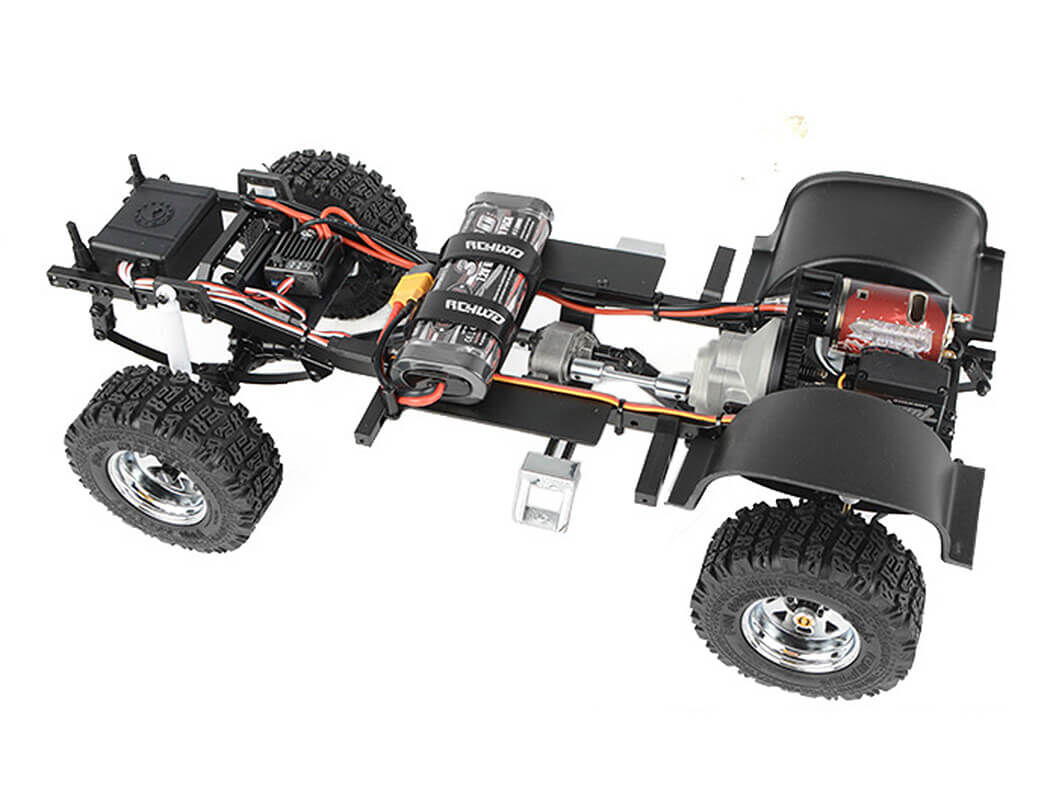

With strength in mind, the ladder frame design of the Trail Finder 2 is made with CNC machined, billet aluminium and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

The Scale Dept. Edition includes a set of rugged 8 Lug Deep Dish Wagon Wheels. These 1.9" Chrome-Plated wheels are formed with stamped steel and are finished off with Scale Wheel Hubs.

Every RTR needs a tough set of tyres to hit the trails and the included RC4WD Dick Cepek Fun Country 1.9" Scale Tyres deliver the perfect amount of traction with its advanced X2S3 compound. The scale details complete the look in just the right size.

Details

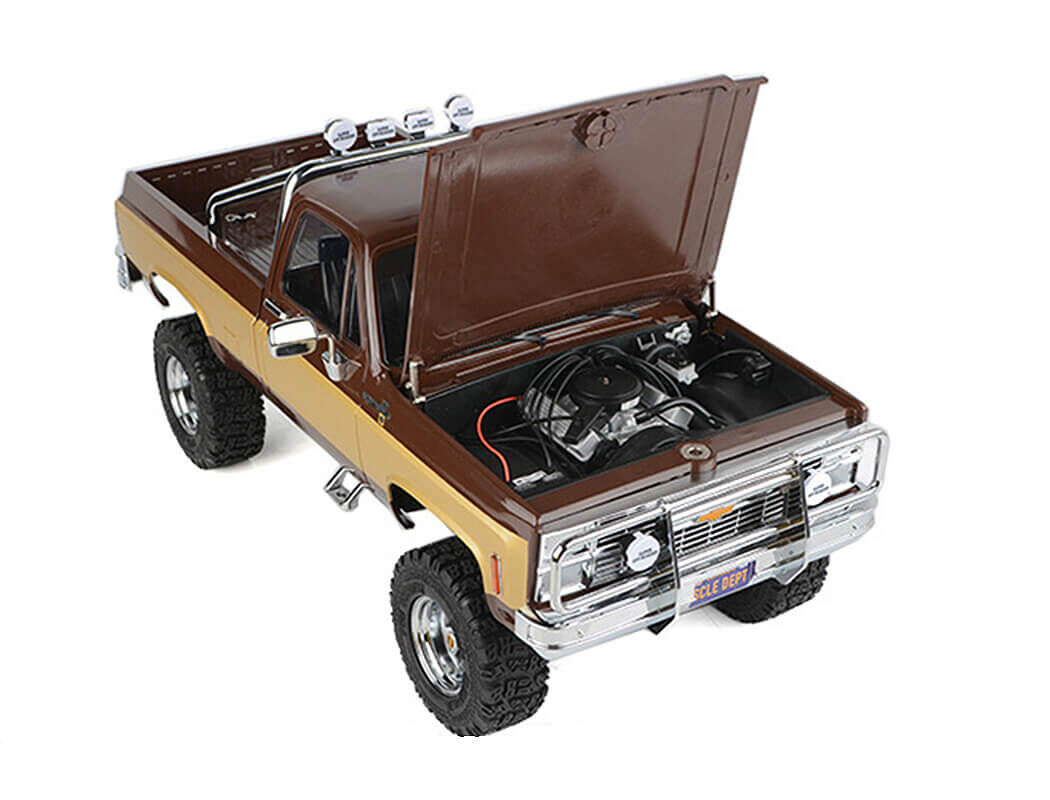

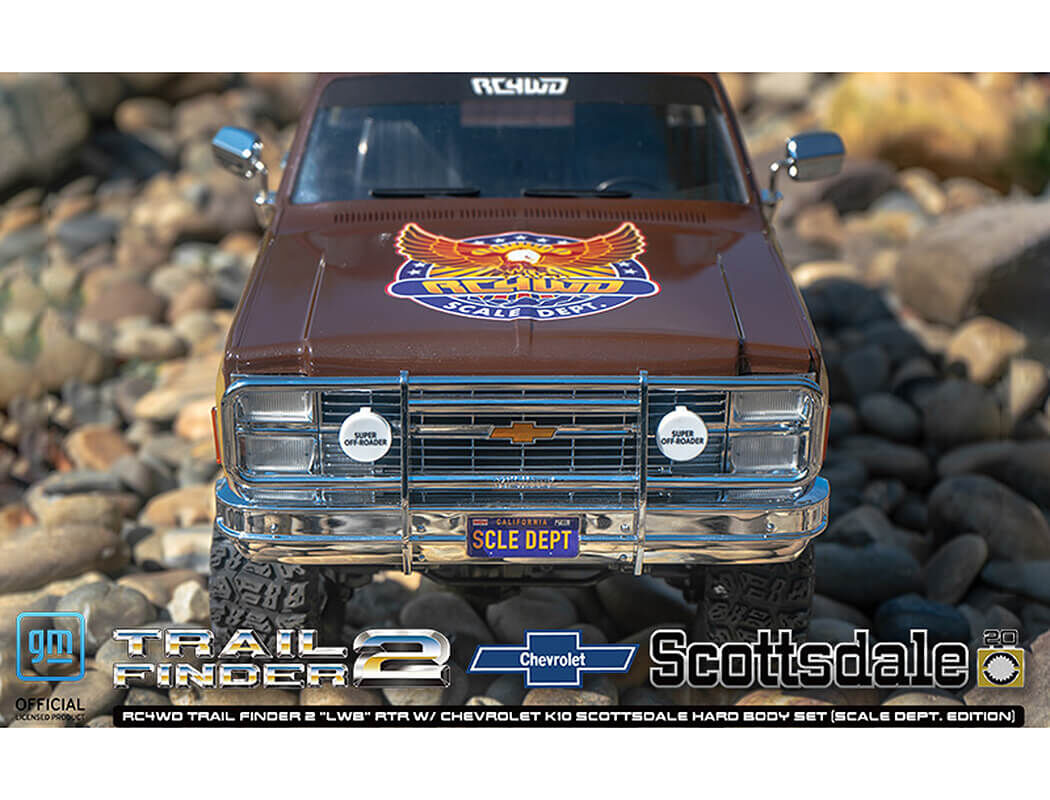

The Chevrolet K10 Scottsdale features exquisite scale details, including door handles, updated mirrors, new rear step bumper and the new front grille. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.

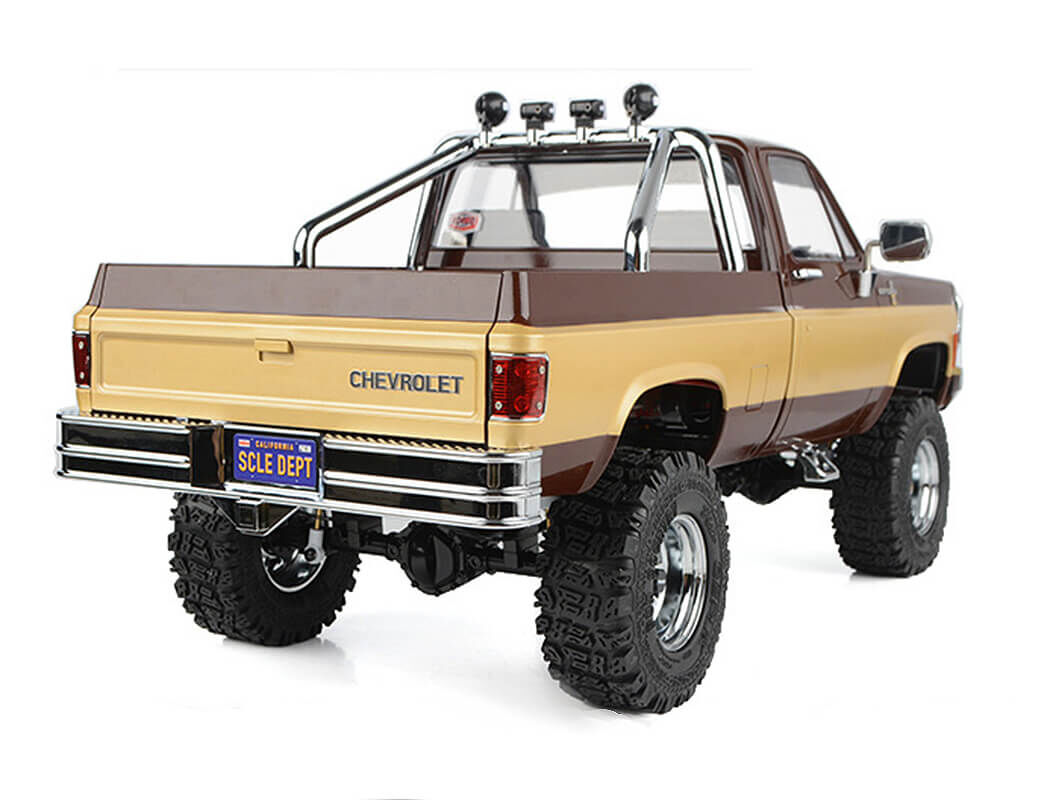

The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.

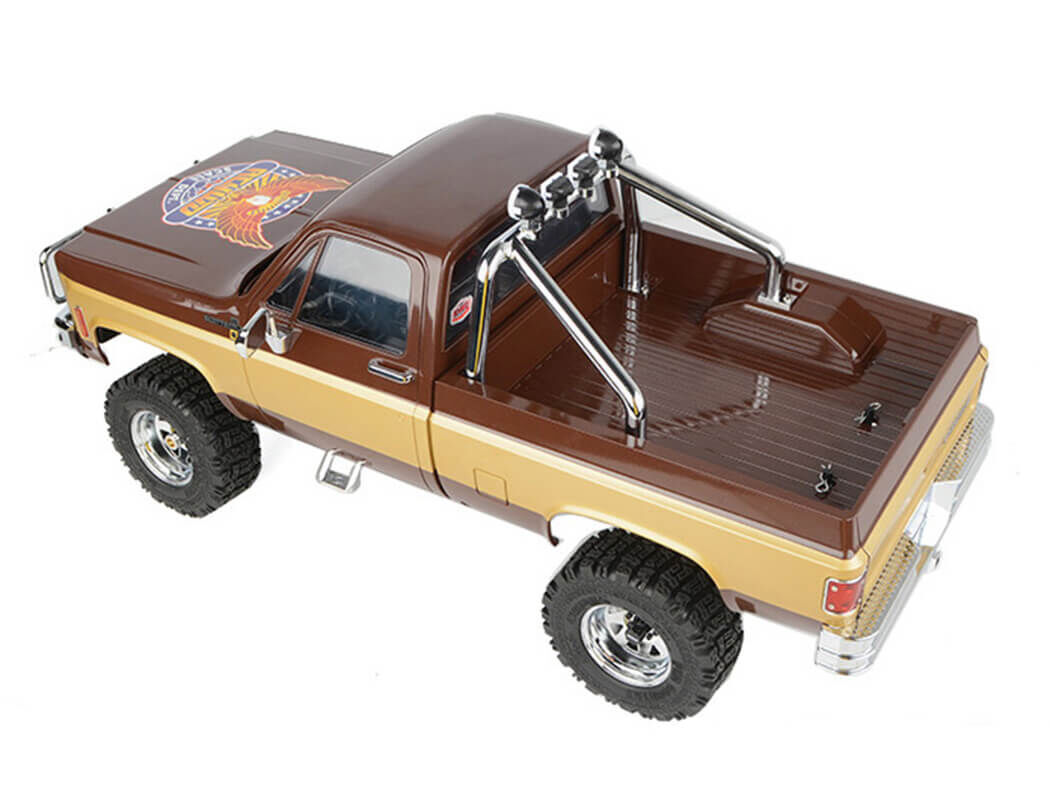

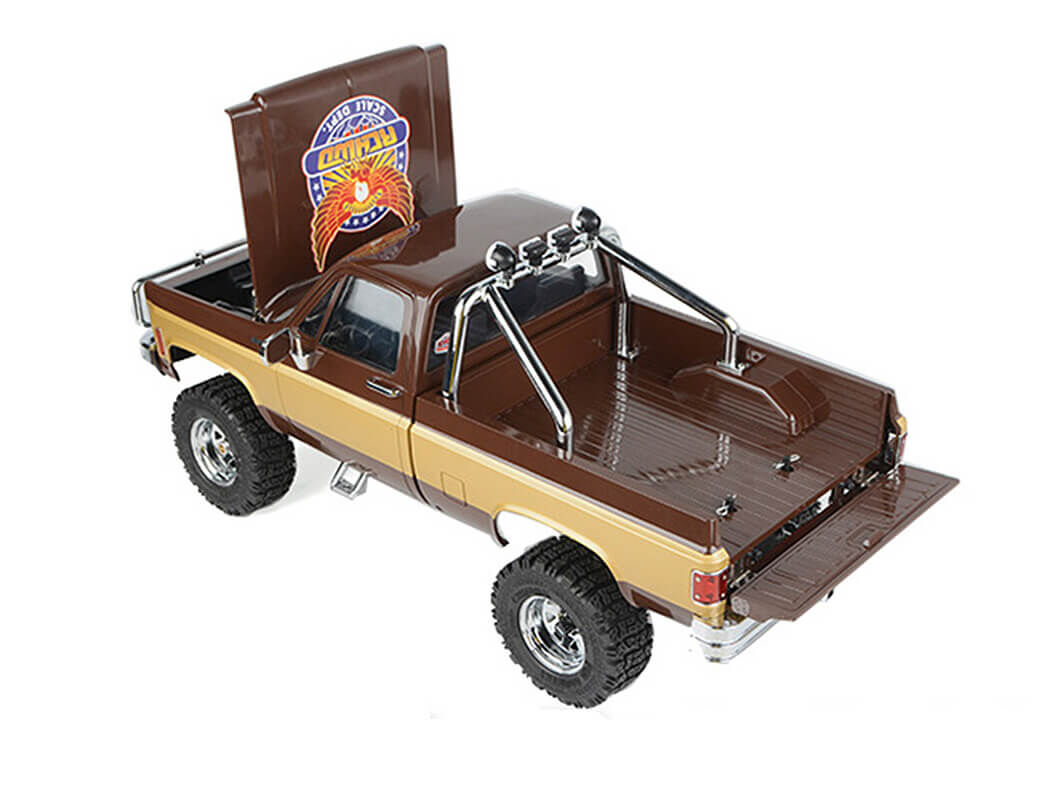

The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.

The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.

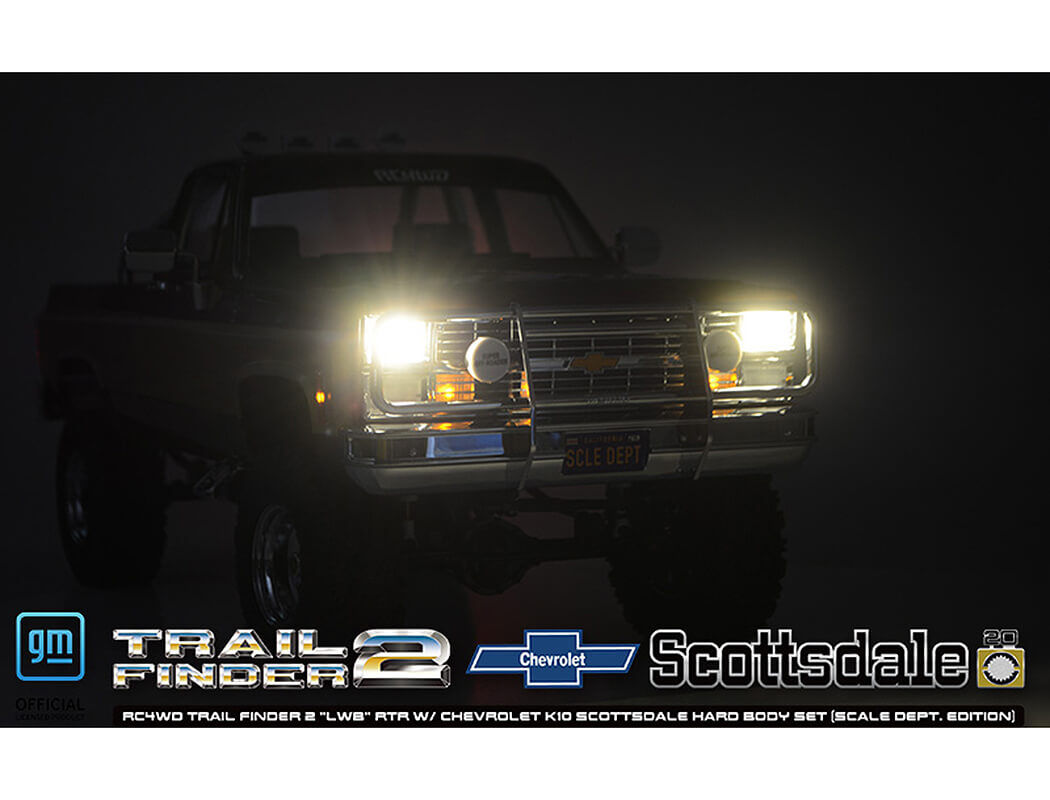

Straight out of the box, an LED light set comes professionally installed and concealed, keeping that realistic look. Included are chrome-plated parts and coloured lenses for that scale look! Now including the old school halogen headlights.

Electronics

The Trail Finder 2 includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!

The Trail Finder 2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!

Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

It's all in the box! Everything you need is provided to get you on the trails today!

More Features

• Chevrolet K10 Scottsdale Hard Body.
• Small Block V8 Engine Bay W/ Dress Up Kit.
• Halogen Style Lights (retro Look).
• Chrome Front Grille For Chevrolet Blazer And K10 (80's).
• Chrome Single Tube Roll Bar And Front Push Bar.
• Chrome Rear Step Bumper.
• 8 Lug Chrome Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels.
• Dick Cepek Fun Country 1.9" Scale Tyres.
• K44 Ultimate Scale Cast Axles (XVD).
• X-Ring Scale Shock Absorbers 70/80mm.
• Front Inner Fenders.
• Twister High Torque Metal Gear Digital Servo.
• 45T 540 Brushed Crawler Motor.
• R3 Single Speed Transmission.
• Center Mounted Hammer Transfer Case.
• Chrome Side Steps.
• Outcry III Waterproof ESC.
• 6-Cell 3000mAh NIMH Battery Pack.

Specifications

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")

Shock Absorbers
X-ring Scale Shock Absorbers 70/80mm

Wheels
Type: RC4WD 8 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Fits Standard: 12mm Hex
Width: 1.26in / 32.0mm
OD: 2.08in / 53.0mm

Tyres
Type: RC4WD Dick Cepek Fun Country 1.9" Scale Tyres
Outer Diameter: 3.94in / 100mm
Width: 1.52in / 38.8mm
Inner Diameter: 1.81in /46.0mm

TF2 Truck Dimensions
Wheelbase: 312.0mm(12.3")
Width: 220.0mm(8.7")
Height: 251.0mm(9.9")
Ground Clearance: 62.0mm(2.4")
Final Drive Ratio: 31.9:1

What's Included

• 1 x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)

Notes

• Please note that these truck bodies are hand-painted, so minor blemishes, differences, or imperfections may occur.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
