SAVOX HV DIGITAL BRUSHLESS SERVO 25KG/0.08S@7.4V - PLUS

SAVOX HV DIGITAL BRUSHLESS SERVO 25KG/0.08S@7.4V - PLUS

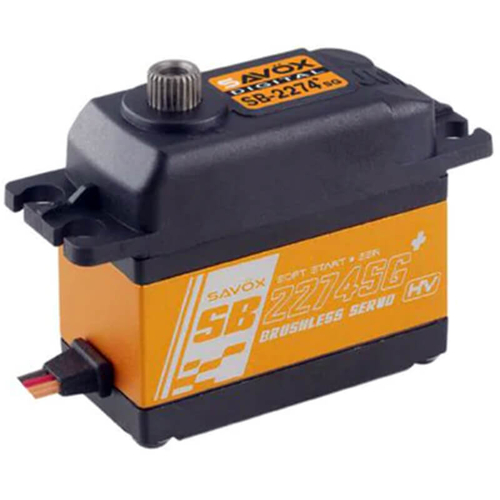

This is the Savox SB2274SG PLUS High Speed Brushless Unique Steel Gear Digital Servo.

SB2274SG PLUS Features:

• Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
• Super light-weight.
• Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
• The full Aluminum case design not only looks good but also allows for cooler and smoother operating temps.
• Our servos are totally green - from materials to production, these servos are environmentally friendly.
• Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

Spec Check:


• Dimensions(mm): 40.3x20.2x38.5
• Weight(g): 69.0
• Speed(@6.0V sec/60): .105
• Torque(@6.0V oz-in): 277.7
• Speed(@7.4V sec/60): .08
• Torque(@7.4V oz-in): 347.2
• Gear: Unique Steel
• Bearing: 2BB
• Case: Full Aluminum
• 25 Tooth Spline

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
