SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) PLUS

SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) PLUS

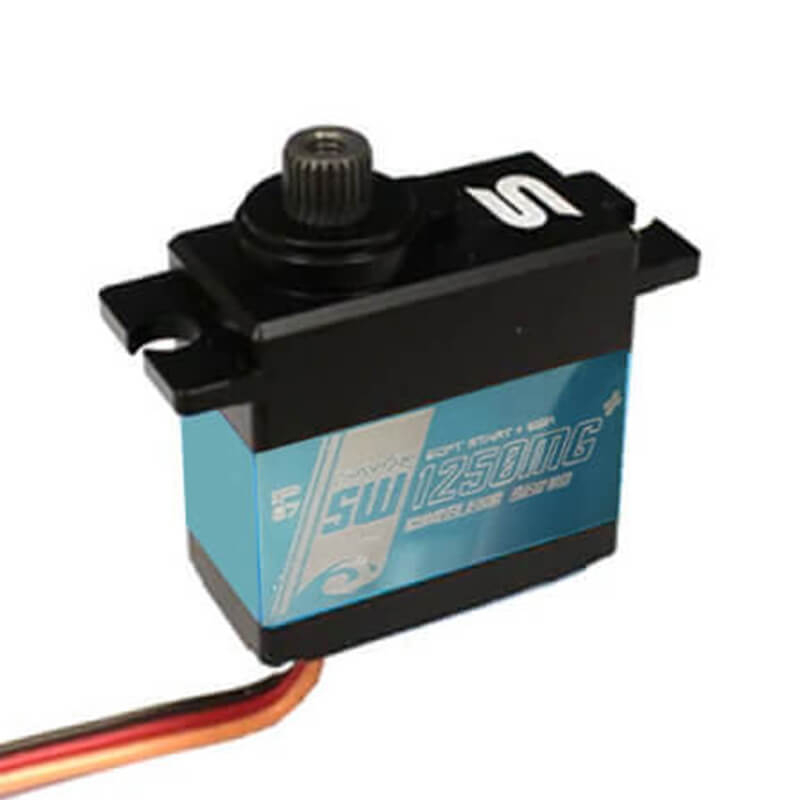

The SW1250MG+ is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

FEATURES

• Full aluminium waterproof case.
• Strong metal gear train for increased durability.
• Ultra torque and speed for mini applications
• Designed for Traxxas 1/16 vehicles.

SPECIFICATIONS

• Torque @ 6.0v - 5.0 kg-cm/69.4 oz-in
• Torque @ 7.4v - 8.0 kg-cm/111.1 oz-in
• Speed @ 6.0v - 0.12 sec/60 deg
• Speed @ 7.4v - 0. 10sec/60 deg

TECHNICAL DETAILS

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
