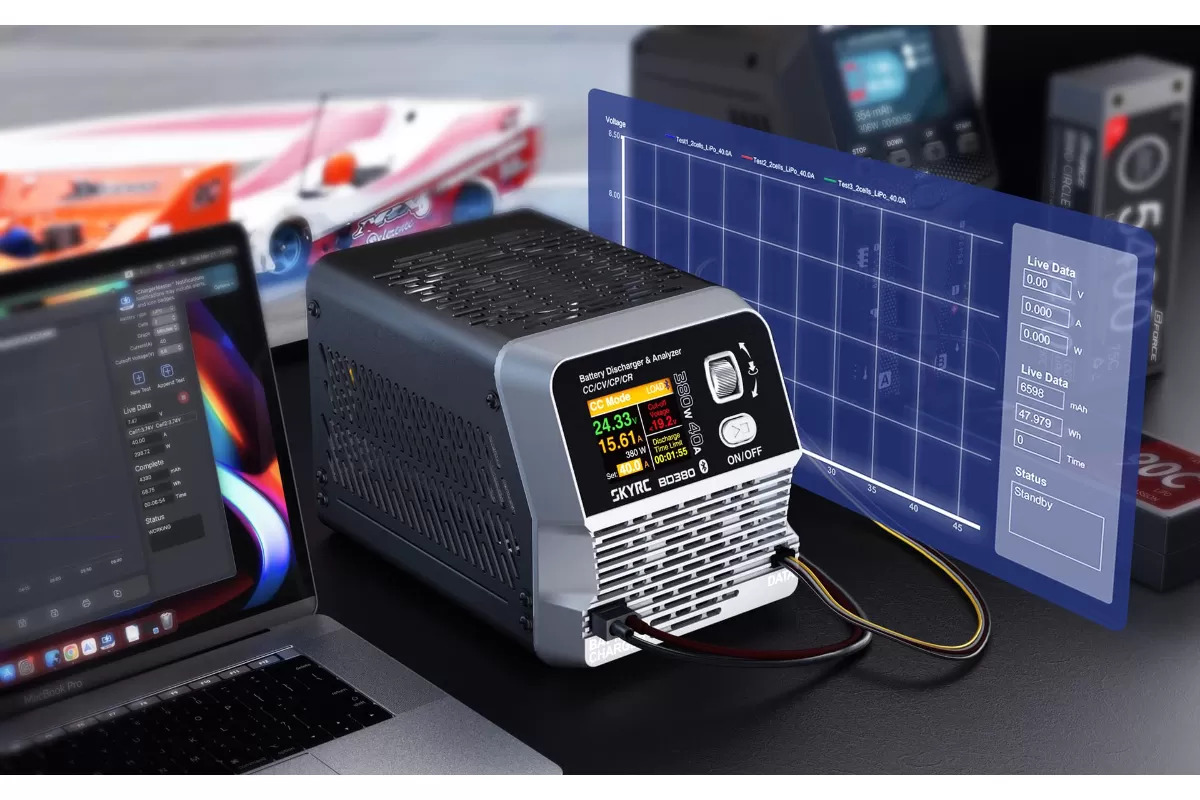

SkyRC BD380 Battery Discharger & Analyser

Case Material: PC-ABS V0
Case Size: 159.7*110*121.6mm
Weight: Approximately 1100g

Display

Display Type: TN
Size: 1.77 inch
Panel Active Area: 43.20*57.60mm
Resolution: 160x128 Pixel
Number of Colors: 262K

Power

DC Input Voltage: 3-30V
Discharge power: Max. 380W
Battery Connector Interface: XT60
Discharge: 0.3A-40.0A

Operating mode

CC Constant Current: 0.3-40.0A
CR Constant Resistance: 1-100Ω
CP Constant Power: 1-380W
CV Constant Voltage: Maximum power is 180W. Note: Do not connect the battery in this mode

Working and Storage

Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%
