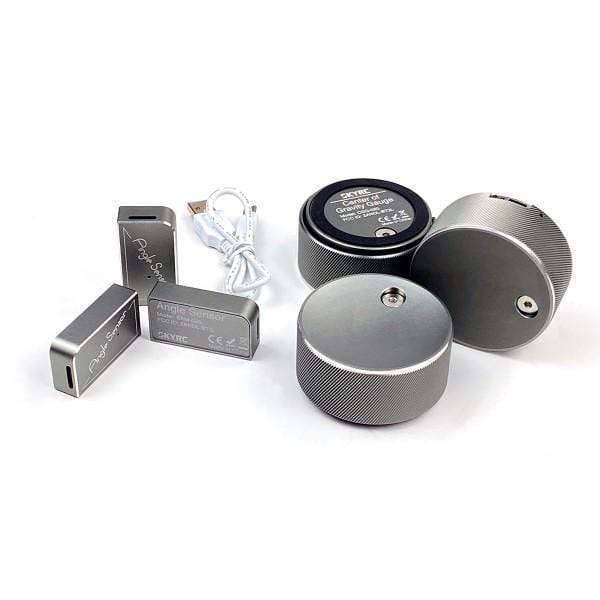

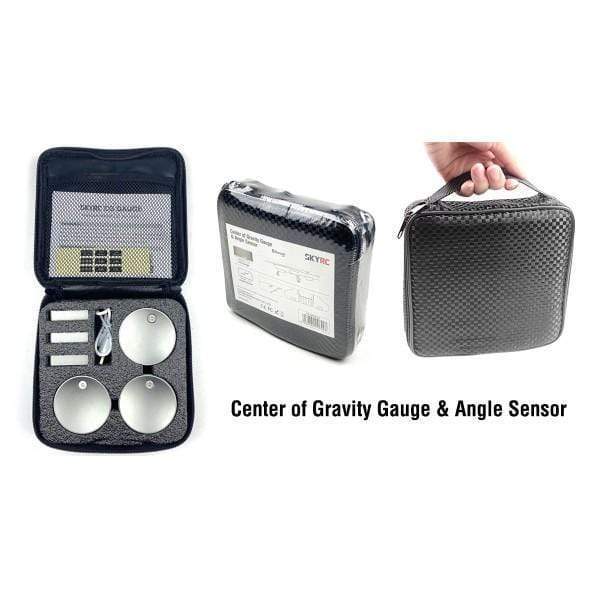

SkyRC CG Gauge CGG-020 + Angle Gauge SAM-020 Set - Aircraft (Aircraft-fixed wing)

G Gauge

Whether for a real full-scale airplane or model aircraft, the center of gravity is the paramount one among all the parameters. The center of gravity in an incorrect position will result in a lousy control experience and even catastrophic results.

The SkyRC CG Gauge, which professionally measures the weight, the center of gravity for fixed-wing aircrafts with a maximum load of 20kg, comes as a solution to RC pilots!

The unit consists of three weighing modules, which are wirelessly controlled via Bluetooth. The maximum load for a single module is 20kg. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.

Angle Gauge

Surface angle adjustment for a model aircraft is the top priority, including the maximum value of the rudder, mixing control surface value of relative angle, and differential angle value of the aileron.

Mechanical measuring is the typical method to get the testing data but with low efficiency and significant deviation. In this way, the relative angle's value cannot be measured. SkyRC Angle Gauge comes as a solution.

The unit consists of three sensing modules, which are wirelessly controlled via Bluetooth. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.

SPECIFICATIONS

CG Gauge

Dimension: D66*33mm
Weight: ≈160g
Working Voltage: 3.4-4.2V
Working Current: ＜15mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Low-voltage Protection: ＜3.4V (Flashes Red)
Load: max. 20kg/module
Accuracy: ±3g (Measuring)
Accuracy: 1g/0.01oz (Display)
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (No Condensation)

Angle Gauge

Dimension: 48.1*25.6*12.6mm
Weight: ≈25g

Working Voltage: 3.4-4.2V
Working Current: ＜10mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Low-voltage Protection: ＜3.4V (Flashes Red)
Measuring Accuracy: ±0.1°
Throw Angle: ±0.1mm
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (No Condensation)
