SkyRC Digital RC Ride Height Gauge

Product information "SkyRC Digital RC Ride Height Gauge"

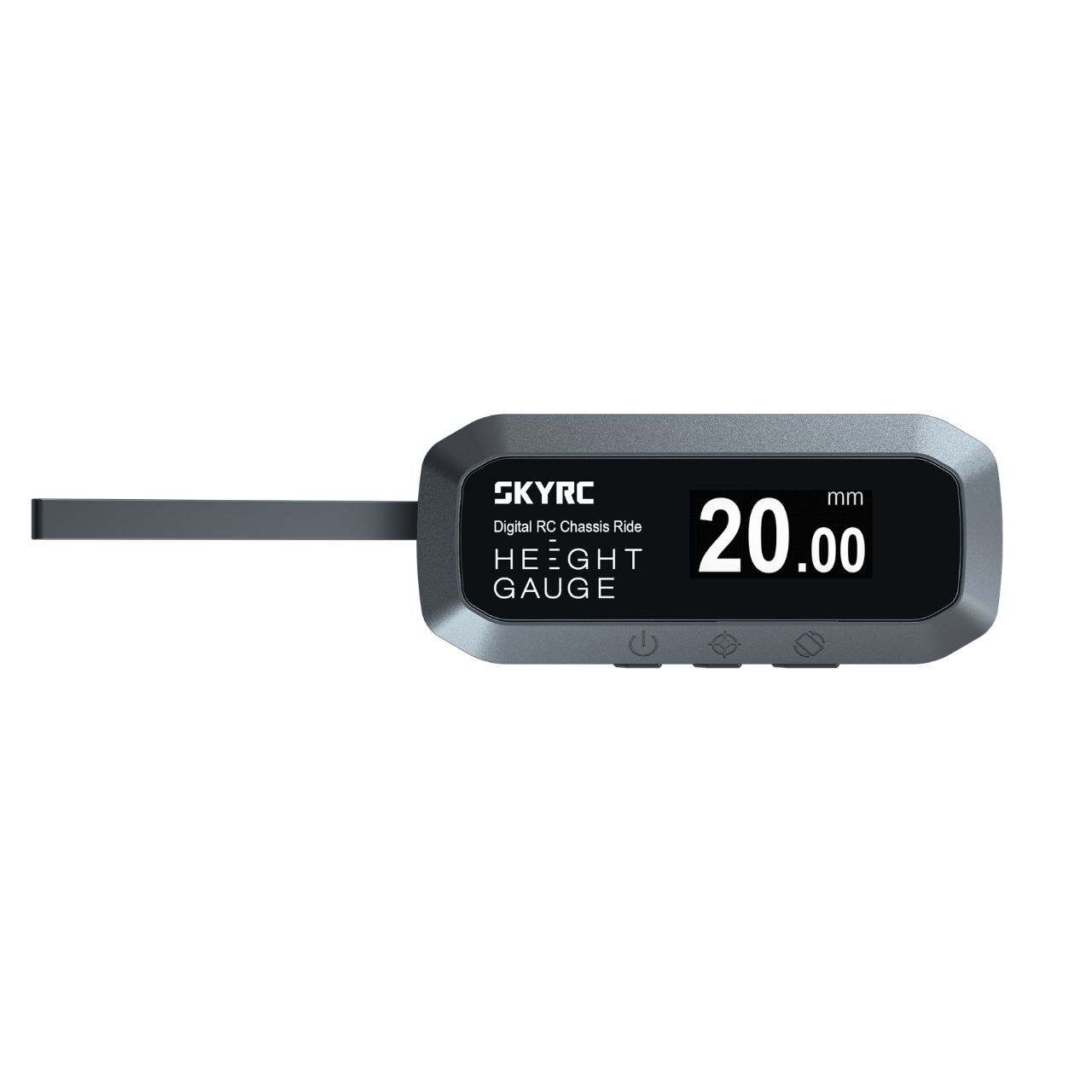

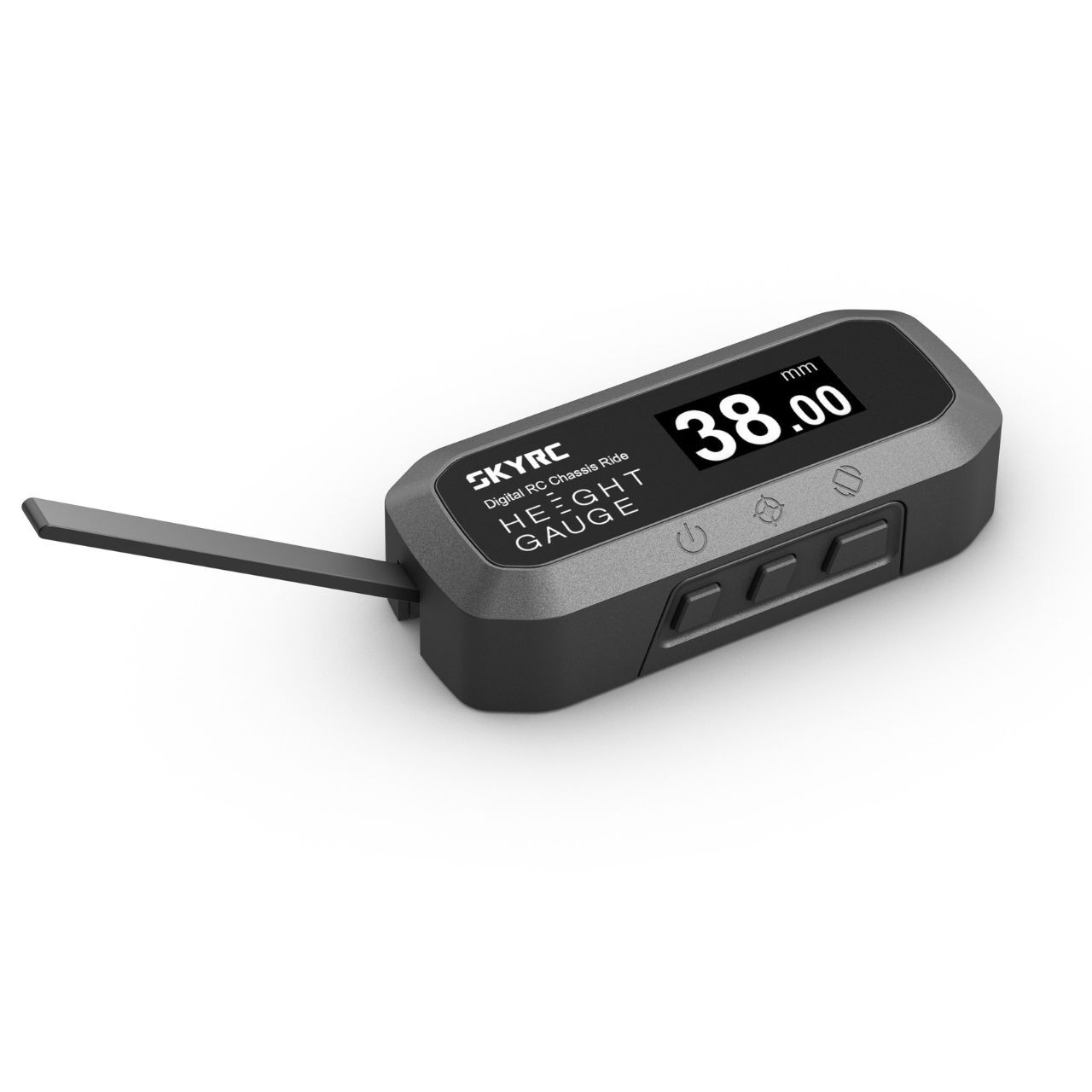

The SkyRC Digital RC Ride Height Gauge is a precise, digital measuring tool for determining the ride height of RC models. Powered by an integrated MCU and a proprietary measurement algorithm, the device delivers a resolution of 0.1 mm across a measuring range of 2–38 mm. The slim, flat 2 mm measuring blade reaches tight and hard-to-access areas where conventional round measuring rods reach their limits. An integrated multi-point calibration with the included calibration block (at 2 mm, 10 mm and 20 mm) ensures reliable and repeatable measurement results. The display can be rotated 180° at the press of a button, keeping the readout clearly visible from any angle. Compatible with 1/24, 1/14, 1/12, 1/10 and 1/8 RC models. A dedicated storage case reliably protects the measuring instrument and calibration accessories.

Specifications:

Package Contents:

1x Digital RC Ride Height Gauge

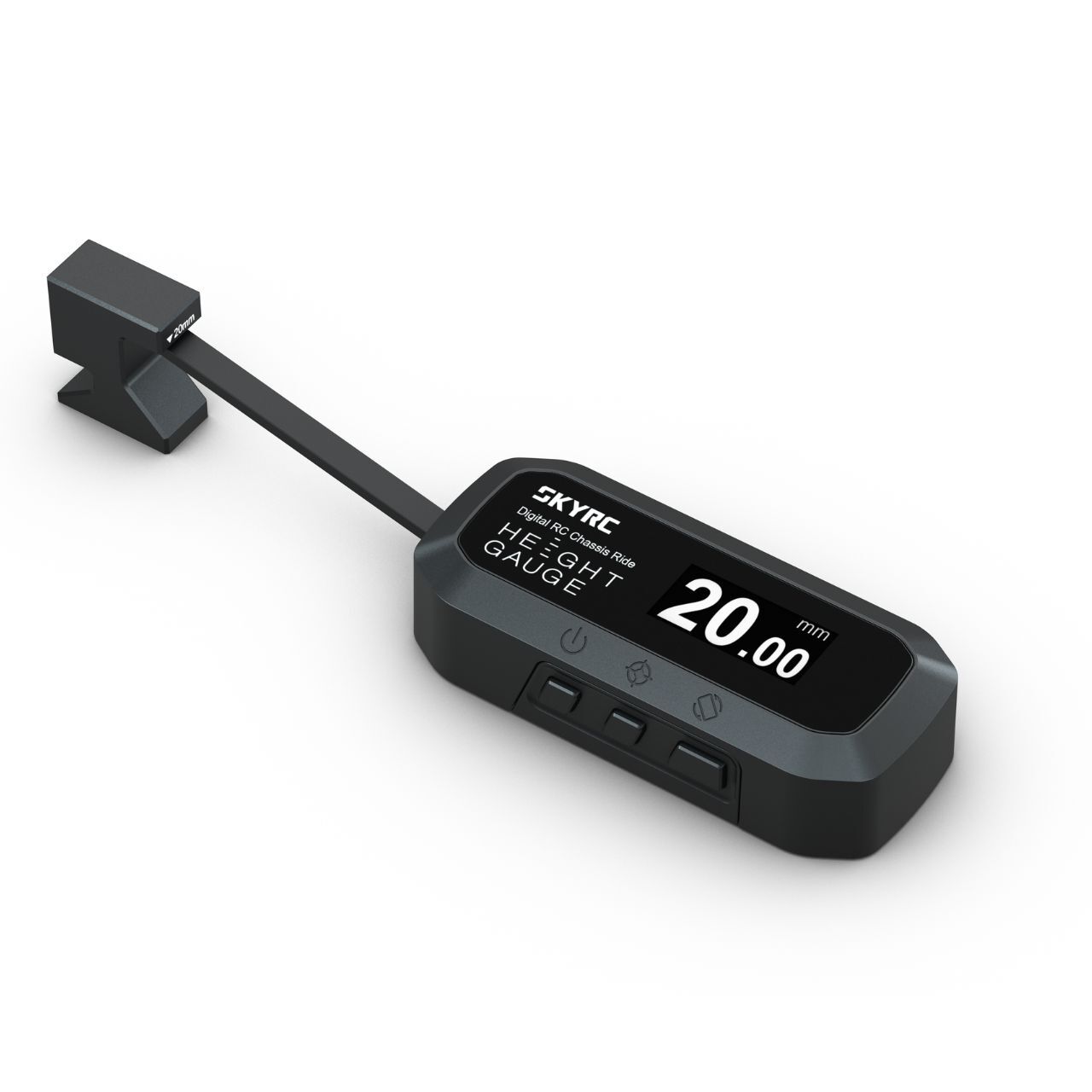

1x Calibration block
1x Storage case
1x Manual
