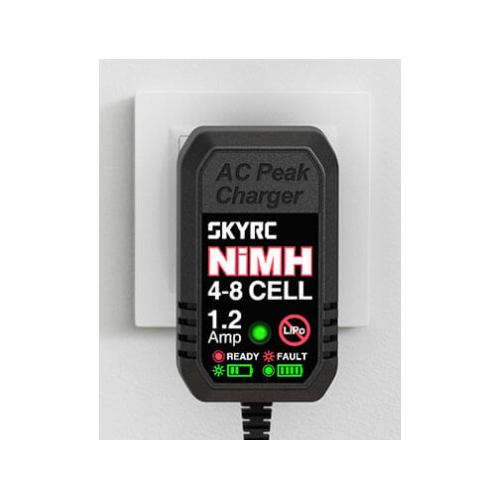

SkyRC eN18 NiMH Peak Charger (Deans Style plug)

SkyRC eN18 NiMH Peak Charger

Compact but Versatile

Want to get the most out of your batteries? You really need to make sure you can deliver a full charge to your batteries with a SkyRC eN18 Peak Charger.

SkyRC eN18 is more than just a peak charger - it's a versatile peak charger capable of charging both electric car battery packs and nitro car receiver packs. This is possible because the SkyRC eN18 offers voltage ranging from 4.8 to 14.4V at 1.2 amp. You can charge 6-8 cell NiMH battery packs as found in most electric cars, trucks, and buggies. With the 1.2 amp charge rate, you can safely fast charge any 4-5 cell nitro car NiMH receiver's pack.

Delta-V Peak detection

With the Delta Peak detection circuitry, the SkyRC eN18 allows your batteries to reach their full capacity when charging, so you can get the most power and run time from your batteries. It achieves this by using peak detection circuitry that monitors the voltage of the battery pack while it's being charged and automatically shuts the charger off when the packs' voltage peaks and then starts to drop. This is in contrast to a timed charger, where you often end up with a battery pack that's not fully charged.

Delta Peak
detection circuitry

Compact and
lightweight

NiMH compatible

Maximum output
1.2A

Short-Circuit Protection Reverse Connection Protection

Universal-Voltage Input

Accurate voltage

High Reliability

Lower Operating
Temperature

High-efficiency
and Energy-saving

Specifications

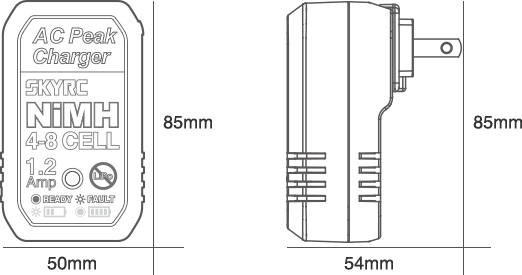

Size and Weight

Dimension: 85mm×50mm×54mm
Weight: 120g

Other Parameters

Input: AC100V-240V 50/60Hz
Battery Type: NiMH
Output Voltage: 4.8V-14.4V
Output Curent: 1.2A
Output Power: 18W Max.
Battery Cell: 4-8S
Output Cable Length: 70cm
Operating Temperature: 0℃-40℃
Relative Humidity: 5%-75%
Storage Temperature: -10℃ - 70℃
Storage Humidity: 5%-75%
