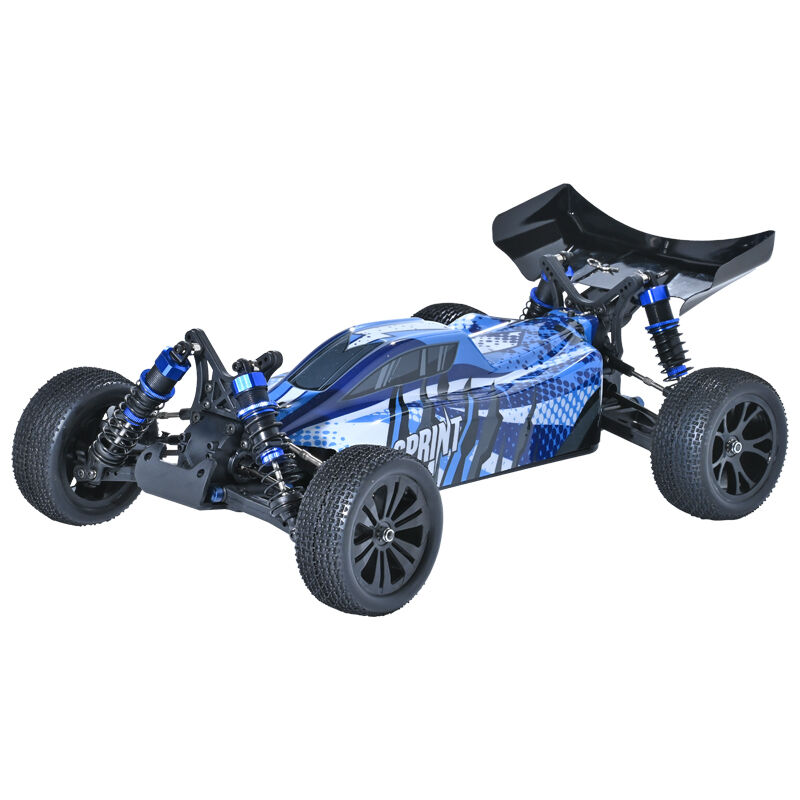

Spirit EBD Brushed RTR w/7.2V 1800Mah Nimh battery, SAA-Wall Charger, Dumbo 2.4GHz radio/40A ESC/550 Motor R0333BL

Overview

As a dedicated RC manufacturer,we've supercharged our classic Spirit model into something extraordinary. The new SPRINT isn't just an upgrade – it's your ticket to conquer puddles, gravel, and anything else Mother Nature throws your way.We've armored it with an alum upper palte for resisting impact, while the fully-sealed chassis laughs at mud, sand. No more panic when puddles appear-the waterproof receiver and ESC box keep electronics bone-dry, letting you focus on the thrill.

By controlling suspension movement, shocks stabilize the chassis during acceleration, braking, and cornering, minimizing body roll and preventing loss of control. Adjustable oil-filled shocks allow fine-tuning of compression and rebound damping, enabling customization for different terrains.

•
• features

  2.4GHz Proportional Radio System

  Waterproof 40A ESC and 550 Brushed Motor for Lipo Battery

  Waterproof 3kg steering servo

  7.2V 1800mAH Nimh Battery with wall Charger Equipped

  New Yellow/Blue Buggy Body Option

  Alum. upper plate for high strength and nice looking

  New design wheels & tyres

  4WD Shaft drive with slipper system

  Unique gearbox design for Low CG

  Lightweight high impact arms

  Front universal drive shafts

  Adjustable wheelbase/turn buckles

  Fully adjustable suspension including, droop, camber, toe-in, wheelbase etc

  Slipper for drivetrain damage protection

Product specifications

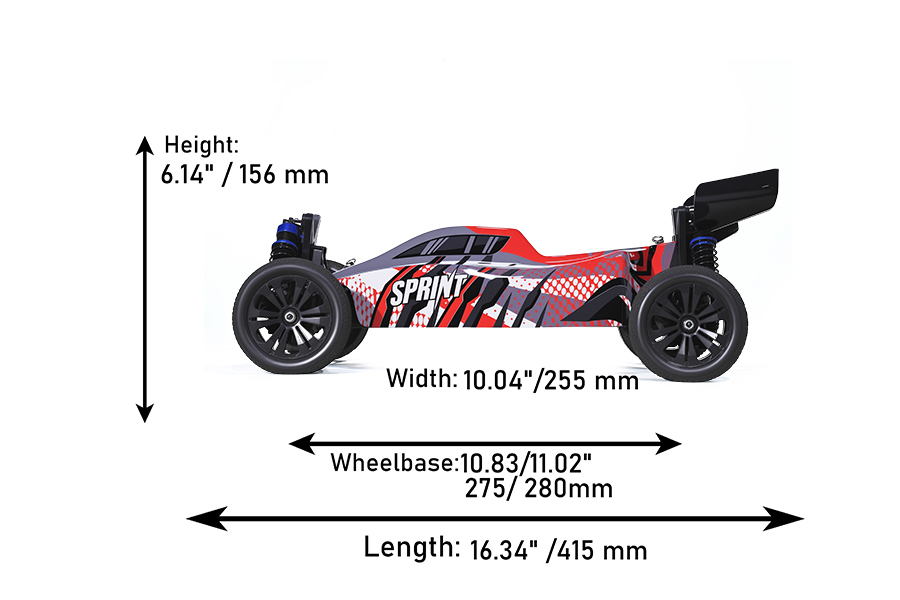

Product  Length	16.34"（415mm)	Speed Control	40A
Product  Weight	6.61 Ib   (3KG)	Spur gear	65T
Product  Width	10.04"  (255MM)	Suspension	Independent
Radio	2.4G	Top speed	35+
Scale	1:10	Vehicle Size	Standard
Servo	3KG	Vehicle Type	Buggy
Shock Type	Oil-filled, coilover spring	wheelbase	10.83/11.02" (275/280mm)
Ball bearing	Full ball bearing	Chassis	composite
Battery	7.2V 1800Mah Nimh	Completion Level	Ready to run
body	Pre-painted Polyvinyl Chloride	Connector Type	Tamiya plug
Distance of remote control	100-150M	Drive Type	Forward, brake, Reverse
Charger	Wall charger	Motor Size	550-15T
Pinion gear	23T	Power Type	Electric
Product Height	6.14" ( 156mm)	Drive train	4WD
Operator Skill Level	Beginner	Play time	10-15 minutes/cycle

Product details

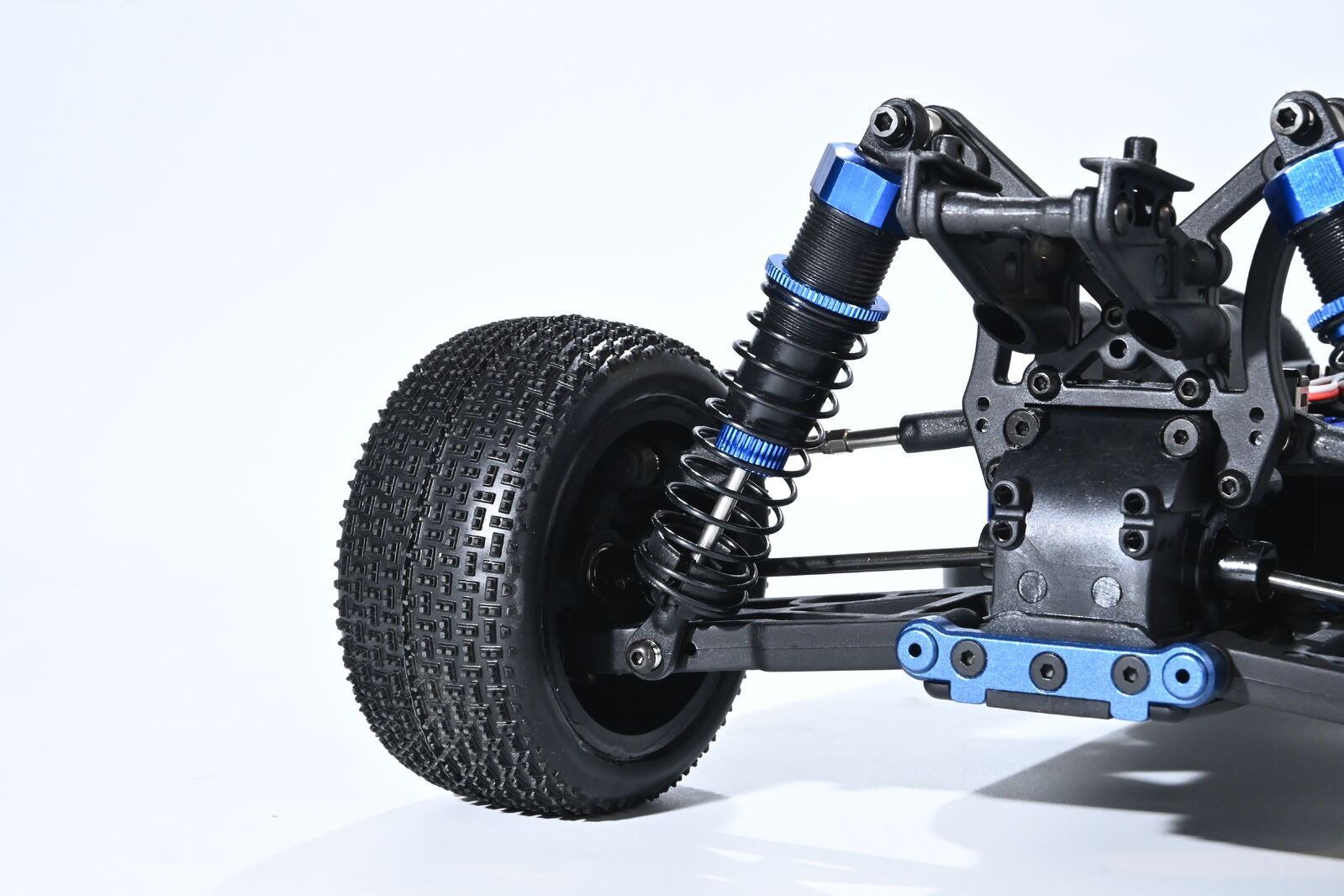

Shock absorbers in the RC cars play a critical role in optimizing performance and handling. They dampen vibrations and absorb impacts from uneven surfaces, ensuring consistent tire contact with the ground for maximum traction. By controlling suspension movement, shocks stabilize the chassis during acceleration, braking, and cornering, minimizing body roll and preventing loss of control. Adjustable oil-filled shocks allow fine-tuning of compression and rebound damping, enabling customization for different terrains.

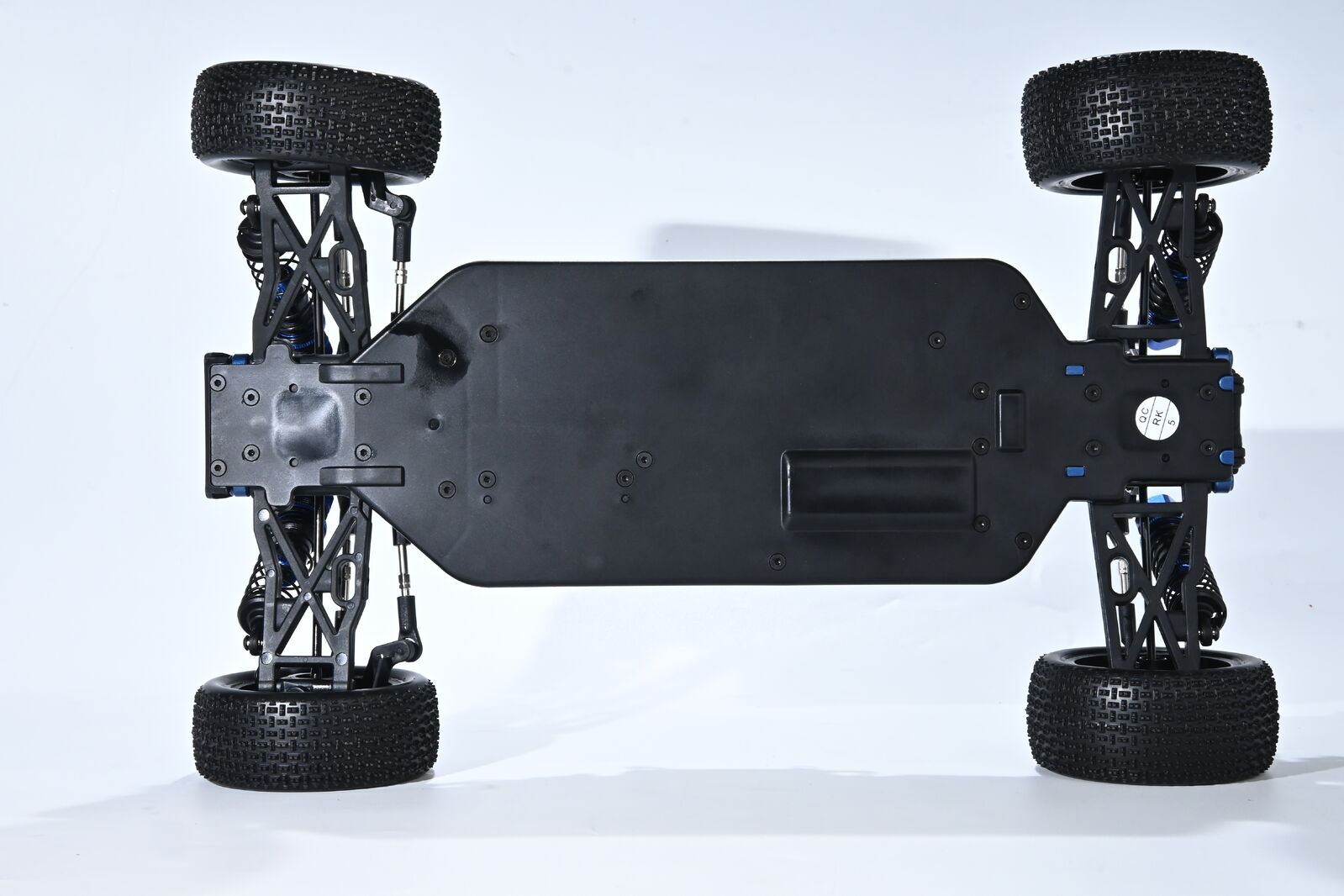

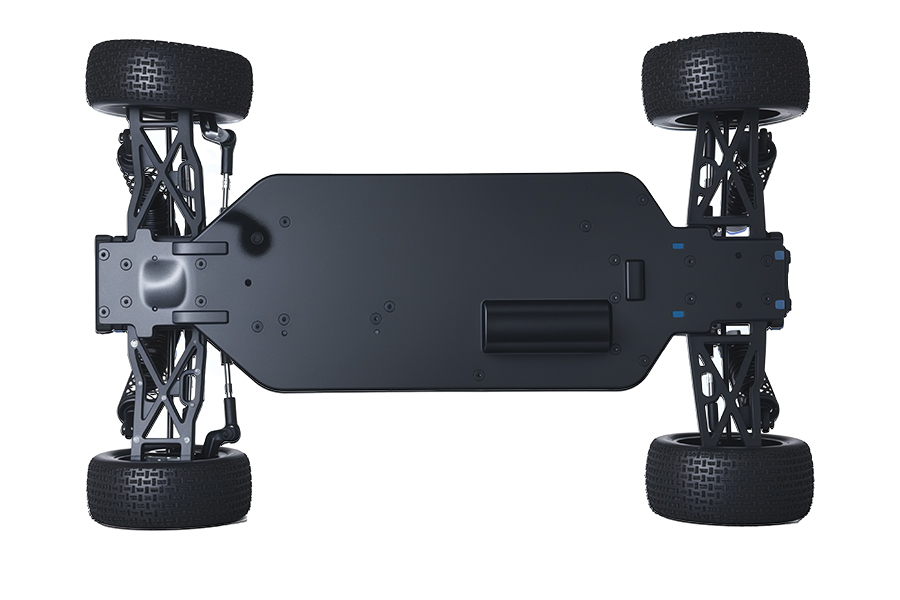

Engineered for performance and durability, this 1/10 scale SPRINT model car features a fully enclosed, waterproof chassis plate constructed from reinforced nylon materials. The seamless, integrated design ensures complete protection against debris, dust, and moisture ingress, making it ideal for off-road terrain and adverse conditions.

The SPRINT comes with 4WD functionality delivers enhanced traction, stability, and off-road performance by transmitting power to all four wheels simultaneously. The 4WD drivetrain typically incorporates a combination of differentials, drive shafts, and a gearbox to distribute torque evenly, minimizing wheel slip and maximizing grip. Ideal for hobbyists seeking dynamic handling and realistic driving experiences, the 4WD system elevates both competitive racing and recreational use.

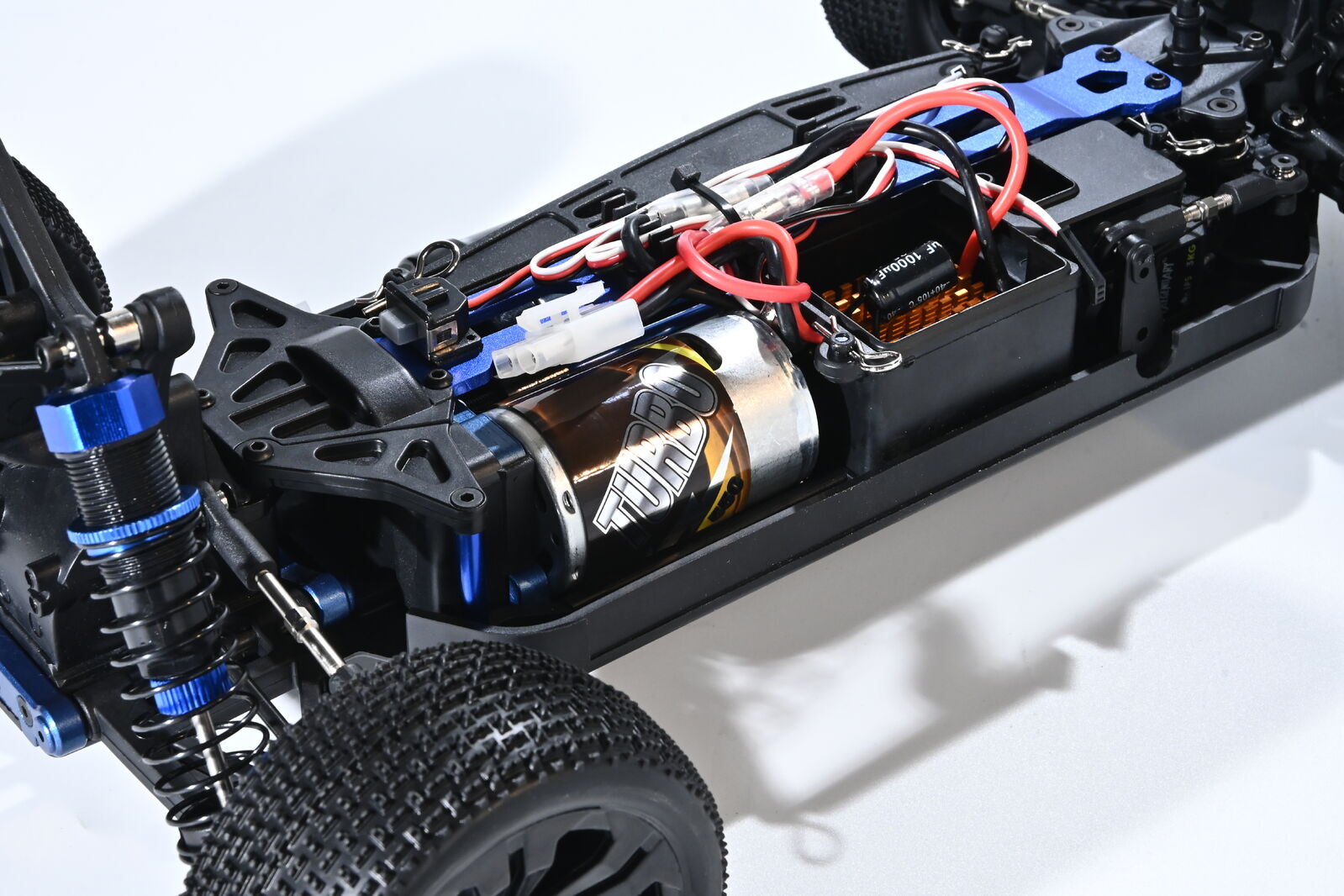

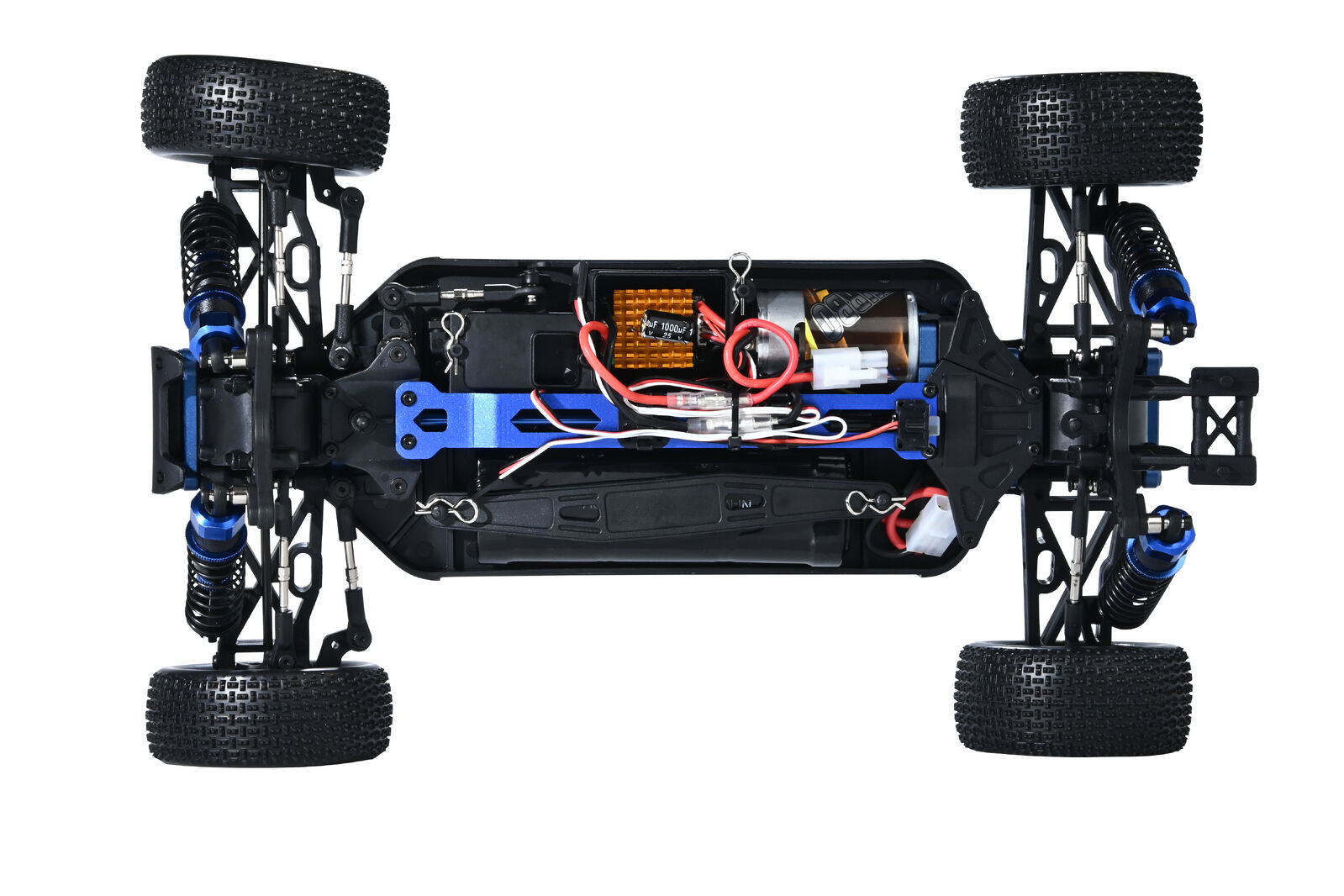

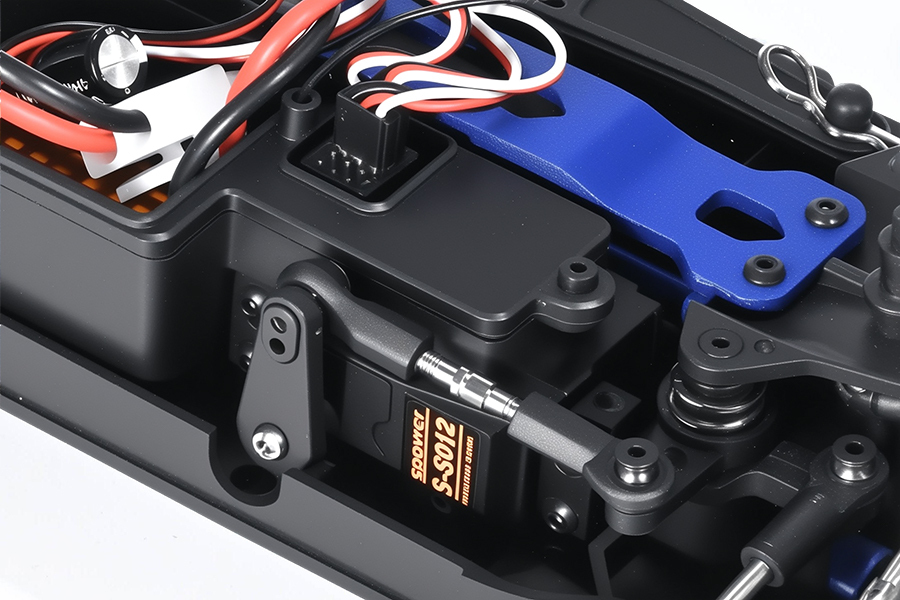

Waterproof receiver and ESC box design to protect critical electronic components from water, dust, and debris during off-road or wet-condition driving. The receiver compartment is optimized to house standard-sized receivers while maintaining signal integrity.Similarly, the ESC compartment accommodates brushless or brushed ESCs, with integrated heat dissipation vents.

These tires feature aggressive, spike-like tread patterns with staggered, multi-height rubber lugs that dig into soft surfaces like dirt, gravel, or grass. The flexible, high-grip rubber compound ensures responsive grip while maintaining durability. The spaced-out tread design prevents mud or debris buildup, promoting self-cleaning during high-speed runs.
