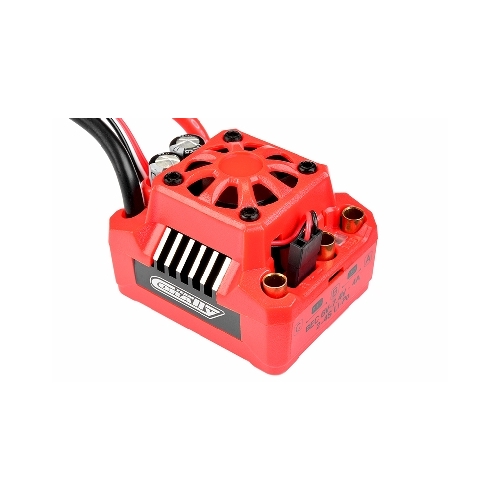

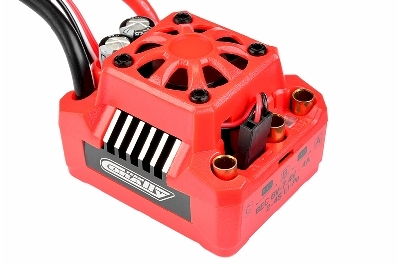

Team Corally - Speed Controller - Torox 135 - Brushless - 2-4S

Brandname

Team Corally RTR

Max. Cont. Current (A)

135A

Max. Current (A)

850A

Input Voltage (V) min. - max.

7.4 - 14.4 V

Nr of Li-xx Cells

2-4S LiPo

Nr of Ni-xx Cells

6-12 Cells

Motor Limit

Brushless Motor Limit with 2S LiPo / 6 Cell NiMH: KV=6000 (3656 size motor)
Brushless Motor Limit with 3S LiPo / 9 Cell NiMH: KV=4000 (3656 size motor)
Brushless Motor Limit with 4S LiPo / 12 Cell NiMH: KV=3000 (3656 size motor)

BEC Voltage (V)

6-7.4 V programmable

BEC Current (A)

6A

Length (mm)

49 mm

Width (mm)

39.5 mm

Height (mm)

34.7 mm

Weight (g)

105 g

Lipo Cut off

Programmable

Thermal Protection Temperature

105°C / 125°C programmable

Water Protection

Yes

Cooling Fan

30x30x10 mm

Connector (Motor)

6.5 mm female

Connector (Battery)

XT90-connector

Battery wire size

10 AWG

Car Type Use

1/10 - 1/8 scale
