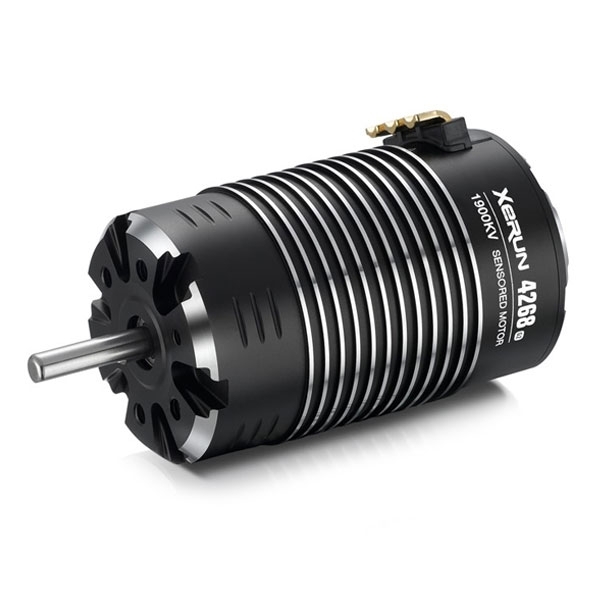

###Xerun 4268SD sensored G2 motor1600KV BLK

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

The first motor (in the world) with a built-in chip which helps ESC identify it's a HOBBYWING motor (when pairing with XERUN XR8/XR8 Plus) and form a power system which can work in the "Full-Sensored" mode and provide users with the better performance and smoother control.

The first "error-free" Hall sensing system (HOBBYWING's patent) (in the RC field) adopted by this motor guarantees users the steady operation in the "Full-Sensored" mode. A separate high-speed high precision encoder always output the clean signals (indicate the rotor's location) and not be affected by other signal interference.

CNC-machined aluminum ribbed heatsink case with the sensor port covered by silicon O-ring seal guarantees users the effective heat dissipation and dust prevention. New-style U gold-plated tabs with extremely-low internal resistance allows users to solder output wires easily and firmly on.

This motor is not only applicable to popular 1/8th scale racing vehicles like Cobra e-Truggy, TLR 8ight-E 3.0, AE RC8.2e, TEAM C DEX8T and Serpent-977E, but also other trucks, buggies, touring cars, etc.

HobbyWing XeRun 4268SD G2 Features:

  • Full-sensored Mode
  • Turbo Timing Technology
  • Bi-directional Adjustable Timing
  • Advanced Hall Sensing System
  • Low Cogging Torque
  • Quality Materials & Excellent Design

Spec Check:

  • Scale: 1/8th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Pole Count: 4
  • KV Rating: 1600
  • LiPo Cells: 2-6S
  • No-load Current(A): 2.8
  • Timing: 20-40 Degrees(Adjustable)
  • O.D.(mm): 42.0
  • Length (mm): 68.0
  • Shaft Diameter (mm): 5.0
  • Weight (g): 322

(HW30401900)

SKU HW30401900
Brand HOBBYWING
