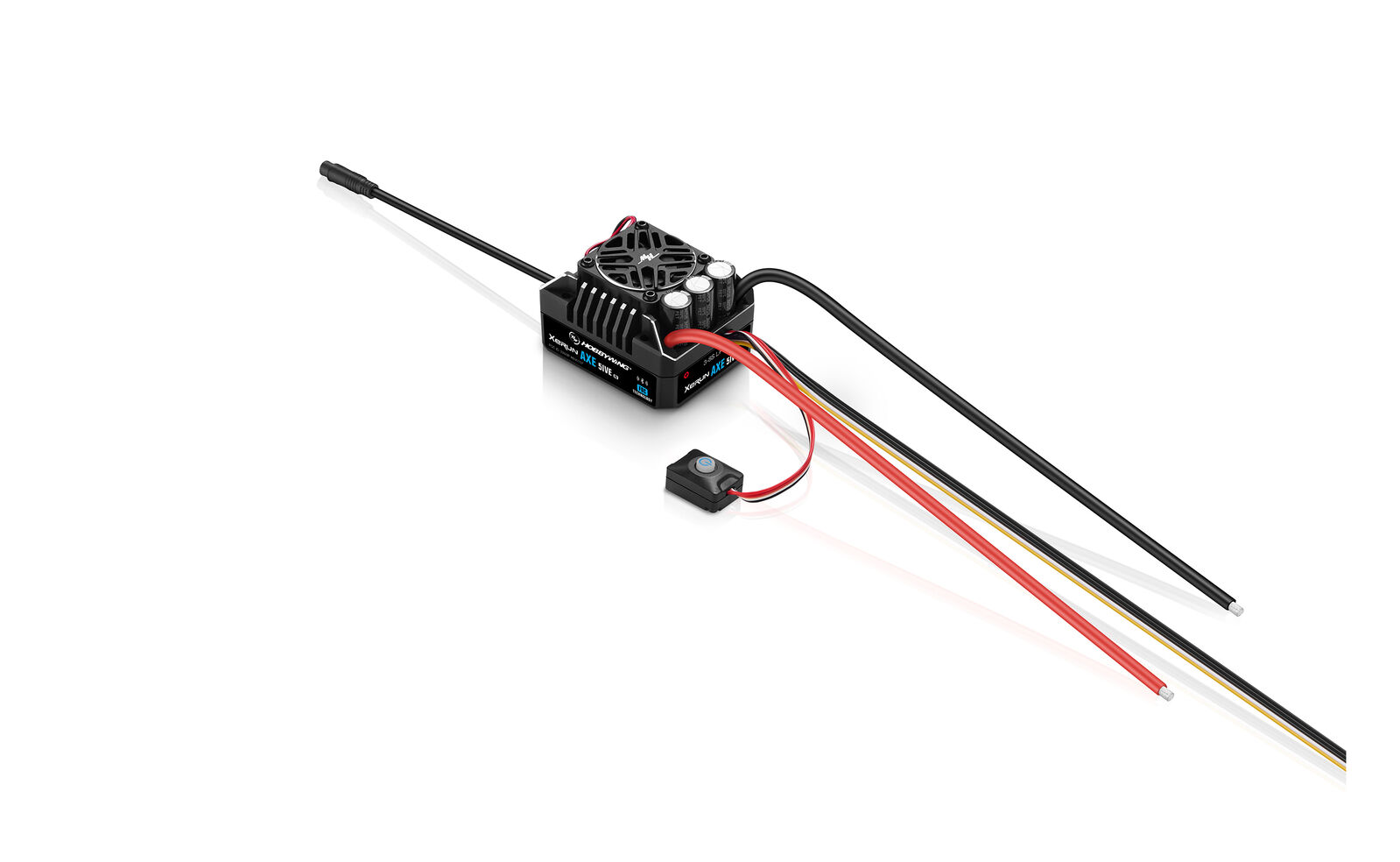

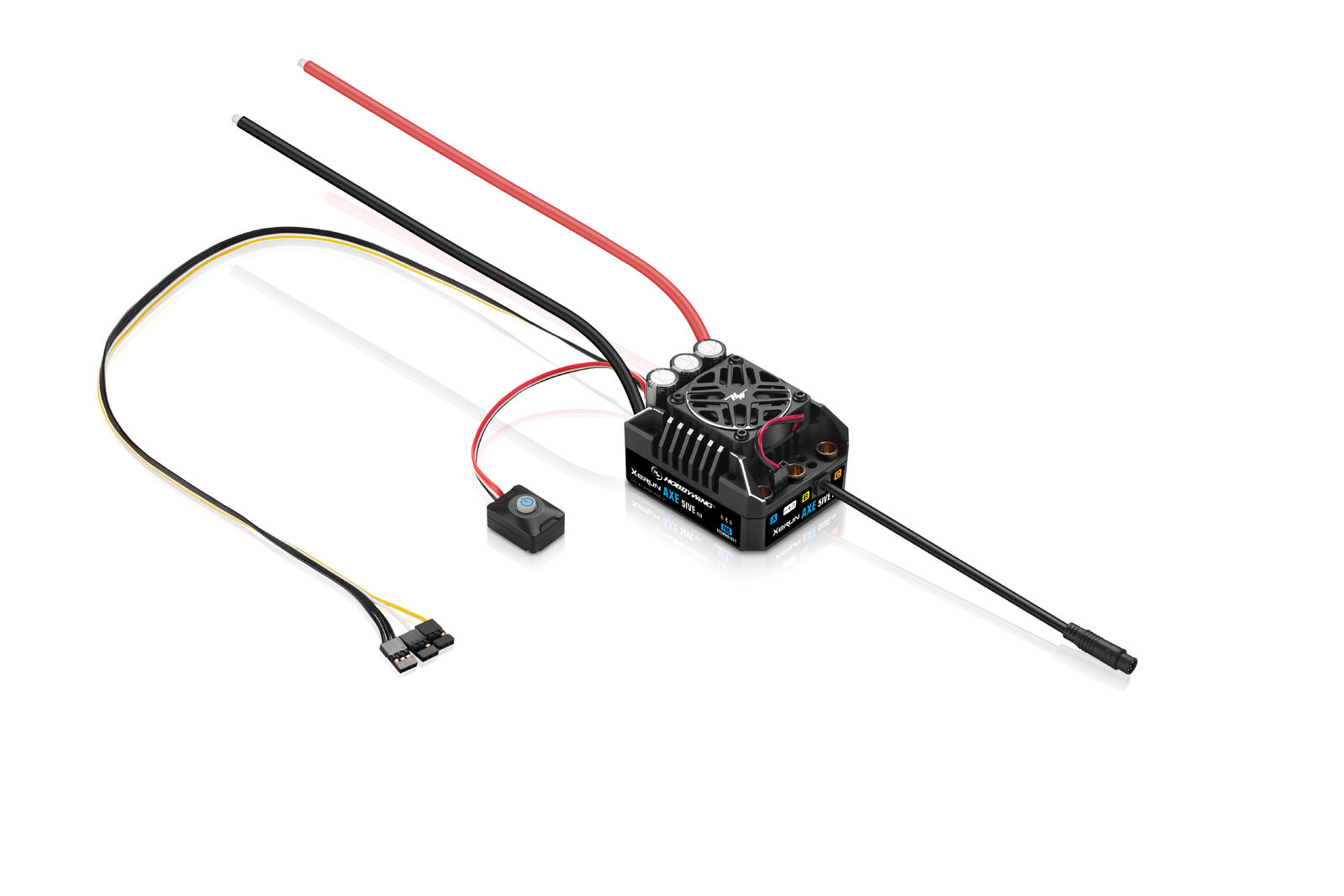

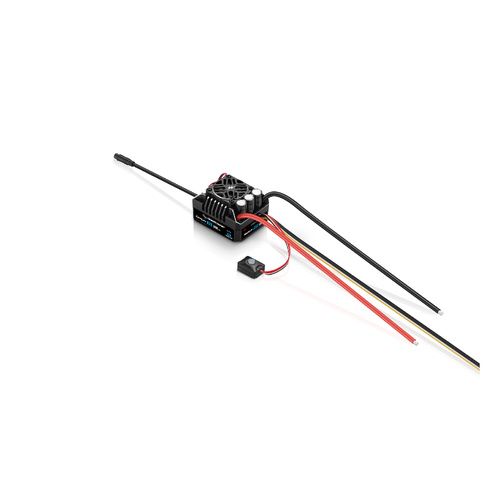

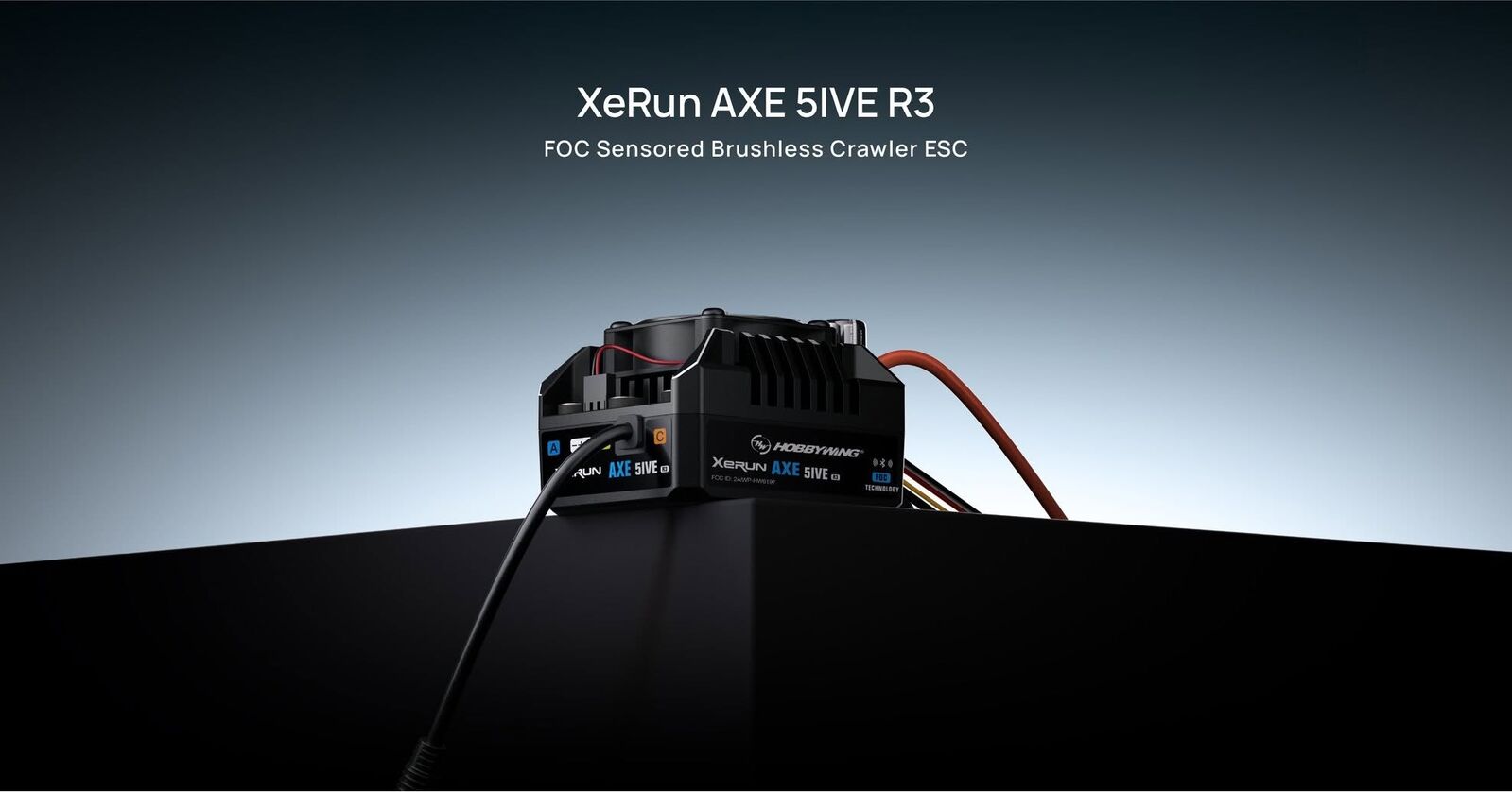

XeRun AXE 5IVE R3

Product NameXeRun AXE 5IVE R3

Product Number

•

• 3011400

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/5^th,1/6^th
• Brushless
• Sensored
• Waterproof

Specifications

• Cont./Peak Current
• Input Voltage
• BEC Output

• 220A/900A

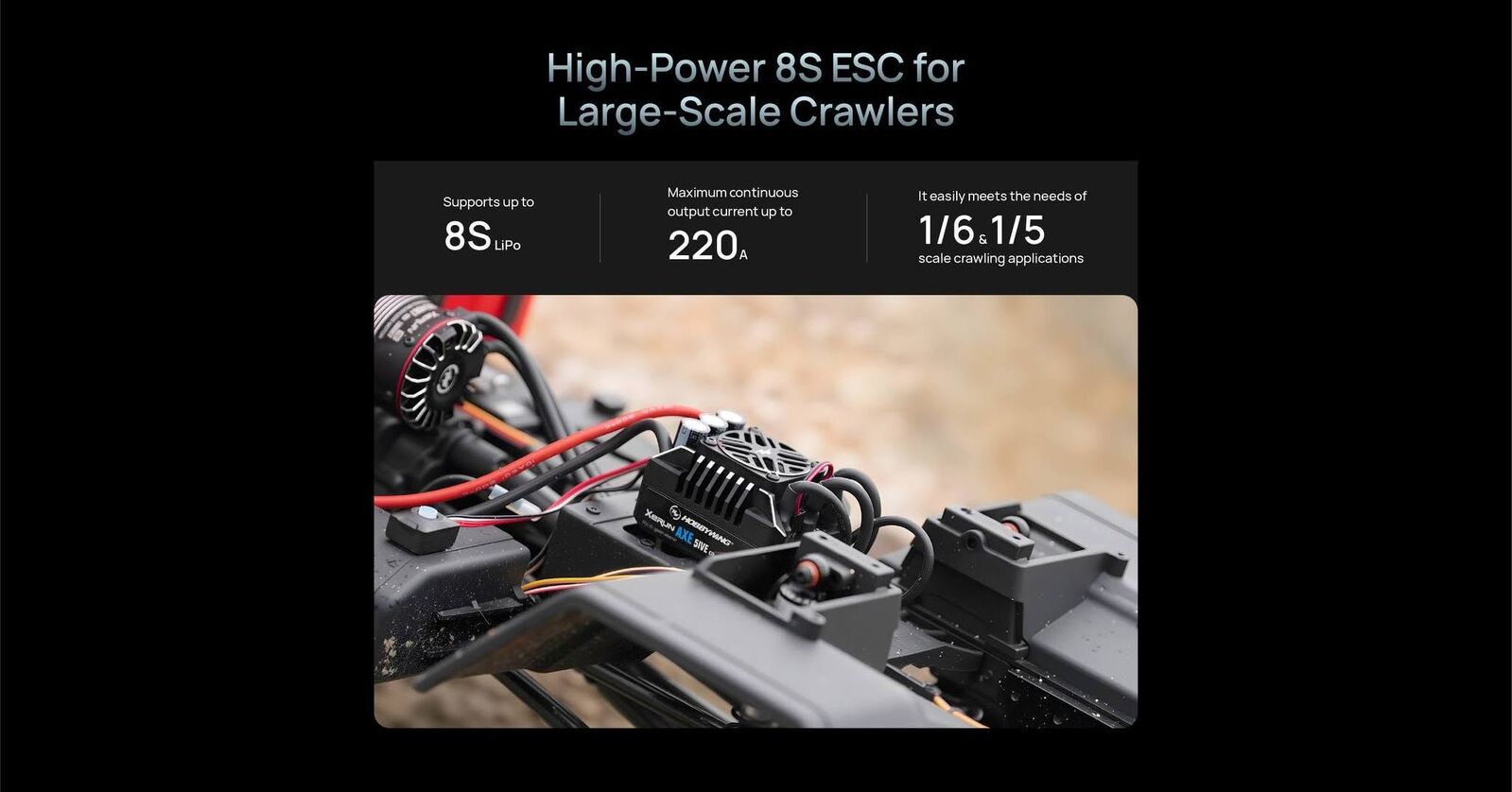

• 3-8S LiPo
• 6V-14V,15A

Wires & Connectors

• Input Wires
• Output Wires
• Input Connectors
• Output Connectors

• Red-10AWG-300mm*1 Black-10AWG-300mm*1
• /
• /
• 6.5mm Connectors (Female)

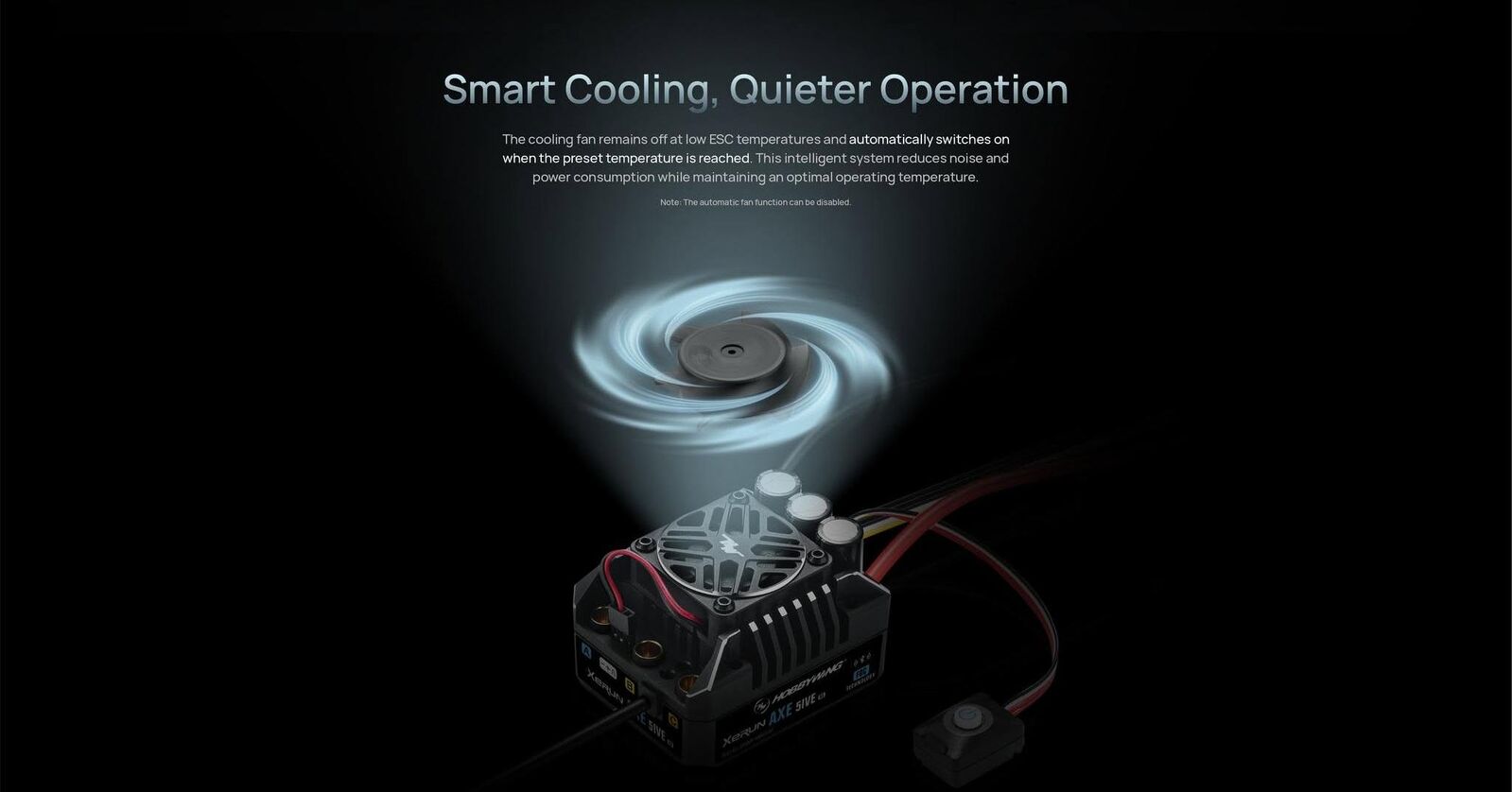

Fan

• Type
• Size
• Voltage Range
• Powered by

• Framed
• 40x40x10mm
• 6-8.4V
• Powered by BEC

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box(STOPPED)
• LCD PRO
• OTA Programmer
• Program Port

• Not Supported
• Not Supported
• Not Supported
• Not Supported
• Not Supported

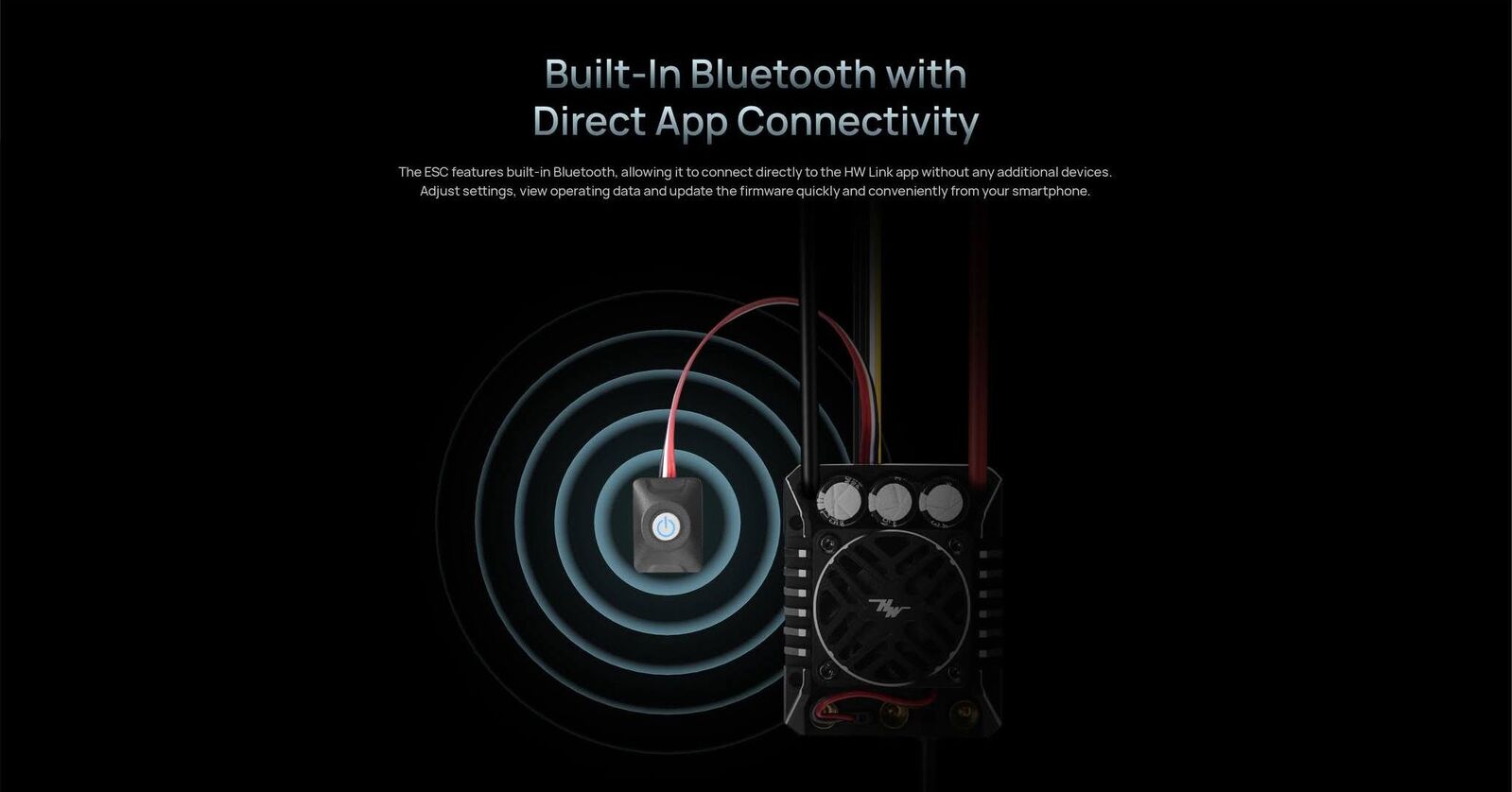

• Built-in Bluetooth

Data Recording

• Extreme value

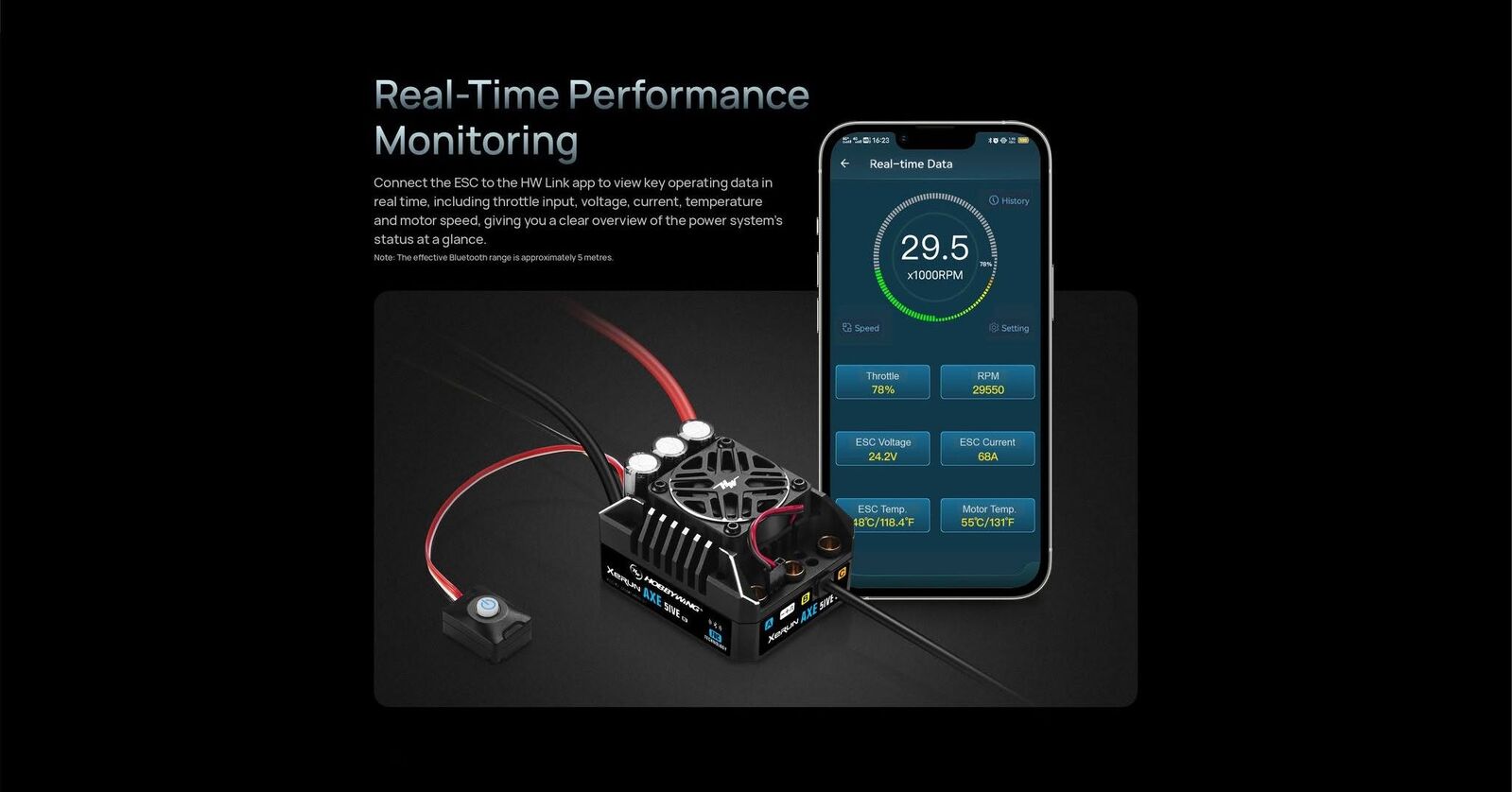

• Real-time Data
• Historical data (Graph)
• External OTA Historical Data(Graph)

• Not Supported
• Supported
• Supported
• Not Supported

Firmware

• Firmware Upgrade

• Supported

Size & Weight

• Size
• Weight

• 70.2*56.3*45.5mm
• 308.2g( Included wires)

Applications

• Motors
• Vehicles
• KV Rating/T Count

• Only the XERUN AXE 4987 R3S and AXE 4274 R3 Series
• 1/5^th,1/6^th Rock Crawler
• XERUN AXE 4987 R3S
