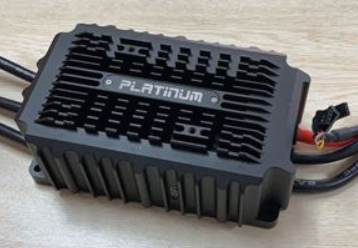

PLATINUM-300A-HV-SBEC-V4.1RTF

300amp continuos 400Amp Burst.

BEC Switch-mode, 5-8V Adjustable, Cont./Peak : 10A/30A

6-14S LiPo

168.8*103.8*61 1240g



Technical Data

Connection Wires: Black 6AWG wire output wires

Connection Wires: Black & Red 6AWG input wires

Cont./Peak Current: 300A / 400A

Motor Type: Brushless motor

Applications: Hobbywing firmware

Input: 6-14S Lipo

BEC Output: Switch-mode, 5-8V adjustable

BEC Current (Cont. / Peak): 10A /30A

Throttle Signal / RPM Signal Transmission: (White/Red/Black)Throttle signal wire / Yellow RPM signal wire

Size (LxWxH): 168.8*103.8*61.0 mm

Weight: 1240g

Programming Port: (Brown/Purple/Grey)progarmmeing wire

ESC Programming Via: Multifunction LCD Program Box
