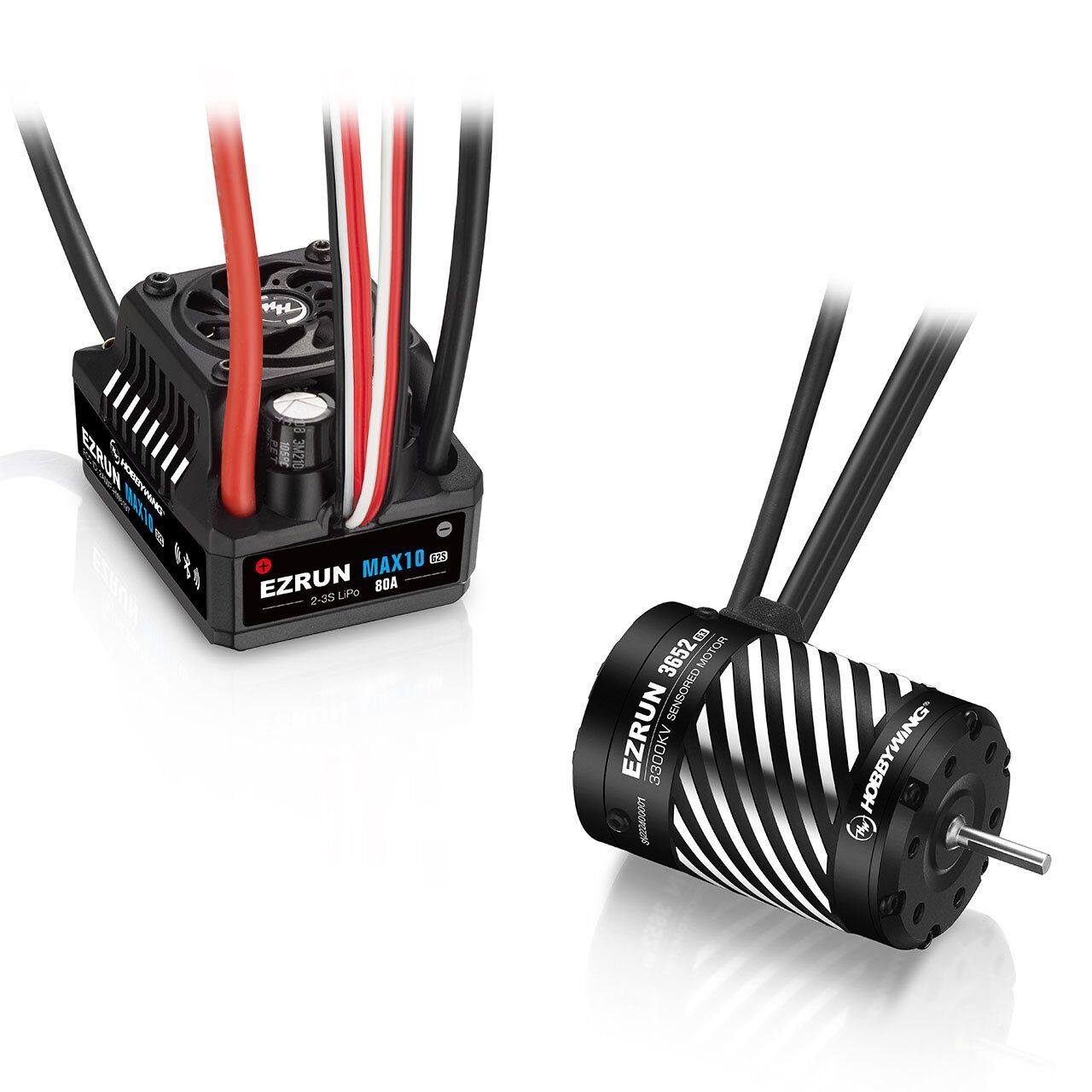

Product information "Hobbywing Ezrun MAX10 G2S 80A Combo with 3652SD-3300kV-G3"

This combo pairs the Ezrun MAX10 G2S with 80A and the matching Ezrun 3652SD G3 rated 3300kV - a factory-matched 1/10 scale drivetrain package.

The MAX10 G2S is the consistent evolution of the MAX10 G2: identical power ratings, identical case - but an ESC that can be set up without any additional hardware. The Bluetooth module sits inside the power switch, the connection to the smartphone runs through the HW LINK app, and parameter setup, data review and firmware updates all run through it. Also new over the G2 are the internal data logging and the third BEC step of 8.4V for high-voltage servos.

This pairing is exactly where the ESC plays to its strength: turbo timing can only be enabled with Hobbywing motors and raises maximum RPM by up to approx. 25%. Motor overheat protection likewise only works with a supported Hobbywing motor. The supplied Ezrun 3652SD G3 provides both out of the box.

Features

  • Bluetooth module integrated into the power switch - programming straight from a smartphone, no extra devices
  • Internal data logging of the last 10 minutes of runtime, reviewed graphically in the HW LINK app
  • Turbo timing up to 20 degrees - up to approx. 25% higher maximum RPM with the supplied motor
  • Three-step BEC: 6V / 7.4V / 8.4V at 5A in switch mode
  • Frameless fan with side air discharge, switched in by temperature
  • ESC and motor dust- and waterproof to IP67, with waterproof sensor cable
  • Capacitor overheat protection
  • Protection against low voltage, overheating and loss of signal
  • 4-pole rotor for high torque, quick acceleration and stable performance
  • CNC machined aluminium housing and high-precision bearings on the motor

Technical Specifications

ESC (Ezrun MAX10 G2S 80A)
Type 1/10 brushless, sensored and sensorless
Current (cont./peak) 80A / 520A
Input Voltage 2-3S LiPo
BEC 6V / 7.4V / 8.4V adjustable, 5A continuous (switch mode)
Motor Limits 2S LiPo: KV <= 6000
3S LiPo: KV <= 4200 (3652/3665 size motor)
Turbo Timing up to 20 degrees
Fan Yes, powered by the BEC
Programming Bluetooth (HW LINK app)
LCD program box
OTA program module
Programming Port Separate, 3-pin
Waterproof Yes, to IP67
Input XT60
Output Gold bullet sockets
Dimensions 53 x 39.5 x 37.2 mm
Weight 125 g (incl. wires and connectors)
Application 1/10 On-Road, Buggy, Rally and Short Course Truck
Motor (Ezrun 3652SD G3)
Type Brushless, Sensored
kV Rating 3300kV
No-Load Current <= 3.9A
Cells 2-3S LiPo
Poles 4
Length 53 mm
Diameter 37 mm
Shaft Diameter 3.175 mm
Weight 228 g
Waterproof Yes, to IP67
Application 1/10 On-Road / Off-Road Short Course Truck (light duty)

Note: A 3S battery or larger is required for 7.4V or 8.4V at the BEC. The effective Bluetooth range is approx. 5 m by design.

Delivery

  • 1x Ezrun MAX10 G2S ESC 80A
  • 1x Ezrun 3652SD G3 motor rated 3300kV

(HW38010206)

SKU HW38010206
Brand HOBBYWING
