Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

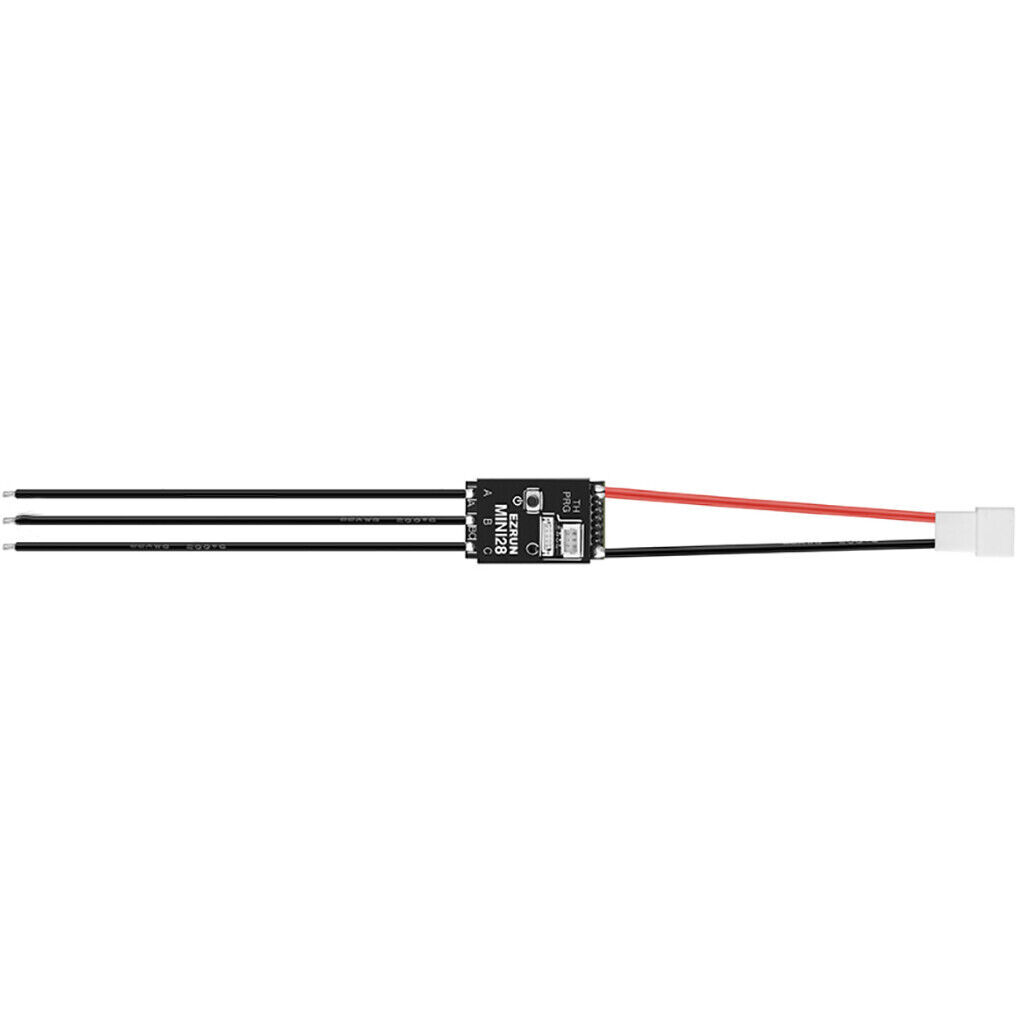

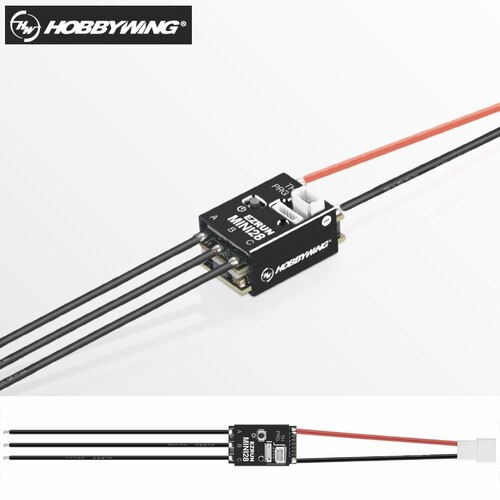

Scale: 1/28th Brushed/Brushless: BL
Sensored/Sensorless: SD Waterproof: No

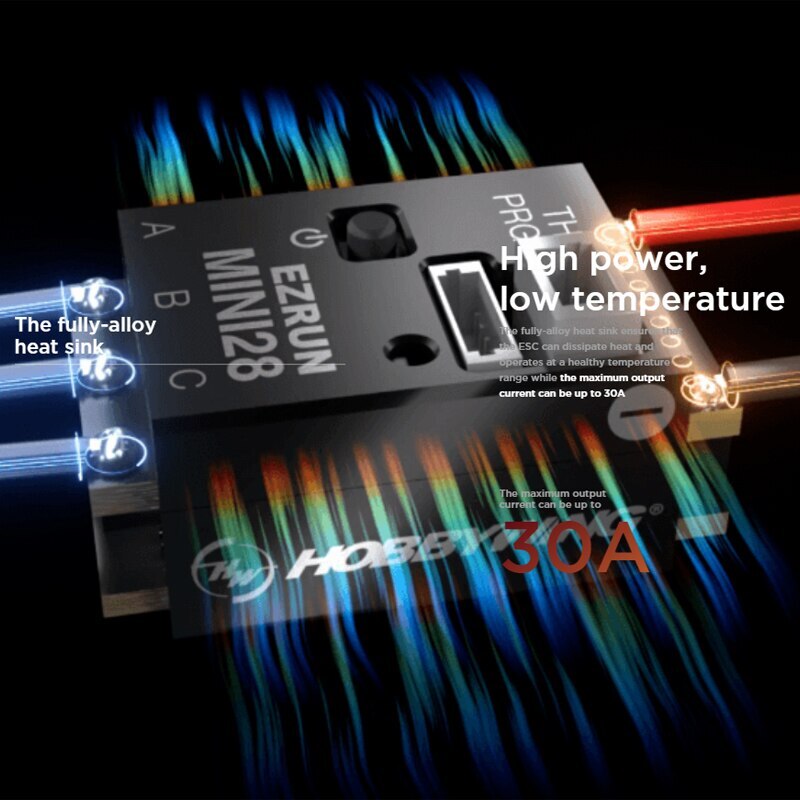

Cont./Peak Current: 30A/80A
Input Voltage: 2S Lipo
BEC Output: 6V/7.4V @Max 3.5A

Wires & Connectors
Input Wires:Black-20AWG-55mm*1 Red-20AWG-55mm*1
Output Wires:Black-22AWG-80mm*3
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
OTA Programmer: Supported
Program Port: Throttle Wire

Firmware Upgrade: Supported
Size:22.7x14.2x11.8mm
Weight:5g (without wires)

Applications FOR:
Motors: 1626 Size Motors
Vehicles:1/28,1/27,1/24

(HW30101300)

SKU HW30101300
Brand HOBBYWING
