EcoPower 100 Light Duty Surface & Air Servo

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

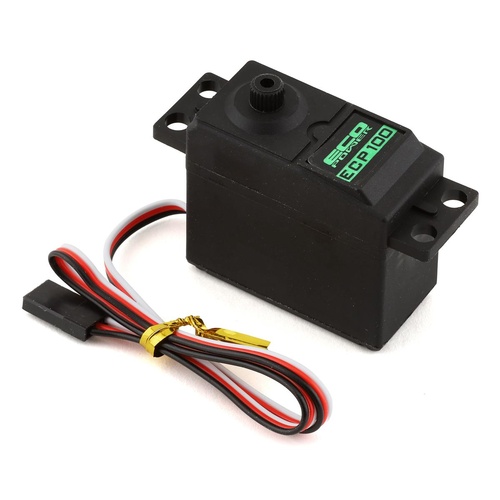

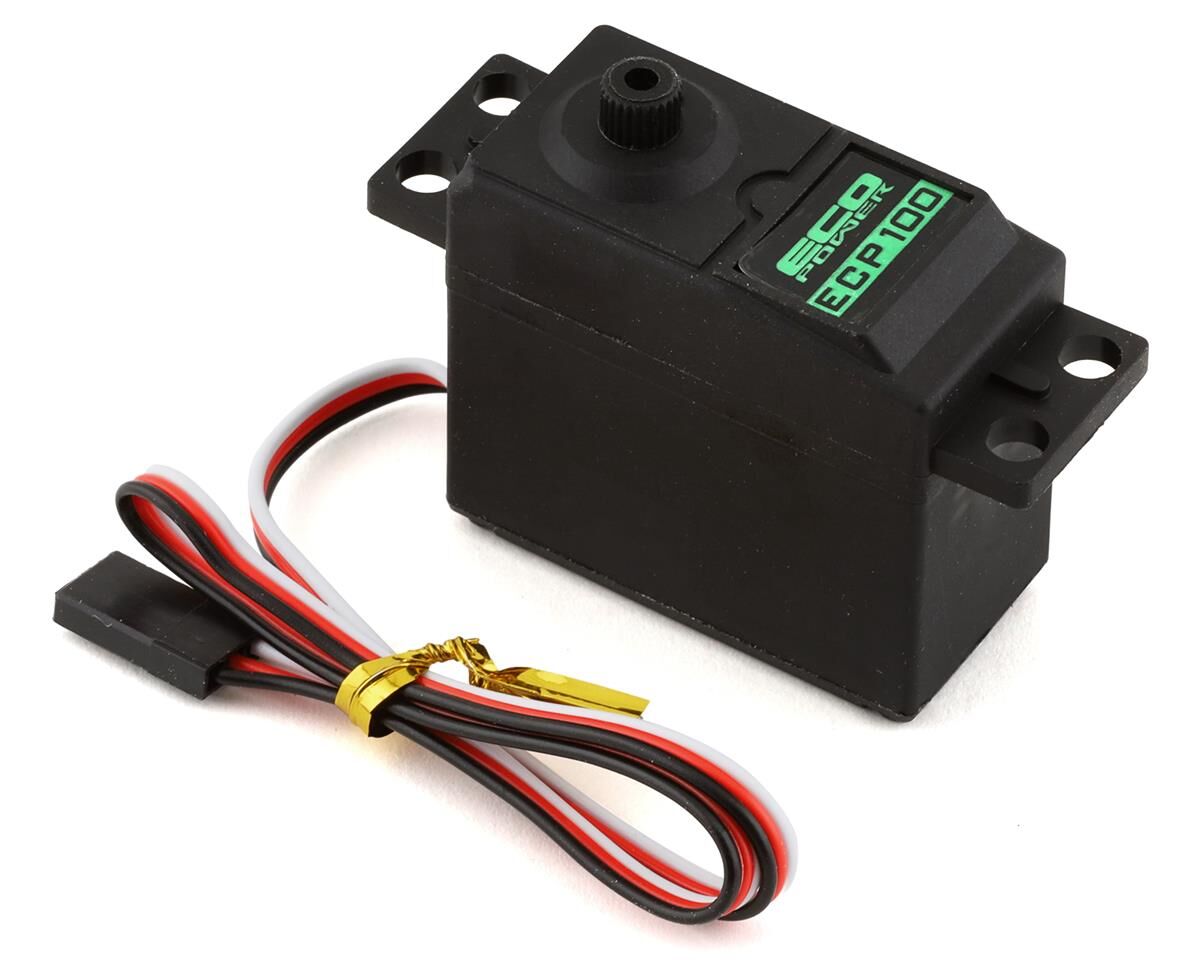

The EcoPower 100 Standard Ball Bearing Servo is an excellent option when you need an affordable, light duty replacement servo. The EcoPower 100 servo has been designed specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos. The servo features smooth ball bearing control, durable nylon gears and a long 265mm servo lead. Package includes one servo, one servo mount set, five molded servo horns and hardware.

NOTE: This servo is not designed for use with fuel-powered surface or air use.


Features:

  • Affordable option for light duty surface and air applications
  • 89 oz-in of torque @ 6.0V, and .18 transit speed
  • Digital circuitry
  • Cored motor
  • Durable nylon gears
  • 265mm servo lead

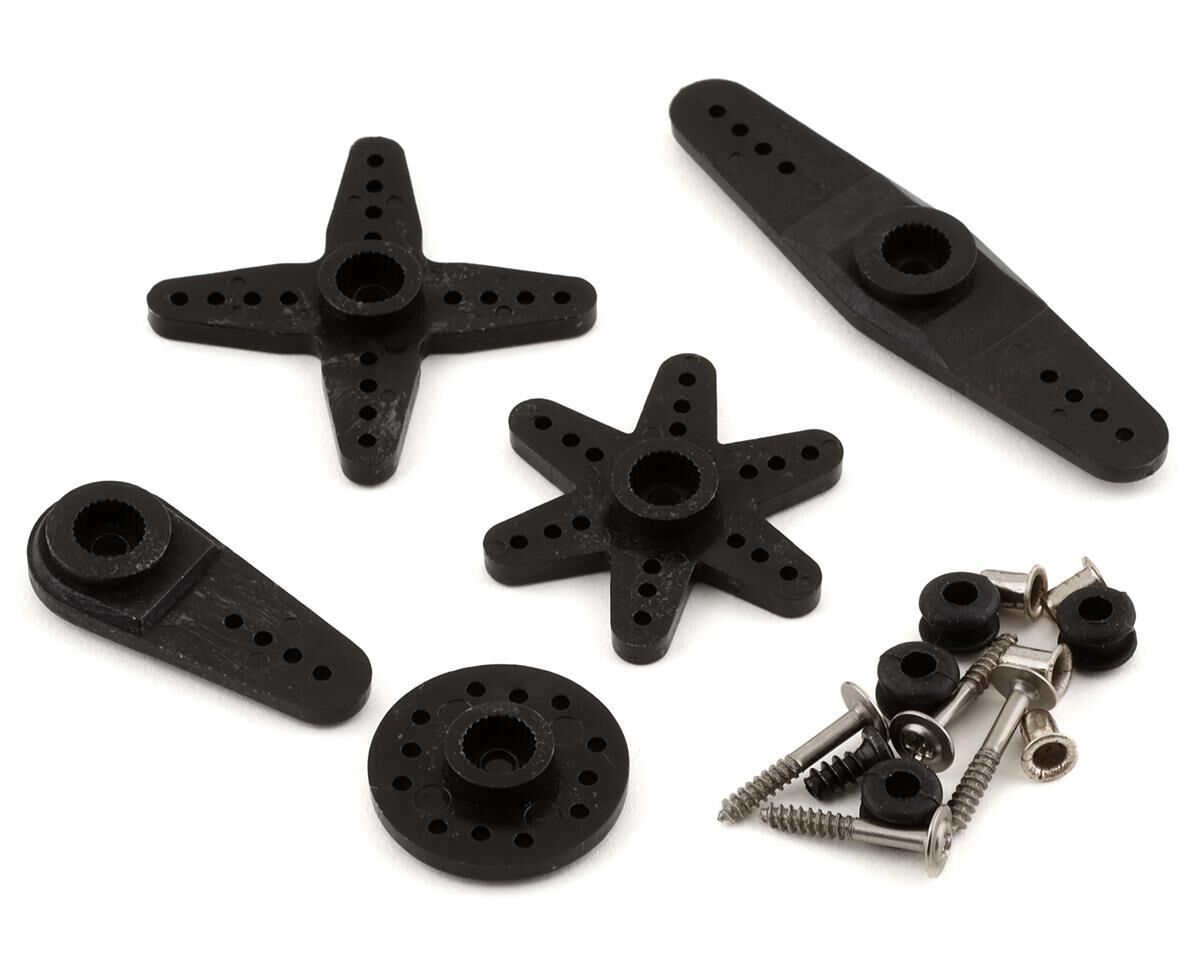

  • Includes molded star, 4 way, dual, single and round arm type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects*

*NOTE: Warranty does not cover stripped gears or damage caused by abuse.







Servo Model 100
Recommended Application Light Duty Surface & Air
Waterproof No
Operating Voltage 4.8V - 6.0V
Operating Speed @ 4.8V 0.2/60° sec
Operating Speed @ 6.0V 0.18/60° sec
Dynamic Torque @ 4.8V 62 oz-in (4.4 kg-cm)
Dynamic Torque @ 6.0V 89 oz-in (6.4 kg-cm)
Motor Type Cored DC
Output Shaft 25 Tooth
Gears Nylon
Weight 36g
Dimensions 40.5x20x42.25mm (LxWxH)



  • Redcat FiftyNine
  • Redcat Monte Carlo
  • Redcat SixtyFour
  • Tamiya The Frog

(ECP-100)

SKU ECP-100
Barcode # 707470762307
Brand ECOPOWER
