EcoPower WP173-X24 Aluminum Digital Micro Servo Direct Fit For Axial™ SCX24 (HV)

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

(Waterproof)

The Revolution of Powerful Mini Servos!

EcoPower is proud to introduce the WP173-X24 Aluminum Digital Micro High-Voltage Servo! The most innovative and powerful micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!

EcoPower WP173-X24 & WP827-X24 SCX24 Servos with Integrated Mount

About the WP173-X24 Servo



Design

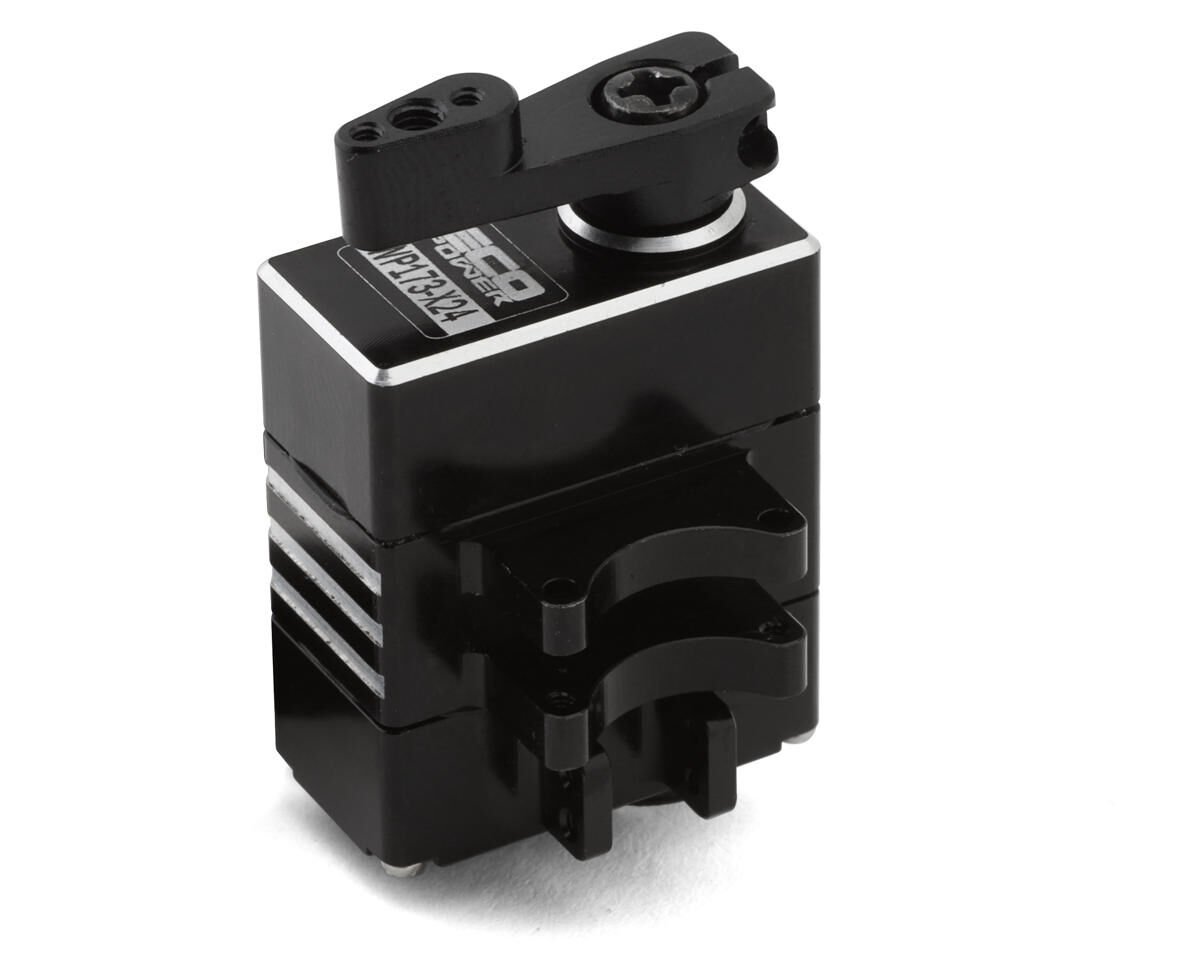

Unlike all other traditional servos on the market, the EcoPower WP173-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP173 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

Extreme Torque & Speed

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs with heavier tuning weights and wheels! This EcoPower WP173-X24 micro servo is capable of outputting 173oz.in (12.5Kg-cm) of torque and 0.07 sec/60 of speed at 8.4 Volts to turn even the heaviest micro rig wheels smoothly, precisely and with ease!

Robust Construction & Drivetrain

When it comes to durability and reliability, the EcoPower WP173-X24 micro servo is fitted with all metal heavy-duty gears, an all-aluminum finned case to maximize heat dissipation and an aluminum 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP173-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

Features:

  • The ultimate upgrade for Axial™ SCX24
  • Extreme torque and speed levels
  • Innovative direct axle mount
  • Eliminates the need for separate servo mount
  • All CNC-machined aluminum case
  • 1-year warranty!
  • High voltage capable of operating on up to 8.4 Volts!
  • HD all metal gears and output shaft spline
  • Waterproof design
  • Powerful coreless motor
  • Includes a CNC-machined aluminum horn with multiple mounting holes
  • Includes:

  • (1) WP173-X24 Aluminum Digital Micro Servo
  • (1) Aluminum Servo Horn

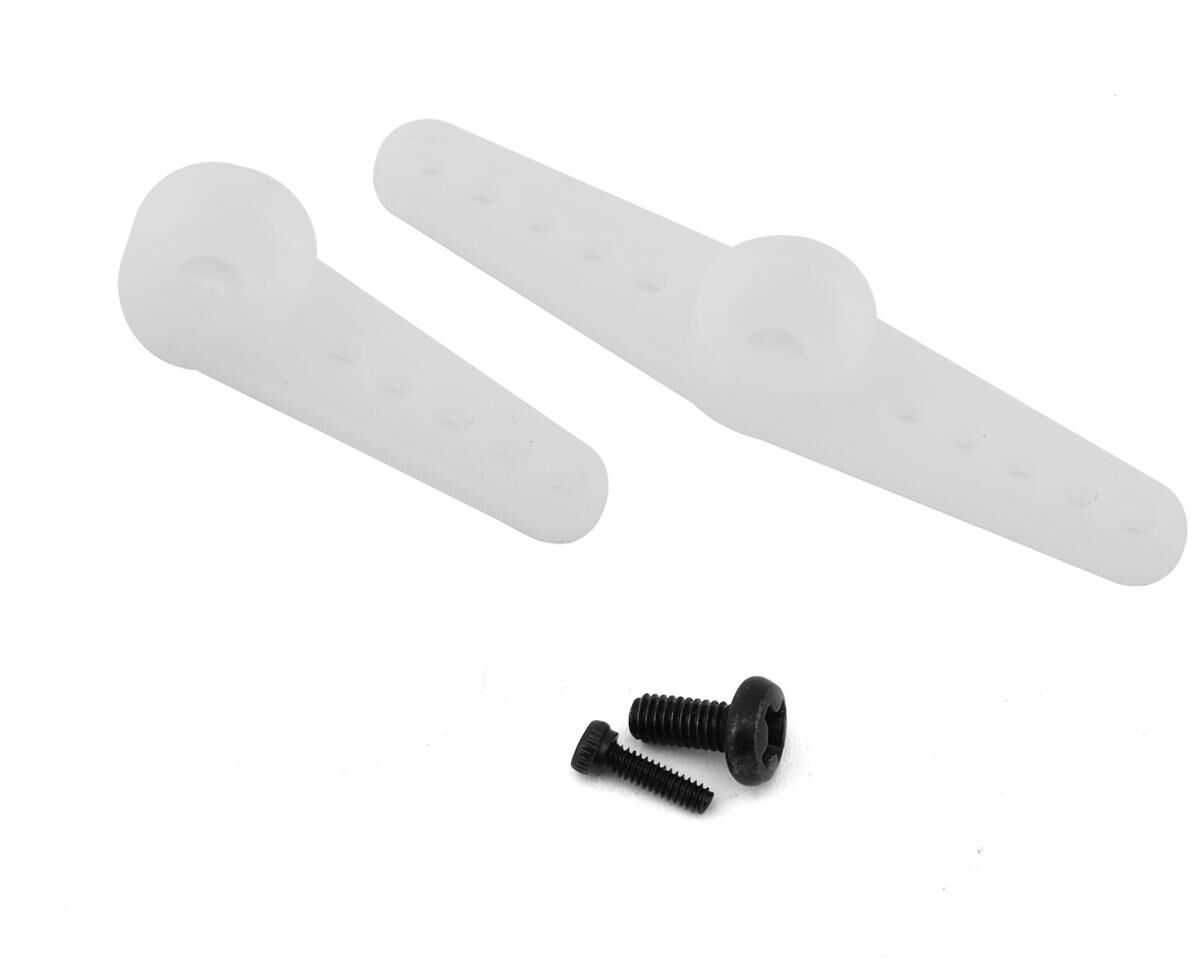

  • (2) Composite Servo Horns
  • Specifications:

    Application 1/24 & 1/18
    Input Voltage 6V-8.4V
    Speed
    @6.0V: 0.09 sec/60
    @8.4V: 0.07 sec/60
    Torque:
    @6.0V: 123oz.in (8.9Kg-cm)
    @8.4V: 173oz.in (12.5Kg-cm)
    Motor Digital Coreless
    Output Shaft Mini 25T
    Gear Material Metal
    Dimensions (LxWxH) 0.9x0.47x1.25in (23x12x31.75mm)
    Weight 16g

    *Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!

    **Tech Note: Do not exceed 8.4 Volt as it might damage the servo

    ***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points

(ECP-173-X24)

SKU ECP-173-X24
Barcode # 694485082196
Brand ECOPOWER
