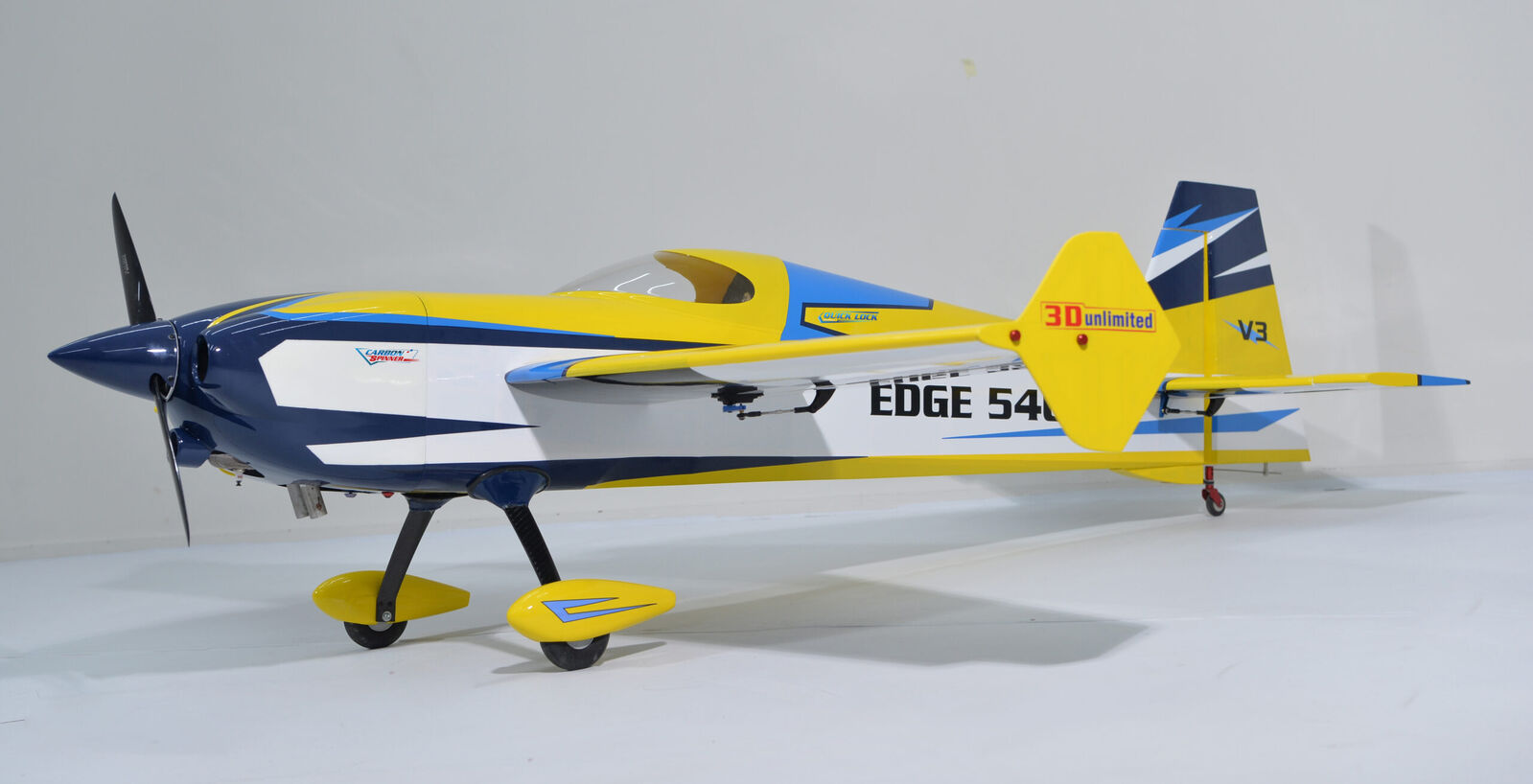

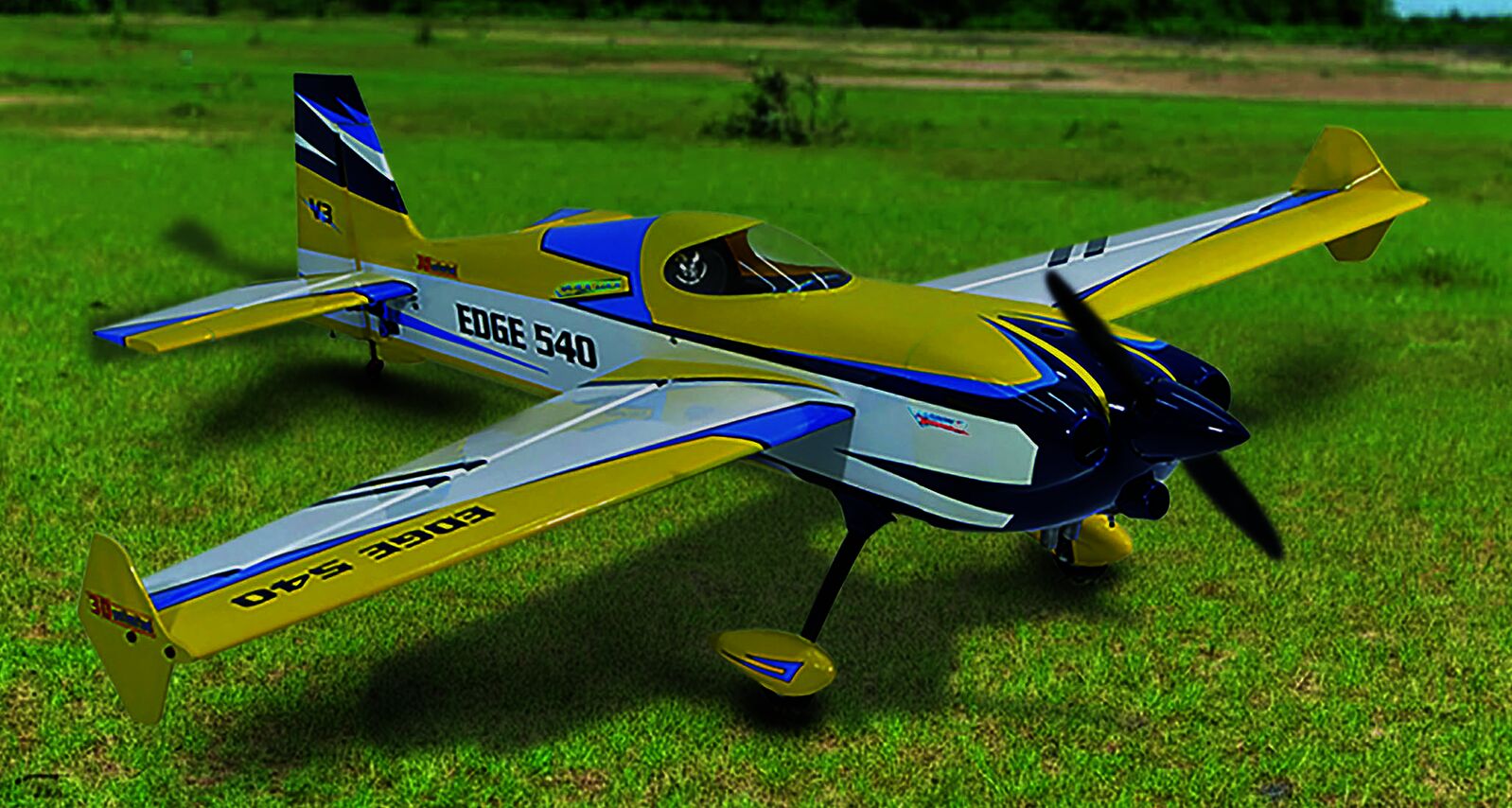

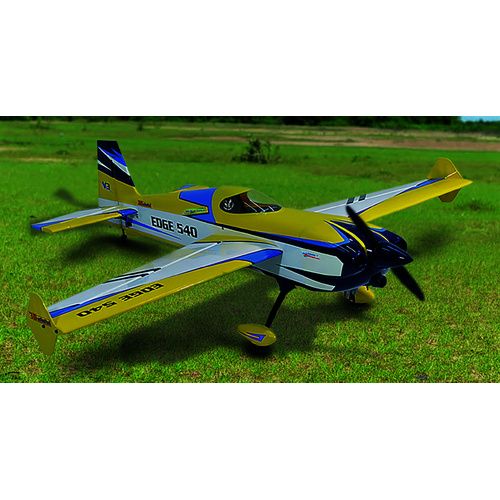

EDGE 540 V3 74in 30-35CC

*** PRODUCT DATA:
–  Wingspan: 1,880 mm (74 in).
–  Length: 1,852 mm (73 in).
–  Flying weight: 5600-5800gr
–  Wing area: 63.6 dm².
–  Wing loading: 91.2 g/dm².
–  Spinner : 86mm (included).
–  Gear type: Carbon fiber for main gear (included) and Carbon fiber tail gear (included).
–  Covering type: Genuine oracover.
Parts listing required (not included):
–  Radio: 06 channels minimum.
 – Servo: 6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
–  Servo mount: 21mm x 42mm;  16mm x 36mm
–  Engine: 30-35cc gas.
–  Motor: Brushless outrunner 2500 W, 250 KV (not included)
– Experience level: Intermediate
– Plane type: Aerobatic 3D free style

***FEATURES:
– Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
– Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
– Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
– Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
– Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
– Open fuselage design allows for simple and efficient canister installation.
– The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.

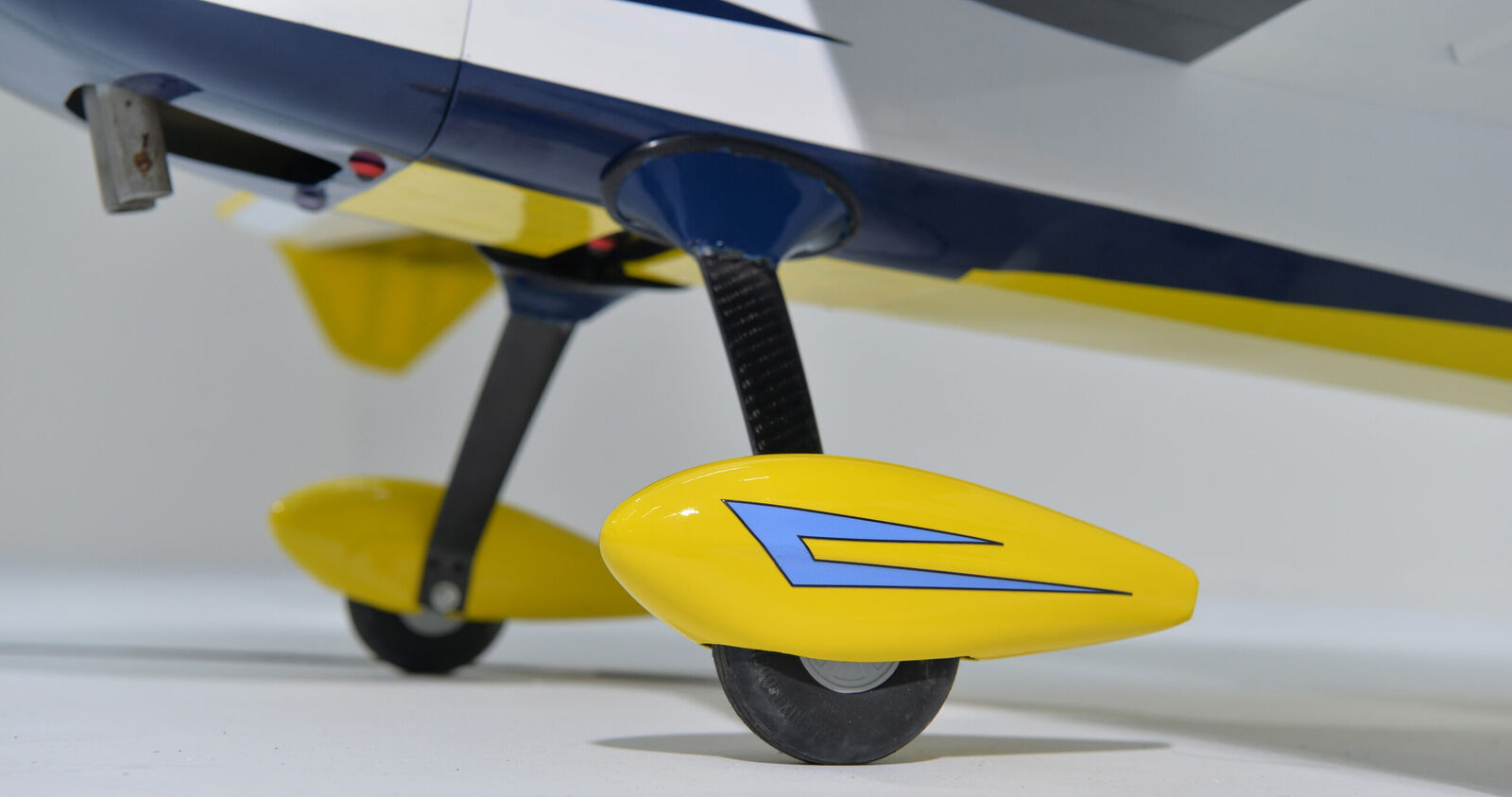

– Durable carbon fiber main landing gear included in the kit.
– Lightweight and robust carbon tail gear included in the kit.
– High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
– High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
– High quality accessories included with the kit.

***ENGINE AND SERVO RECOMMENDED (NOT INCLUDED WITH THE KIT)
– 30-35cc Gas Engine (x1)
– Servo for Aileron 30-40 kg (x2)       – Standard size 20 x 40mm
– Servo for Elevator 16-22 kg (x2)     – Standard size 16 x 36mm
– Servo for Rudder 16-22 kg (x1)       – Standard size 16 x 36mm
– Servo for Throttle 12 kg (x1)           – Standard size 20 x 40m

SHIPPING;

11KG

143x53x38cm
