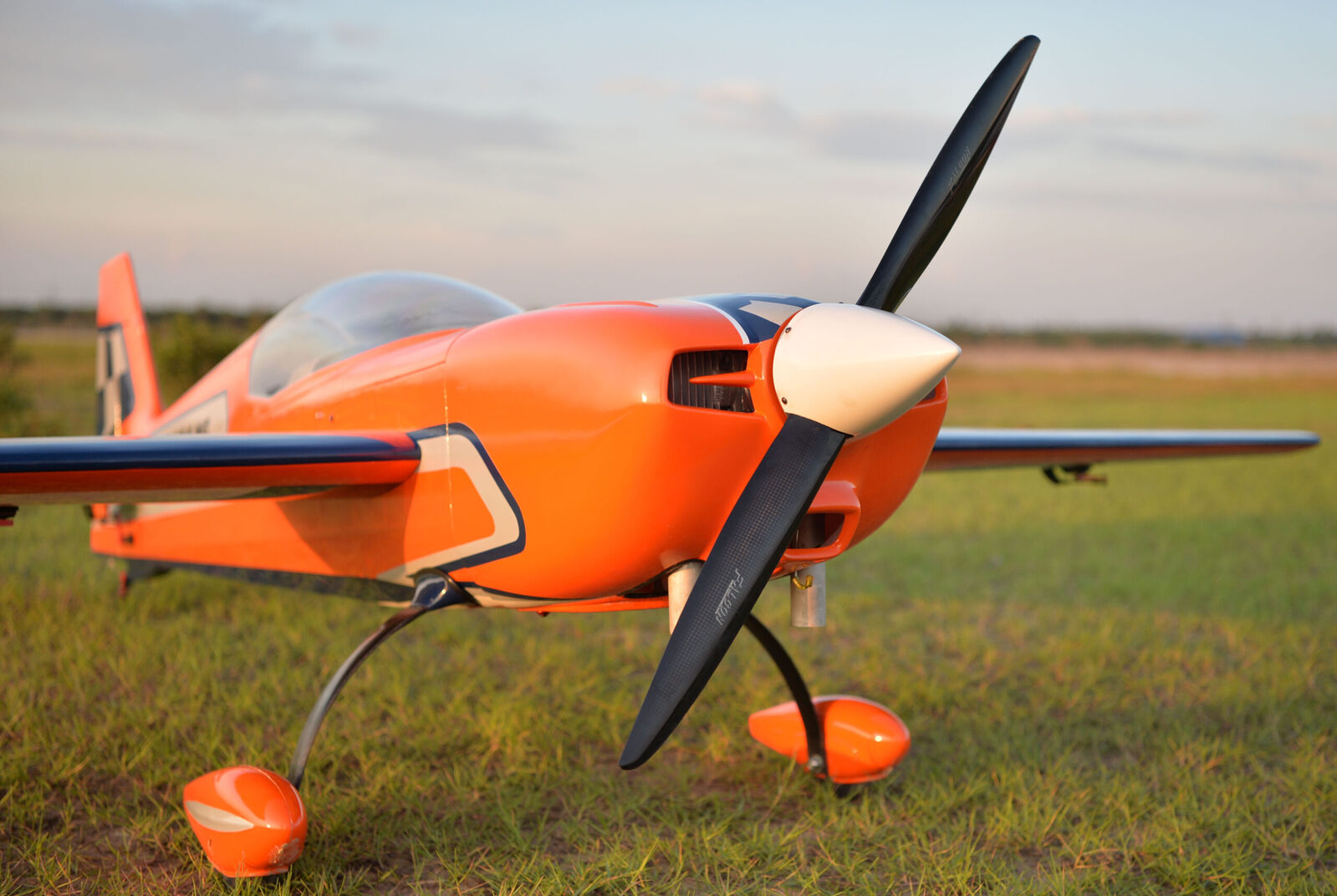

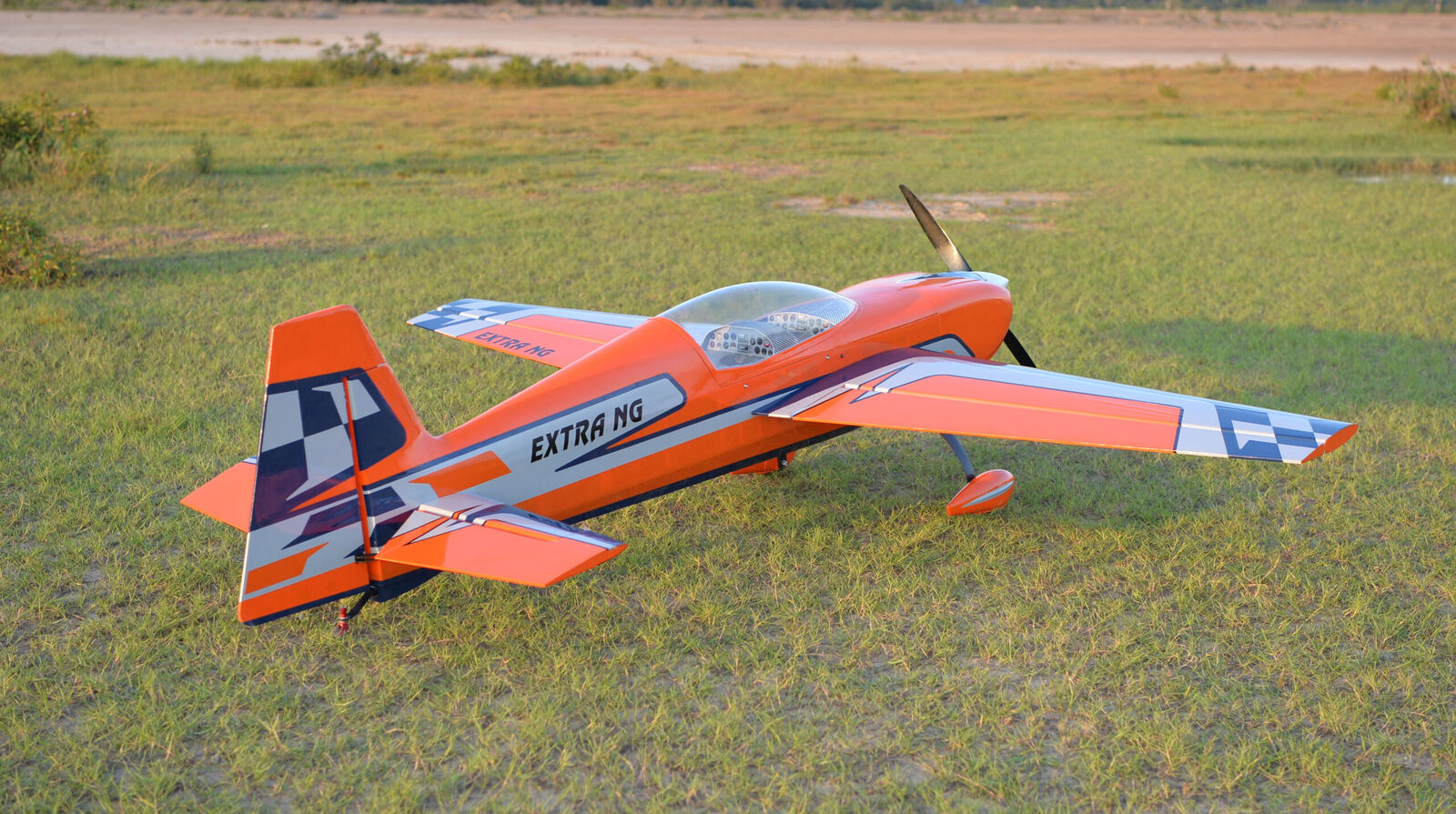

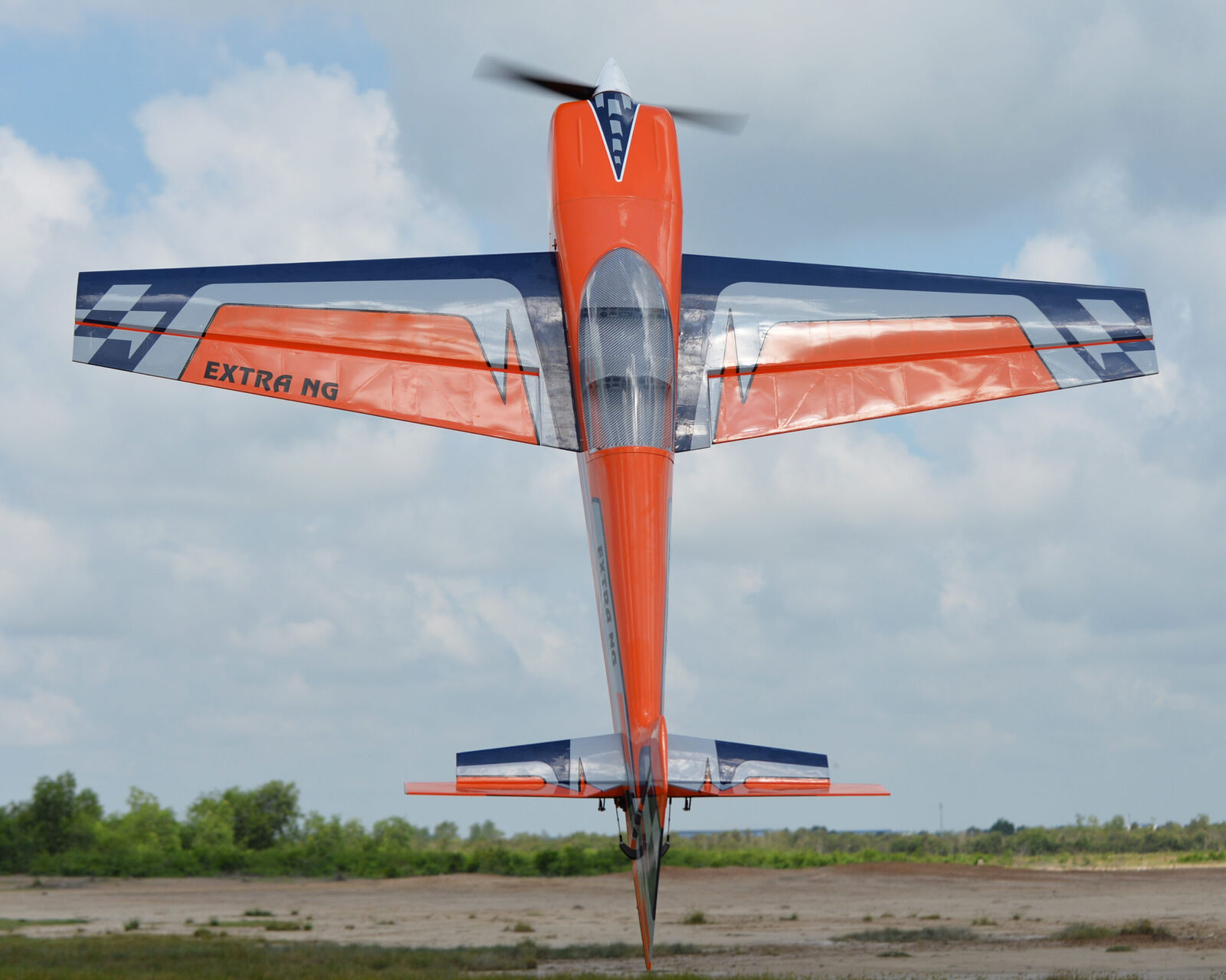

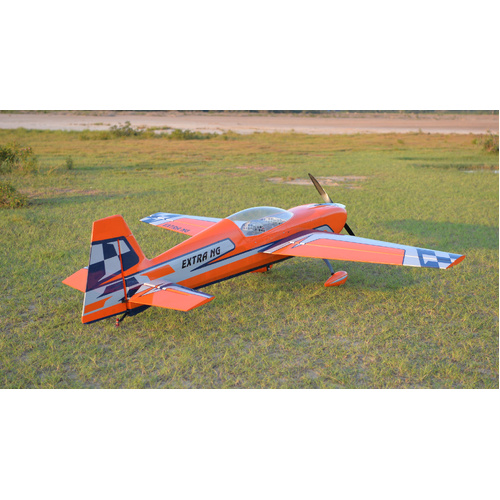

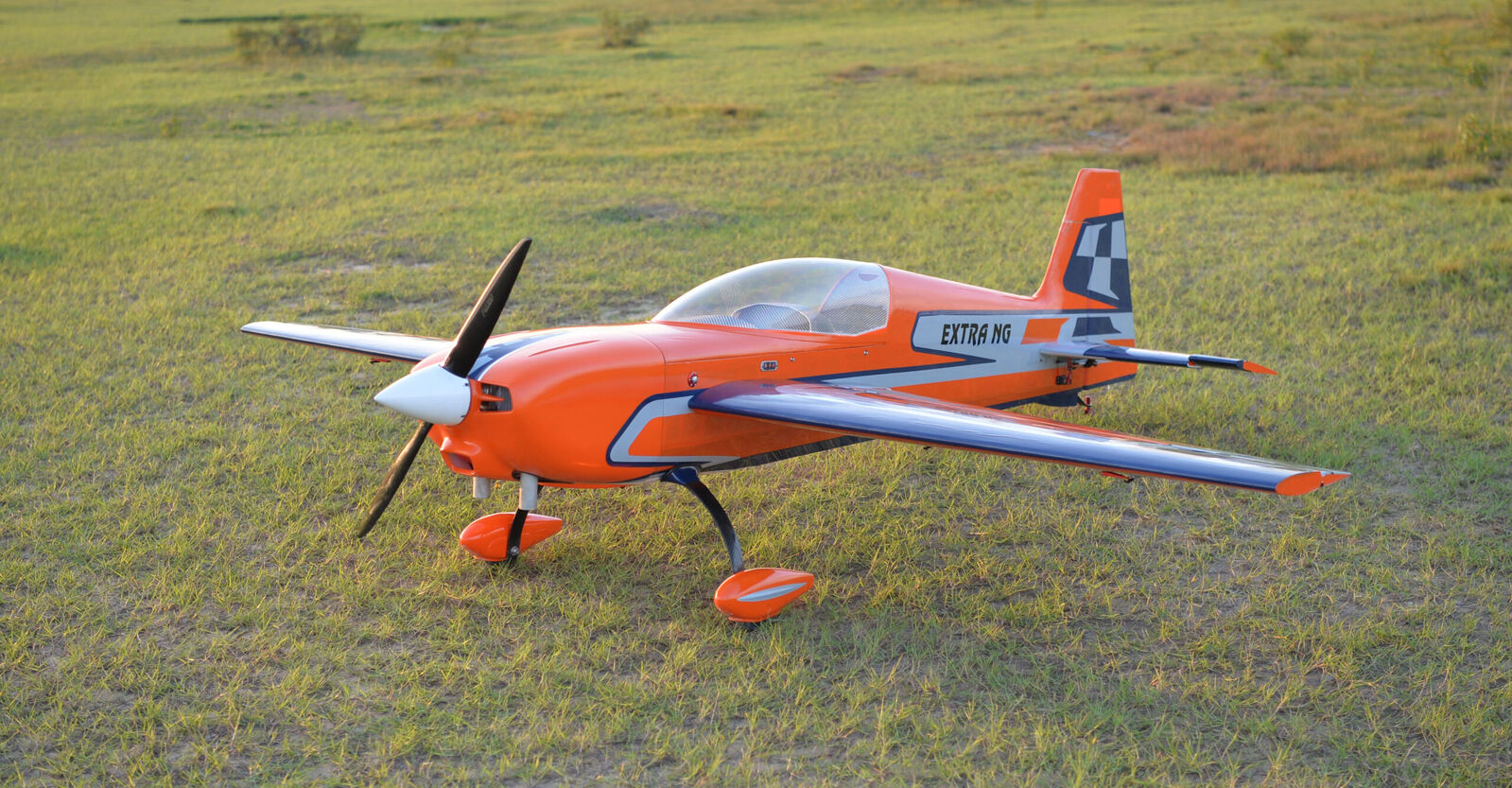

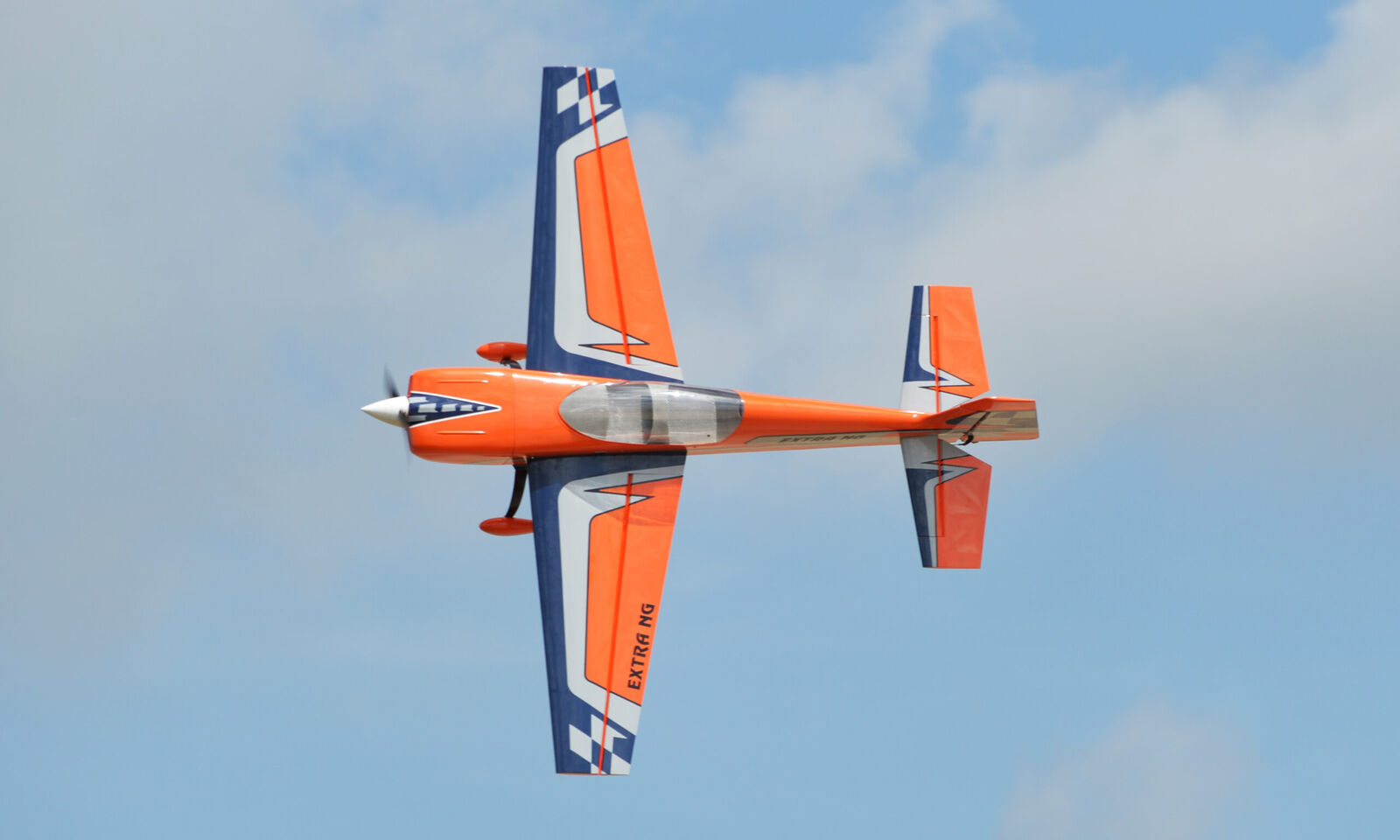

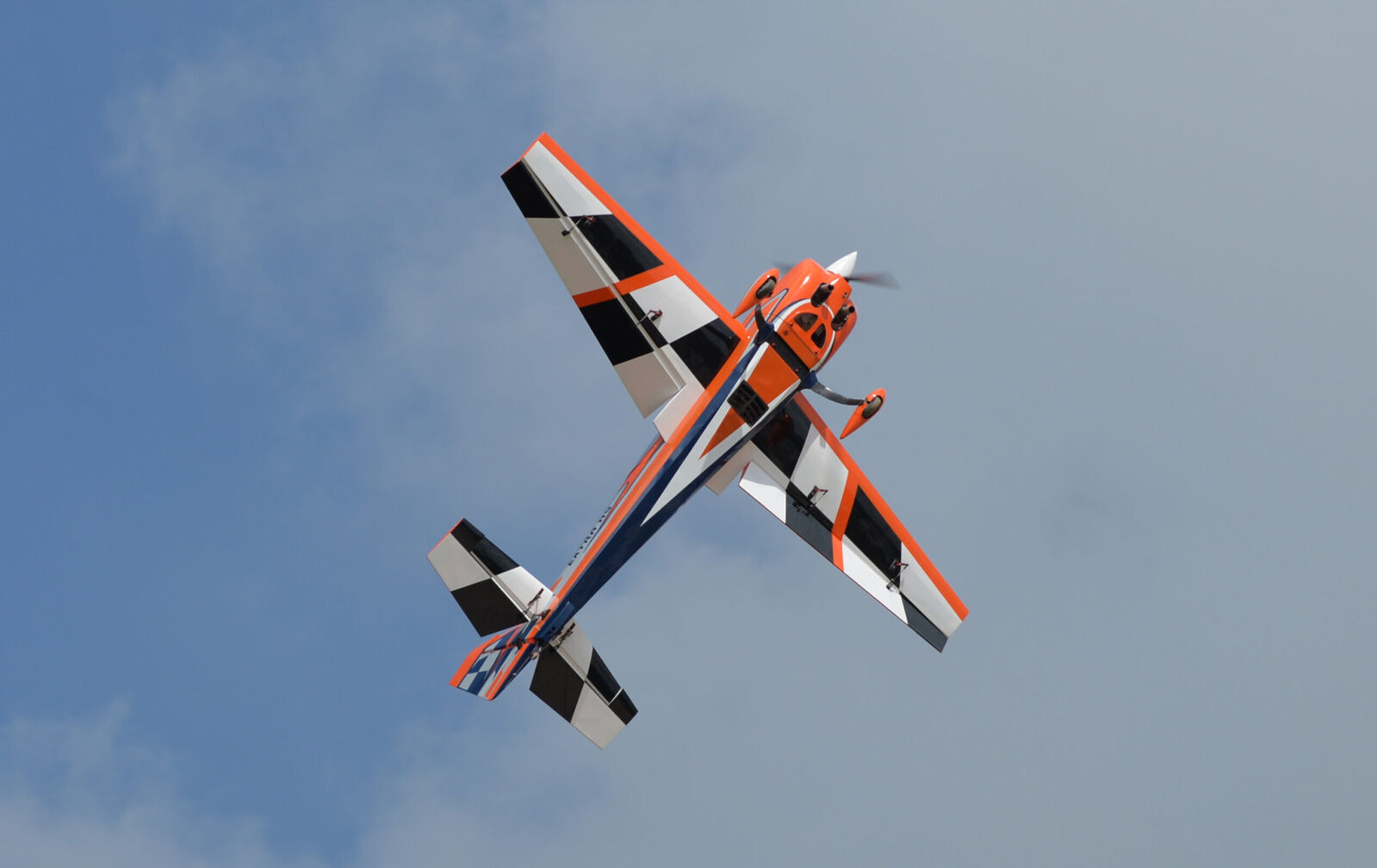

EXTRA NG 105in 120CC

PRODUCT DATA:
– Wingspan: 2667mm (105 in)
– Length: 2565mm (101 in)
– Flying weight: 12000gr
–  Wing area: 123.6dm².
–  Wing loading: 97 g/dm².
–  Servo mount: 42mm x 21mm.
–  Wing type: Naca Airfoil.
–  Spinner : 115mm (included).
–  Gear type: Carbon fiber for main gear (included) and Carbon fiber tail gear (included).
–  Covering type: Genuine oracover.
Parts listing required (not included):
–  Radio: 09 channels minimum.
–  Servo: 09 servos (HV High torque steel gear servo).
–  Engine: 120-125cc           .
–  Propeller: Suit with your engine.

FEATURES:
– Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
– Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
– Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
– Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
– Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
– Open fuselage design allows for simple and efficient canister installation.
– The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.
– Durable carbon fiber main landing gear included in the kit.
– Lightweight and robust carbon tail gear included in the kit.
– High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
– High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
– High quality accessories included with the kit.

  ENGINE AND SERVO RECOMMENDED (NOT INCLUDED WITH THE KIT)

POWER SYSTEM:
–  Engine 120-125cc gas          Propeller:  suit with your engine
–  Fuel tank: 1000ml

SERVO: Metal gear hi-torque servos
–   4 Aileron: hi-torque 55-60 kg ( Standard size: 20x40mm )
–   2 Elevator: hi-torque 40-45 kg ( Standard size: 20x40mm )
–   2 Rudder: hi-torque 40-45 kg ( Standard size: 20x40mm )
–   1 Throttle: hi-torque 20 kg ( Standard size: 20x40mm )
