EZRUN MAX10 G2S-140A

Calculate Shipping

Fixed Rate By Invoice Total - $19.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS, DISPLAY STANDS & OVER LENGTH ITEMS )

Free pick-up from store - $0.00
Warehouse pick available

Description
Specifications

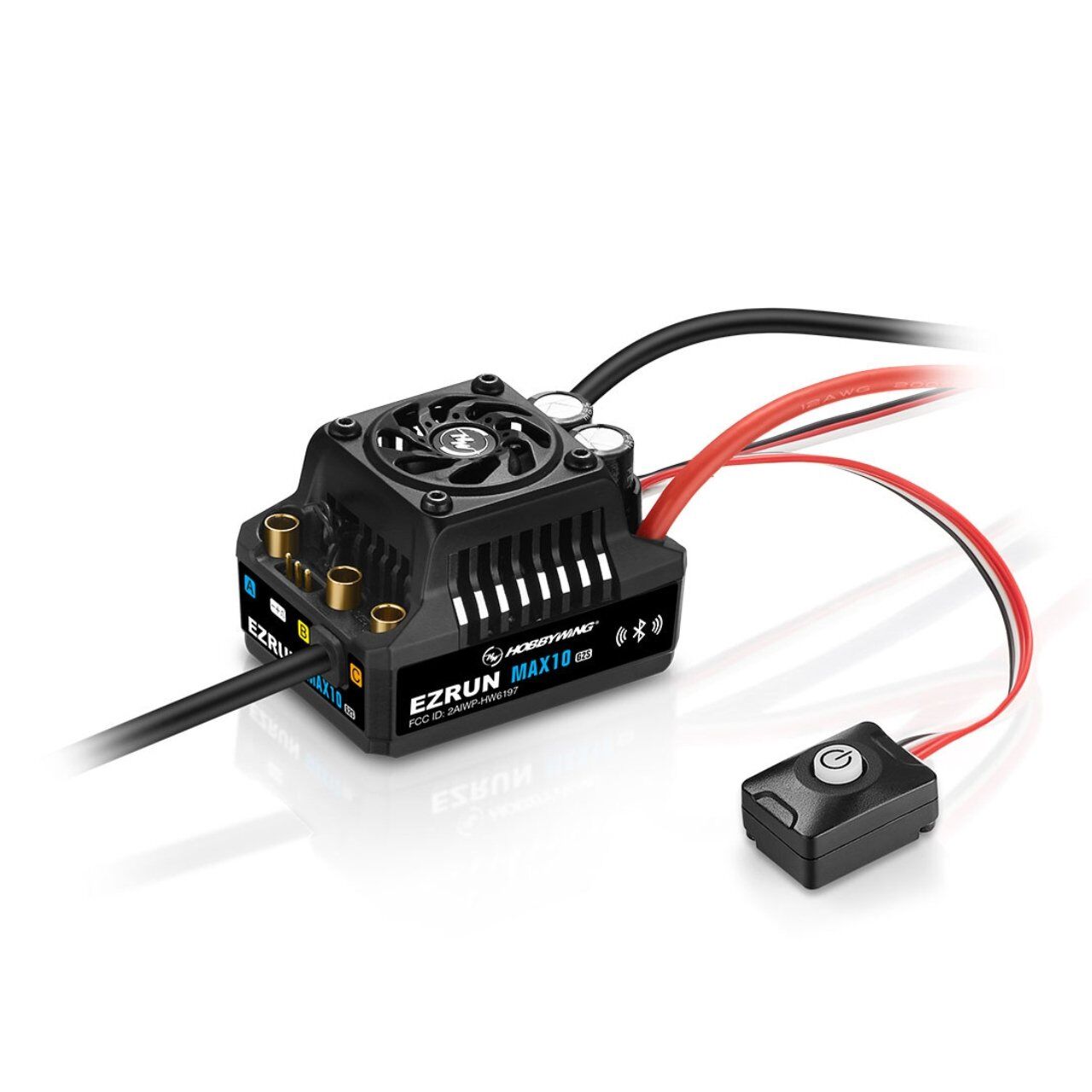

Product information "Hobbywing Ezrun MAX10 G2S ESC 140 Amp, 2-4s LiPo, BEC 5A"

The Ezrun MAX10 G2S is the consistent evolution of the MAX10 G2: identical power ratings, identical case - but an ESC that can be set up without any additional hardware. The Bluetooth module sits inside the power switch, the connection to the smartphone runs through the HW LINK app, and parameter setup, data review and firmware updates all run through it.

In sensored operation the ESC delivers linear, stable power across the entire speed range: strong on launch, precise in slow technical sections and consistent under sustained full throttle or over jumps. The housing with its integrated heatsink and the frameless fan, which discharges its air out of the sides, keep temperatures down. The fan stays off while temperatures remain low and only starts once a preset threshold is reached.

Three things are new compared to the MAX10 G2: the integrated Bluetooth, the internal data logging and the third BEC step of 8.4V for high-voltage servos.

Features

Bluetooth module integrated into the power switch - programming straight from a smartphone, no extra devices
Internal data logging of the last 10 minutes of runtime, reviewed graphically in the HW LINK app
Turbo timing up to 32 degrees - up to approx. 25% higher maximum RPM with an Ezrun 3652/3665 G3 motor
Three-step BEC: 6V / 7.4V / 8.4V at 5A in switch mode
Frameless fan with side air discharge, switched in by temperature
Waterproof sensor interface, dust- and waterproof to IP67
Capacitor overheat protection
Two programming routes: Bluetooth app or LCD program box
Firmware upgrade via the app
Protection against low voltage, overheating and loss of signal

Technical Specifications

Type	1/10 brushless, sensored and sensorless
Current (cont./peak)	140A / 880A
Input Voltage	2-4S LiPo
BEC	6V / 7.4V / 8.4V adjustable, 5A continuous (switch mode)
Motor Types	Brushless motors with and without sensor
Motor Limits	2S LiPo: KV <= 6000 (3652 size motor) 3S LiPo: KV <= 4000 (3665 size motor) 4S LiPo: KV <= 2600 (4268 size motor)
Turbo Timing	up to 32 degrees
Fan	Yes, powered by the BEC
Programming	Bluetooth (HW LINK app) LCD program box OTA program module
Programming Port	Separate, 3-pin
Waterproof	Yes, to IP67
Input	XT60
Output	Gold bullet sockets
Dimensions	53 x 39.5 x 37.2 mm
Weight	125 g (incl. wires and connectors)
Application	1/10 Short Course Truck, Truck and Monster Truck

Note: A 3S battery or larger is required for 7.4V or 8.4V at the BEC. Turbo timing and motor overheat protection only work with a supported Hobbywing motor, for example the Ezrun 3652/3665 SD G3. The effective Bluetooth range is approx. 5 m by design.
